Description
- Item Type: Stage Lighting Effect
- Model Number: 808MDLC-200mw-3350-DC12V/H
- Style: Mini
- Brand Name: Jolooyo
- Occasion: Home Entertainment
- Voltage: 12V
- Power: 200mw

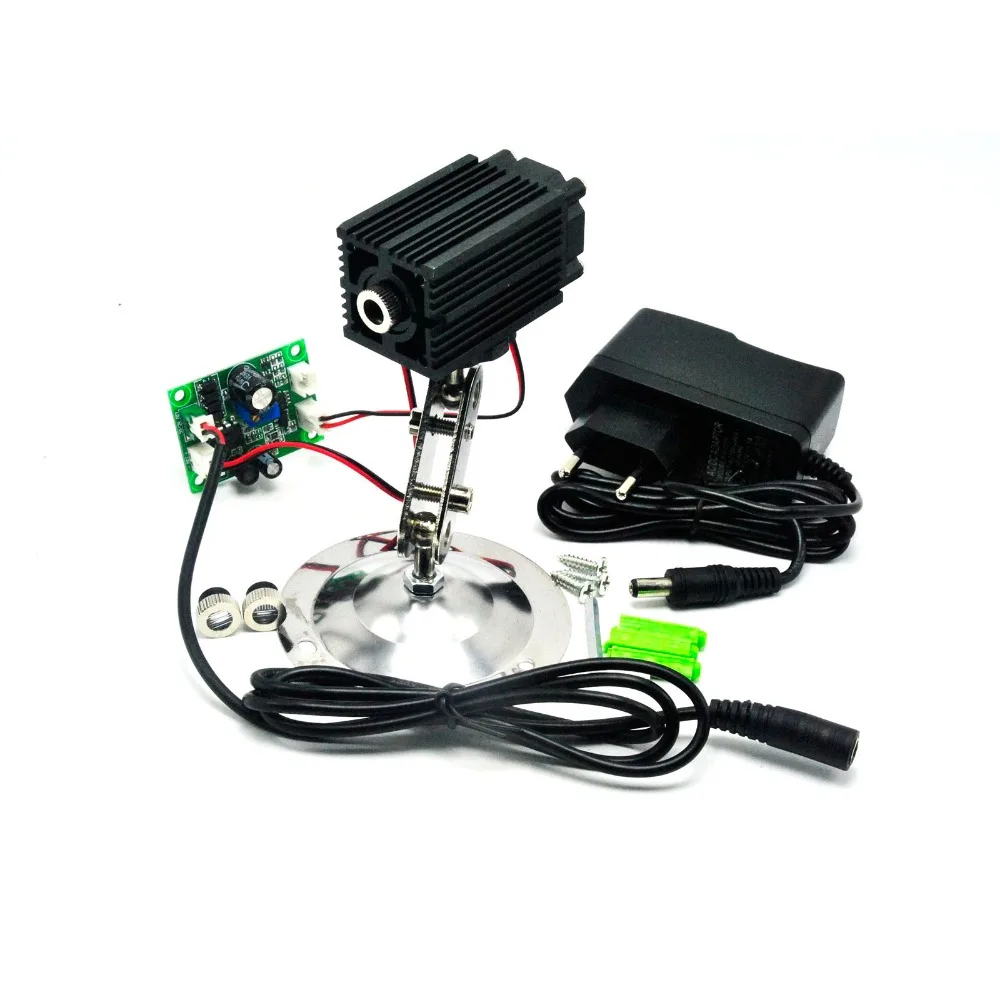

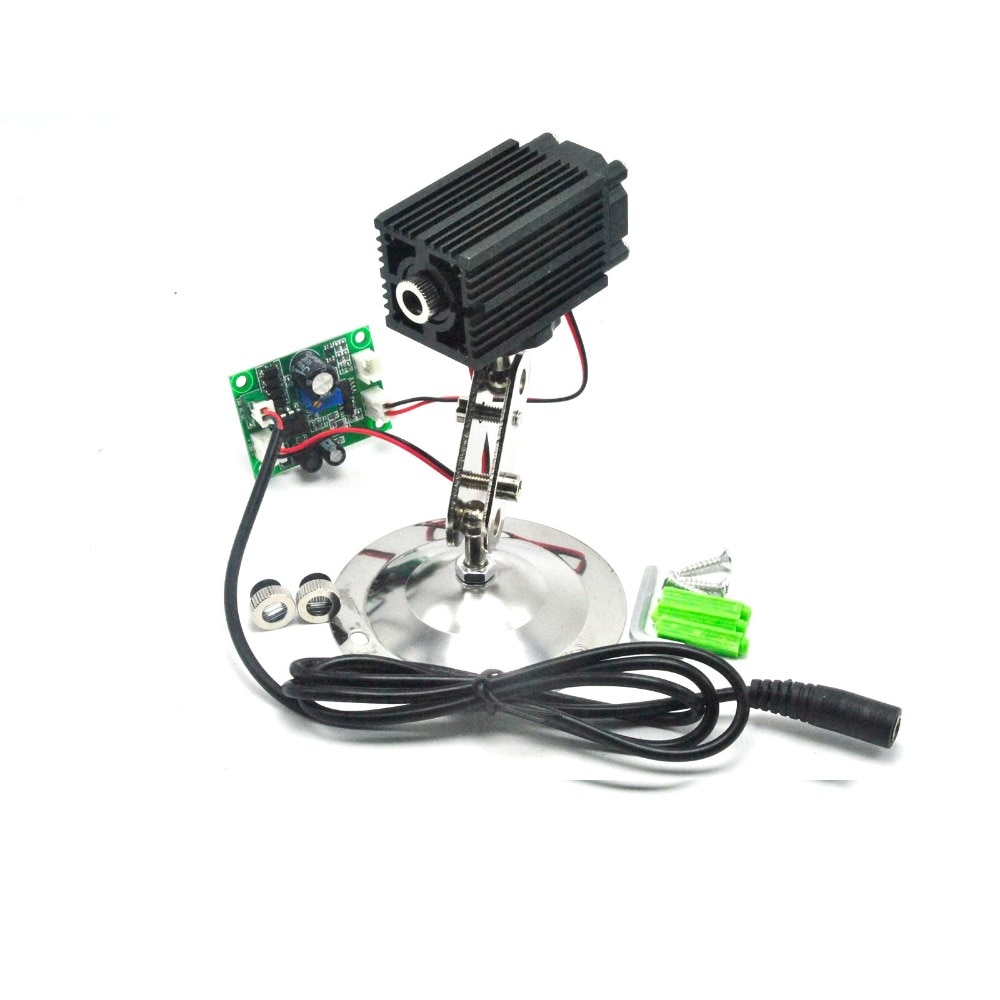

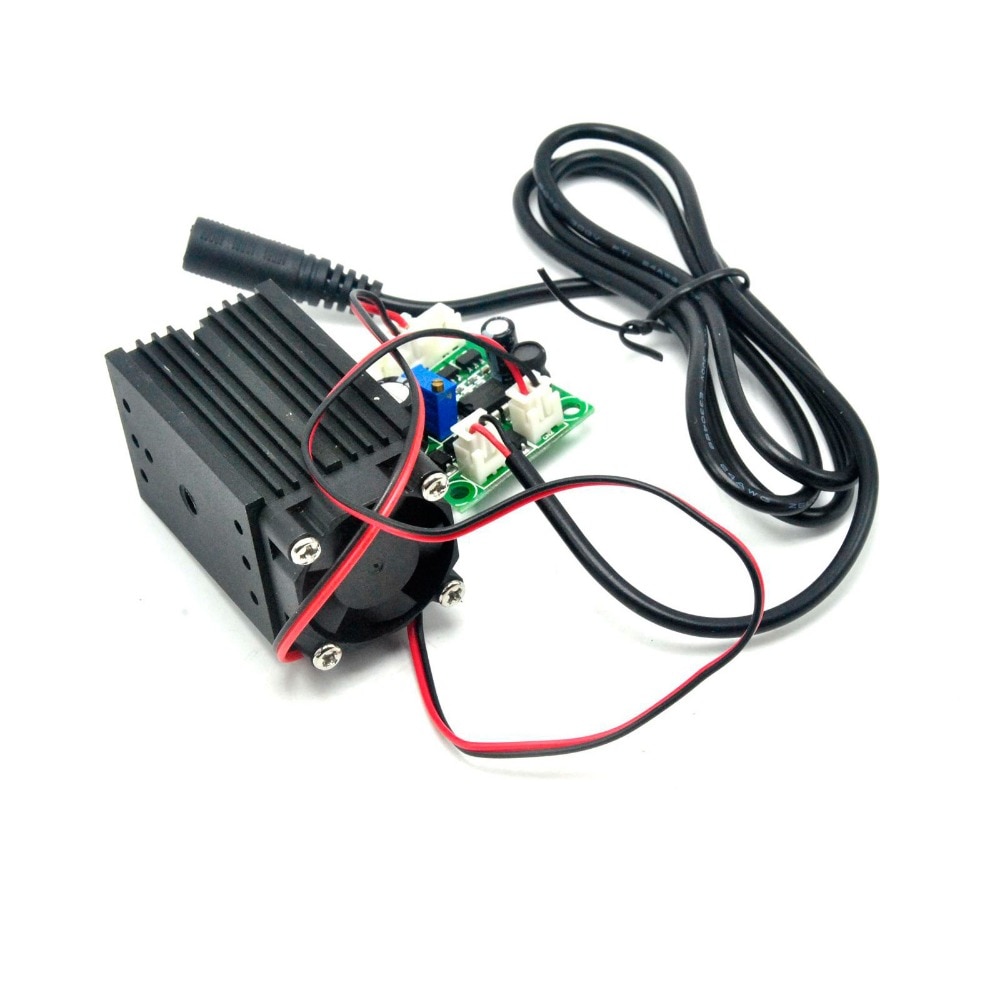

Focusable 808nm 200mW Infrared IR Laser Diode Dot/Line/Cross Module w/ holder and 12V 1A Adapter TTL modulation
Parameters
Wavelength: 808 nm
Output power: <200mW
Laser shape: Dot,Line and Cross
Focusable: YES
Modulation frequency: Adujstable TTL modulation
Working: Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

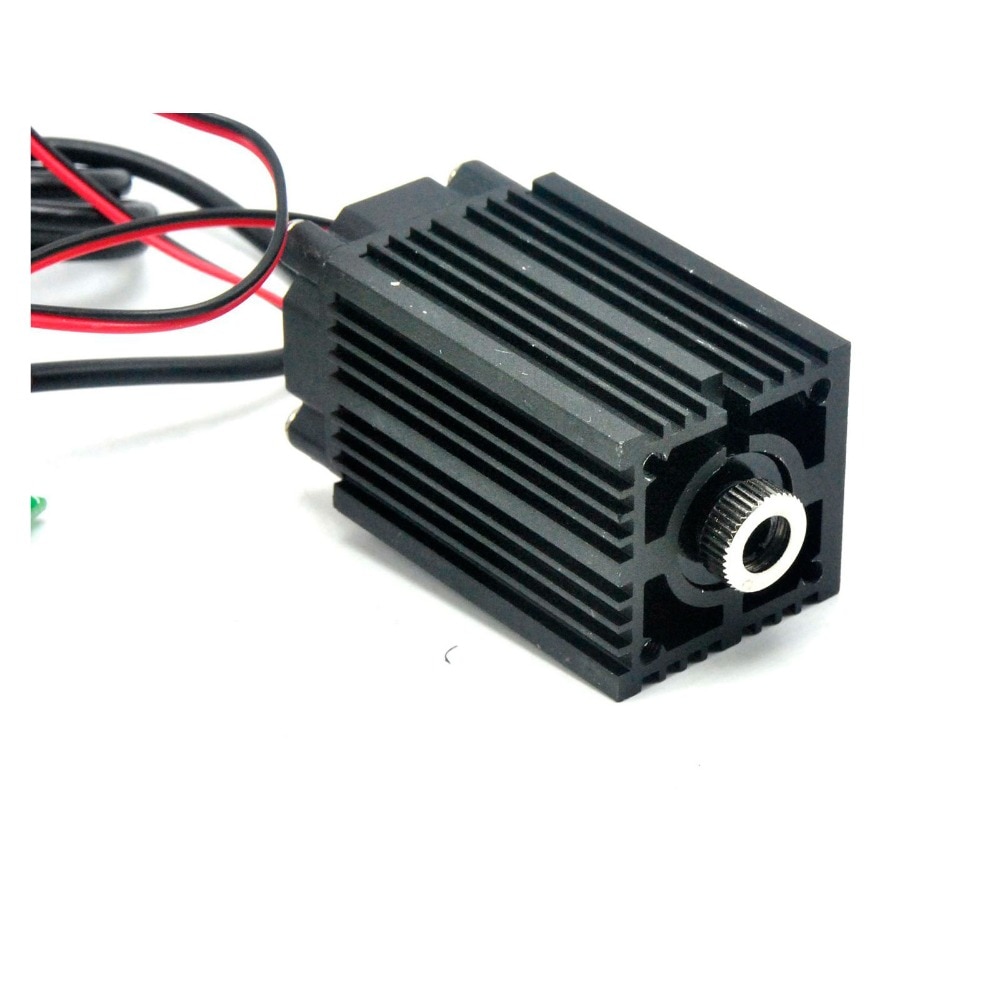

Laser head size: 50mmx33mmx33mm

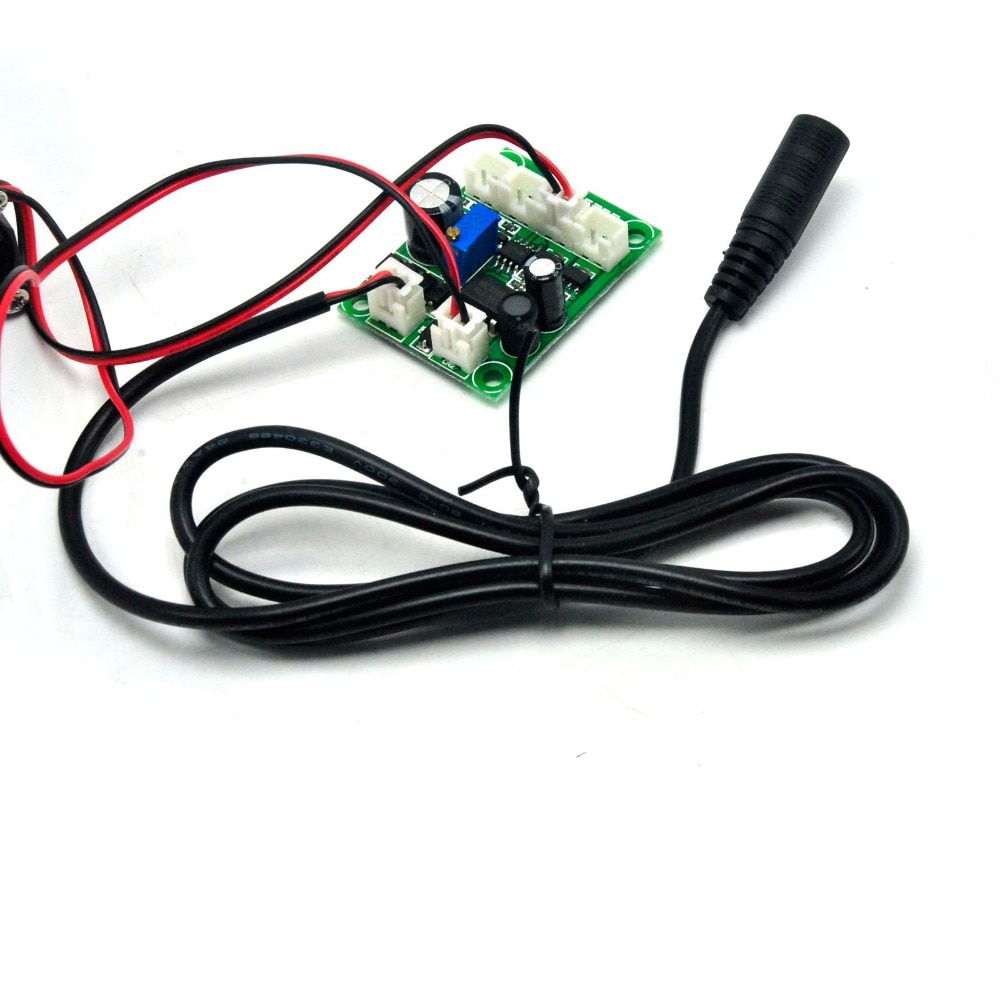

Circuit Board size: 45mm * 34mm
Output power: <200mW
Laser shape: Dot,Line and Cross
Focusable: YES
Modulation frequency: Adujstable TTL modulation
Working: Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Laser head size: 50mmx33mmx33mm
Circuit Board size: 45mm * 34mm
Note:
808nm is IR lasers which can only seen a weak red light. It's normal .. Please test it by DDC / infrared camera,
The light will be expander and the beam spot is rectangular, make sure you know it before order.thanks
Package
1pc 808nm 200mW Laser Dot Module
2pcs lens（Line&Cross）
1pc 12V 1A Adapter
1pc Holder
