Description
- Brand Name: laserland
- Certification: NONE
- Origin: CN(Origin)

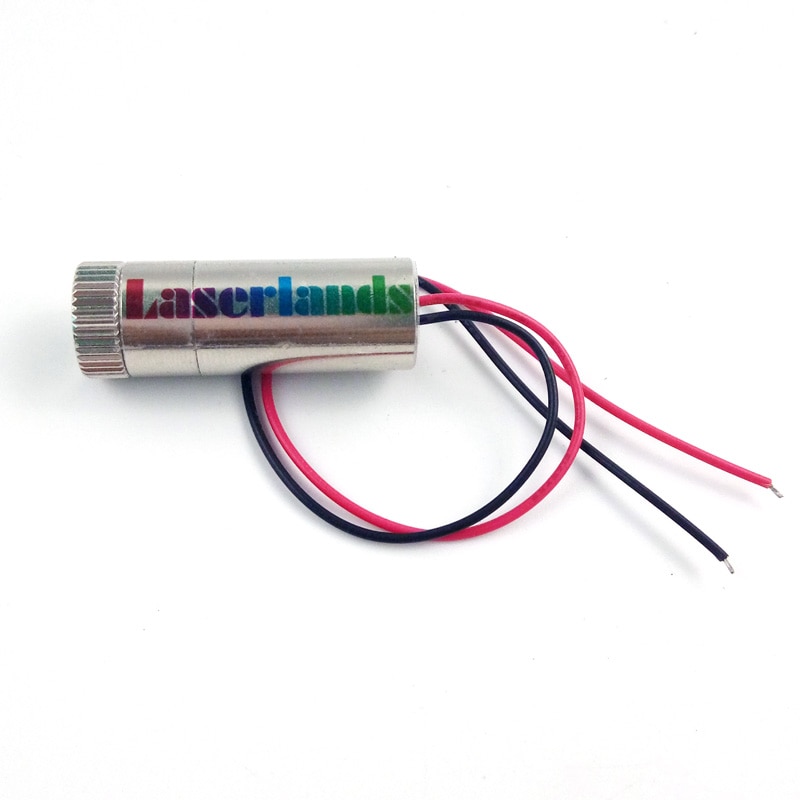

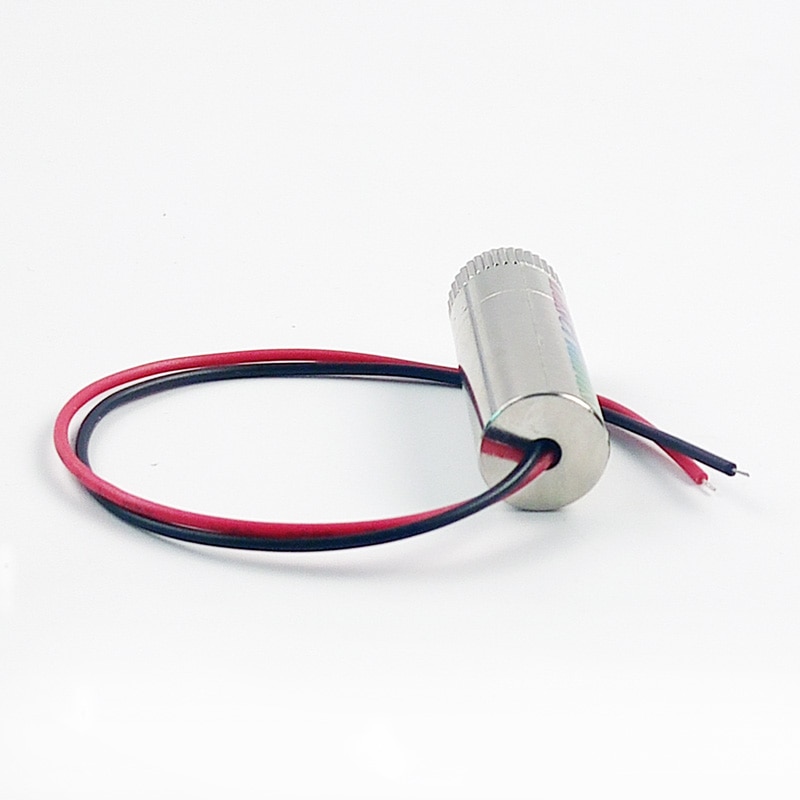

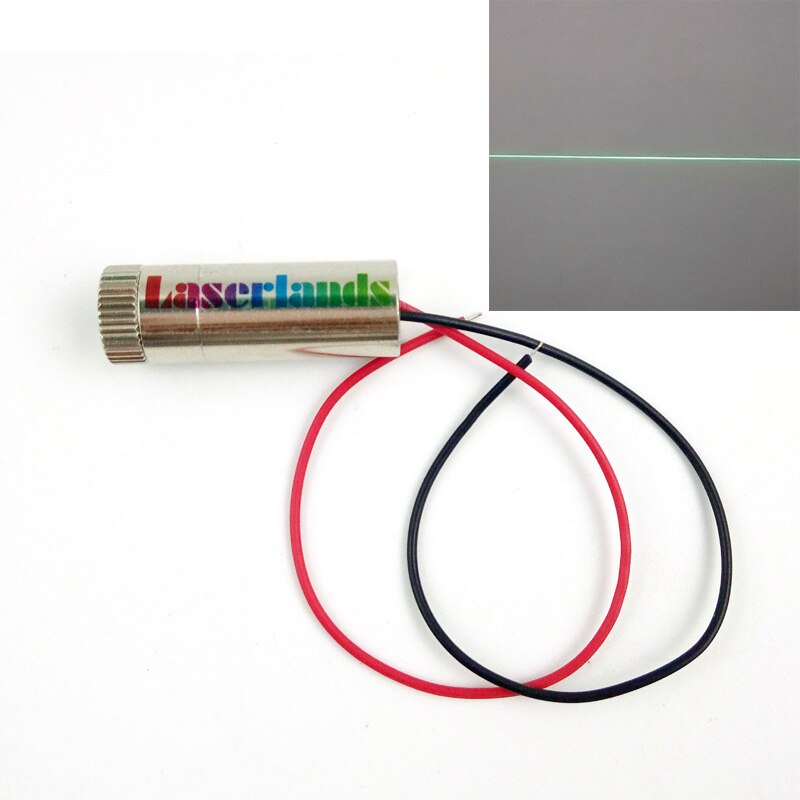

Focusable 780nm 80mW Infrared IR Laser Line 90 degree Diode Module
New 780nm 80mW Infrared IR Laser Line 90° Diode Module
Specification
Model 780ML(90)-80-1235
Output Power 80mw
Working Current <350mA
Working Voltage 3-3.6VDC
Wavelength 780nm
Focusable Yes
Duty Circle 1 min without heatsink
Electronical Pole Red wire to “+” and BLK to “-”
Working Temperature -10 ~40 centi-degree
Laser Shape Line

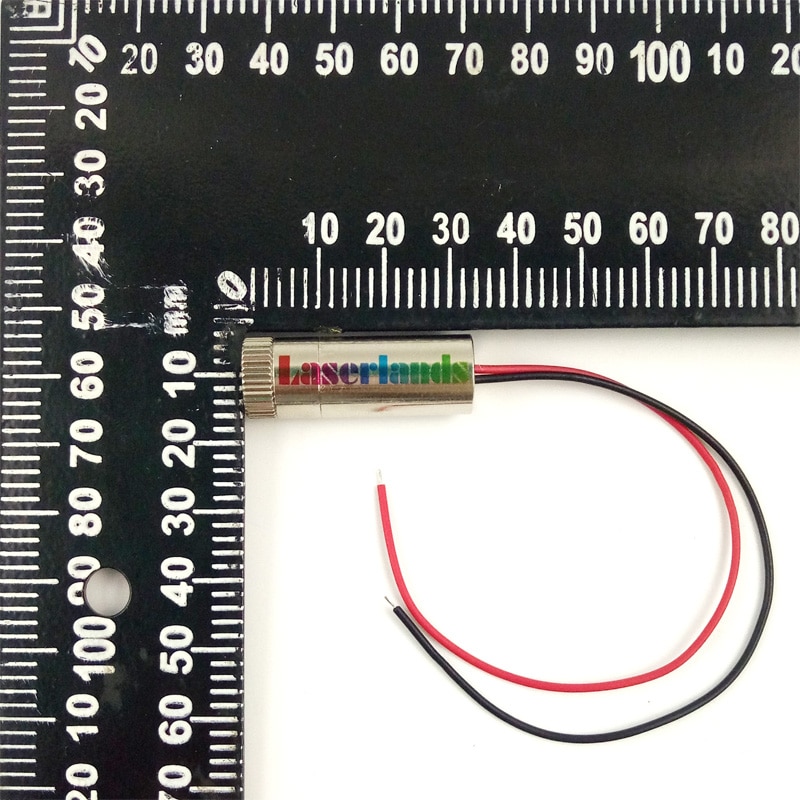

Dimensions Ø12mmX35mm

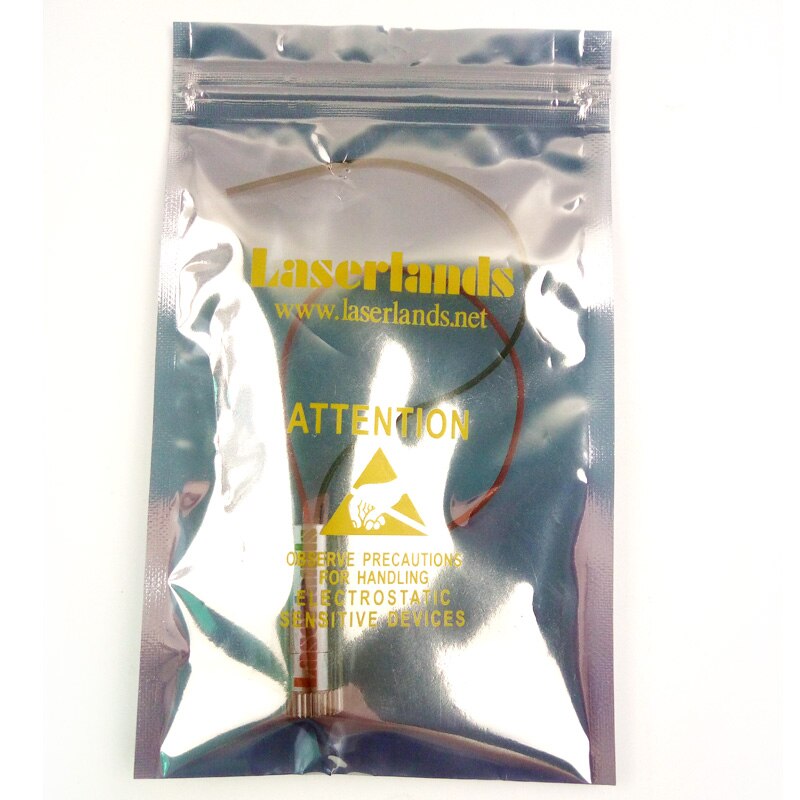

Package 780nm 80mw laser module
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
