Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: FFS-80D
- Type: Fiber fusion splicer
- Place of Origin: China
- Brand Name: FCST
- Use: FTTH
- Warranty Time: 24months
- Splicing mode: Auto Calibrate Normal Special
- Applicable fibers: SM MM DS NZDS
- Size: 120mm(W)*130mm(H)*154mm(D)
- Fiber Count: Single
- Tension: 1.96~2.25N
- Motor qty: 6
- Weight: 1.8kg/2.1kg
- Warranty: 2 Years
- Splicing time (typical): 7s (Fast mode)
- Graphical display: High-performance 4.3 inch LCD
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:497px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:-144px;margin-left:9px;width:750px;height:750px}#detail_decorate_root .magic-4{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:-64px;margin-left:-67px;width:496px;height:496px}#detail_decorate_root .magic-6{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-7{margin-top:-69px;margin-left:-61px;width:494px;height:494px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:331px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:376px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-12{vertical-align:top}#detail_decorate_root .magic-13{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-14{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-15{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-16{text-align:center}#detail_decorate_root .magic-17{font-size:26px}#detail_decorate_root .magic-19{width:446px}#detail_decorate_root .magic-20{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-22{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:239.5397489539749px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:-5px;margin-left:0;width:750px;height:239.5397489539749px}#detail_decorate_root .magic-25{overflow:hidden;width:247.33333333333334px;height:185.45685043033265px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-27{overflow:hidden;width:247.33333333333334px;height:185.2496626180837px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:450px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:-11px;margin-left:-2px;width:750px;height:459px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:291px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:291px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:920.5921938088828px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:920.5921938088828px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:328.5953177257525px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:328.5953177257525px}

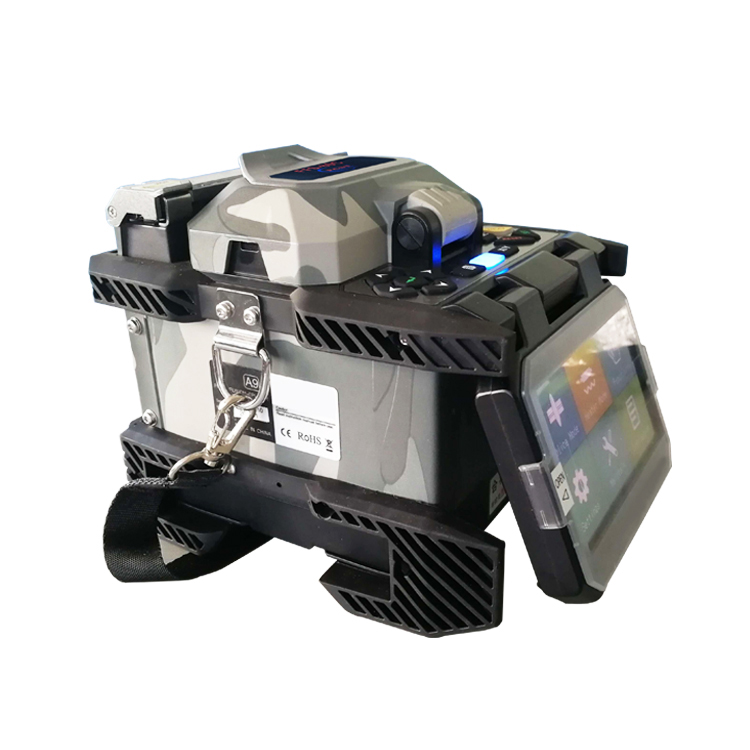

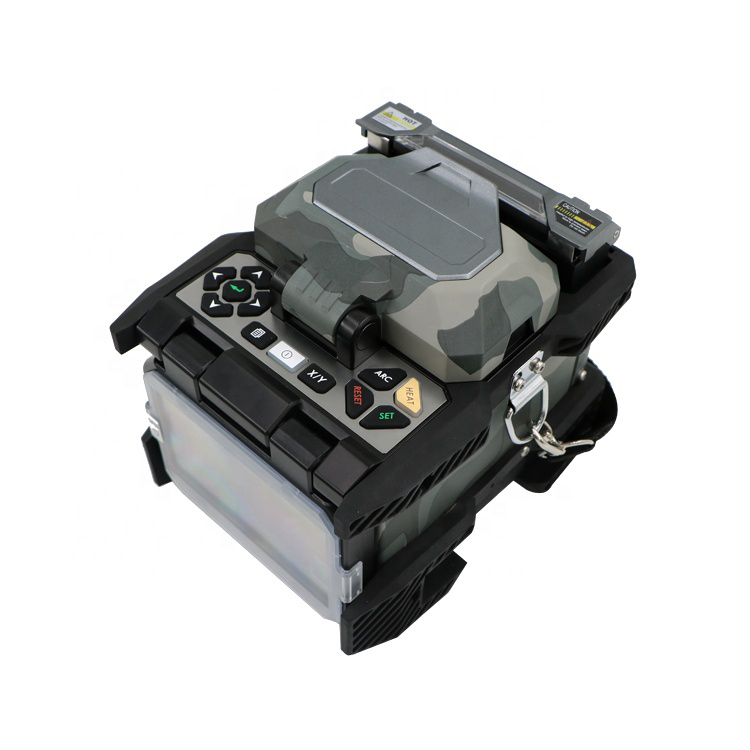

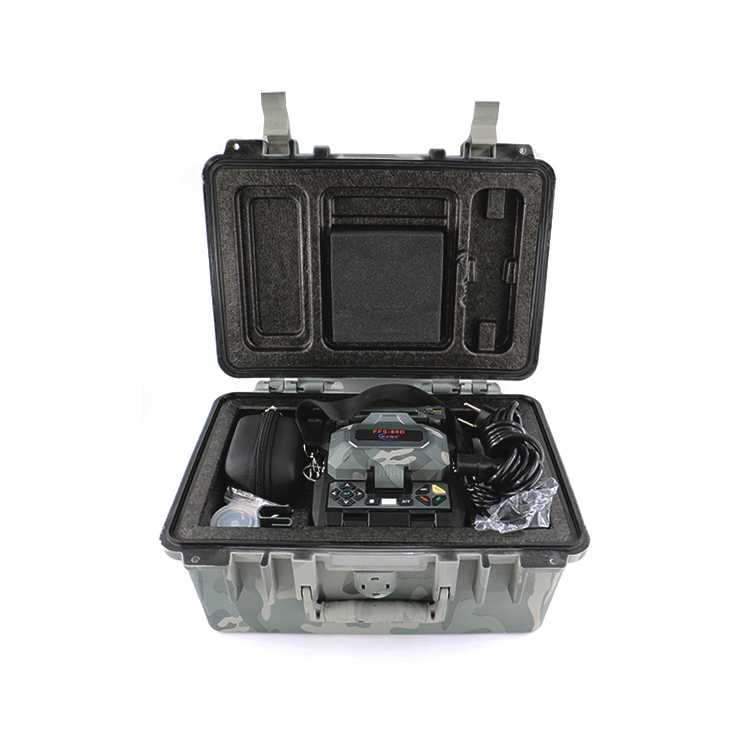

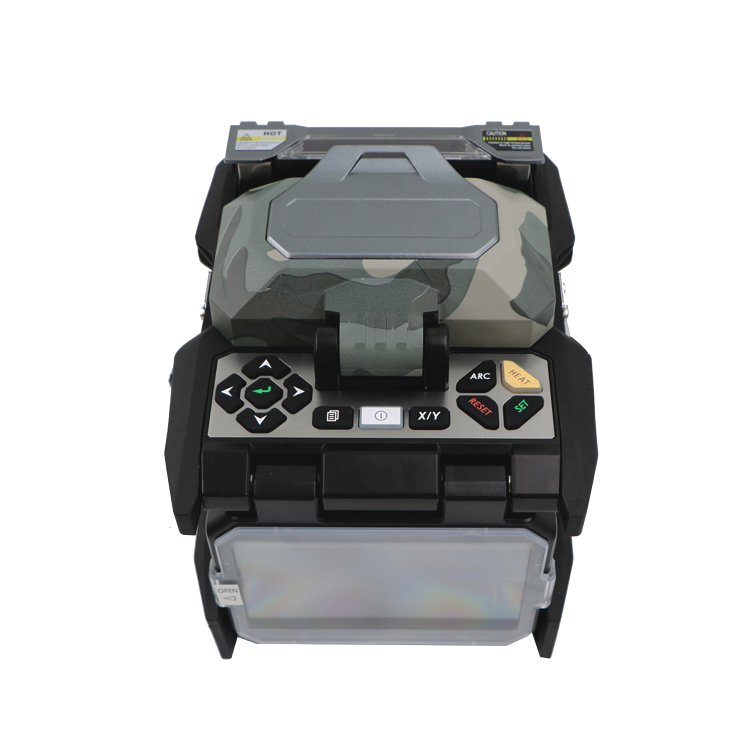

Product Views
|
Construction
|
Description
|
|
Model
|
FFS-80D Optical Fiber Fusion Splicer
|
|
Motor Qty
|
6
|
|
Alignment Method
|
Cladding alignment, manual alignment
|
|
Applicable Fibers
|
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),
NZDS(ITU-T G.655)，EDFA, others(including G.657) |
|
Optical Fiber Diameter
|
Cladding: 80～150μm, coating layer: 0.1～3mm
|
|
Cleave Length
|
5～16mm（coated optical fiber diameter≤250μm）；
10mm（coated optical iber diameter：0.25~3mm） |
|
Splice Loss（typical）
|
0.02dB（SMF）; 0.01dB（MMF）; 0.04dB（DSF）; 0.04dB（NZDSF）
|
|
Return Loss
|
Better than 60dB
|
|
Splicing Time (typical)
|
7s (Fast mode)
|
|
Heating Time (typical)
|
18s（60mm protection sleeve）
|
|
Tension
|
1.96～2.25N
|
|
Protection Sleeve
|
60mm, 40mm and a series of protection sleeves
|
|
Graphical Display
|
High-performance 4.3 inch LCD
|
|
Magnification Time
|
320 times/88 times
|
|
Fusion Records
|
10000 groups
|
|
Remote Maintenance
|
N/A
|
|
Battery Capacity
|
11.1V, 6800mAh
|
|
Battery Service Life
|
Cycle charging: 300～500 counts, can be replaced by customers
|
|
Electrode Service Life
|
Typical: 4000 counts, can be replaced by customers
|
|
Construction Lighting
|
Built-in lights with high-brightness and wide lighting area
|
|
Working Environment
|
Temp:-10～50℃；Hum: 0～95%RH，height above sea level: 0～6000m
|
|
Operation Interfaces
|
GUI (graphical user interfaces)
|
|
External Power
|
AC: 100～240V, 60Hz, 0～1.5A; DC: 10～15V
|
|
Port
|
USB / SD
|
|
Dimensions
|
120mm（W）×130mm（H）×154mm（D）（without rubber anti-vibration pad）
|
|
Weight
|
1.8kg（the battery not included）, 2.0kg（included the battery）
|
Recommend Products
Company Information
Fiber Cable Solution Technology Co.,Ltd (FCST) was established in 2003, which is a leading FTTH solution provider in the field of
telecommunication.Our business has been extended to R&D, manufacturing, marketing in oversea market. Including Europe, South
American, North American, Asia, Africa.FCST can offer four main solutions for FTTH(Fiber To The Home) as following: Underground
Cable Installation Solution, Aerial Cable Installation Solution, ODN Solution, Fiber Optic Test Solution. Welcome select our
products for your business option and let’s create more cooperation opportunity together.
telecommunication.Our business has been extended to R&D, manufacturing, marketing in oversea market. Including Europe, South
American, North American, Asia, Africa.FCST can offer four main solutions for FTTH(Fiber To The Home) as following: Underground
Cable Installation Solution, Aerial Cable Installation Solution, ODN Solution, Fiber Optic Test Solution. Welcome select our
products for your business option and let’s create more cooperation opportunity together.
Our Team
Exhibition

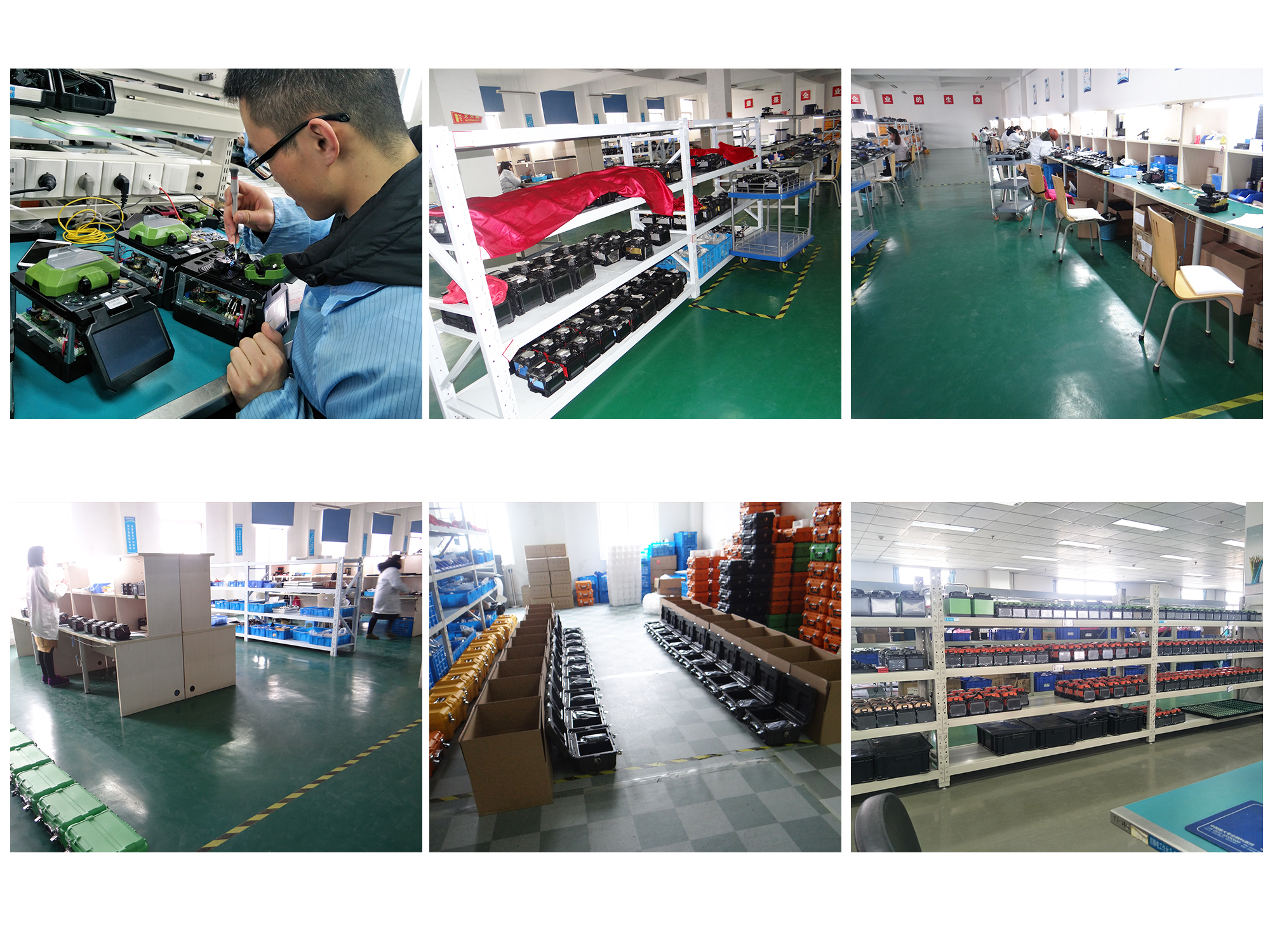

Our Factory

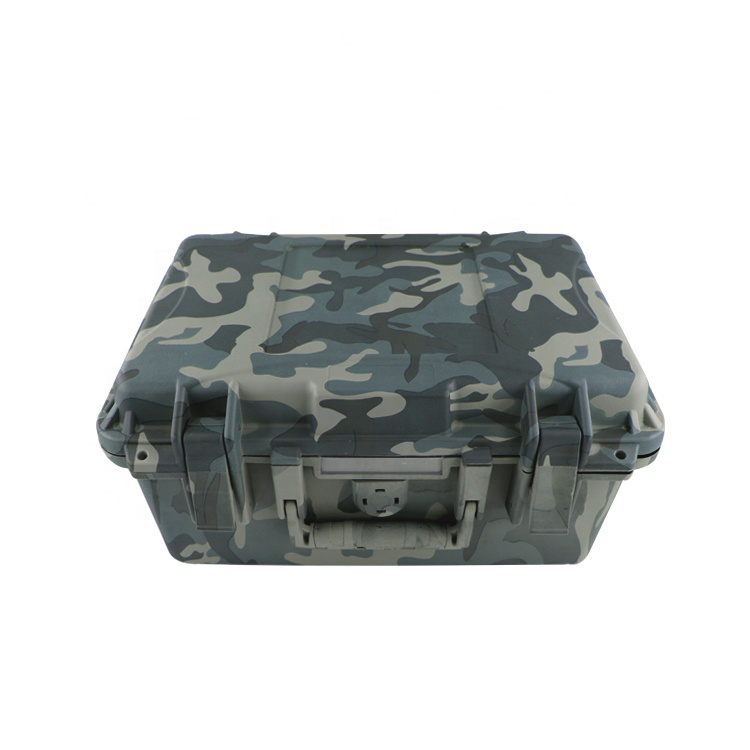

Product Packaging

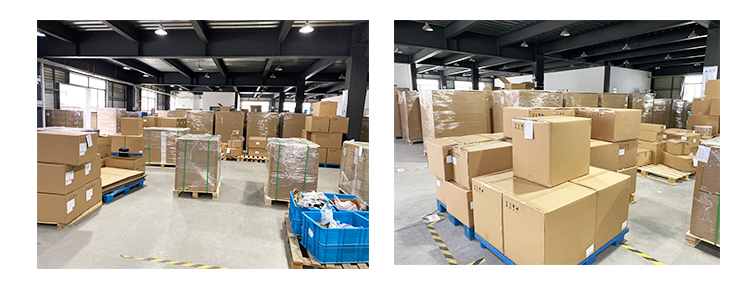

Shipping

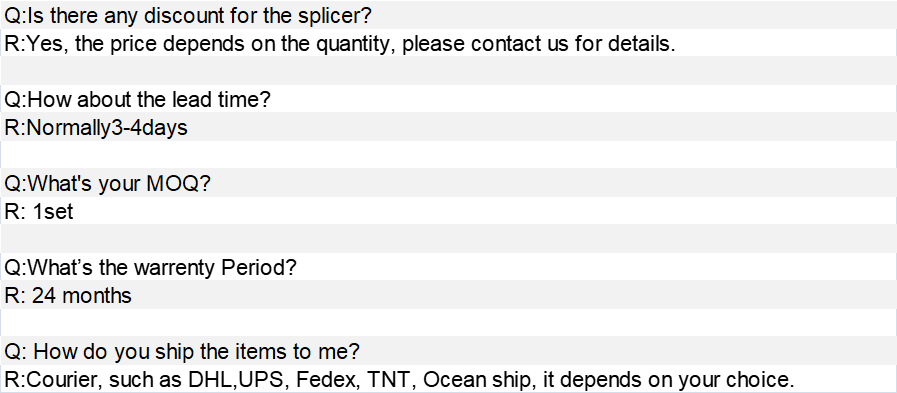

FAQ
