Description
- Focal Length: /
- Size: 93mm *52mm *25mm(L*W*H)
- Measurement Range: VL, UV,IR Peak wavelength: 530nm, 365nm, 950nm
- Wavelength Range: /
- Brand Name: YINCALI
- Model Number: LS160
- Type: Split Beam Spectrometers
- Weight: 65g
- VL Peak wavelength: 530nm
- Thickness of testing sample: < 0.8mm
- Accuracy: /- 2%(Colorless and transparent material)
- Resolution: 1%
- IR Peak wavelength: 950nm
- UV Peak wavelength: 365nm
- Warranty: One year
Feature:
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Small size, portable product for transmission value measurement.

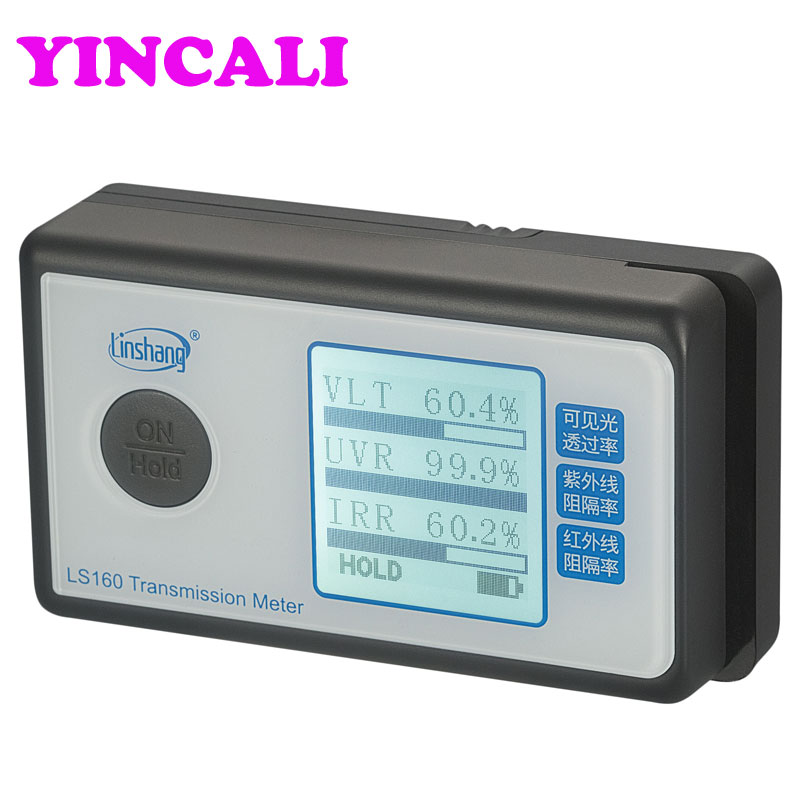

3. Simple operation, putting the testing sample in the ““OPENING”“, UV, Visible and Infrared transmission values of the sample will simultaneously display.
4. using for window film, solar film and other transparent material testing.
Details:

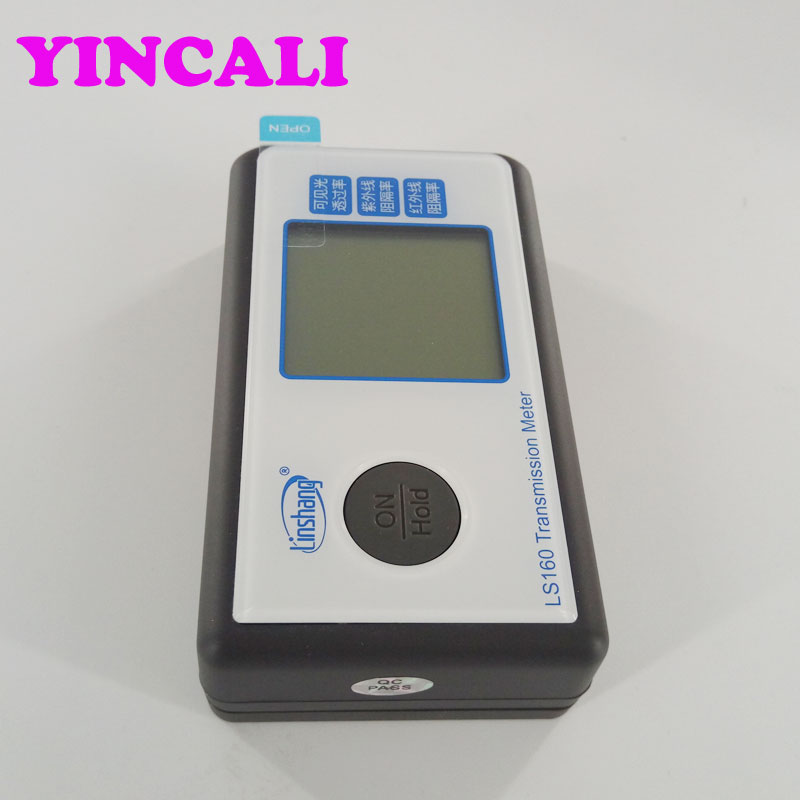

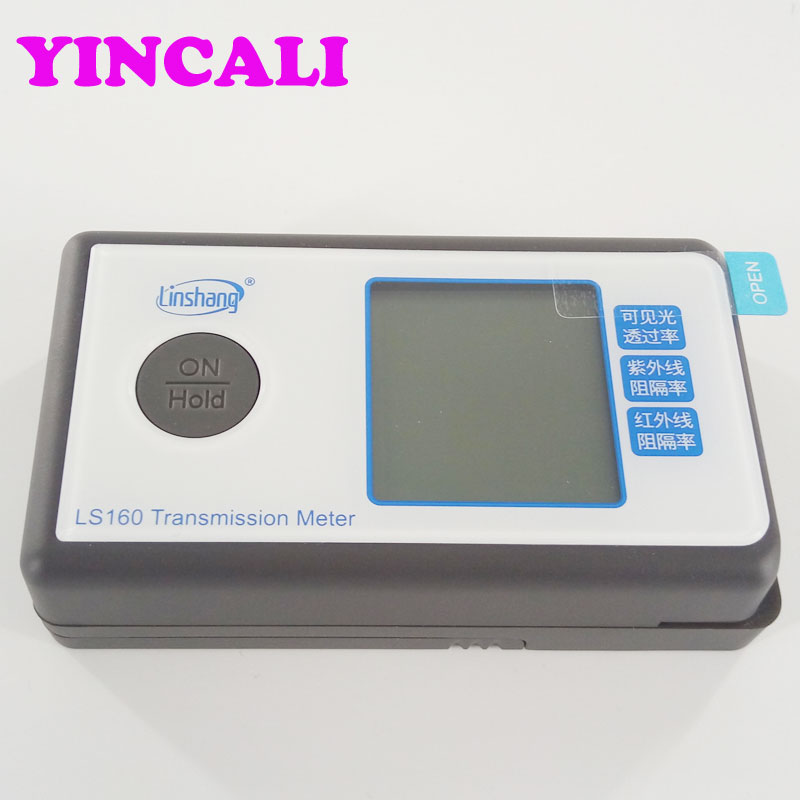

LS160 Solar Film Transmission Meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, Visible and Infrared transmission values.
Parameter:
1. Size: 93mm *52mm *25mm(L*W*H)
2. Weigh: 65g (exclude batteries)
3. Thickness of testing sample: < 0.8mm
4. Resolution: 1%
5. Accuracy:+/- 2%(Colorless and transparent material)
6. VL Peak wavelength: 530nm
7. UV Peak wavelength: 365nm
8. IR Peak wavelength: 950nm
9. Battery: 4*AAA alkaline battery (not include)
​Because of the customs policy, The parcel not include the battery.
