Description
- Brand Name: KKMOON
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: CN(Origin)
- Model Number: Multimeter
- AC Current: 10A
- Is Smart Device: No
- AC Voltage: 600V
- Measuring Resistance Range: 600Ω~60MΩ
- Operating Mode: —
- Measuring Inductance Range: —
- Display Type: Digital Display
- DC Current: 10A
- DC Voltage: 600V
- Measuring Capacitance Range: 6nF~60mF
- Dimensions: 143 * 77.5 * 23mm / 5.6 * 3.1 * 0.9in
Type1:

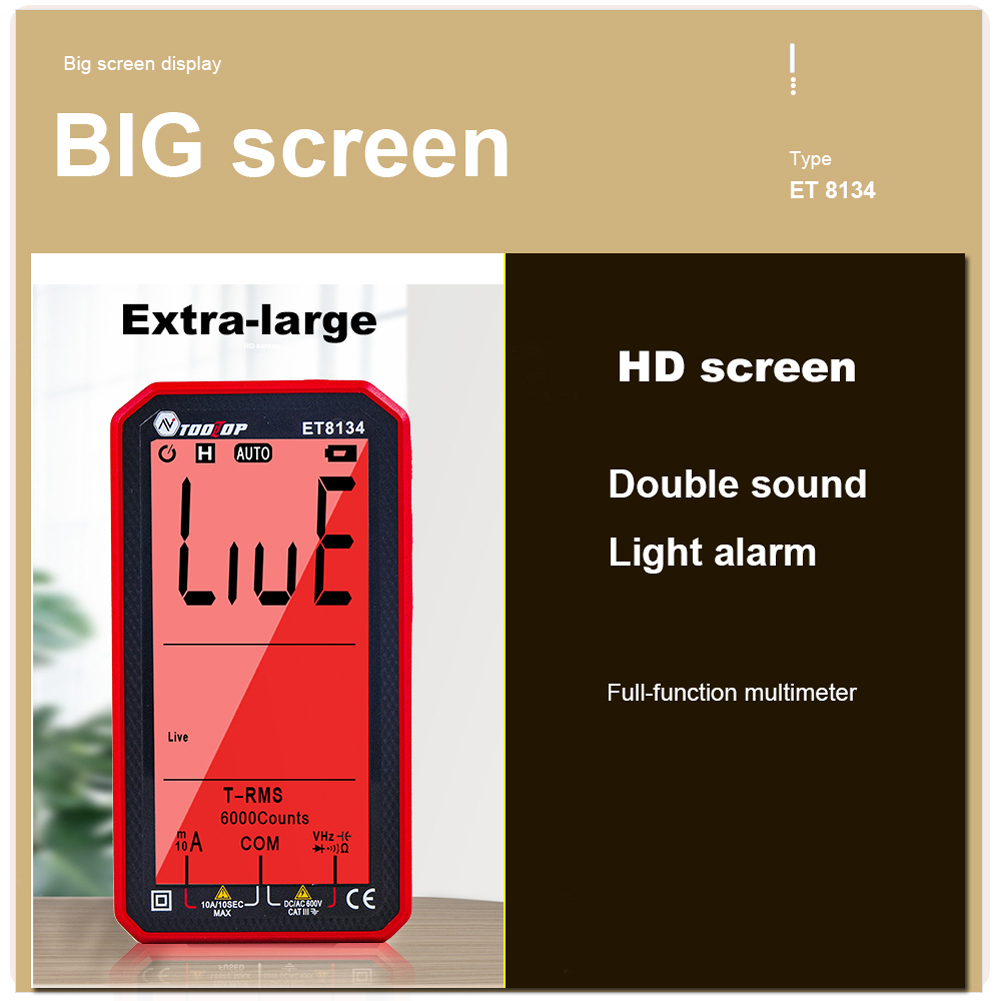

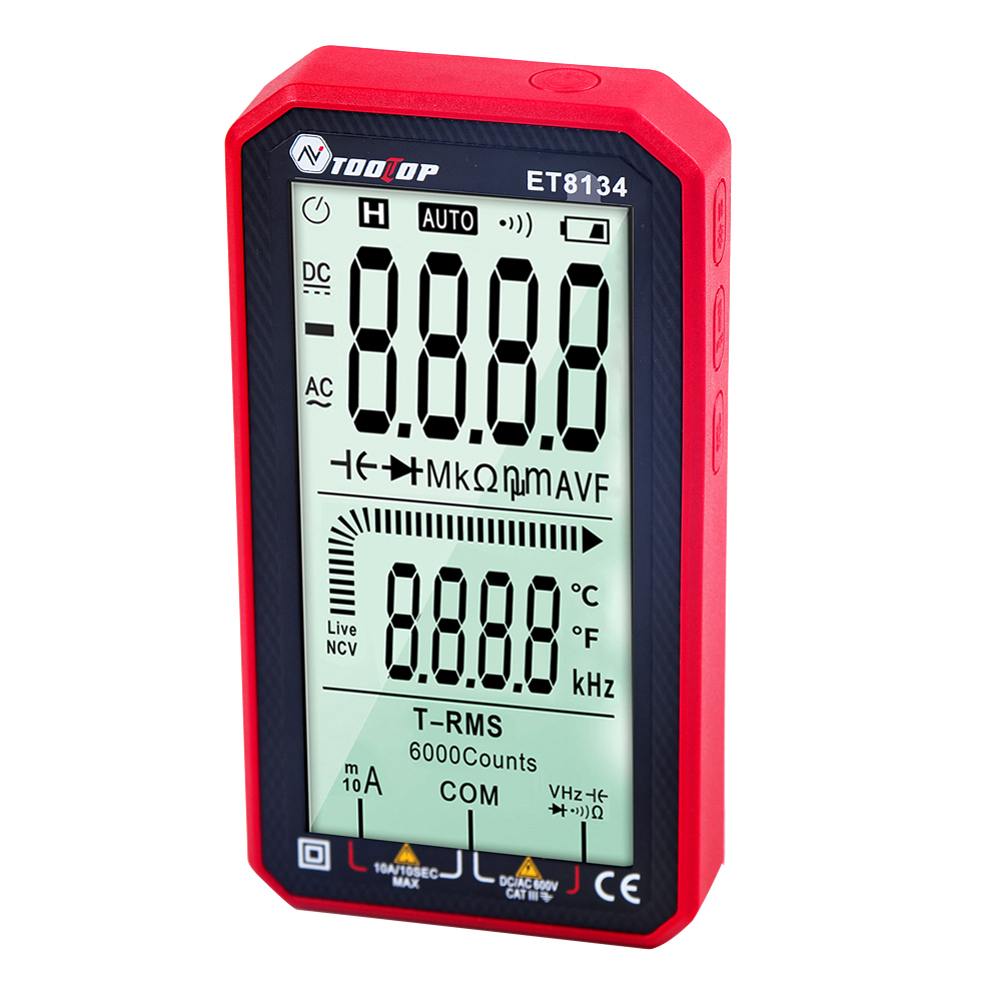

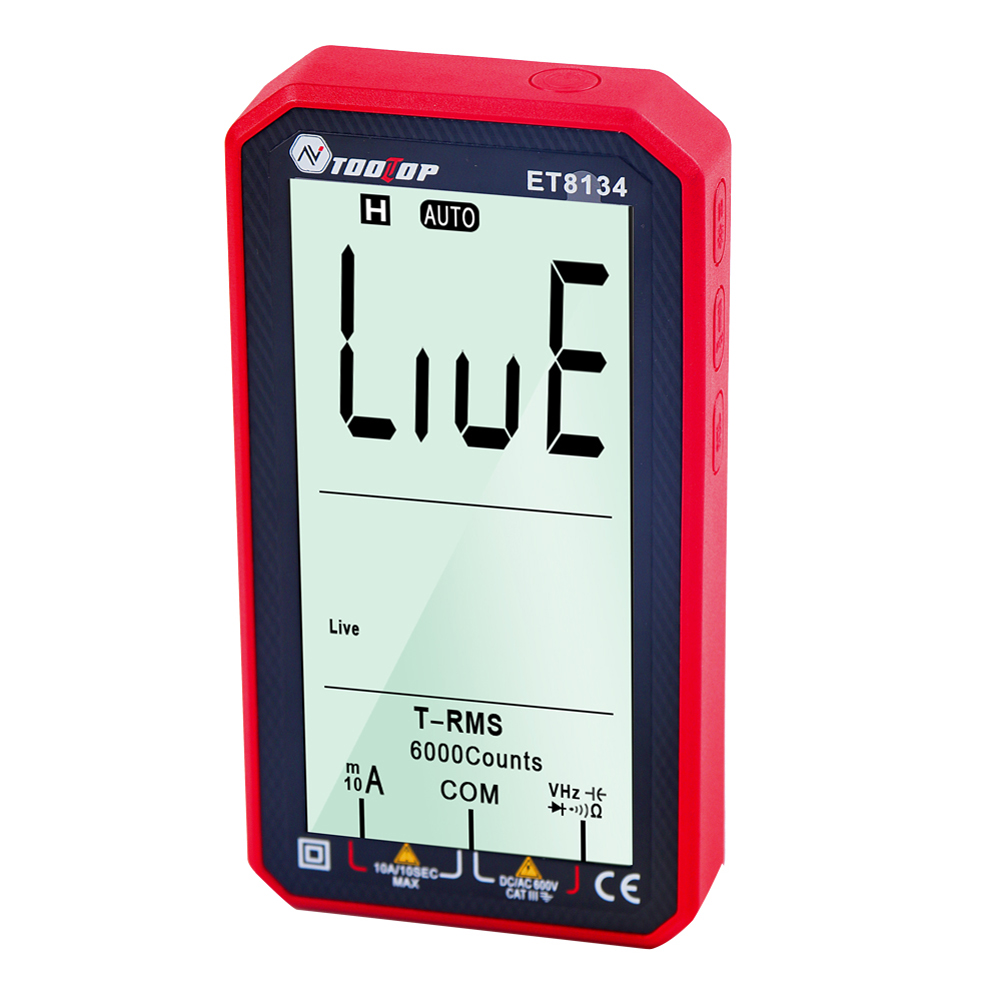

This multimeter with the large LCD display screen, and it is small in size, like a phablet, more practical and novel. With multifunction like AC voltage, direct current voltage and current measurement, resistance, capacitance, diode measurement and so on. Come on and try it, it will not let you down.

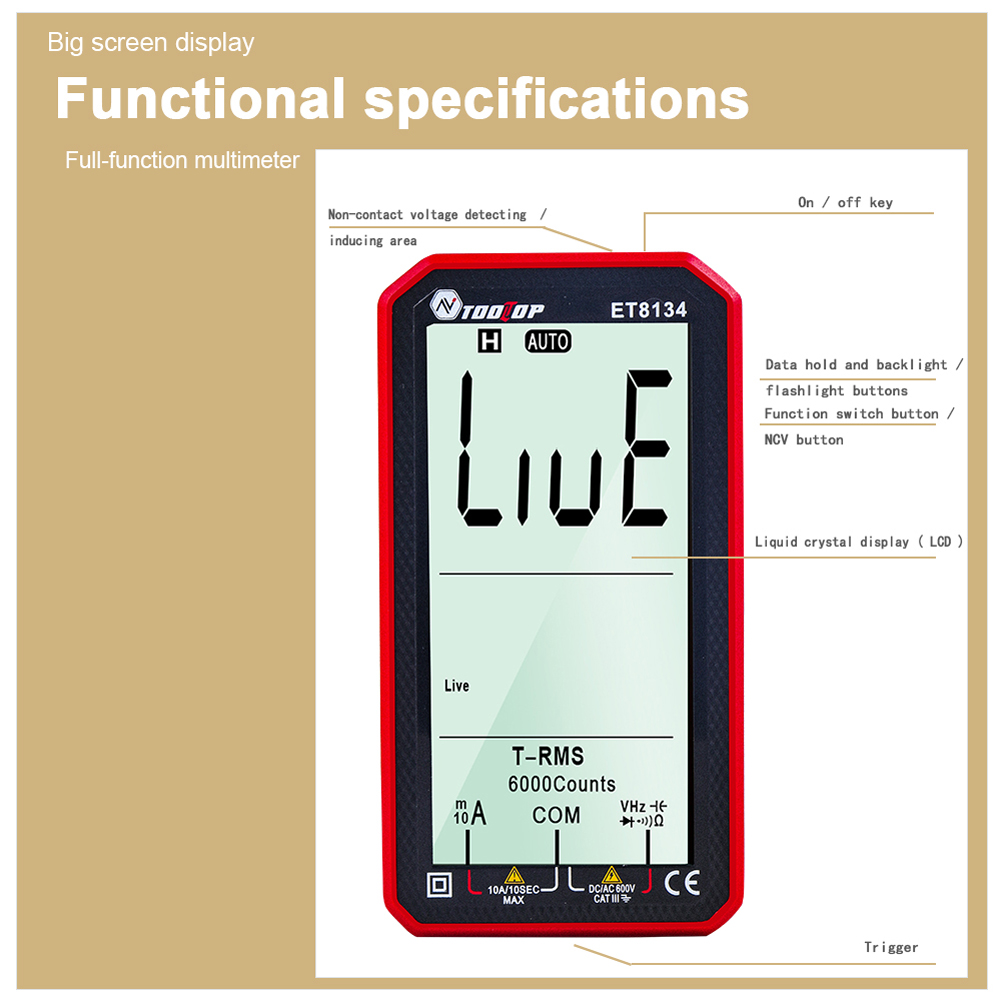

Features:

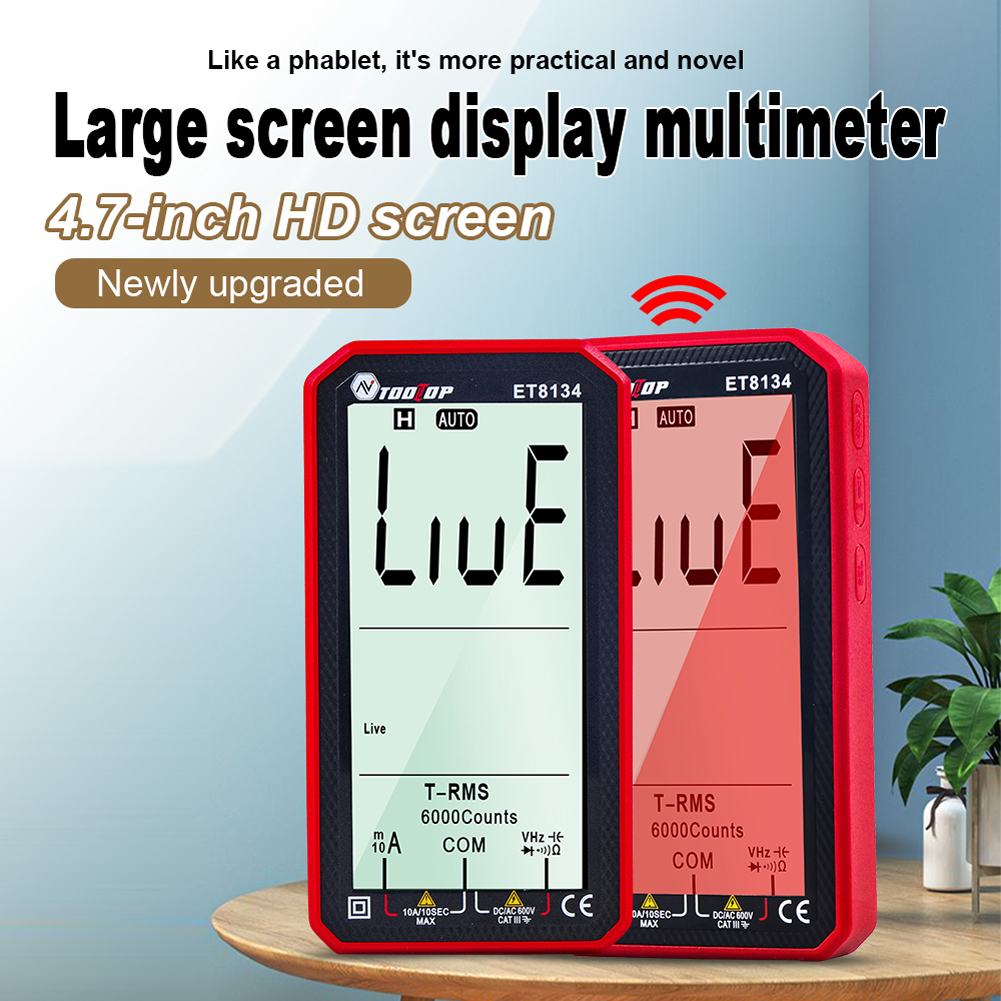

With 4.7inch screen, which can let you operate and see the data more clearly, give you a better using experience.

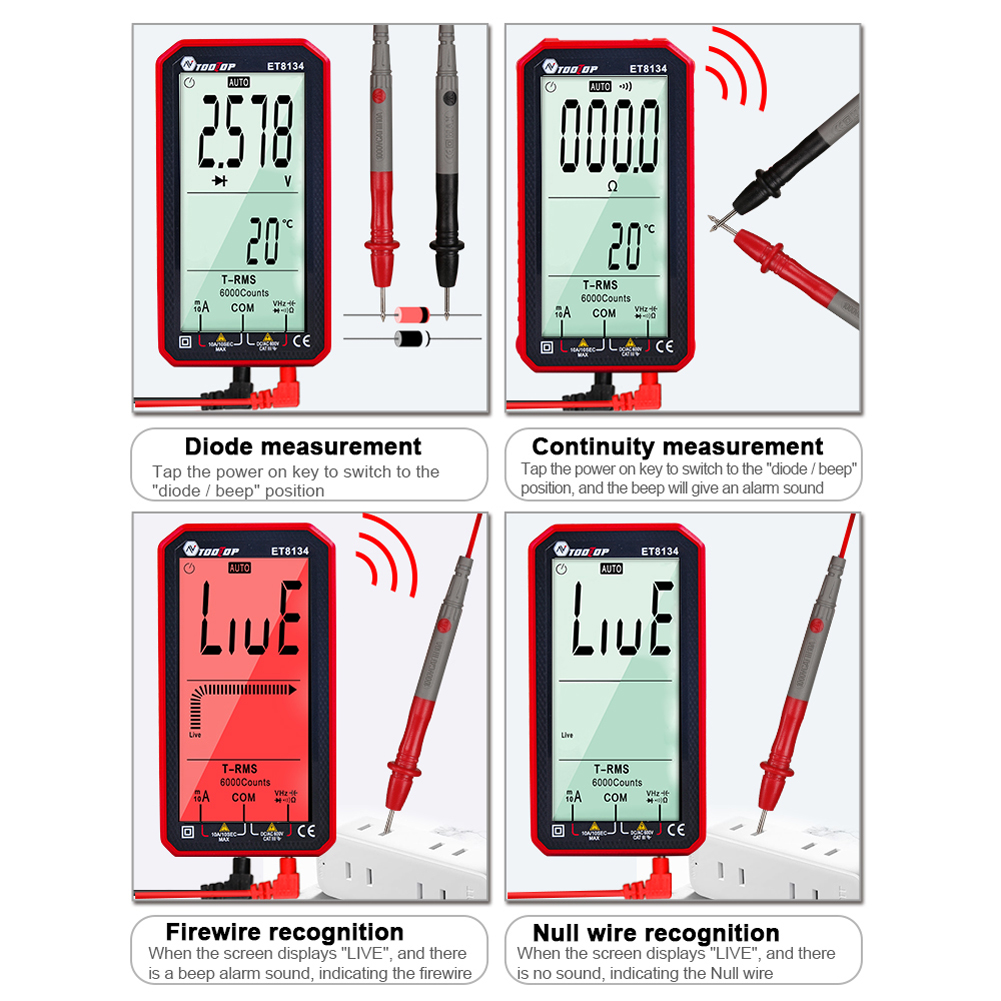

Multifunction: It can be used for AC and direct current voltage and current measurement, capacitance and resistance measurement, NCV non contact voltage and temperature measurement, diode and continuity measurement, firewire and null wire recognition.
With the double sound and light alarm function, which can remind you in a better way.

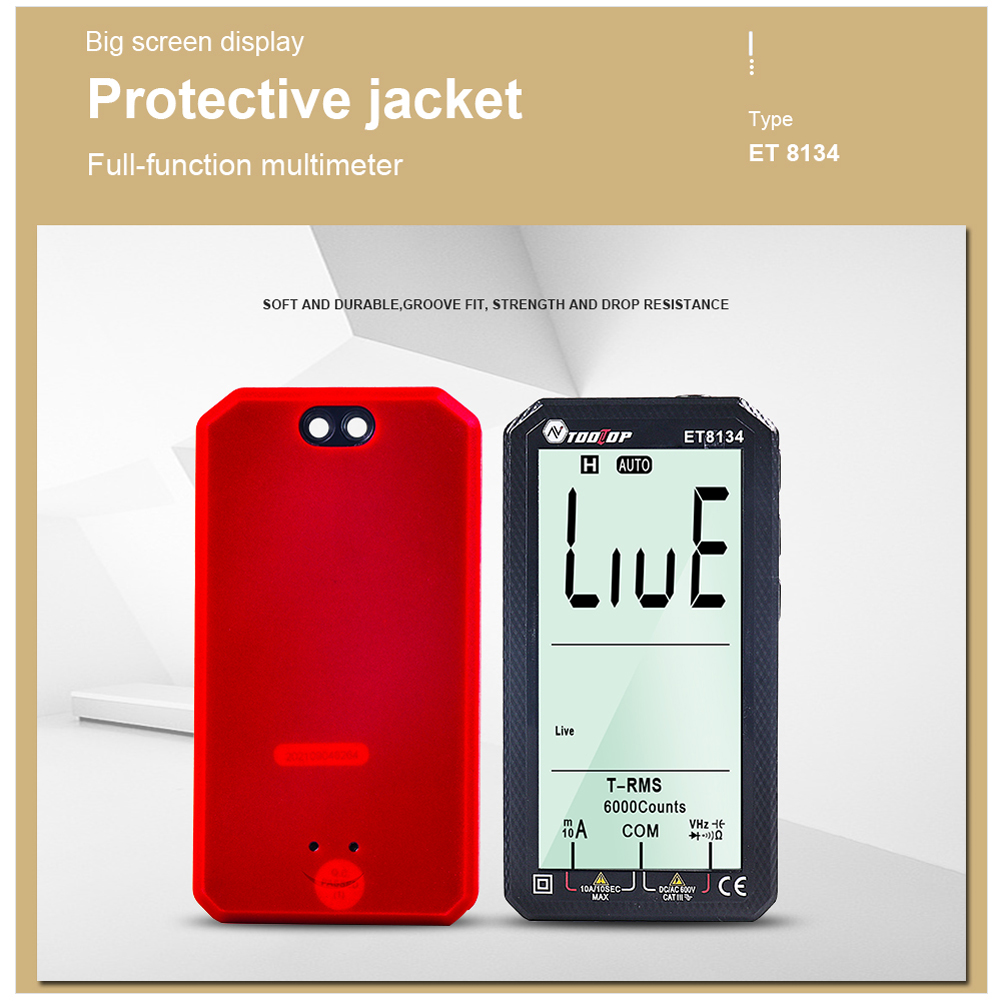

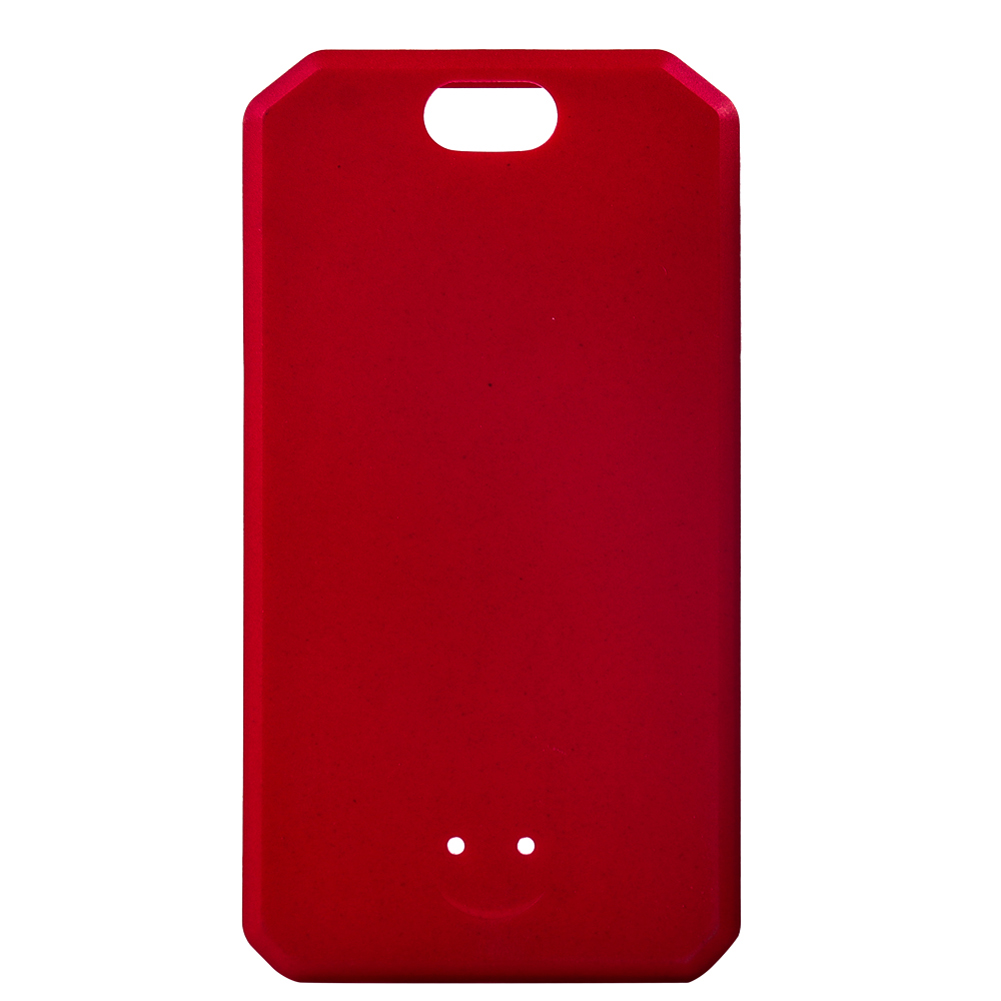

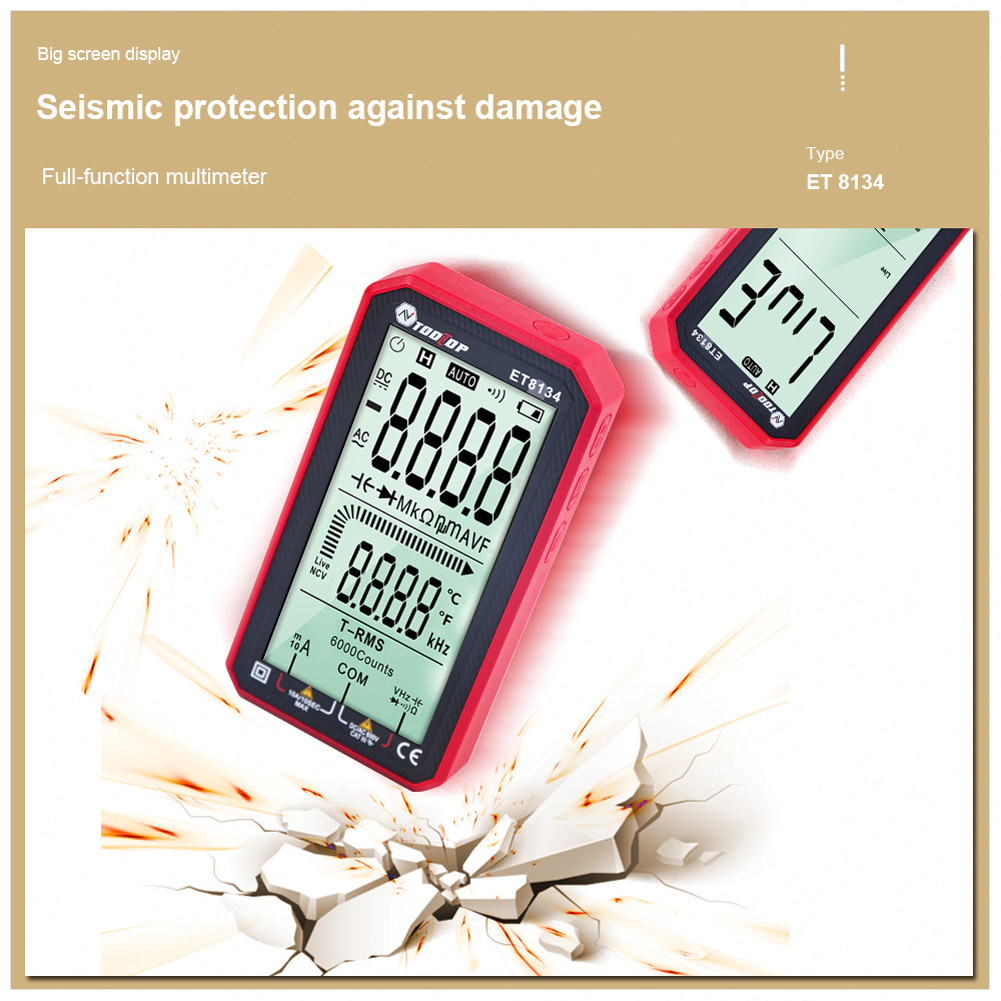

With the soft and dura-ble protective cover and seismic pro-tection function, which can protective the multimeter and prolong the service time of it.

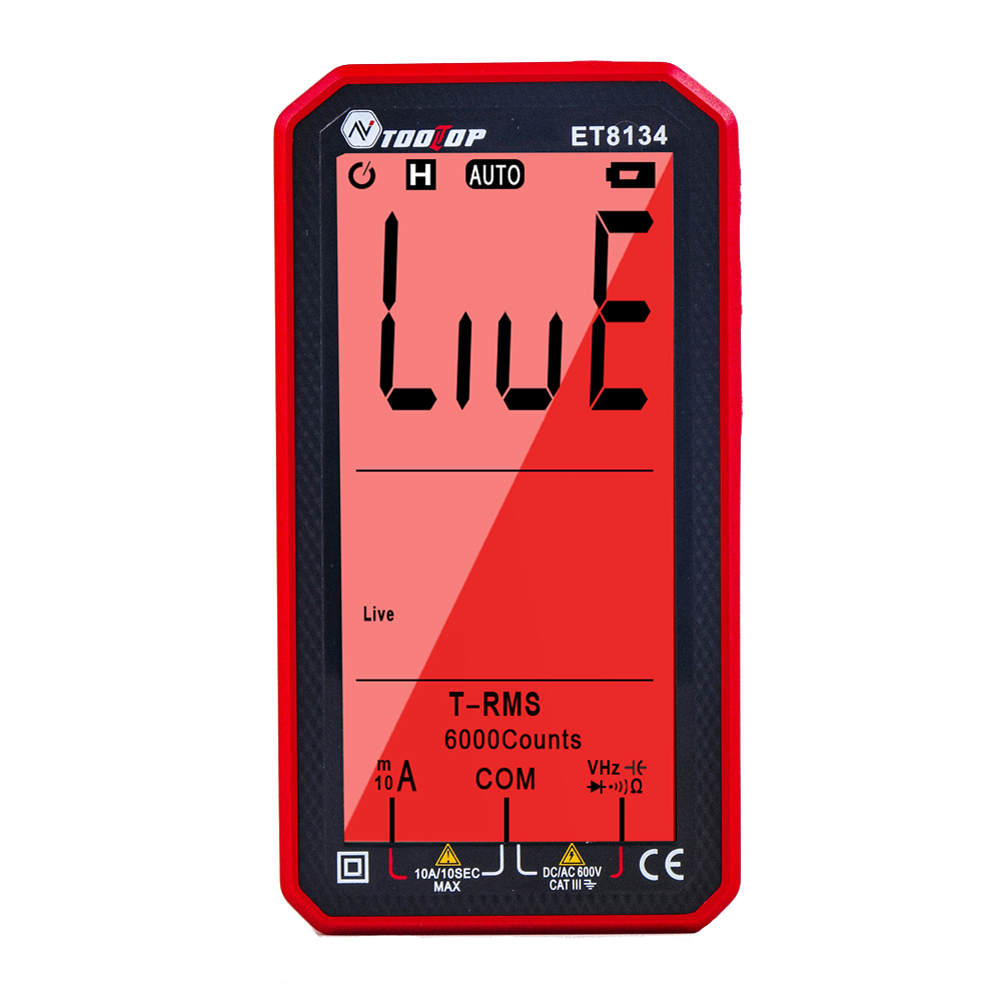

With flashlight and backlight function, you can use it in dim lighting environment or in the dark.

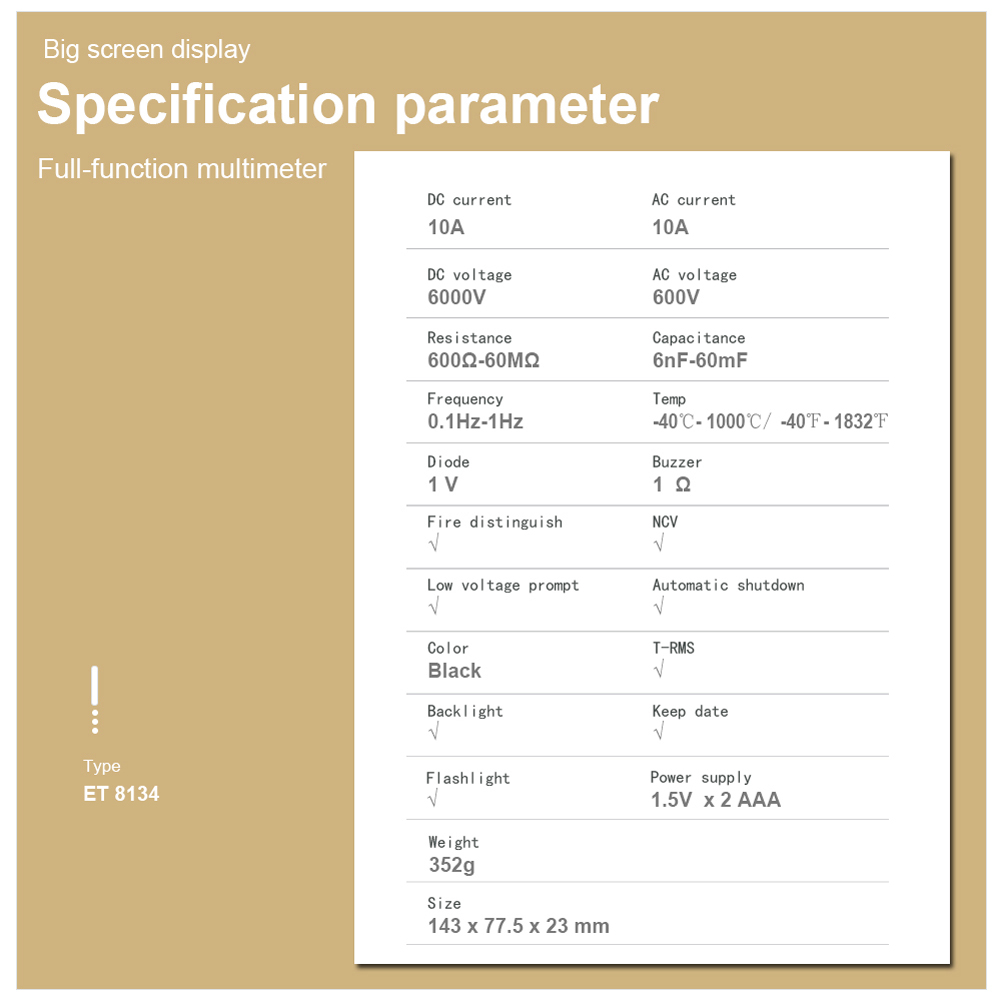

Specifications:
Material: ABS
Color: red
Power: 2 * AAA battery (not included)
Direct current: 10A
AC current: 10A
Direct Current voltage: 600V
AC voltage: 600V
Resistance: 600Ω~60MΩ
Capacitance: 6nF~60mF
Frequency: 0.1Hz~1Hz
Temperature: -40℃~1000℃/-40℉~1832℉
Diode: 1V
Buzzer: 1Ω
Fire distinguish: yes
NCV: yes
Low voltage prompt: yes
Automatic shutdown: yes
T-RMS: yes
Backlight: yes
Keep date: yes
Flashlight: yes

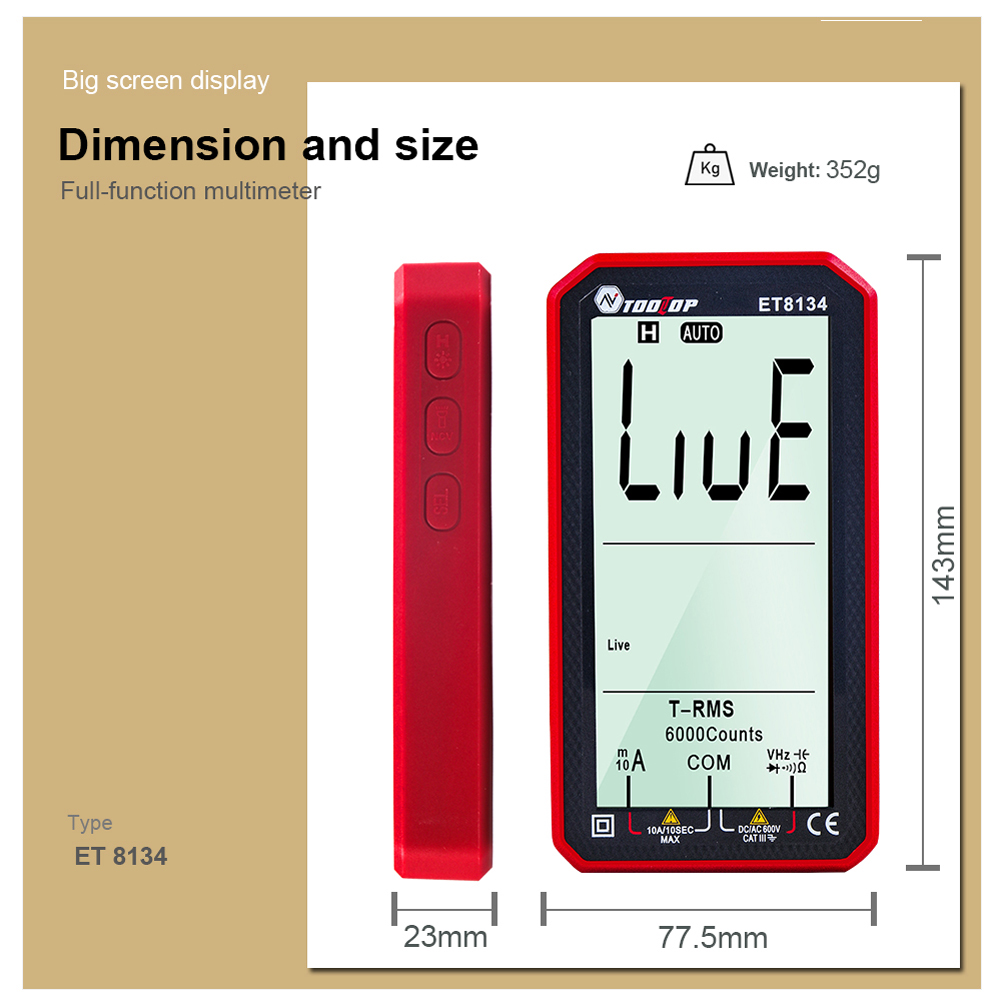

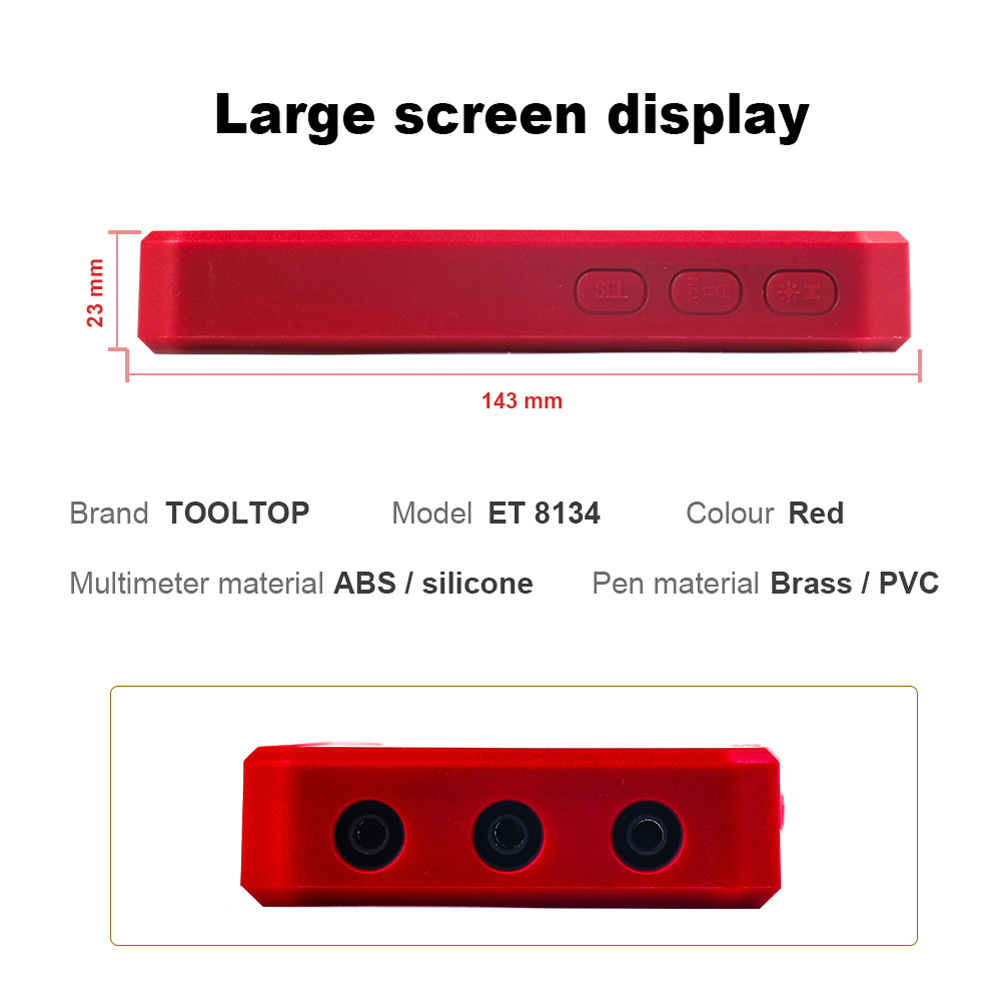

Item size: 143 * 77.5 * 23mm / 5.6 * 3.1 * 0.9in
Package size: 153 * 87.5 * 30mm / 6.0 * 3.4 * 1.2in
Package weight: 339g / 12.0ounce

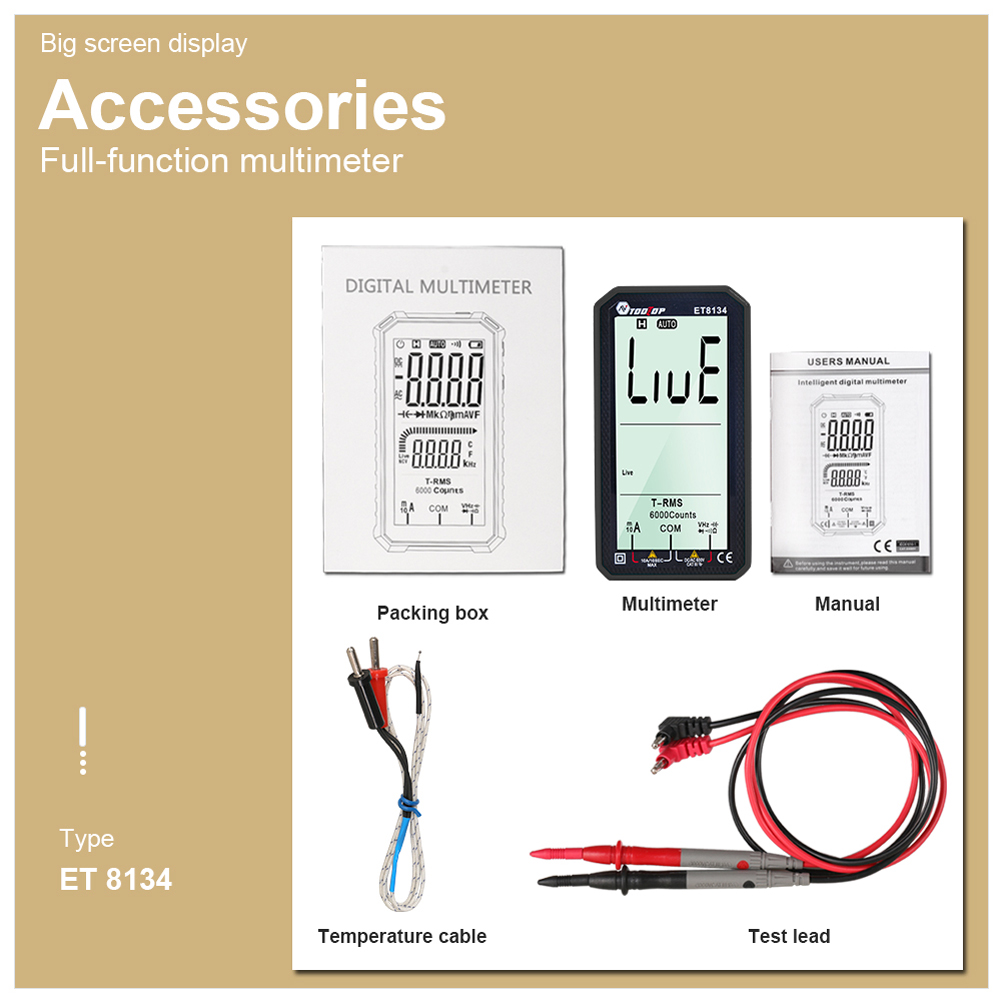

Packing list:
1 * Multimeter
1 * User Manual
1 * Temperature Cable
1 * TestHead
Type2:

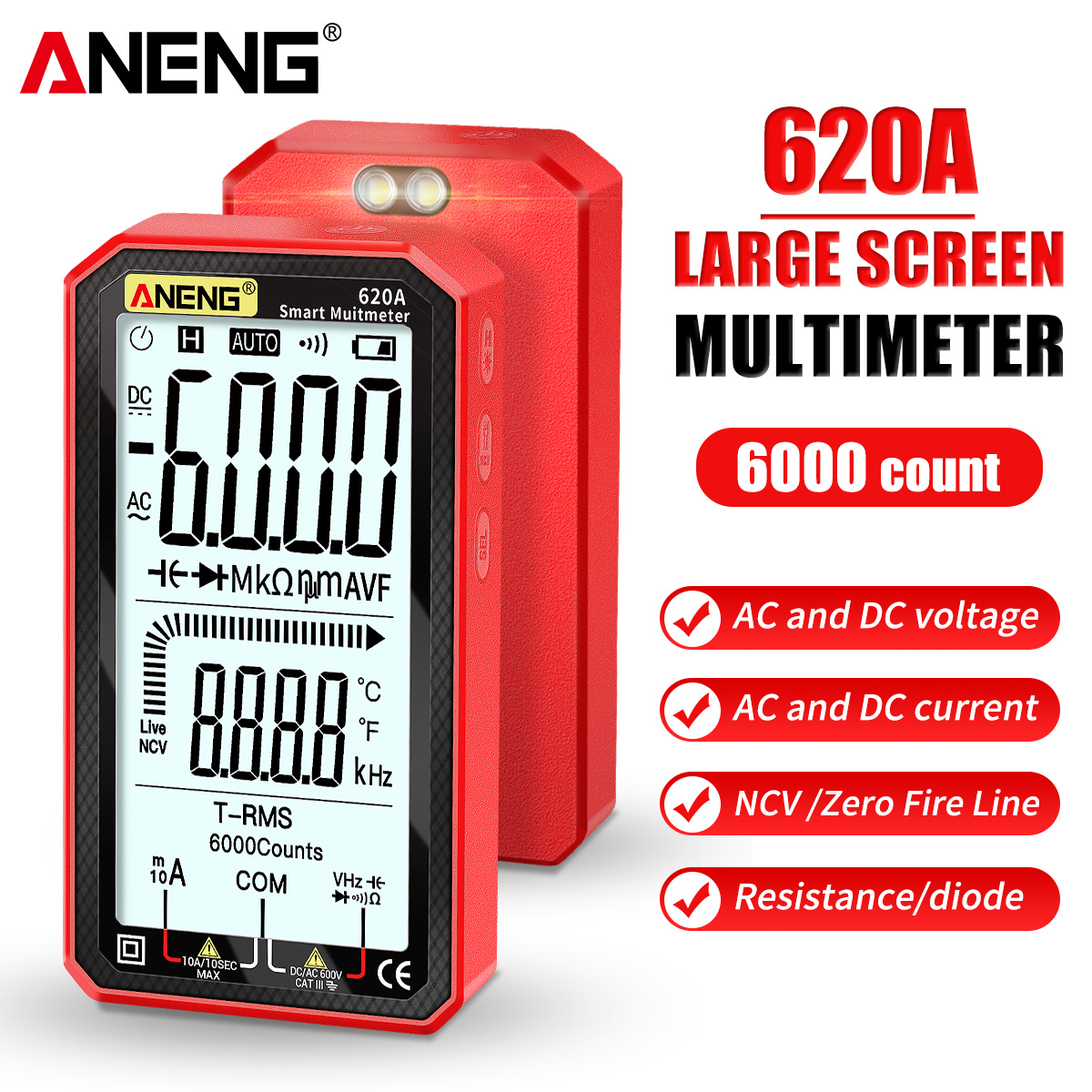

ANENG pocket multimeter features palm-size, 4.77-inch big LCD display, auto-ranging, true-RMS, overload protection, shockproof silicone cover, and audible NCV alarm. It is ultraportable for the maintenance of cars, electronics, home appliances, HVAC and more.
Features:

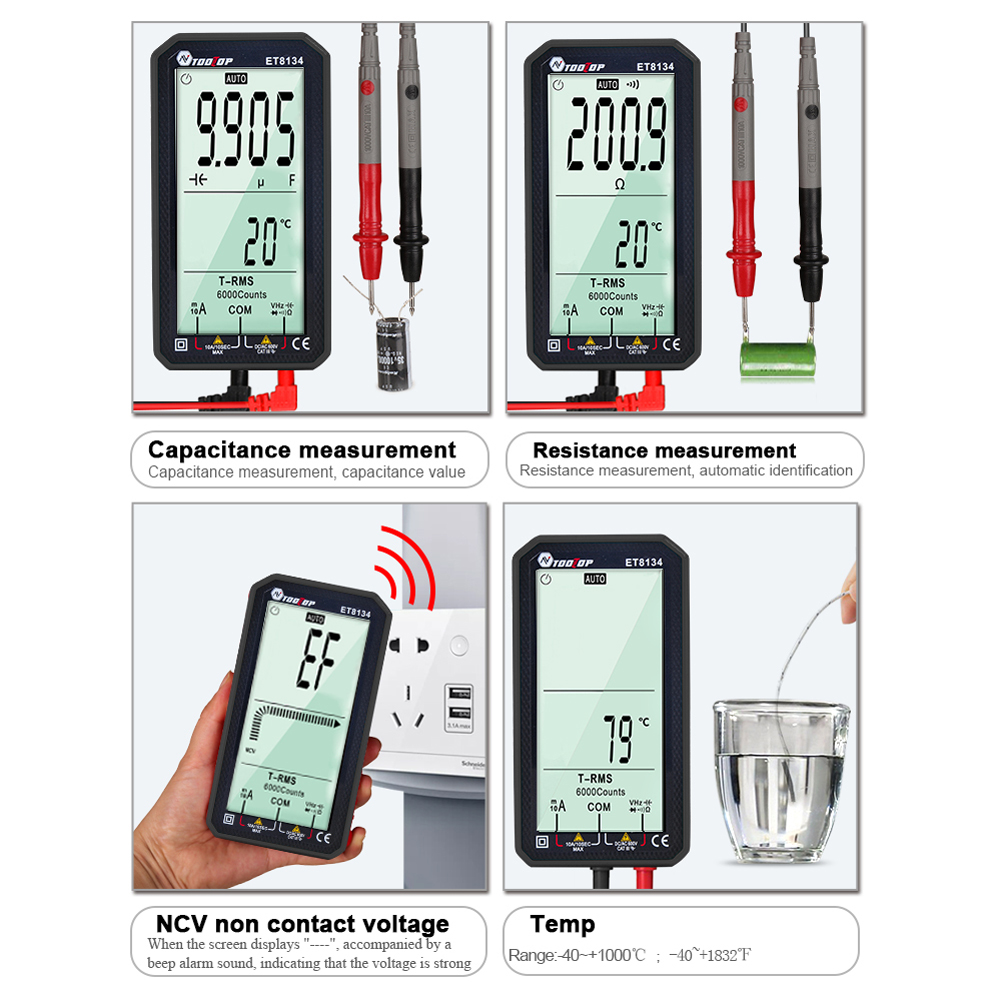

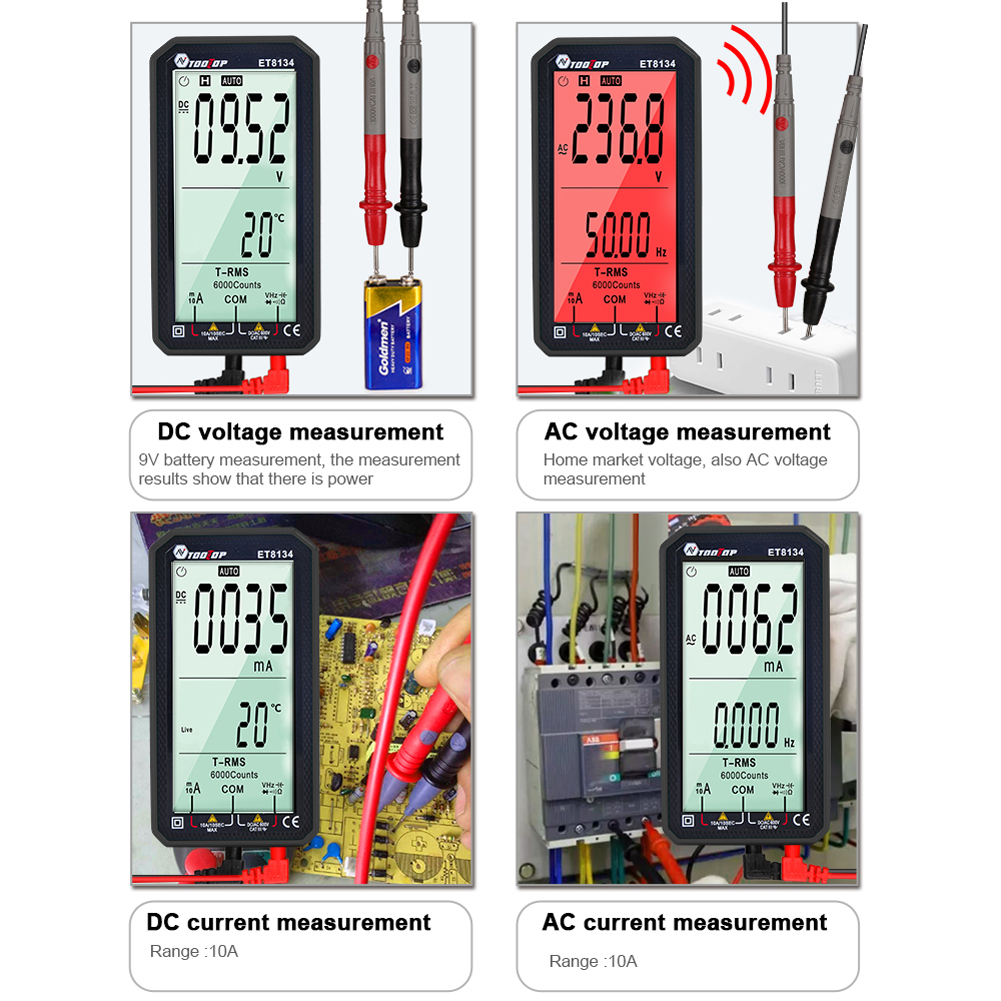

MULTIMETER: Measures AC/DC current, AC/DC voltage, non-contact AC voltage (NCV) detection, live/zero line detection, resistance, diode, capacitance, temperature, and frequency.

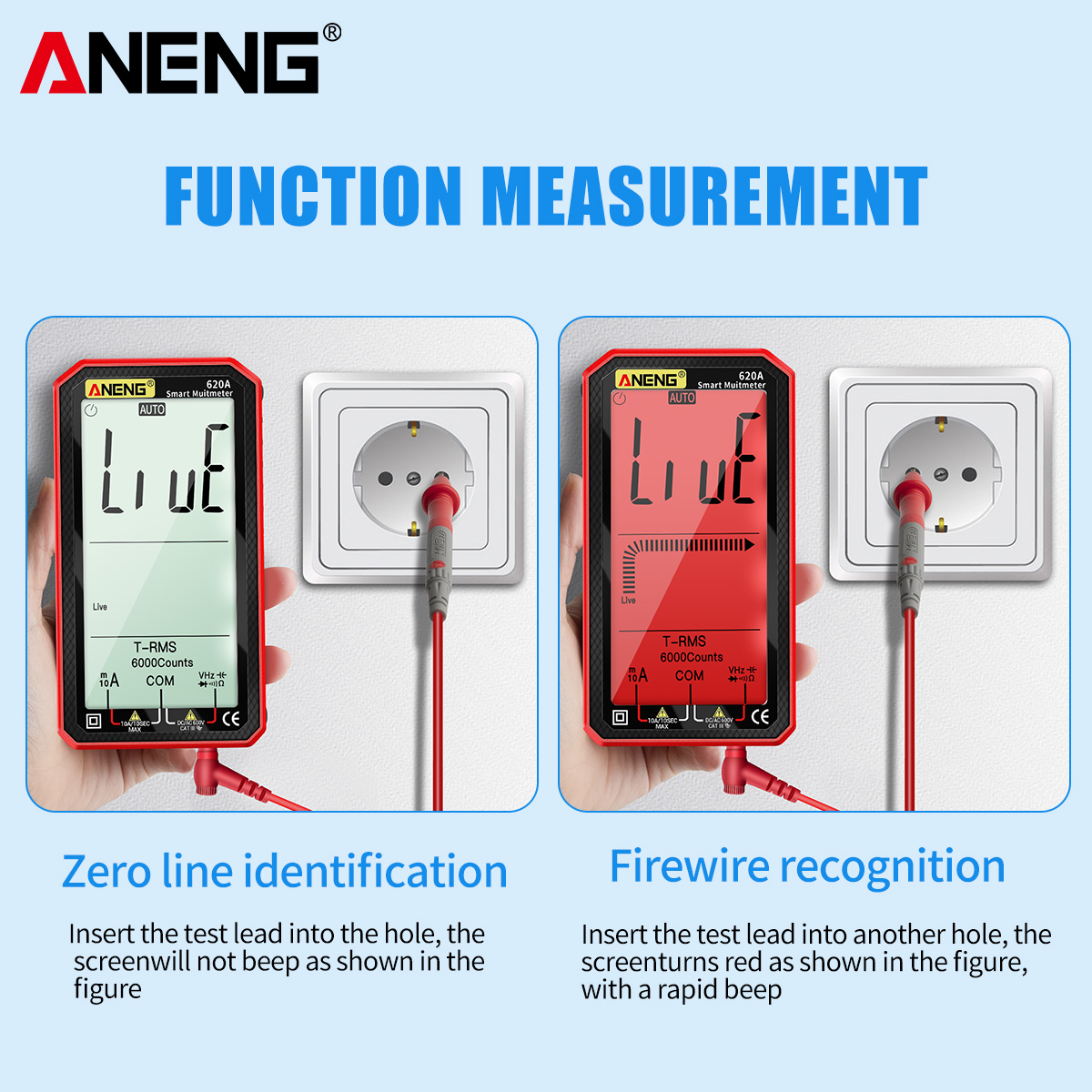

LOUD BEEP: NCV sensor and live/zero line detector send out audible and visual alarm once AC voltage detected.

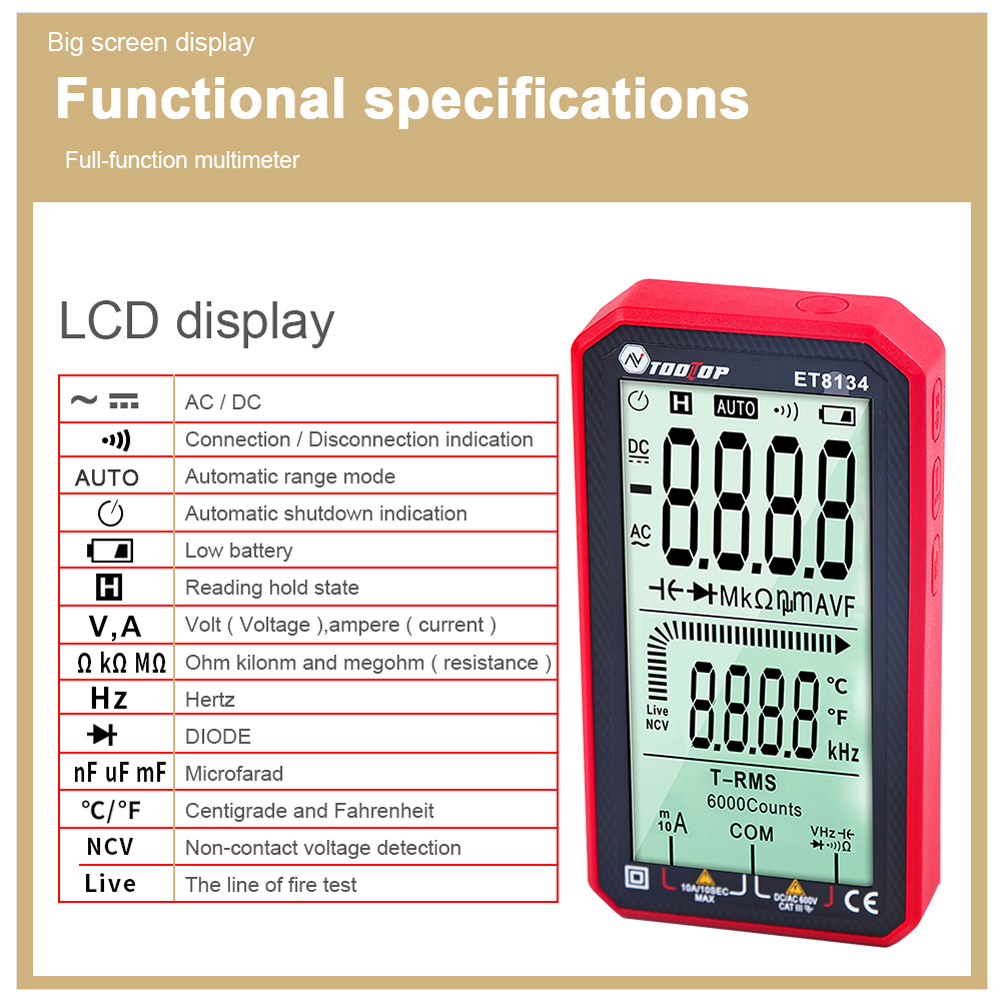

EASY TO READ: 4.77-inch LCD display with backlight enables you to view readings clearly even in the dim light.
EASY TO USE: Offers you with auto-ranging and manual ranging mode for extremely simple using experience.

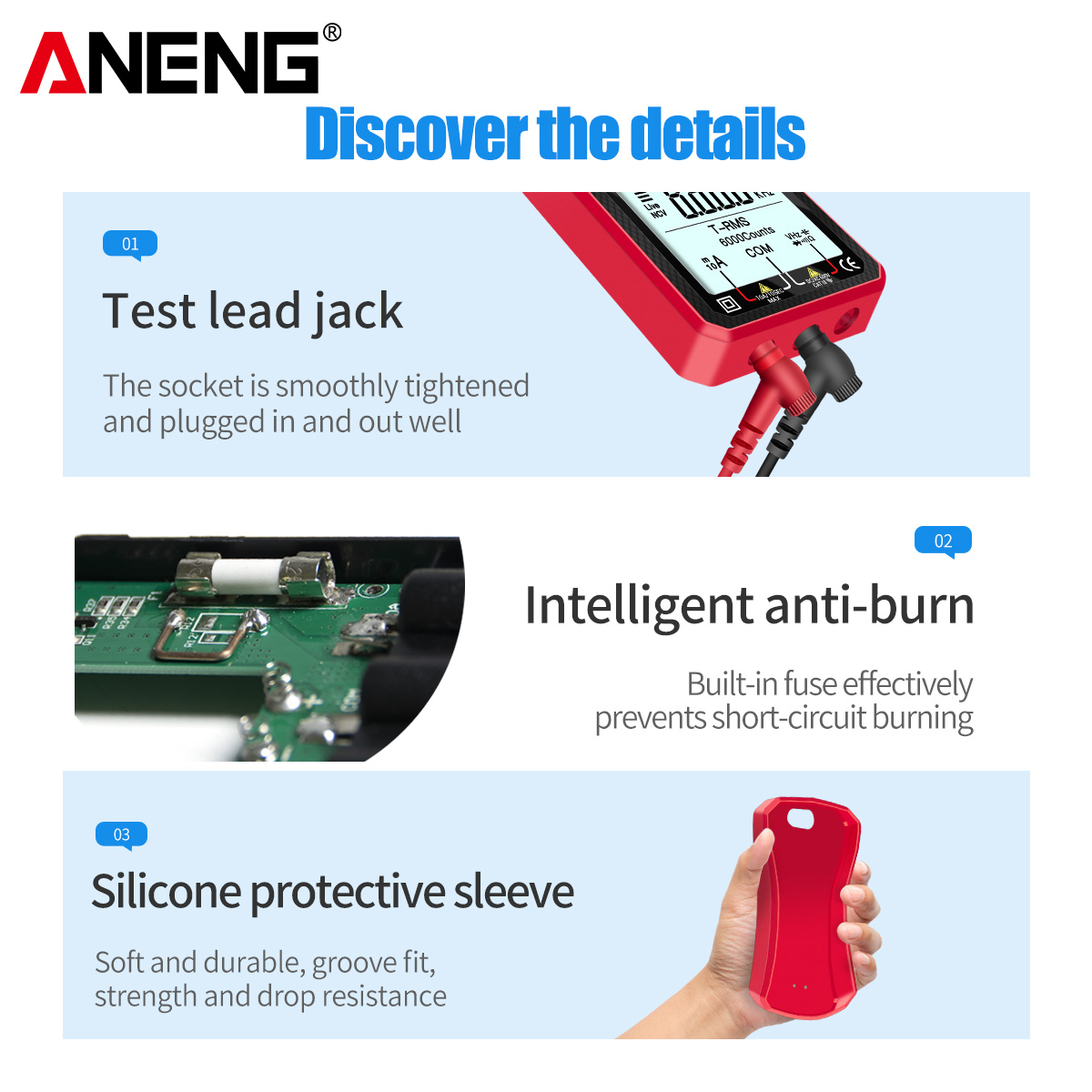

SAFE AND RELIABLE: Provided with overload protection and 1000V, 10A test leads, safe and reliable to use.

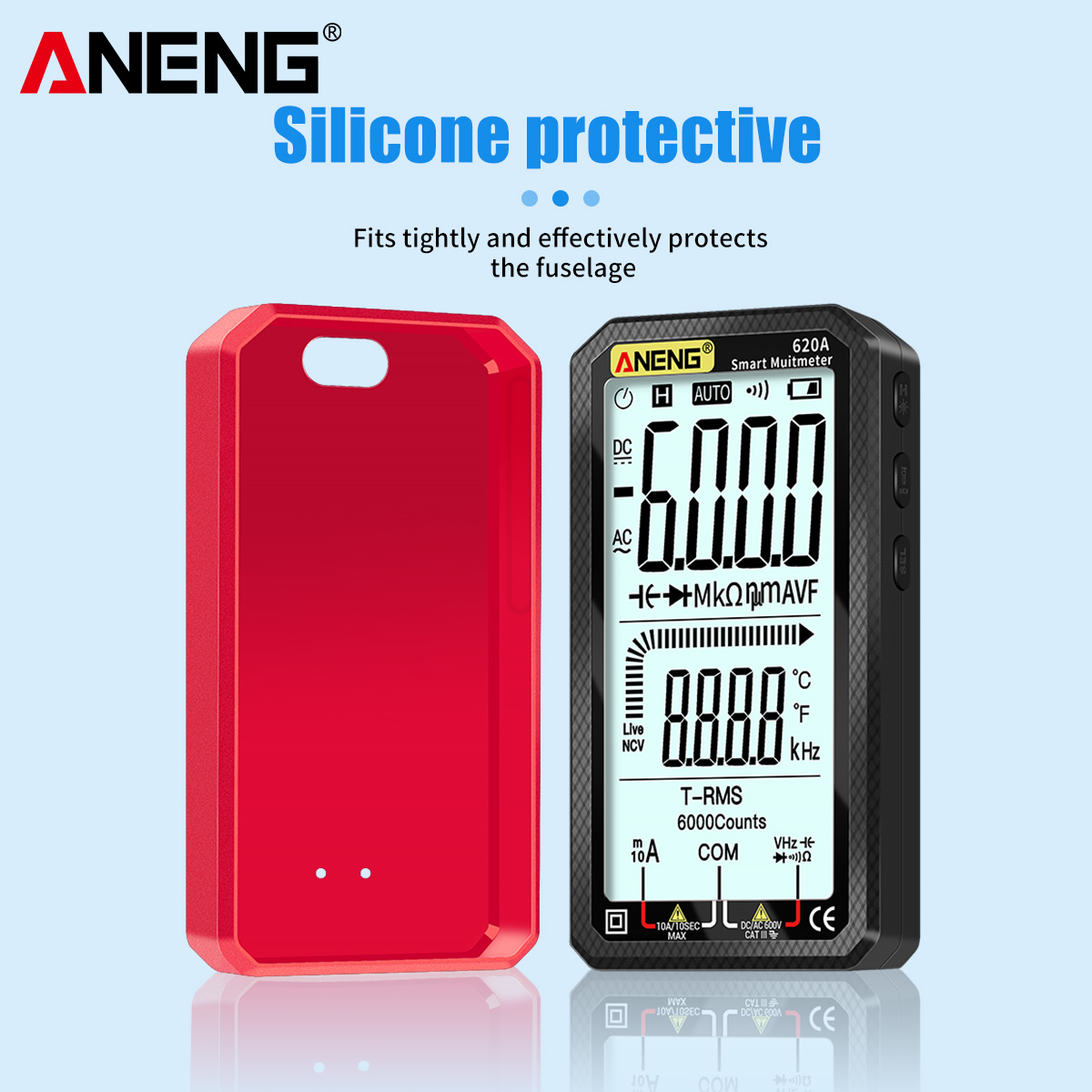

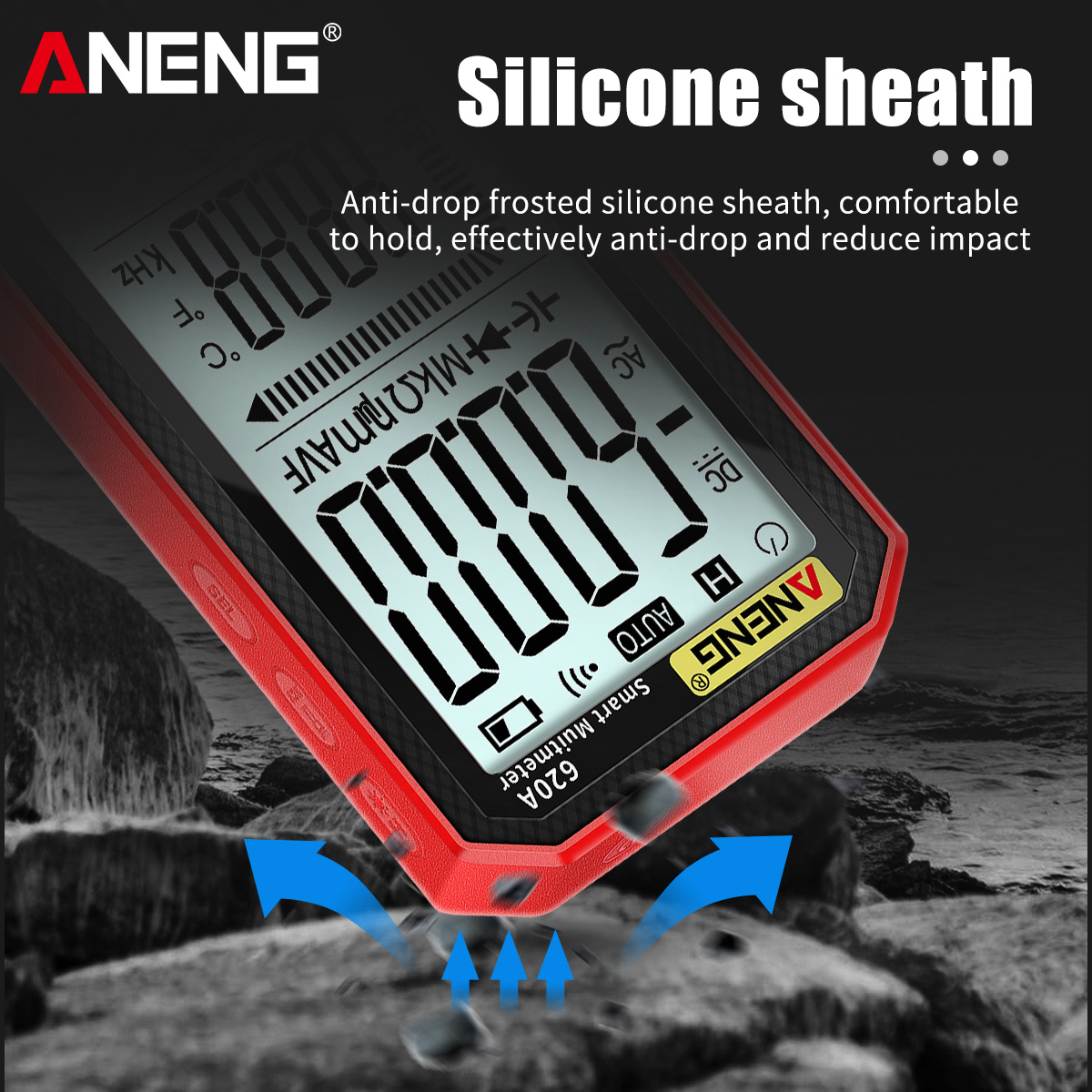

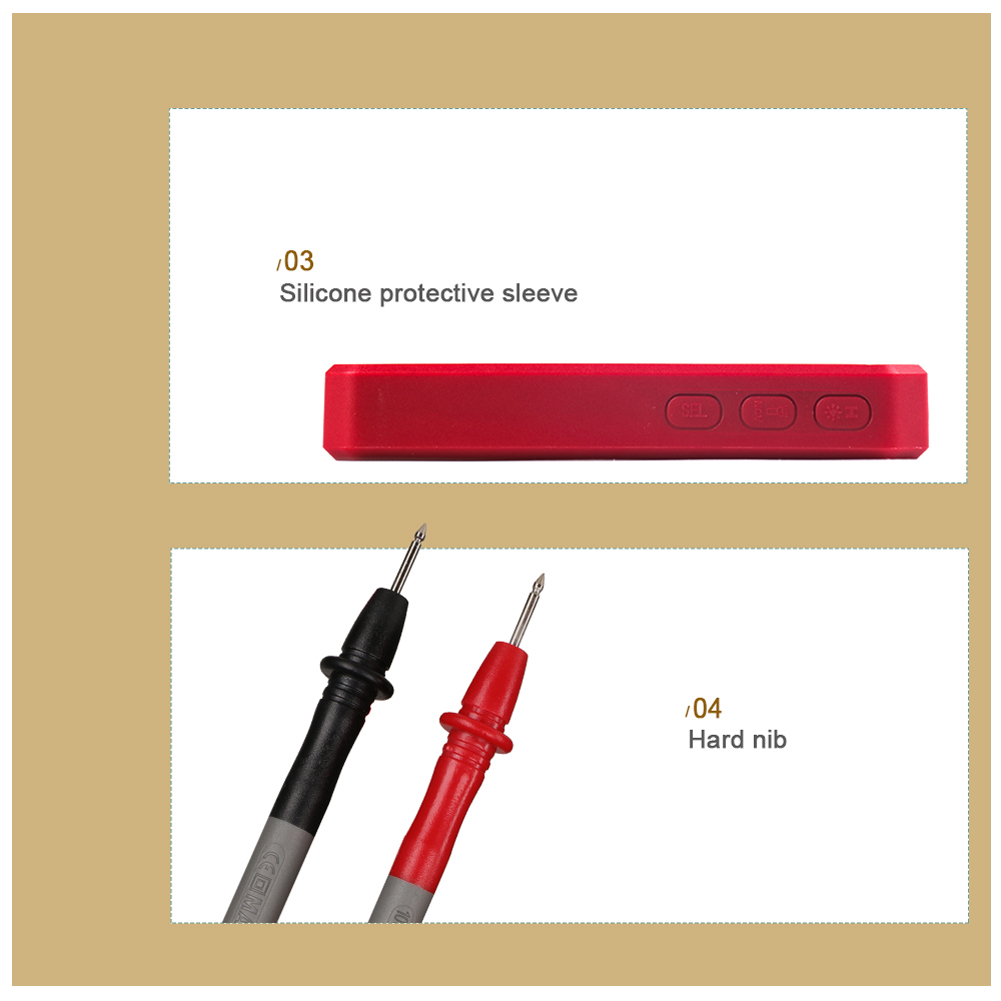

LONG-LASTING: Shockproof and non-slip silicone sheath effectively protects the unit from damage.
ULTRA PORTABLE: Measures in 5.6 by 3 by 0.9 inches, the palm-sized multimeter is small enough to be held in hand or put into pocket, easy to carry around.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
MORE FUNCTIONS: Features data hold, flashlight, Celsius/Fahrenheit degree, and more.
Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.
Parameters:
|
AC Current |
||
|
Range |
Resolution |
Accuracy |
|
6000mA |
1mA |
± (1.0% reading + 8 digits) |
|
10A |
0.01A |
|
|
DC Current |
||
|
6000mA |
1mA |
± (1.0% reading + 5 digits) |
|
10A |
0.01A |
|
|
DC Voltage |
||
|
6V |
0.001V |
± (0.5% reading + 3 digits) |
|
60V |
0.01V |
|
|
600V |
0.1V |
|
|
AC Voltage |
||
|
6V |
0.001V |
± (0.8% reading + 5 digits)C |
|
60V |
0.01V |
|
|
600V |
0.1V |
|
|
Continuity (overload protection: 600V DC/AC, True-RMS) |
||
|
– |
0.1Ω |
If resistance of the line being measured is less than 50Ω, built-in buzzer will make continuous alarming sounds. |
|
Resistance |
||
|
600Ω |
0.1Ω |
± (0.8% reading + 3 digits) |
|
6kΩ |
0.001kΩ |
|
|
60kΩ |
0.01kΩ |
|
|
600kΩ |
0.1kΩ |
|
|
6MΩ |
0.001MΩ |
|
|
60MΩ |
0.01MΩ |
|
|
Diode Test |
||
|
– |
1V |
0.001V |
|
Capacitance |
||
|
6nF |
0.001nF |
± (10% reading + 40 digits) |
|
600nF |
0.1nF |
± (2.5% reading + 20 digits) |
|
6μF |
0.001μF |
|
|
60μF |
0.01μF |
|
|
600μF |
0.1μF |
|
|
6mF |
1μF |
|
|
60mF |
0.01mF |
|
|
Temperature |
||
|
-40 ~ 1000 ℃ |
1℃ |
± (1% reading + 3℃) |
|
-40 ~ 1832℉ |
1℉ |
± (1% reading + 3℉) |
|
Frequency (via gear A) |
||
|
100.0Hz |
0.1Hz |
± (1.0% reading + 5 digits) |
|
1000Hz |
1Hz |
|
|
Frequency (via gear V) |
||
|
100.0Hz |
0.1Hz |
± (1.0% reading + 5 digits) |
|
1000Hz |
1Hz |
|
Specifications:
Brand: ANENG
Material: ABS
Color: Black/Red(optional)
Display: LCD
Max. Display Value: 6000 counts
Automatic Shutdown Time: 15 minutes
Maximum Operating Height: 2000 meters
Battery Type: AAA alkaline battery(2pcs)(NOT INCLUDED)

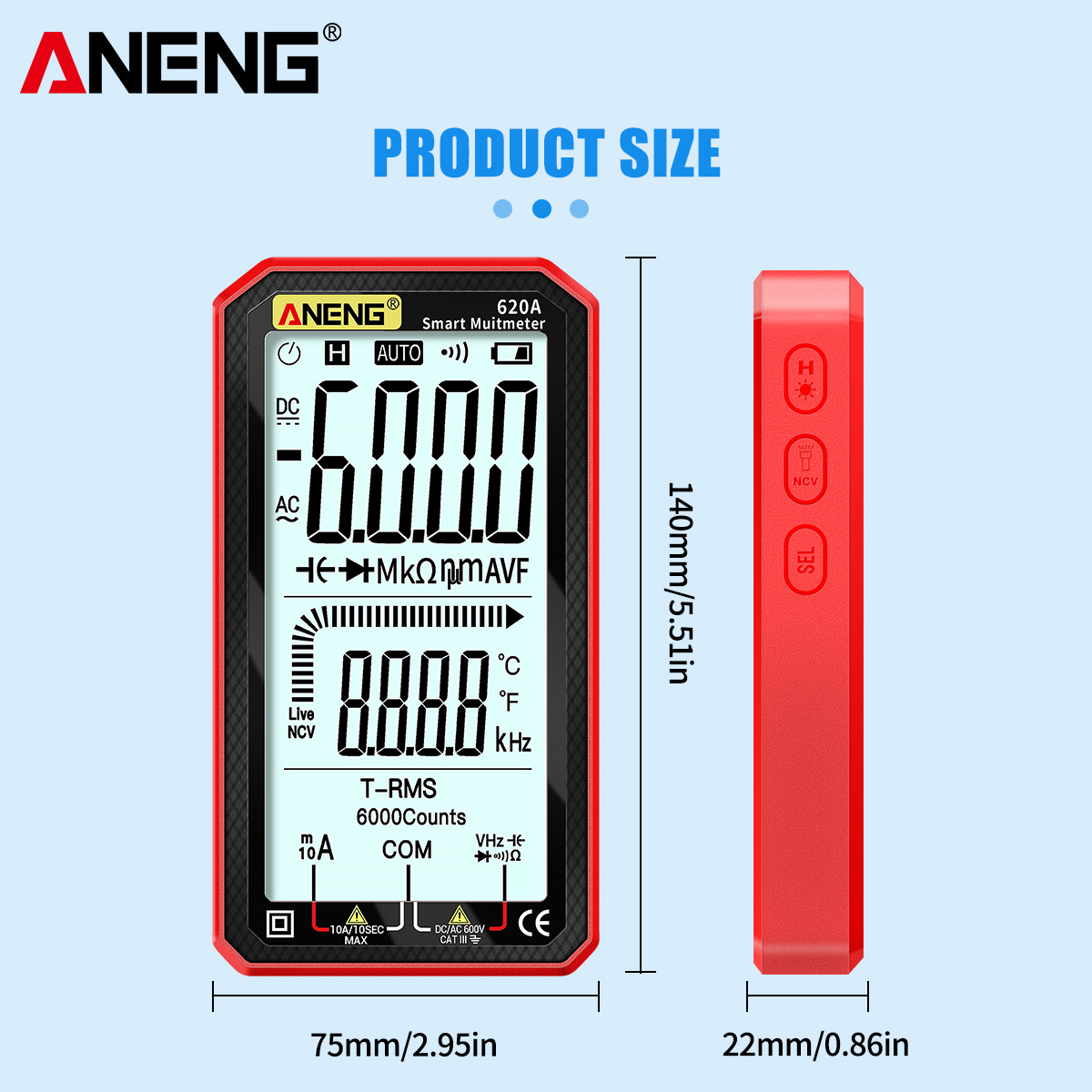

Item Size: 14.27*7.74*2.38cm / 5.61*3.04*0.93in
Item Weight: 183.5g / 6.47oz
Package Size: 17*12.7*4.5cm / 6.69*5*1.77in
Package Weight: 335g / 11.81oz

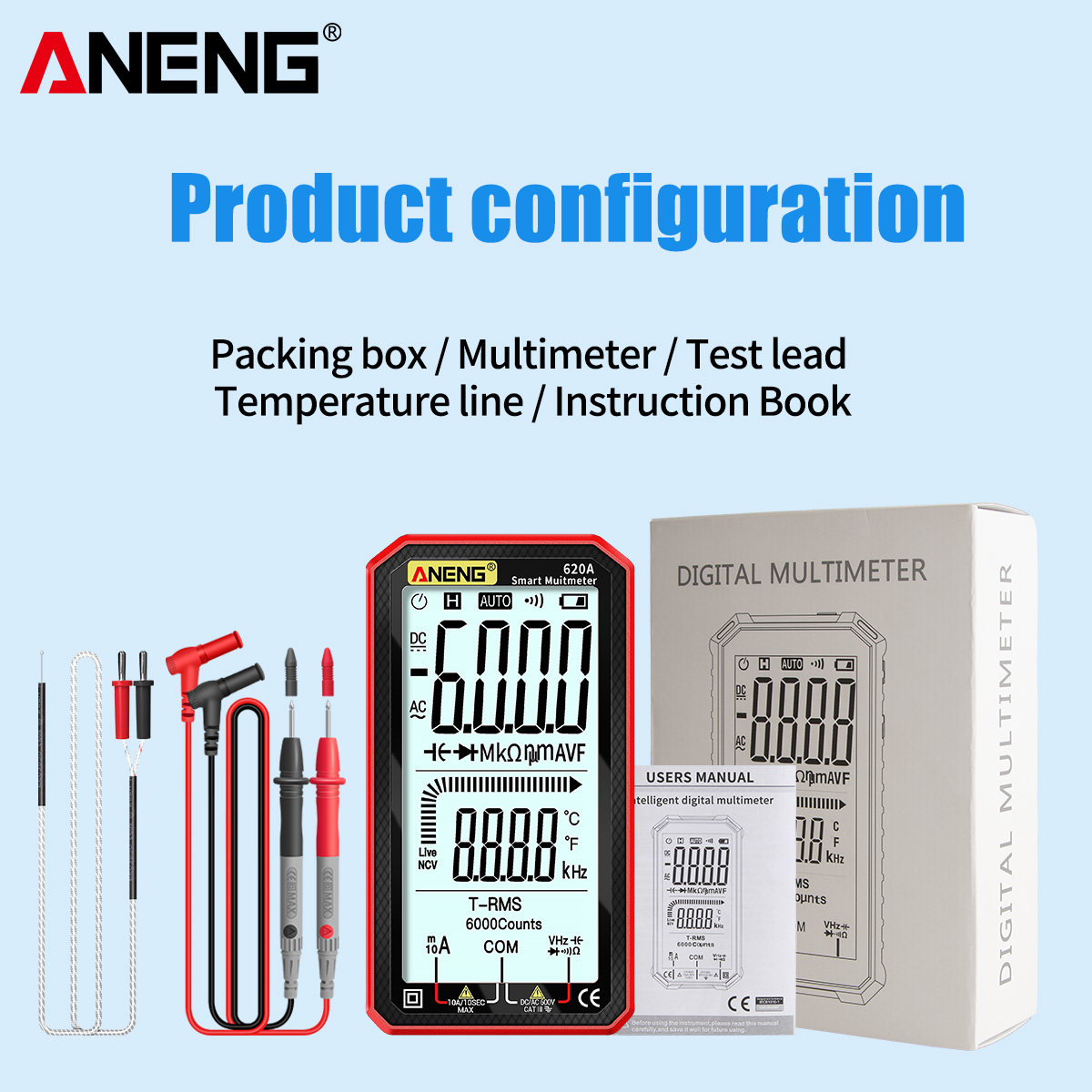

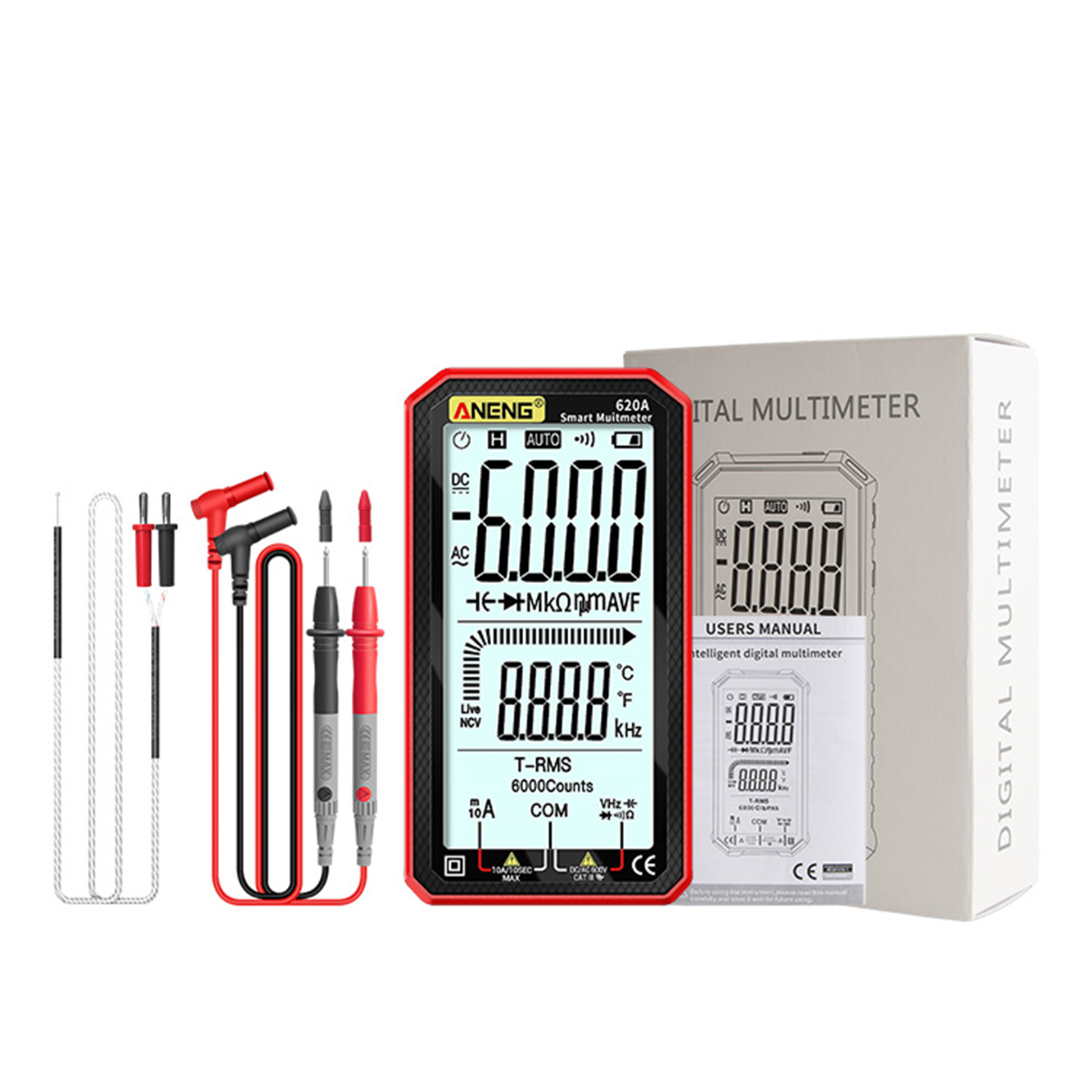

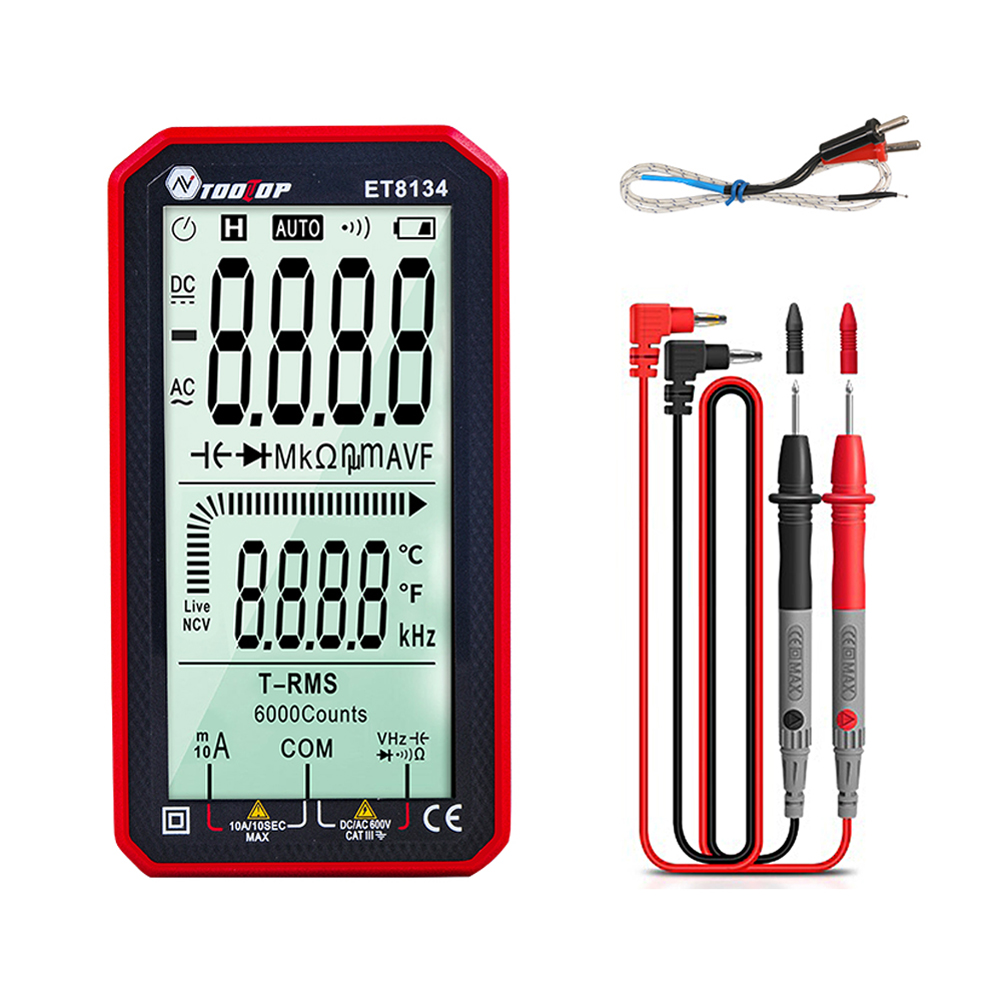

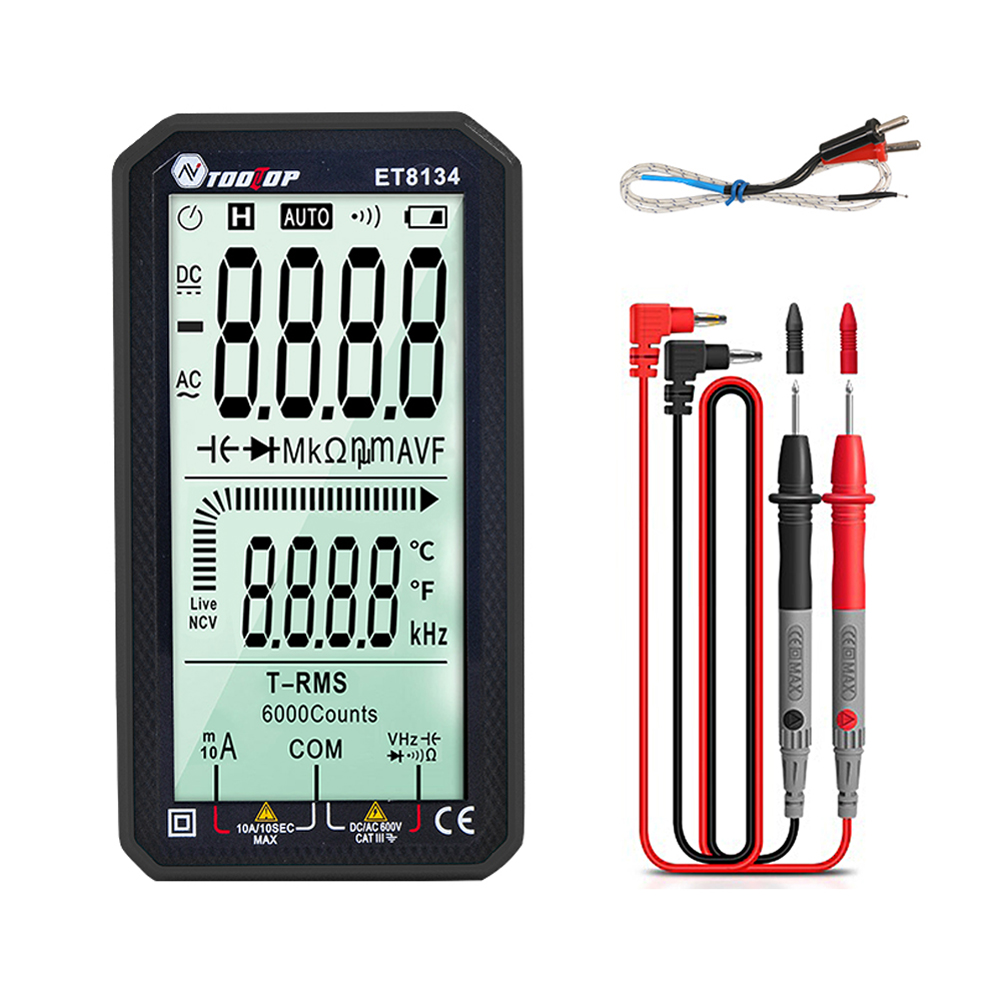

Packing List:
1 * Multimeter

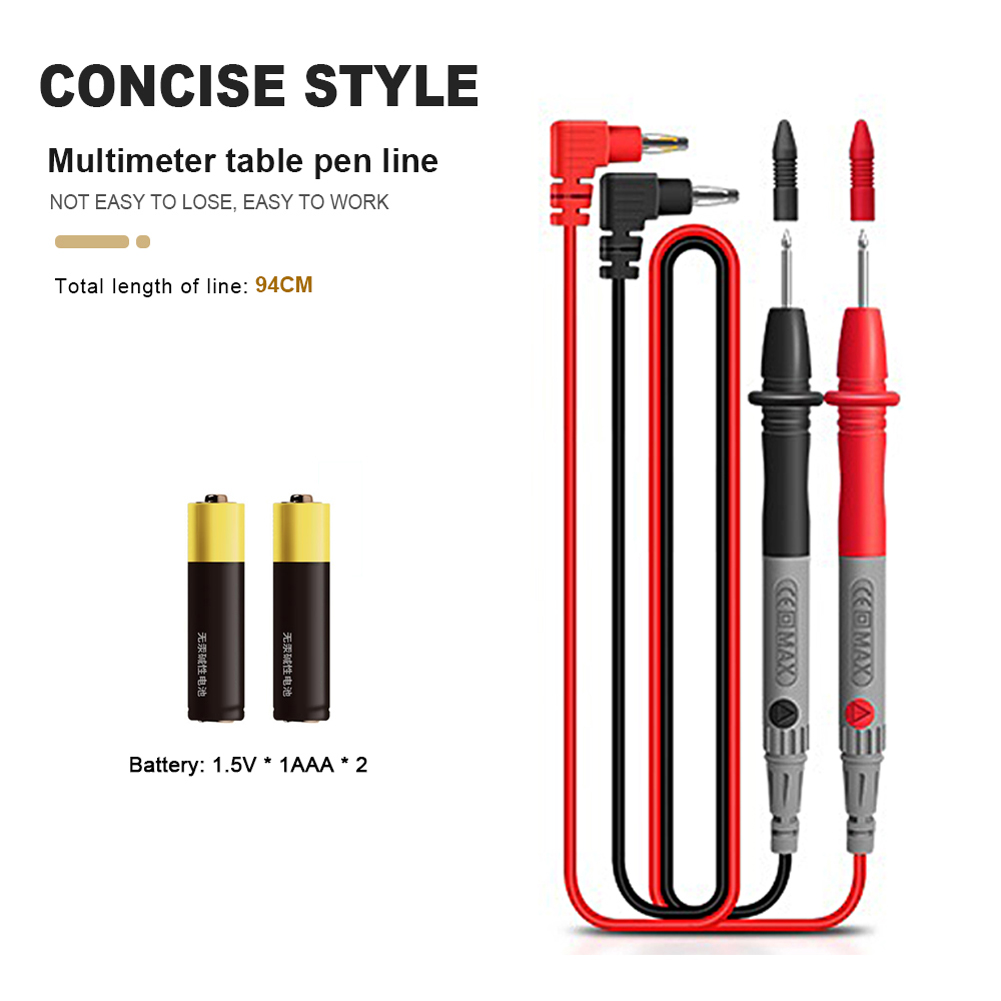

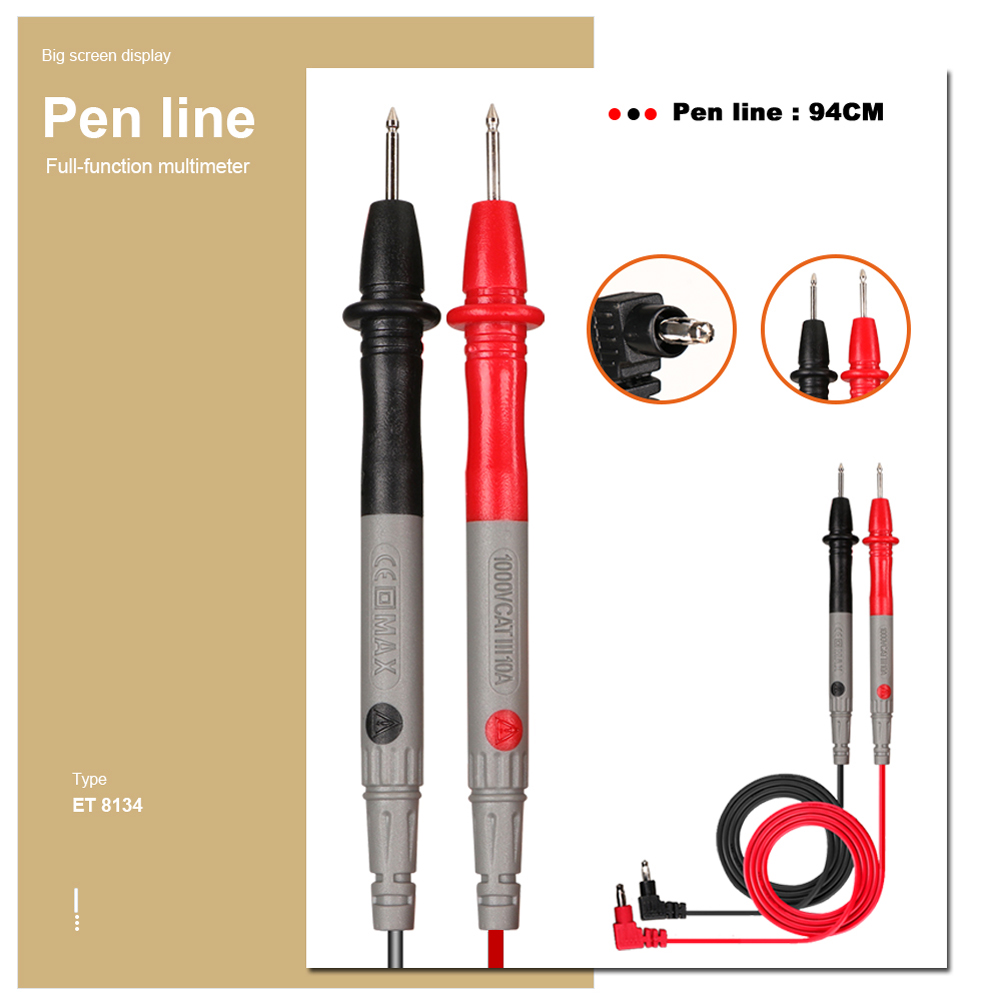

2 * Test Lead
1 * Thermocouple
1 * User Manual
