Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Warranty: 1 years
- Customized support: OEM
- Place of Origin: Shanghai, China
- Brand Name: Drawell
- Model Number: DU-8200
- Size: 431x318x195mm
- Weight: 8.2kgs / 12kgs
- Focal Length: ±0.8nm
- Wavelength Range: 320-1100nm/190-1100nm, 190-1100nm
- Spectral Bandwidth: 2.0nm or 4.0nm optional
- Optical System: Single Beam, Blazed Holographic Grating (1200 lines/mm)
- Wavelength Accuracy: ±0.8nm
- Wavelength Repeatability: ≤0.2nm
- Wavelength Setting: Auto, Resolution 0.1nm
- Scan Speed: High, Medium, Low. Max.1000nm/minute
- Baseline Flatness: ±0.003A
- Detector: Silicon Photodiode
- Output Port: USB Port & RS232 Port
- Certification: ISO, CE
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:1286px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:1286px}#detail_decorate_root .magic-3{vertical-align:top}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{font-size:28px}#detail_decorate_root .magic-9{font-size:18px}#detail_decorate_root .magic-10{width:750px;border-collapse:collapse}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:241px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:218px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:207px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:446px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{display:none}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:208px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:241.222px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{border-bottom-style:none;border-bottom-color:#53647a;font-family:Arial,Helvetica;font-size:16px;color:#fff;background-color:#094a8b;text-align:center;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:865px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:865px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:1045px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:1045px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:1133px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:1133px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:864px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:864px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:1002px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:1002px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:768px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:768px}#detail_decorate_root .magic-31{overflow:hidden;width:247.33333333333334px;height:123.6666666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:247px;height:123px}#detail_decorate_root .magic-33{overflow:hidden;width:247.33333333333334px;height:123.16599190283402px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-34{margin-top:-7.009446693657221px;margin-left:76.10256410256412px;width:92px;height:190px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:144px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:144px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:734px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:734px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:345px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:345px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:633px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:633px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:671px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:671px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:688px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:688px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:544px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:544px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:226px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:750px;height:226px}

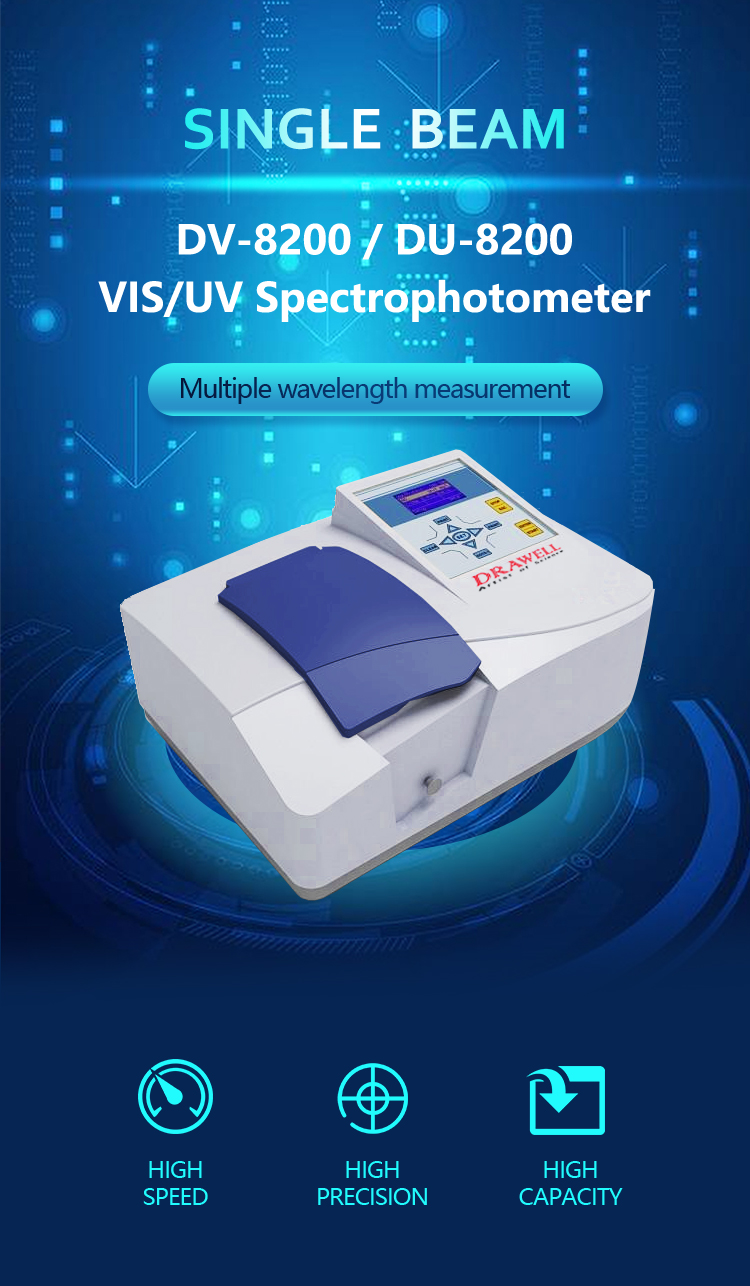

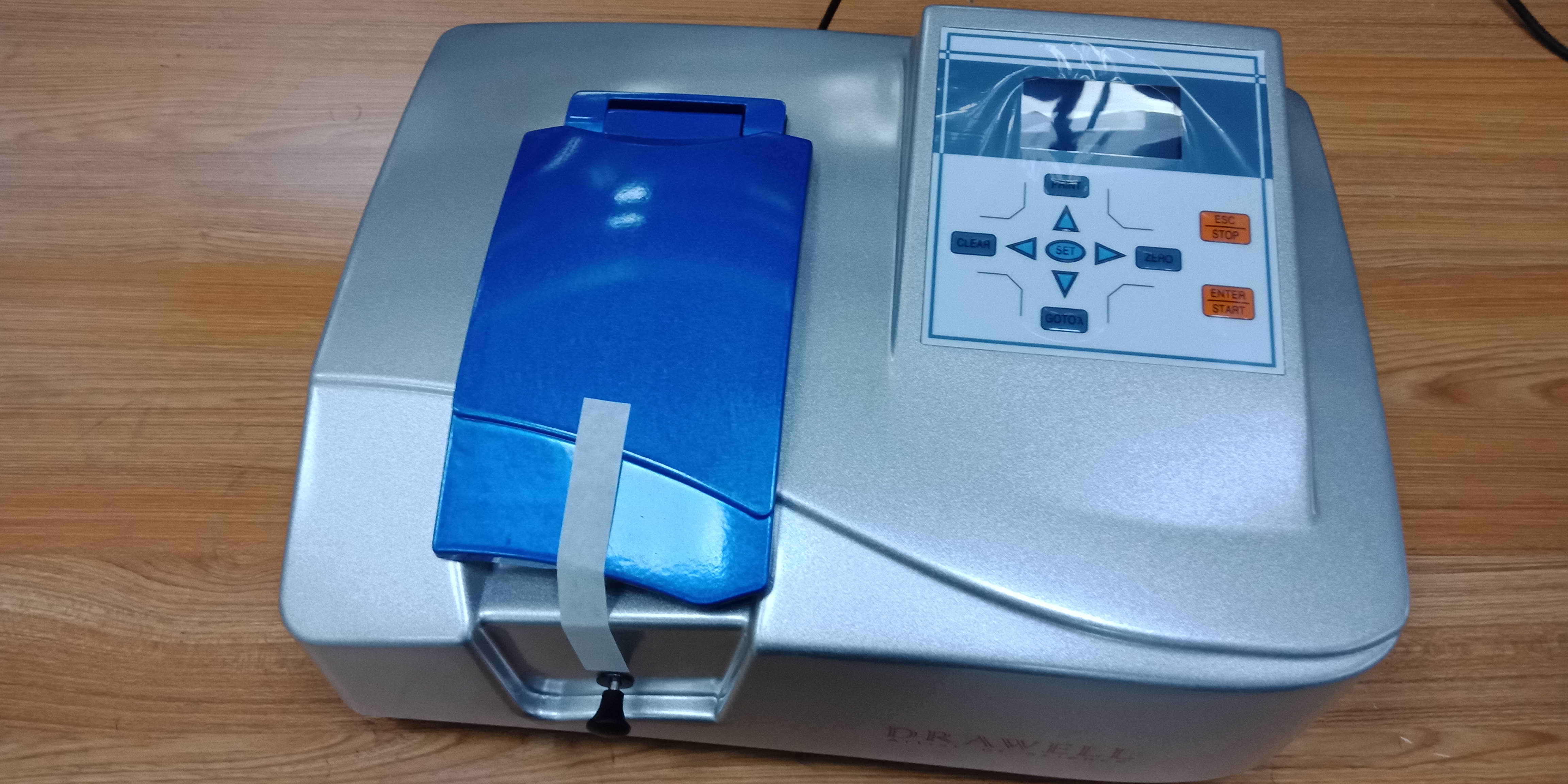

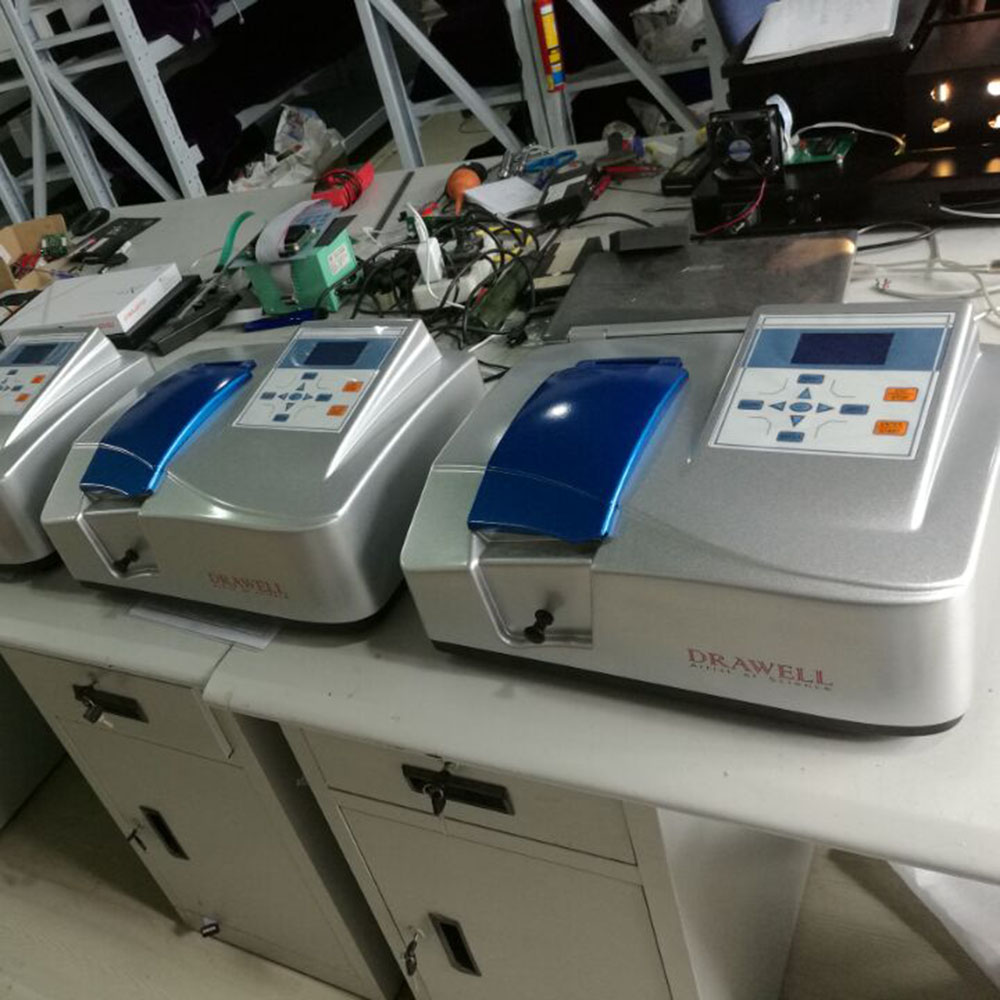

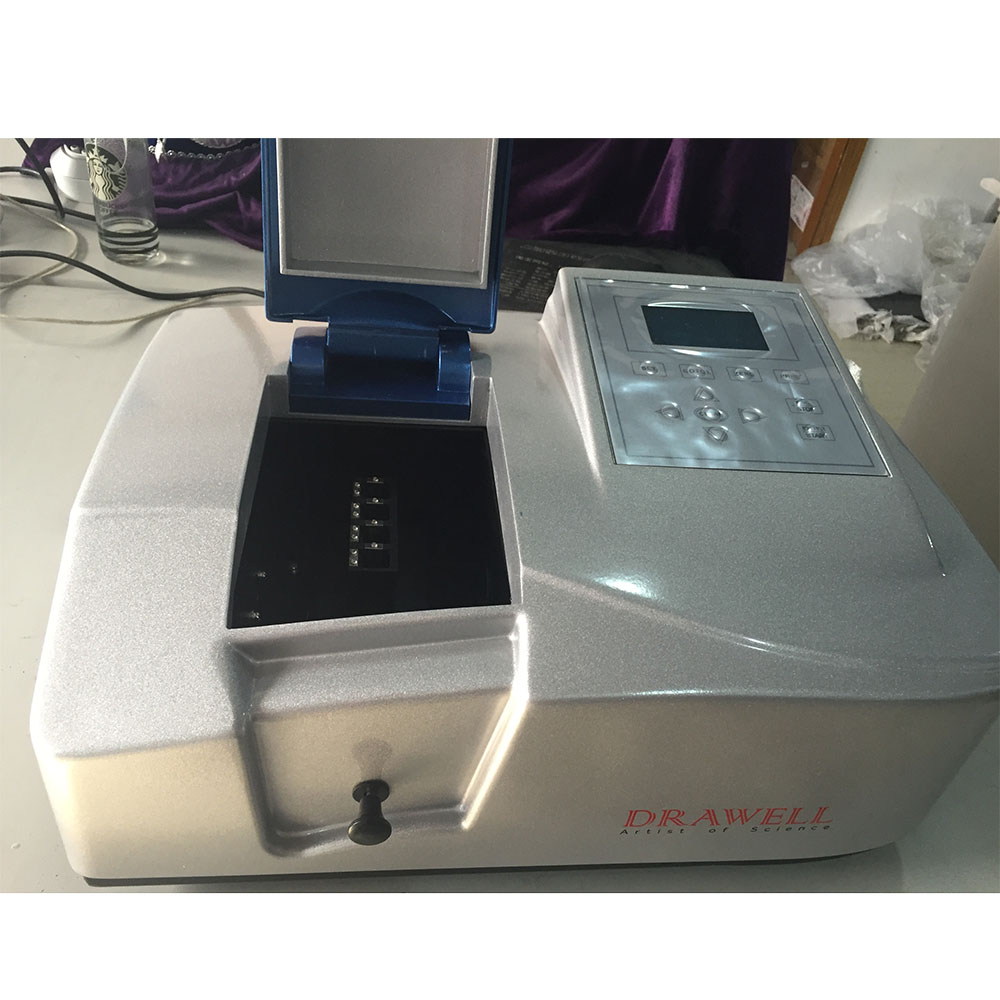

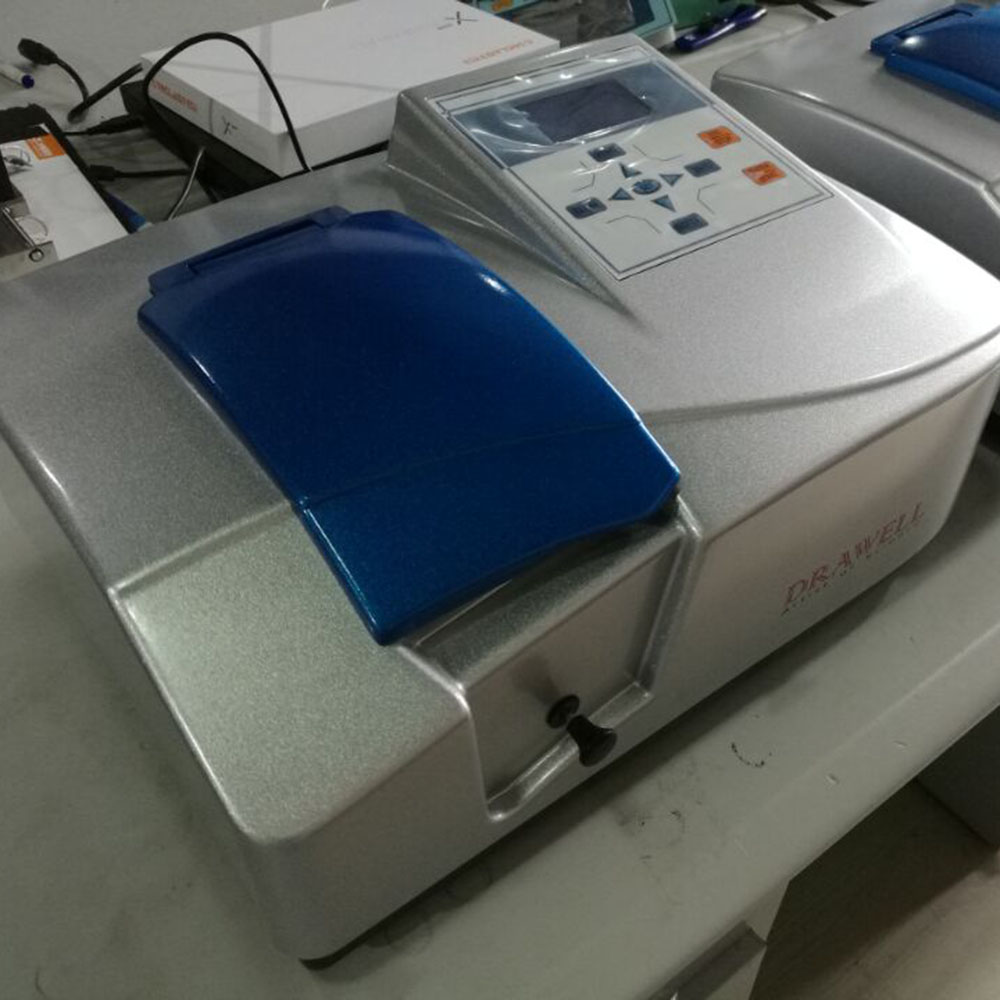

DV-8200 / DU-8200 UV/VIS Spectrophotometer
8200 series spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard. They are widely used in colleges and quantitative analysis lab.

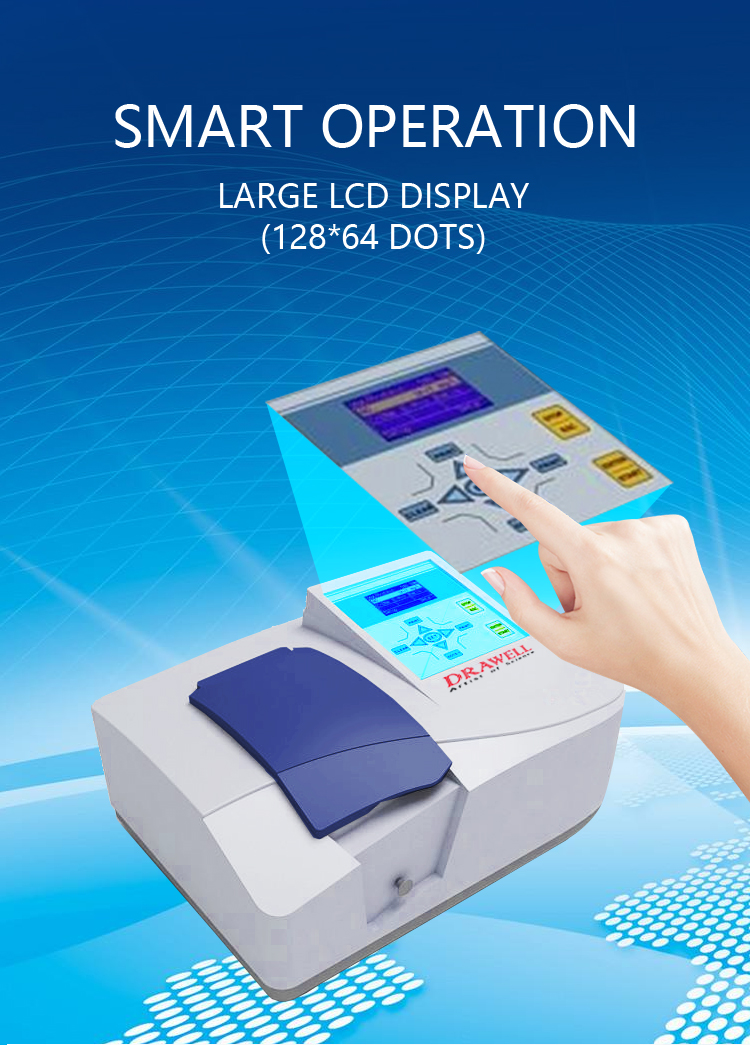

Features： Small fine design, space saving The excellent optical and electric system Low noise and Low stray light Large LCD display (128*64 Dots), can display curve High quality grating, detector and lamps Data and Curve can be stored in real-time Auto setting WL, auto Blank Easy to change Pri-aligned lamps Reinforced baseboard and bracket assures durability
Function: Photometric: T%, Abs Quantitative: Standard Curve System Utility * WL Scan (Spectrum Scan) (PC) * Time Scan (Kinetics) (PC) * DNA/Protein Test (PC) * Multi-WL Test (PC)
Specifications:
|
Model
|
DV-8200
|
DU-8200
|
|
|
Wavelength Range
|
320-1100nm
|
190-1100nm
|
|
|
Spectral Bandwidth
|
2.0nm or 4.0nm optional
|
||
|
Optical System
|
Single Beam, Blazed Holographic Grating (1200 lines/mm)
|
||
|
Wavelength Accuracy
|
±0.8nm
|
||
|
Wavelength Repeatability
|
≤0.2nm
|
||
|
Wavelength Setting
|
Auto, Resolution 0.1nm
|
||
|
Photometric Range
|
0~200%T, -0.3~3A, 0~9999C
|
||
|
Photometric Accuracy
|
±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T)
|
||
|
Photometric Repeatability
|
≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)
|
||
|
Stray Light
|
≤0.1%T(220/360nm)
|
||
|
Scan Speed
|
High, Medium, Low. Max.1000nm/minute
|
||
|
Baseline Flatness
|
±0.003A
|
||
|
Stability
|
±0.002A/h (500nm,0A)
|
||
|
Noise
|
≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)
|
||
|
Sample Compartment
|
Accommodate 5-100mm Pathlength Cuvette
|
||
|
Detector
|
Silicon Photodiode
|
||
|
Lamps
|
Tungsten Lamp & Deuterium Lamp (Pre-aligned)
|
||
|

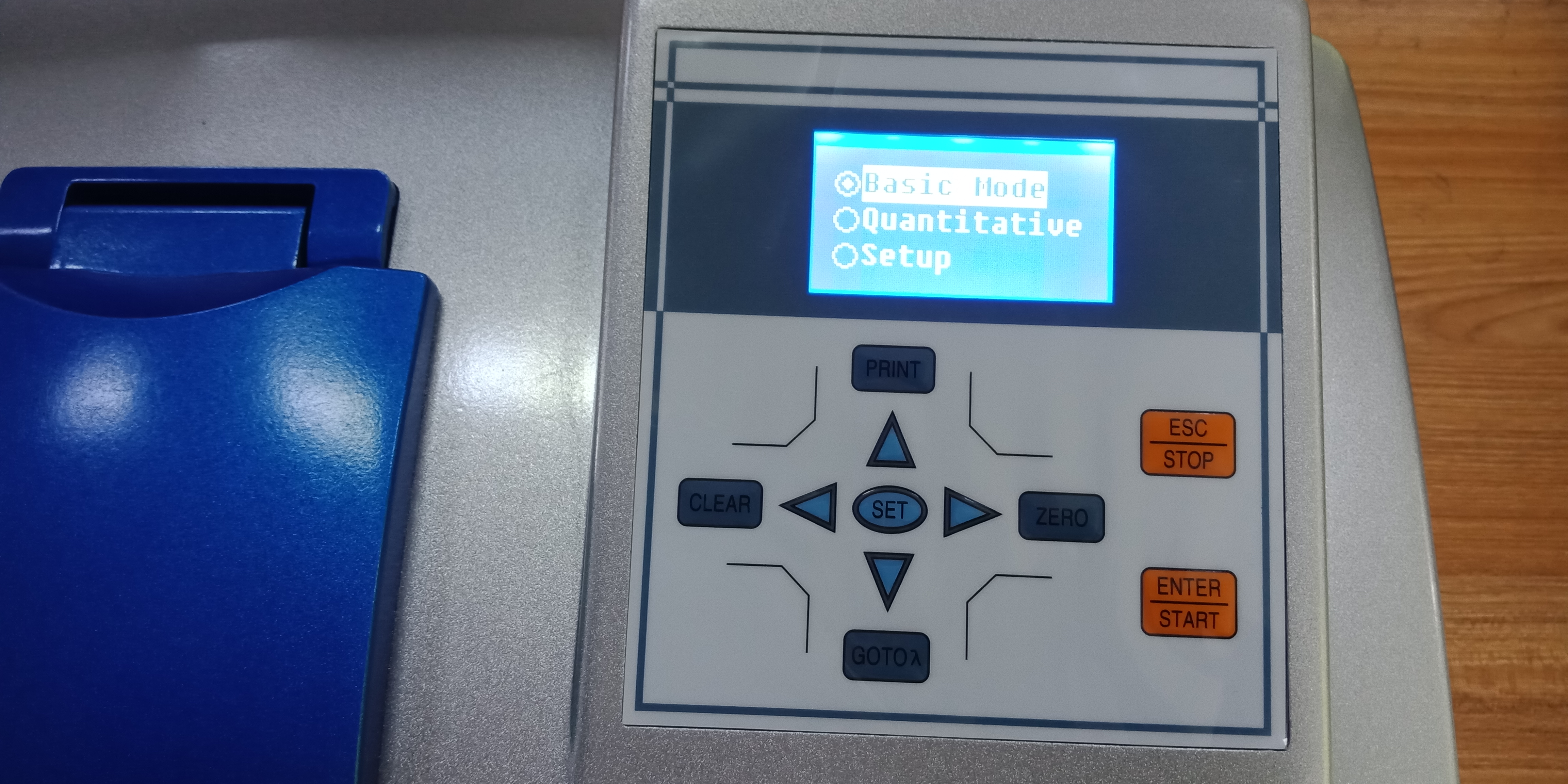

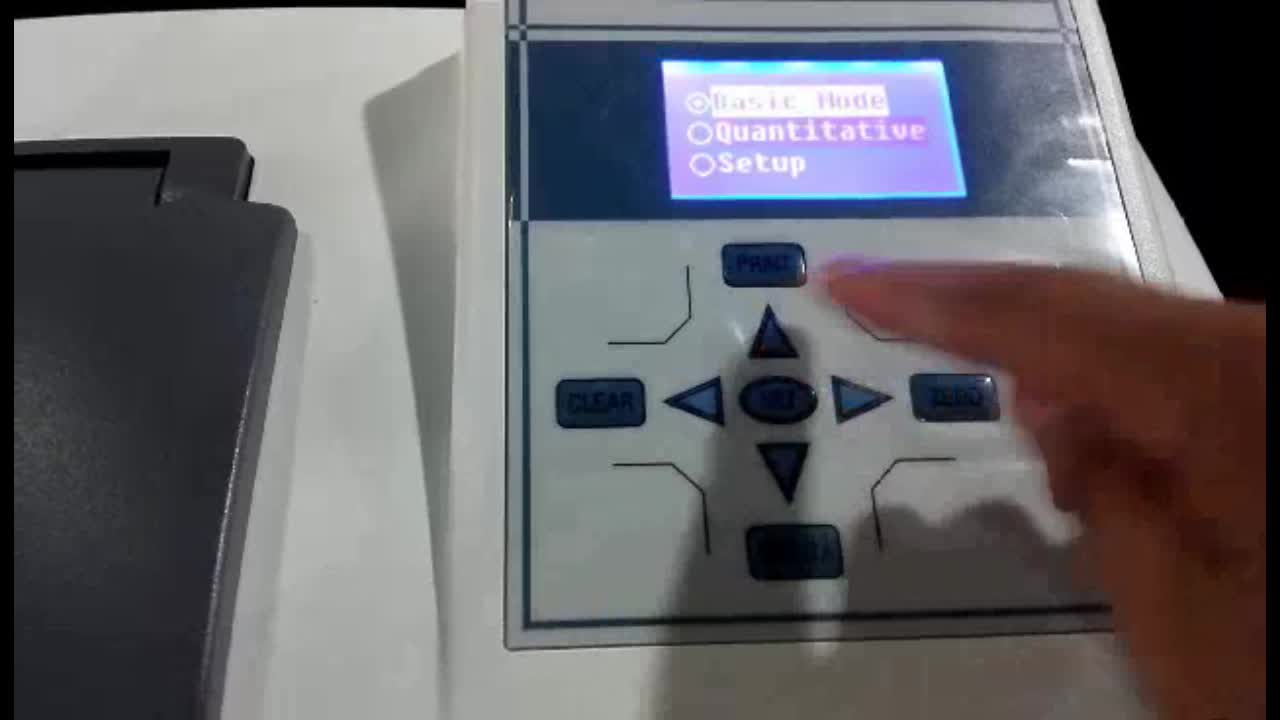

Display
|
Graphic LCD (128×64 Dots)
|
||
|
Keypad
|
11-key Membrance Keypad
|
||
|
Output Port
|
USB Port & RS232 Port
|
||
|
Printer
|
Mini Serial Printer; PC Printer
|
||
|
PC Software
|
Optional PC Scanning Software
|
||
|

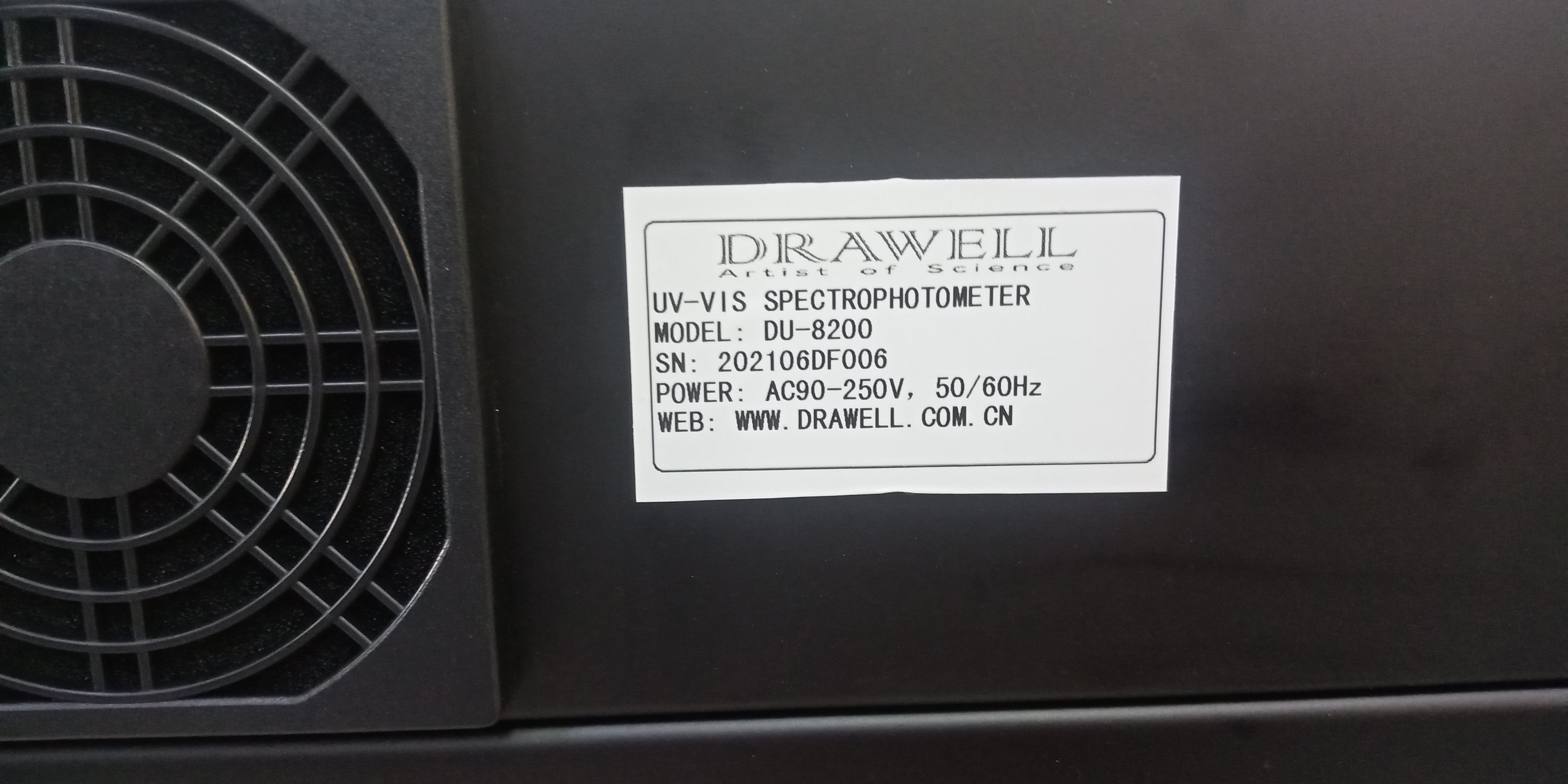

Power Requirements
|
AC 90-250V，50/60Hz
|
||
|
Dimension
|
431x318x195mm
|
||
|
Net Weight / Gross Weight
|
8.2kgs / 12kgs
|
9kgs / 13kgs
|
|

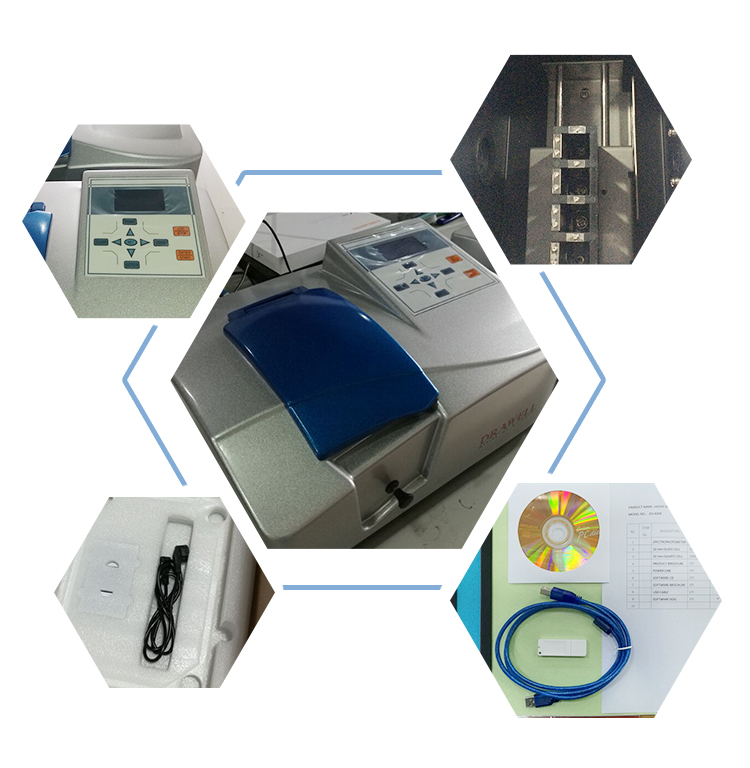

Products Description
Application Field
Certifications
Company Profile
Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014. DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer, Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .
Exhibition

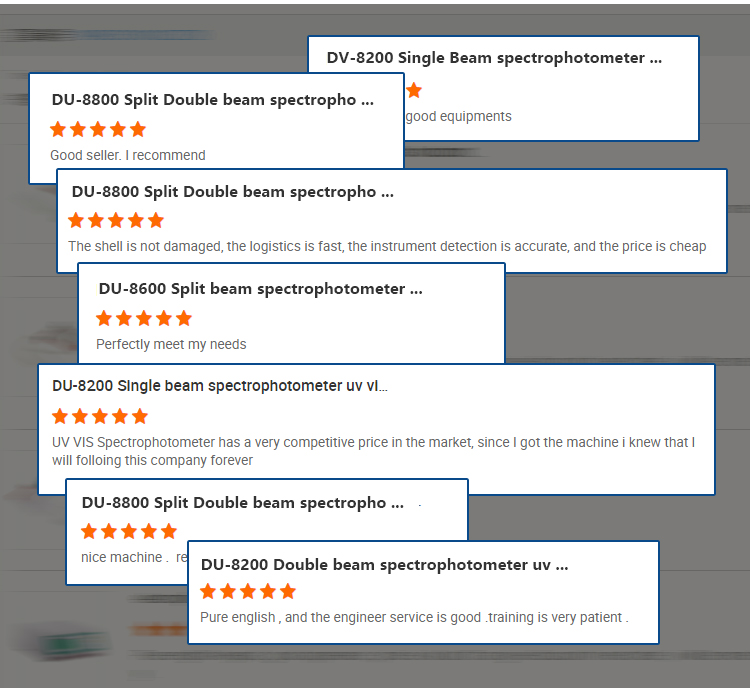

Evaluation

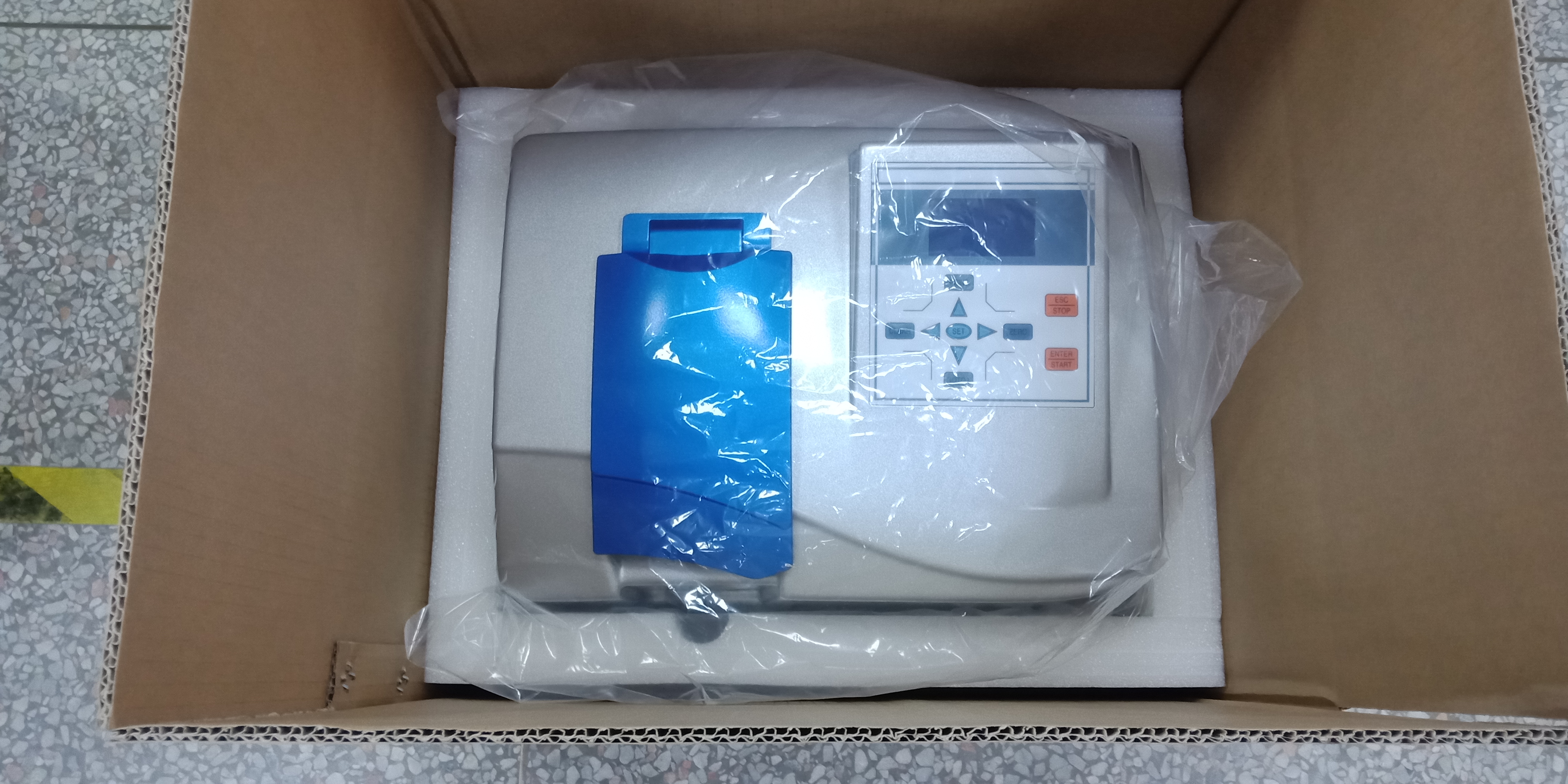

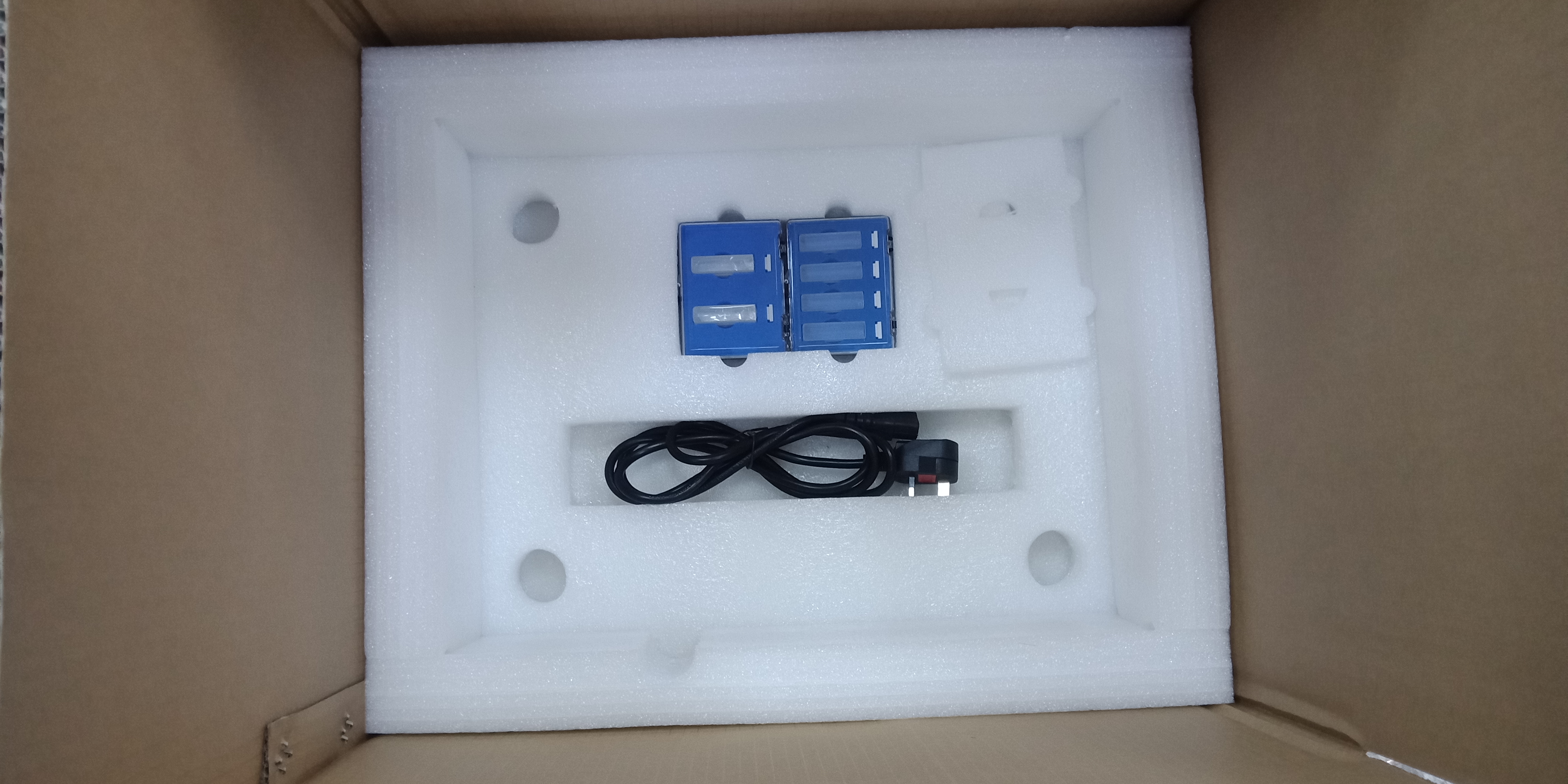

Shipment & Payment
