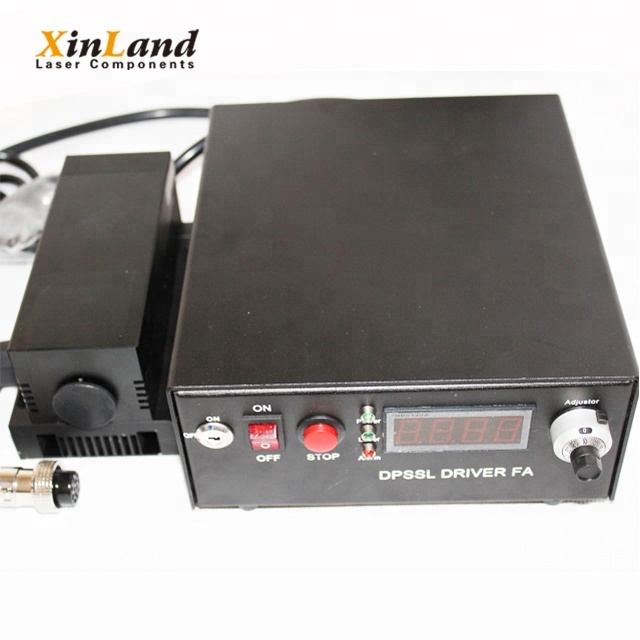

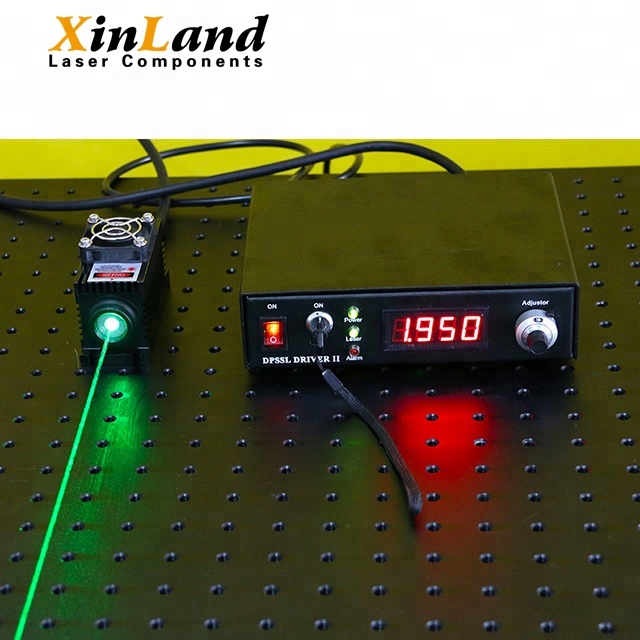

Model

XL-M532D1W

Wavelength

532nm

Operating mode

CW

Output power

1W

Spatial mode

Near TEM₀₀

Longitudinal mode

Multi

Spectral linewidth

0.3nm

Coherence length

20cm

Polarization

Linear vertical

Polarization ratio

>100:1

Beam quality

M²<1.5

Beam divergence full angle

2mrad

Beam diameter at aperture

3mm

Beam ellipticity

1±0.1

Beam pointing stability

0.03mrad

Noise

<15% 10Hz-50MHz

Power stability

±5% over 8 hrs rms

Optical axis height

48mm

Size of laser head

L×W×H=204×78×63mm

Size of power supply

L×W×H=159×144×83mm

Cabel-laser head

1.0m

Weight of laser head

0.9kg

Weight of power supply

0.9kg

TTL modulation

0V-no lasing, 5V-lasing

Frequency of TTL

1kHz-30kHz

Efficiency of TTL

40%-60%

Analogue modulation

0-5V

Frequency of analogue

1kHz-20kHz

Cooling mode

TEC

Operating votage

90-260VAC

Maximum power consumption

20W

Warm-up time

15 mintues

Operating temperature

10-35°C

Storage temperature

-20-60°C(<90% relative humidity, non-condensing)

Expected life time

10,000 hours

Warranty time

1 year
