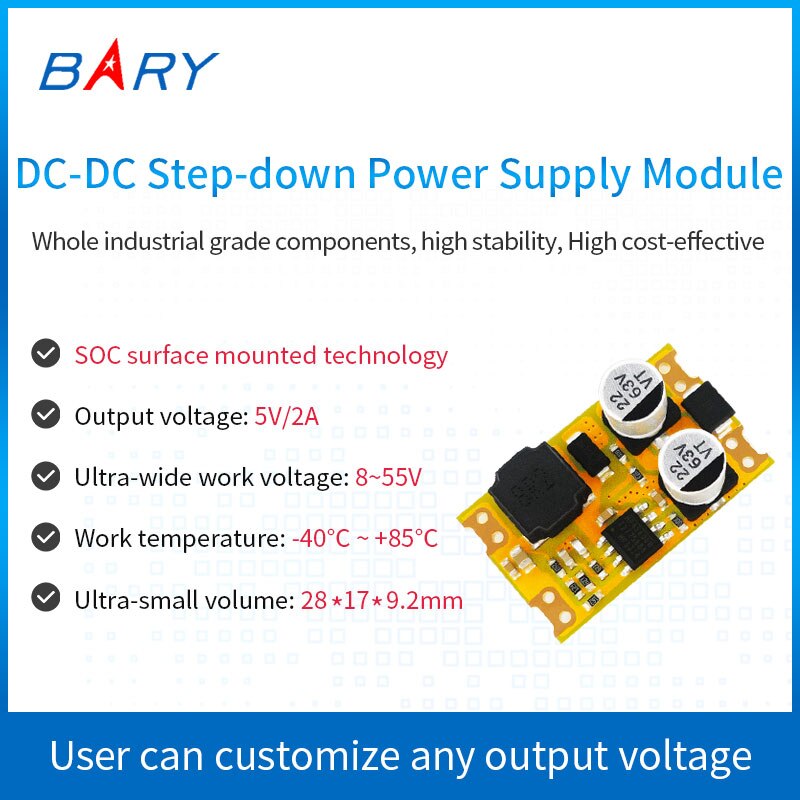

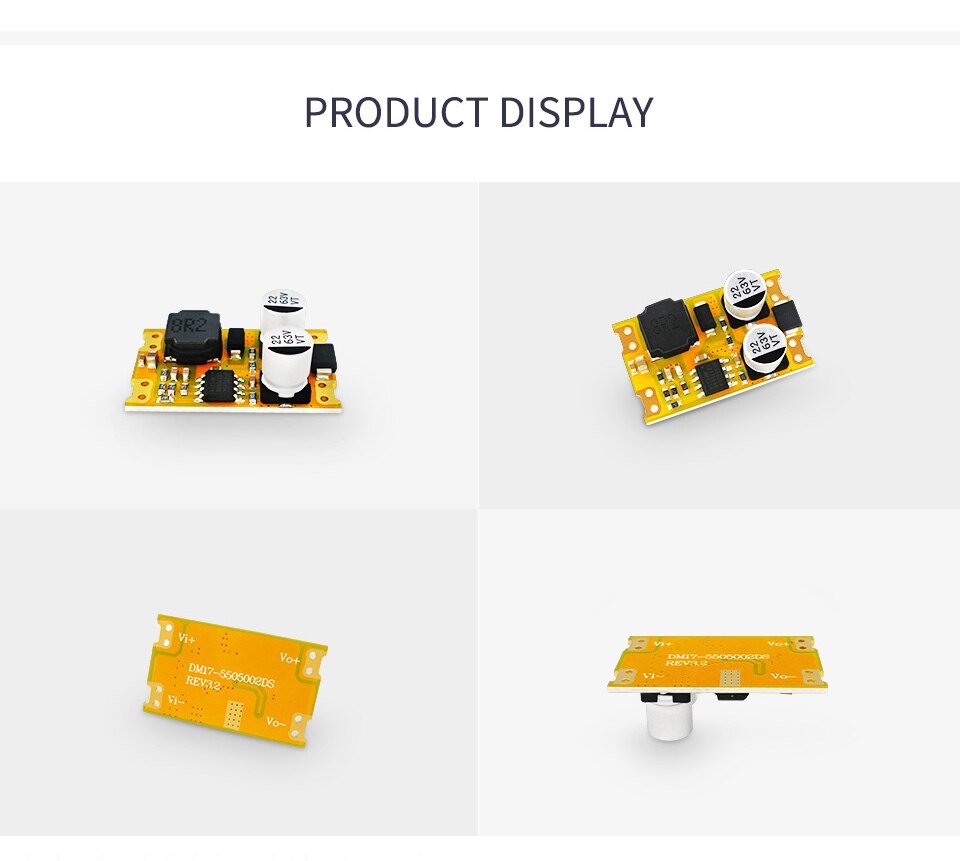

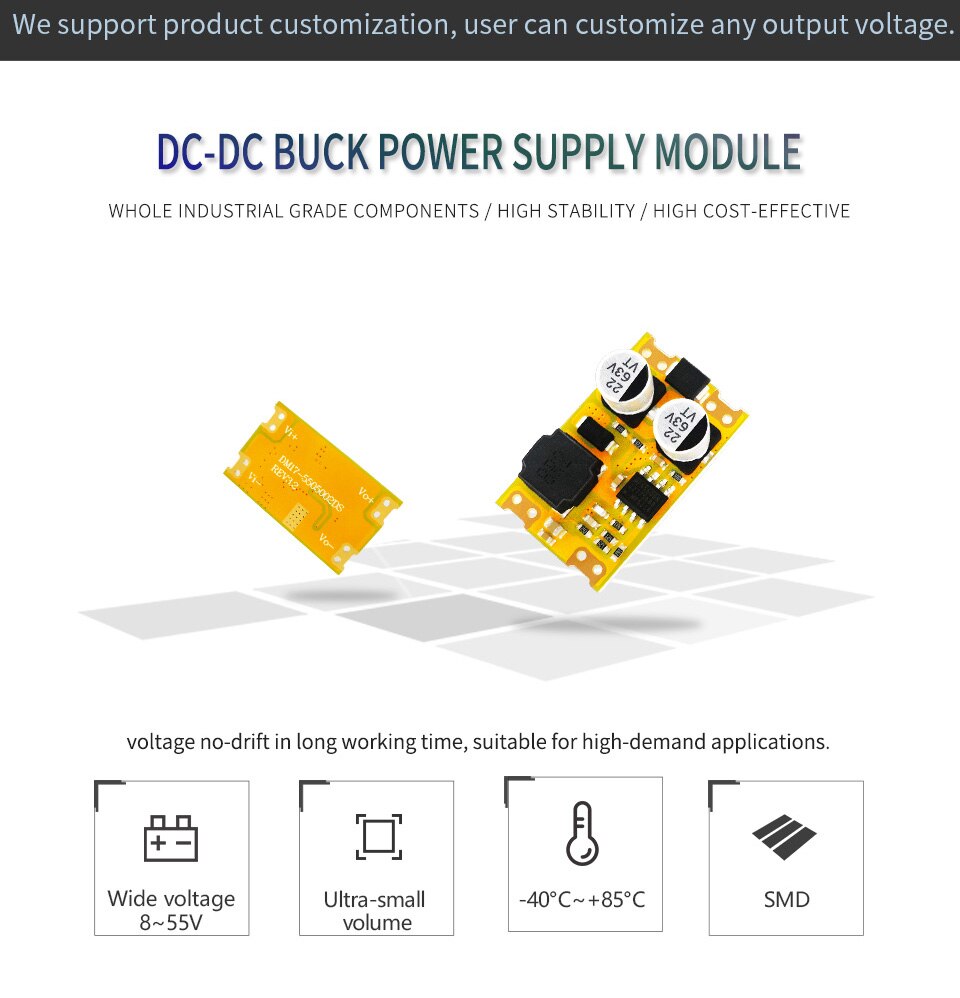

Product model

Input voltage

Output voltage

maximum current

Working frequency

Installation

DM17-55050016DS

8~55Vdc

5V

2A

0.5MHZ

SMD

Parameter name

Parameter detail

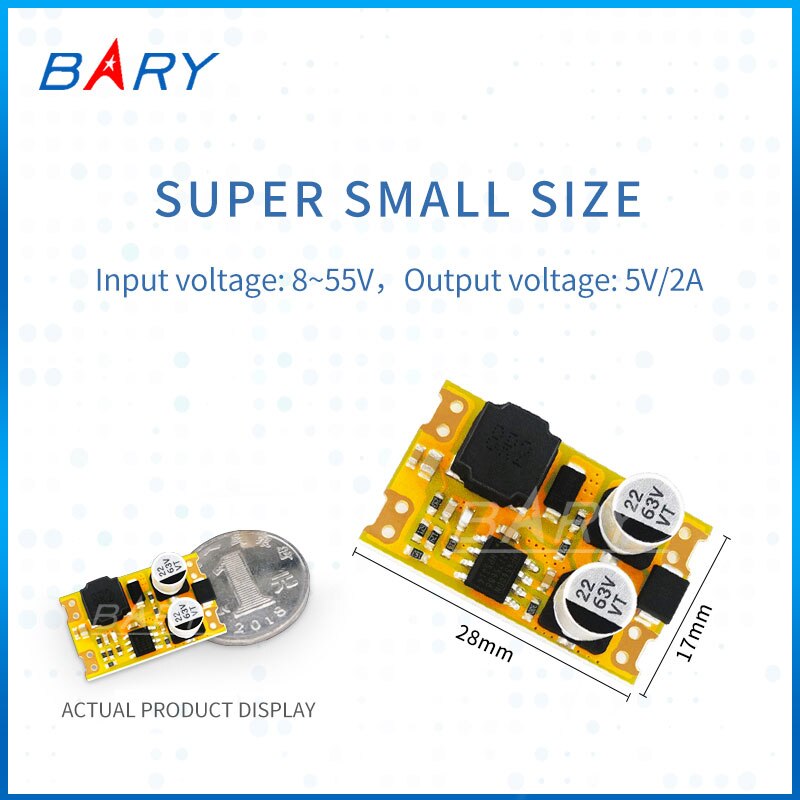

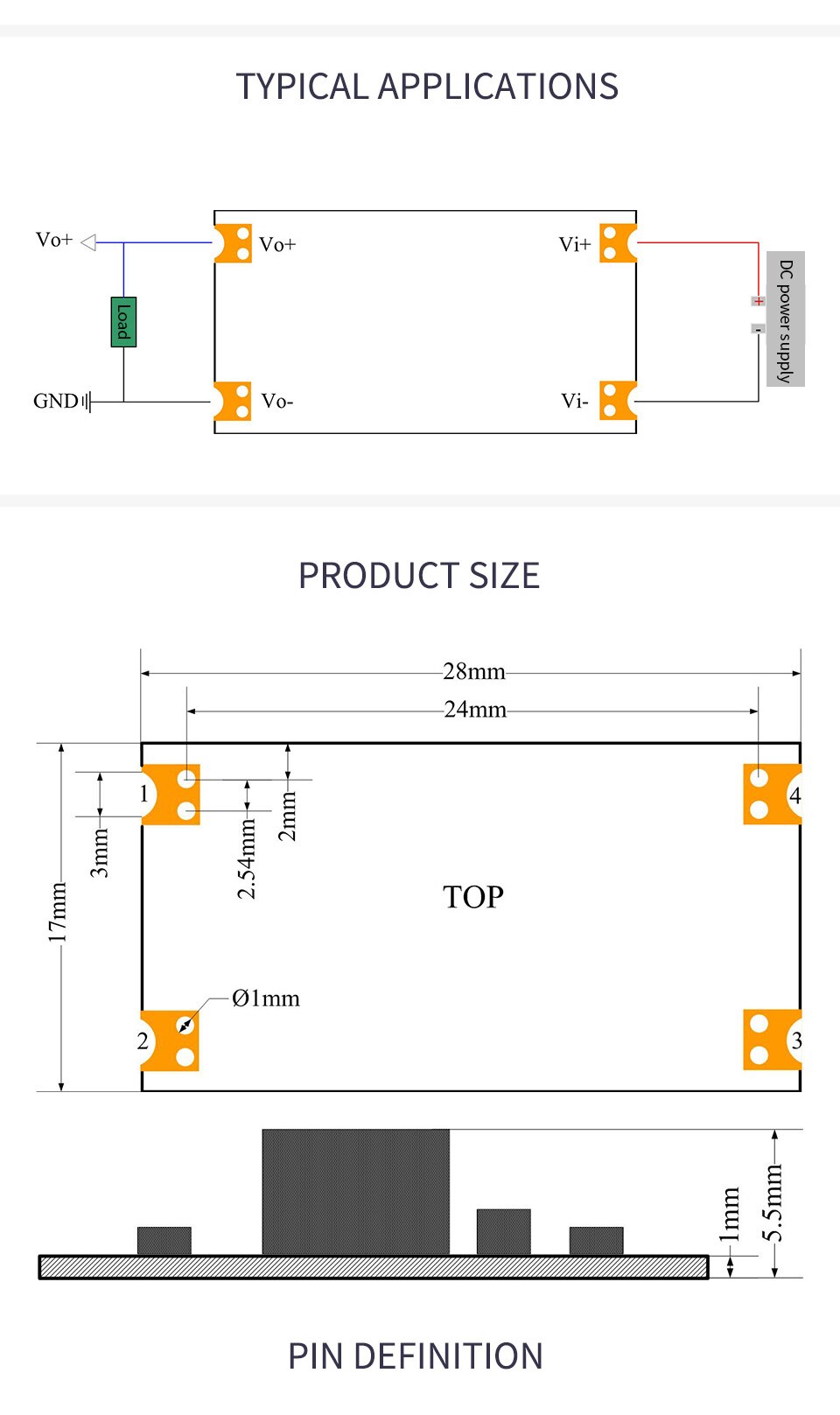

Module size

17×28×9.2mm

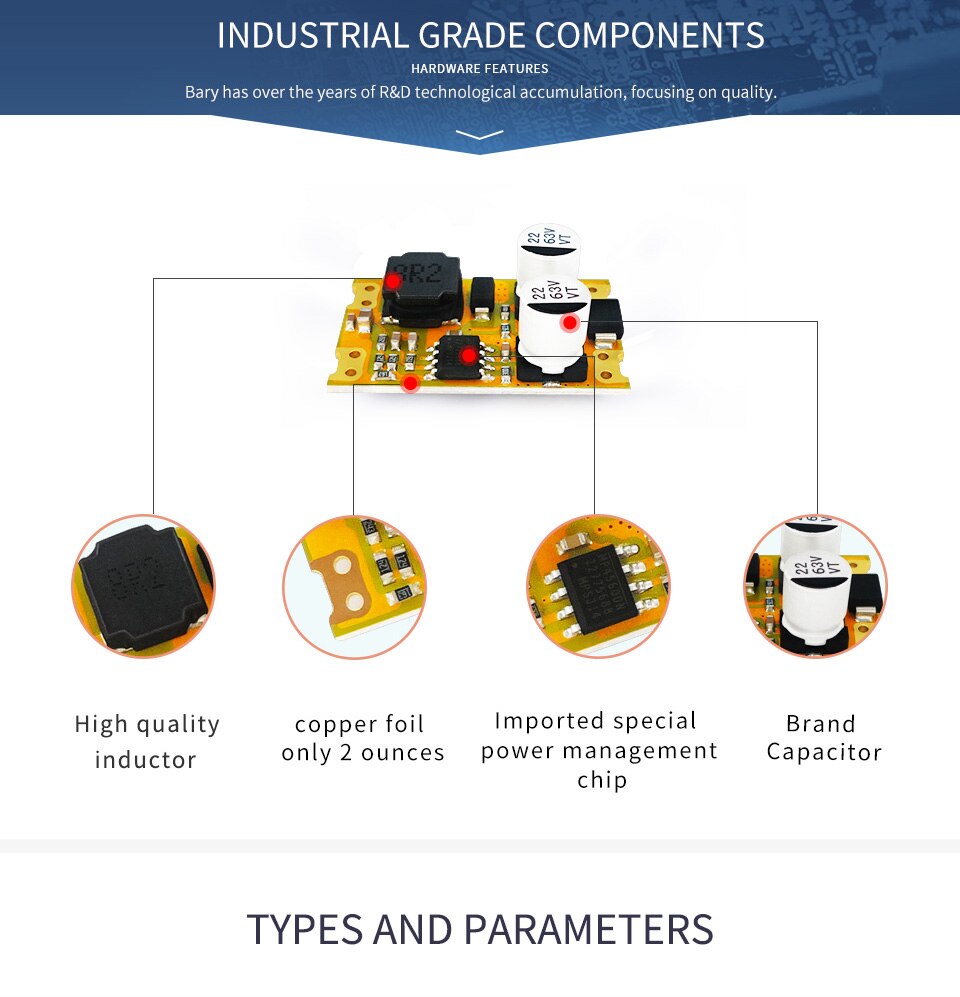

Device source

All Imported Components from: Japan, USA, Germany

Production process

Lead-free process, machine mounting (machine mounting can ensure batch consistency and reliability).

Interface mode

2.54Plug-in type and patch type (patch is strongly recommended.)

Input voltage

8～55VDC

Input reverse connection protection

No

Output voltage

5.0V(The series has fixed output of 3.3V, 5V, 9V, 12V, 24V, 36V. User can customize any voltage.)

Output accuracy

±0.1V

Output maximum current

2A

Full-load output ripple Vpp

<50mV

Quiescent current

140uA

working temperature

-40℃ ~ +85℃

working humidity

20% ~ 90% relative humidity,(no condensation)

Average service life

50000 hours

Order number

name

direction

use

1,2

Vout +

Output

Output power supply is positive.

3,4

Vout –

Output

Earth wire, output port power reference GND.

5,6

Vin –

input

Earth wire, link to power reference GND.

7,8

Vin+

input

Power supply input range: 8-55V, over 55V will cause permanent damage to module.
