Description

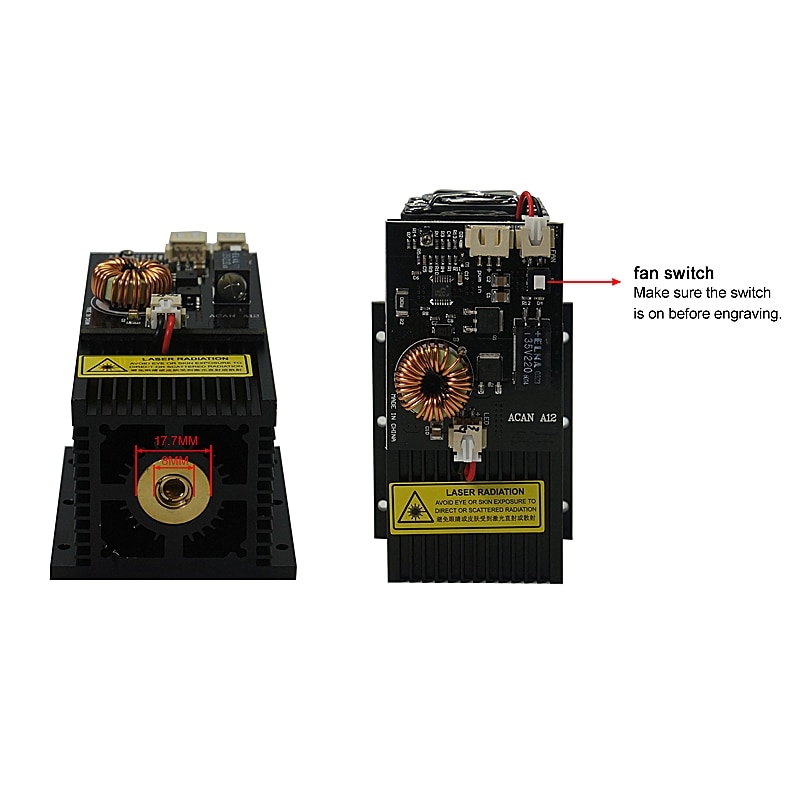

diode Laser Module 450NM 7000mw 10000MW 15000MW Focusing Blue Laser Head Laser Engraving Machine Tools Laser Tube
- CNC or Not: Normal

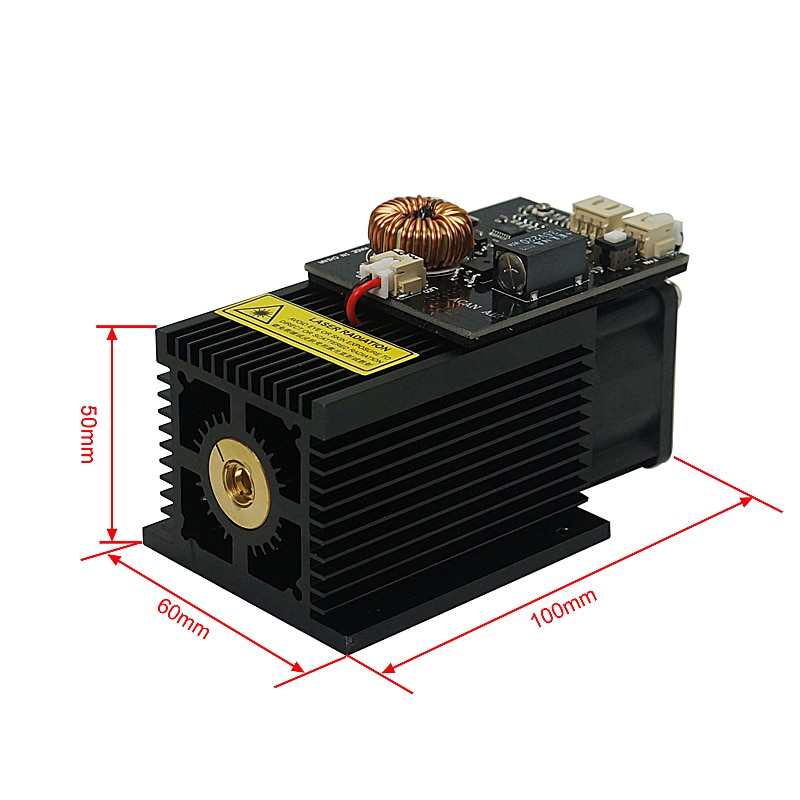

- Main body size: 50mm long * 50mm wide * 100mm high
- Output wavelength: 445nm ~ 450nm
- Output power: 7W
- Working voltage: DC=12V
7W power 450nm laser module
Specification parameters:
Main body size: 50mm long * 50mm wide * 100mm high
Output wavelength: 445nm ~ 450nm
Output power: 7W
Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz
Working voltage: DC=12V
Working current: I<3A
Focal length: adjustable
Working temperature: 15 ℃ ~ 45 ℃
Pulse 10W power 450nm laser module
Specification parameters:
Main body size: 50mm long * 50mm wide * 100mm high
Output wavelength: 445nm ~ 450nm
Output power: pulse 10W averages 5.5-6.5w
Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz
Working voltage: DC=12V
Working current: I<3A
Focus: not adjustable
Working temperature: 15 ℃ ~ 45 ℃
————————————————————————————————–
(RE:Due to batch difference,maybe PCB board color maybe little different with picture,but module is correct power,if mind don’t buy please,or will cause unnecessary dispute.)
