Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: China
- Brand Name: HEYUAN
- Model Number: DZS900
- Measuring Current Range: 0~9999A
- Measuring Voltage Range: 0~400V
- Accuracy Class: 0.5
- Operating Temperature: -20 ~ 70
- Dimensions: 210*98*46.1
- Rated Voltage: 100V/400V
- Rated Current: 20mA
- Frequency: 45-60 HZ
- Phase: Three Phase
- Baud Rate: 1200-19200
- Consumption: < 3W
- Display: LCD
- Installation: Standard DIN RAIL
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-4{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-5{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{text-align:center}#detail_decorate_root .magic-7{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-8{font-size:16px}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:1410px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:1410px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:648px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:648px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:249.99999999999997px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:749.9999999999999px;height:249.99999999999997px}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:727px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{display:none}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:127px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:433px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:274px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:432px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:580px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:580px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:562px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:562px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:387.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:387.75px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:629px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:629px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:408px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:408px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:570px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:570px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:496px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:496px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:353px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:353px}
Products Description

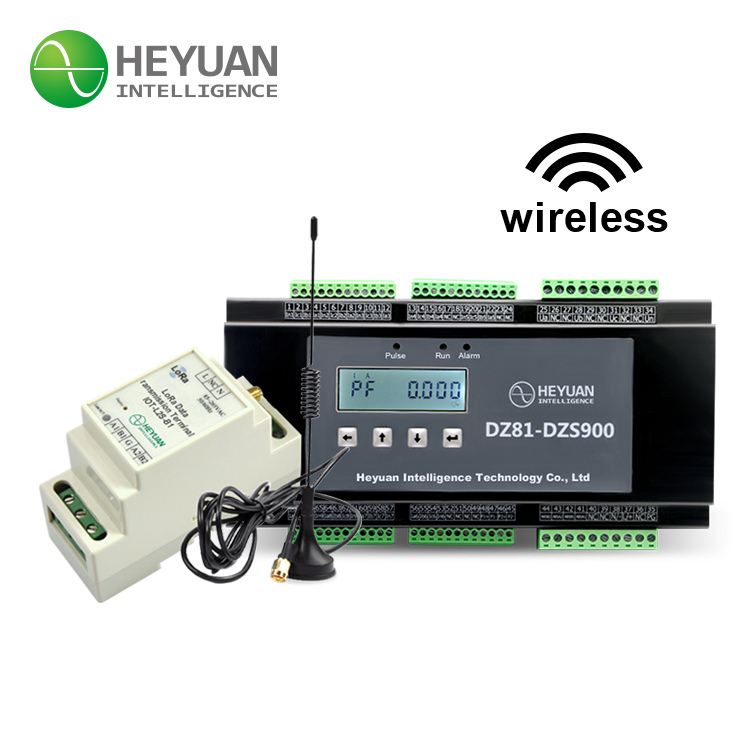

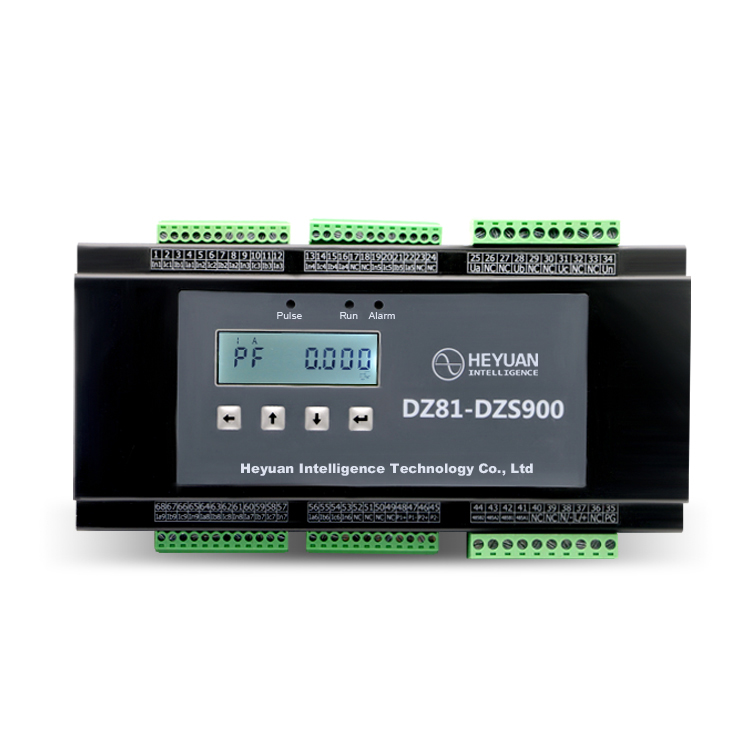

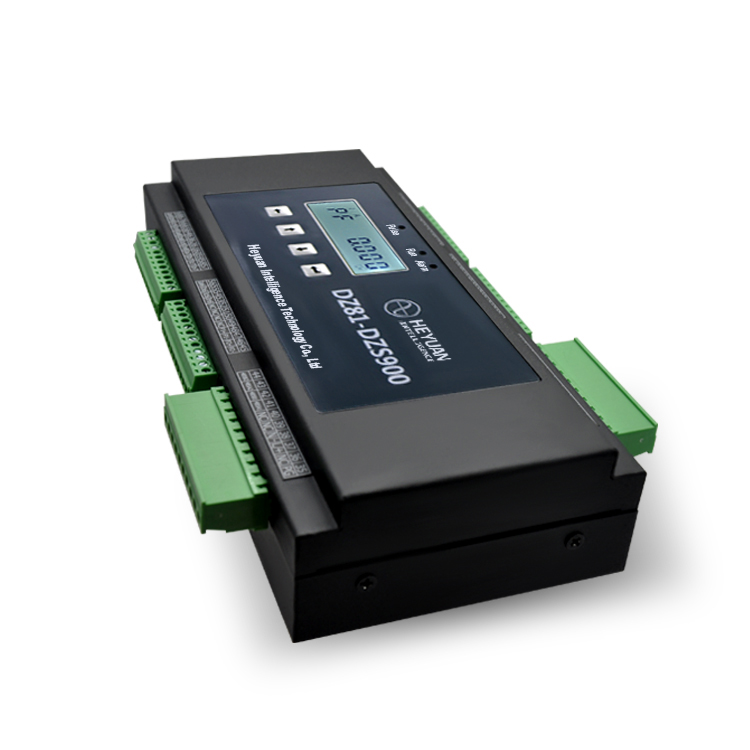

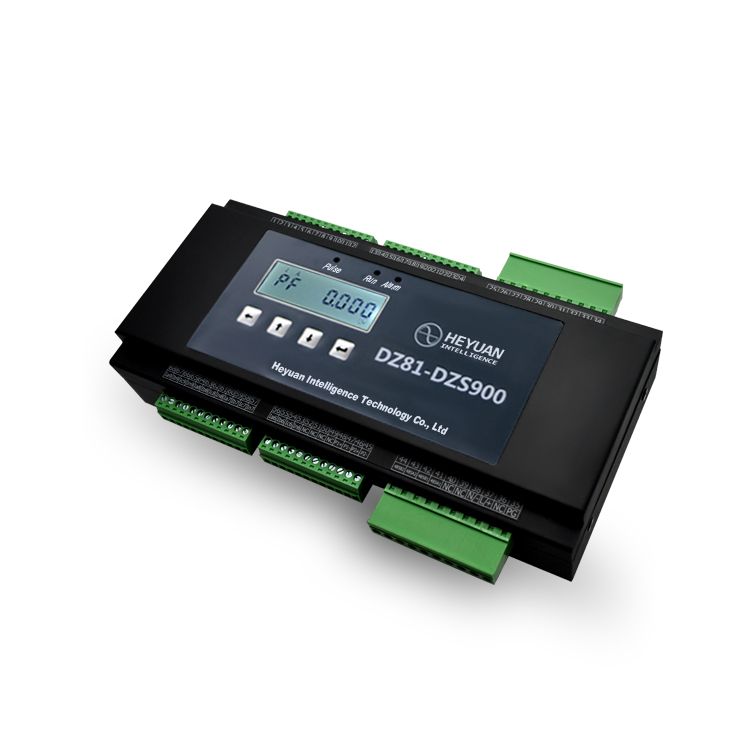

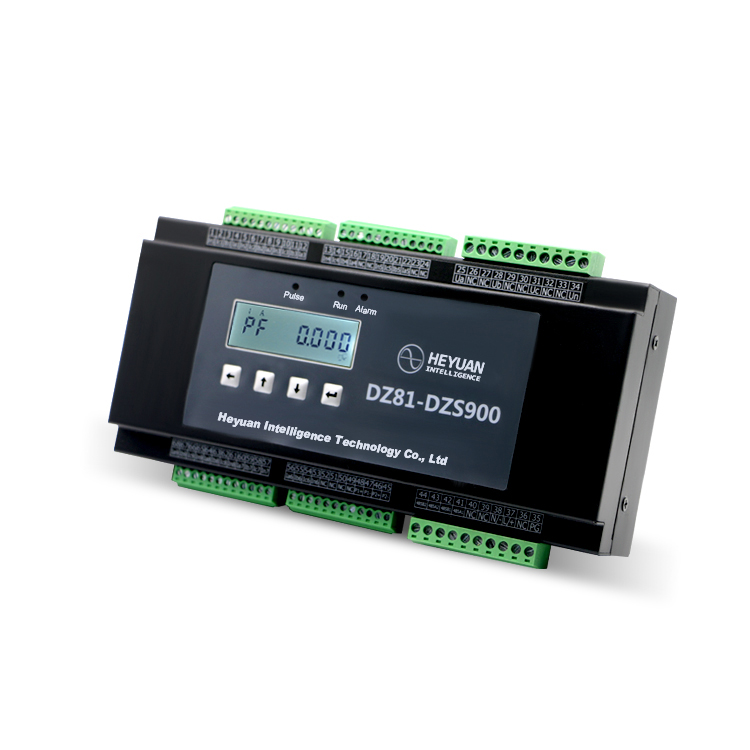

Din Rail Digital Power Energy Meter LCD Watt Kwh Modbus RS485
With internationally cutting-edge imported metering IC solutions, we launched 27circuits smart meters with efficient and stable metering performance for all electrical parameters. Matched with Heyuan Cloud Platform Managing System, it can provide remote stable and reliable data and ensures efficient energy management and electrical safety monitoring.
Features:
• Monitoring up to 9 three-phase channels or 27 single-phase channels and measuring all parameters: three phase voltage, current,
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
Product Paramenters
|
Technical Parameters-DZS900
|
||||
|
Accuracy Class
|
Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5
|
|||
|
Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5
|
||||
|
Active Energy: 0.5S/1; Reactive Energy: 2
|
||||
|
Inputs
|
Rated Value
|
Voltage: 100 V/400 V Current: 20mA
|
||
|
Overload
|
Voltage: Sustained Overload: 1.2 times of the rated value
Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
|||
|
Frequency
|
45-60Hz
|
|||
|
Functional Module
|
Pulse Outputs
|
2
|
||
|
Interface
|
2* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps
|
|||
|
Power Supply
|
Working Range
|
AC: 85-265V; DC: 85-300V
|
||
|
Consumption
|
< 3W
|
|||
|
Working Condition
|
Temperature
|
Operating: -20°C~+65°C. Storage: -40°C~ +85°C
|
||
|
Humidity
|
Relative Humidity: < 93% (place without corrosive gas)
|
|||
|
Altitude
|
<4000m
|
|||
|

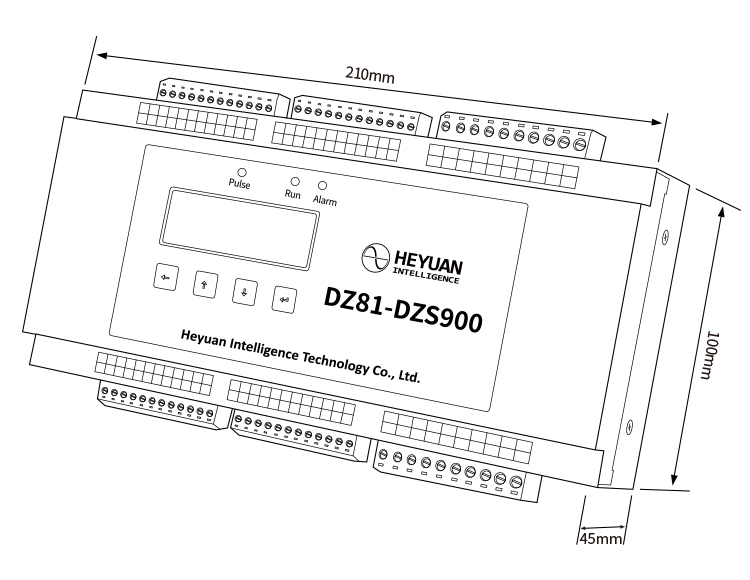

Dimensions:
|
210×100×45mm
|
|||
