Easy-to-use manual polarimeter, measurement range from -180° to +180°. The instrument is suitable for measuring the optical rotation of optically active substances, accuracy: 0.05°.
Features:

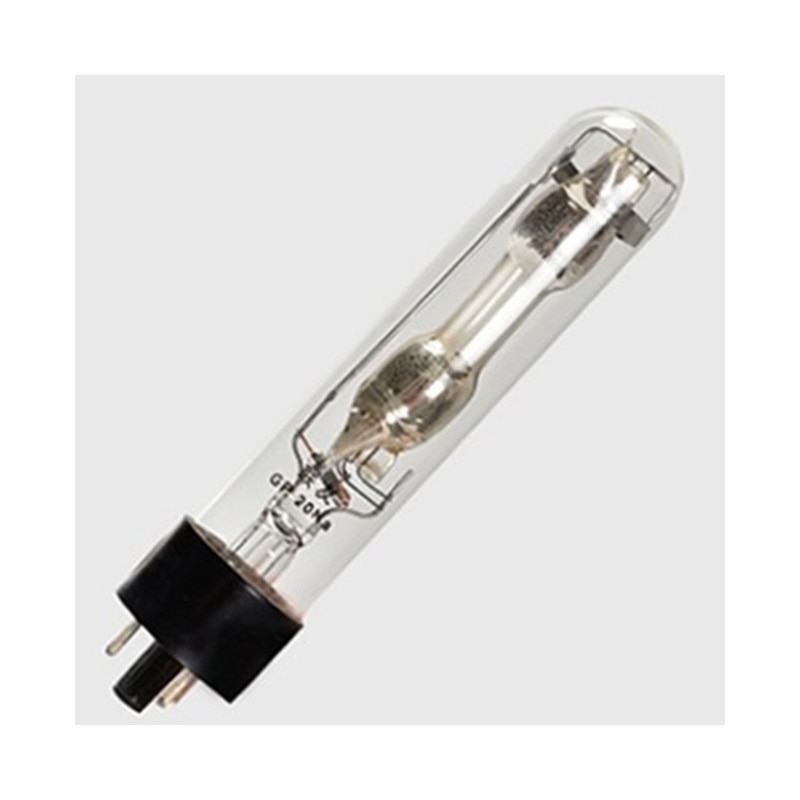

This polarimeter is installed with a 589nm sodium lamp. Switch on the power, the polarized
light radiates to the polarizer filter. The user is able to observe the distinct visual fields through

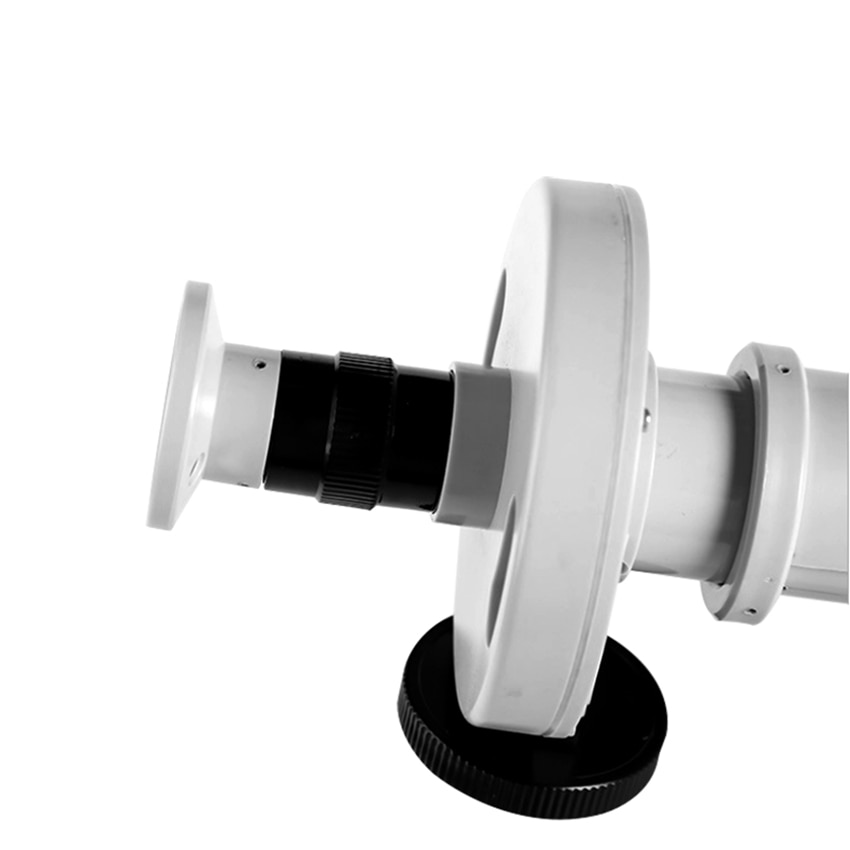

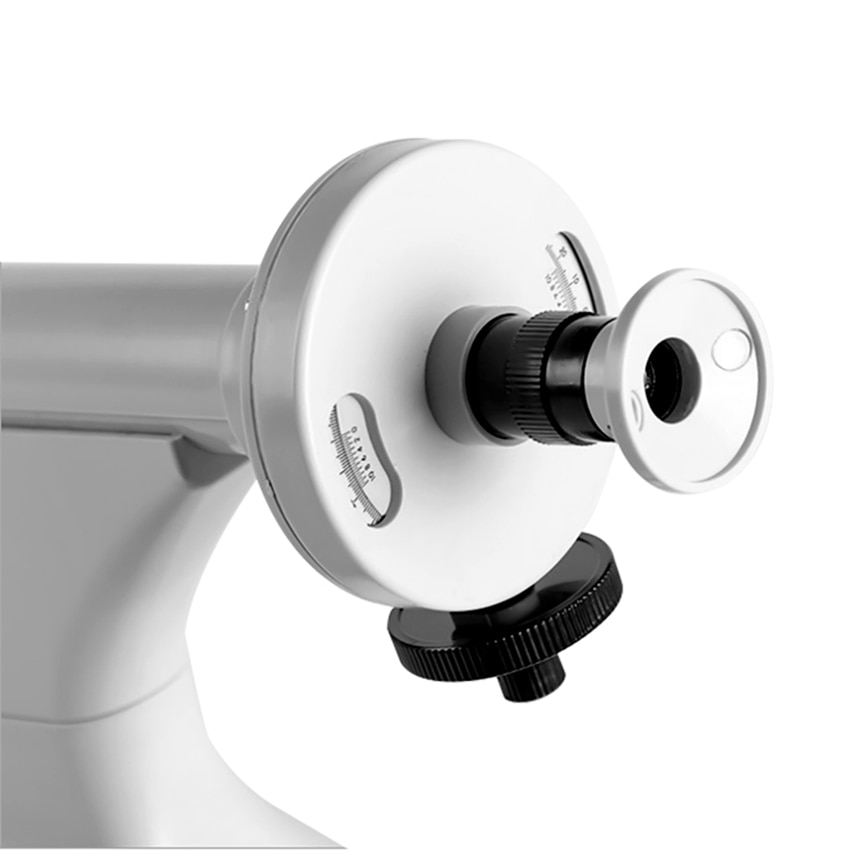

eyepiece. Place the test tube into the measuring chamber and rotate the vernier knob until the
visual fields appear the equal brightness. Recording the vernier scale. Measurement is done.

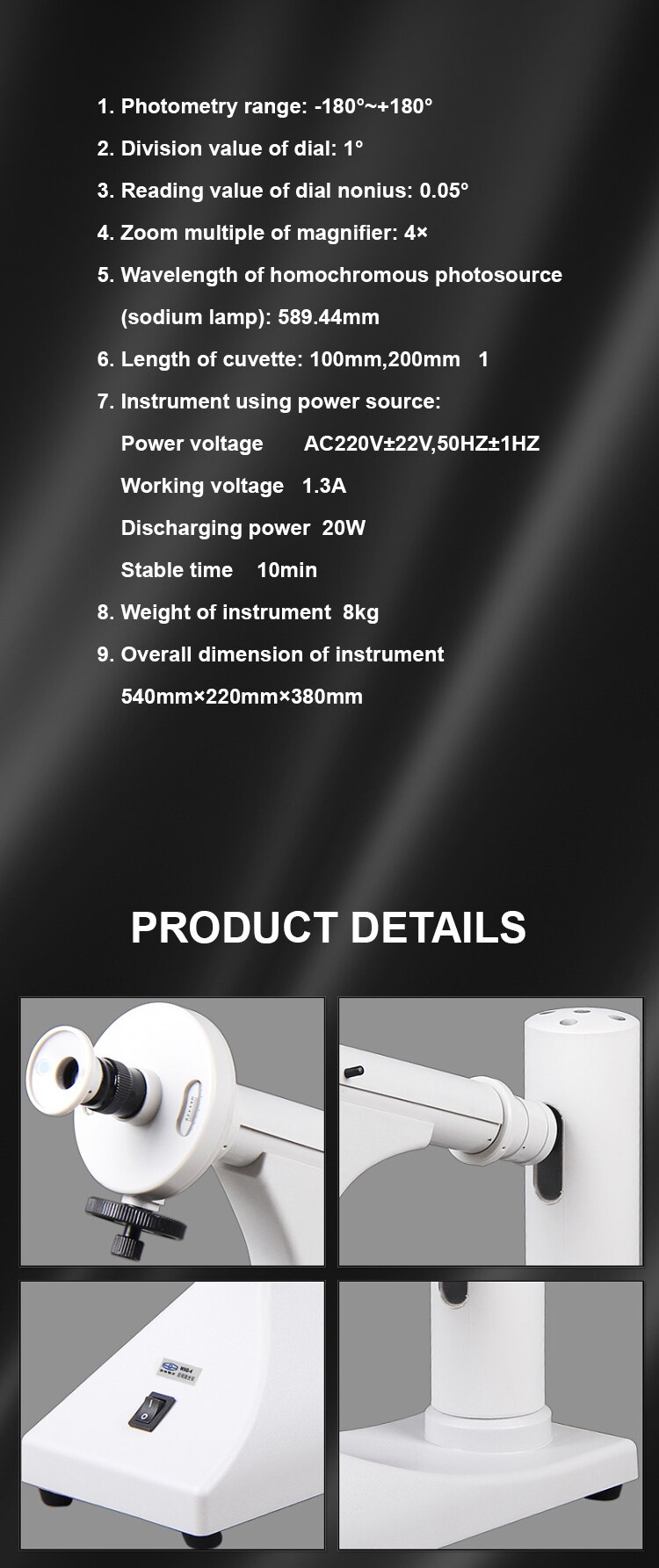

Specifications:
Range: ±180°
Scale Value: 1°
Vernier: 0.05°
Magnifier: 3X
Light Source: Sodium lamp
Wavelength: 589nm

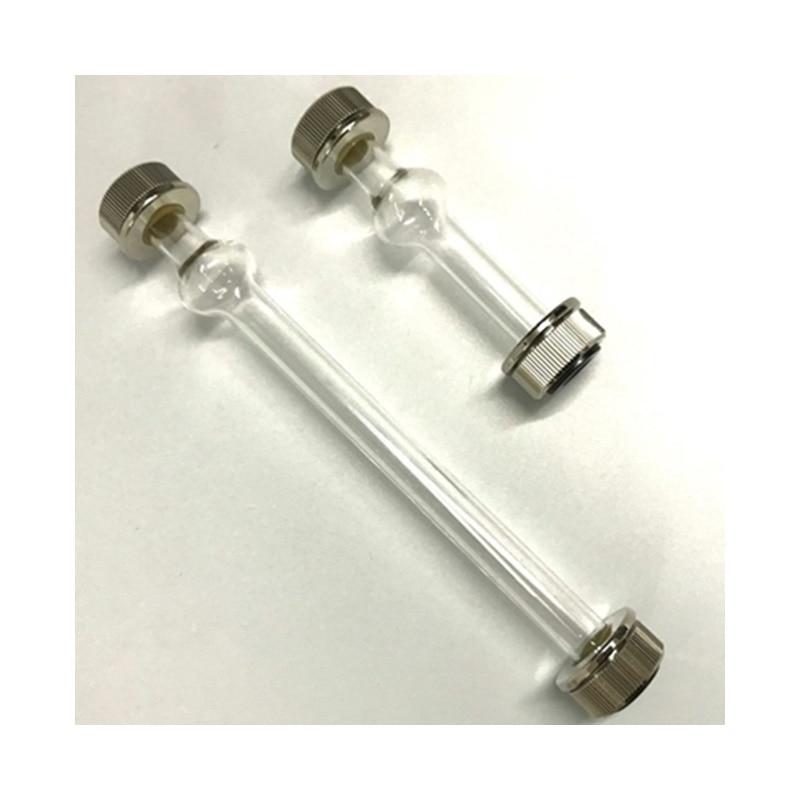

Tube Length: 100 and 200mm
Item included:
1 set of Manual Disc Polarimeter
