Product Description

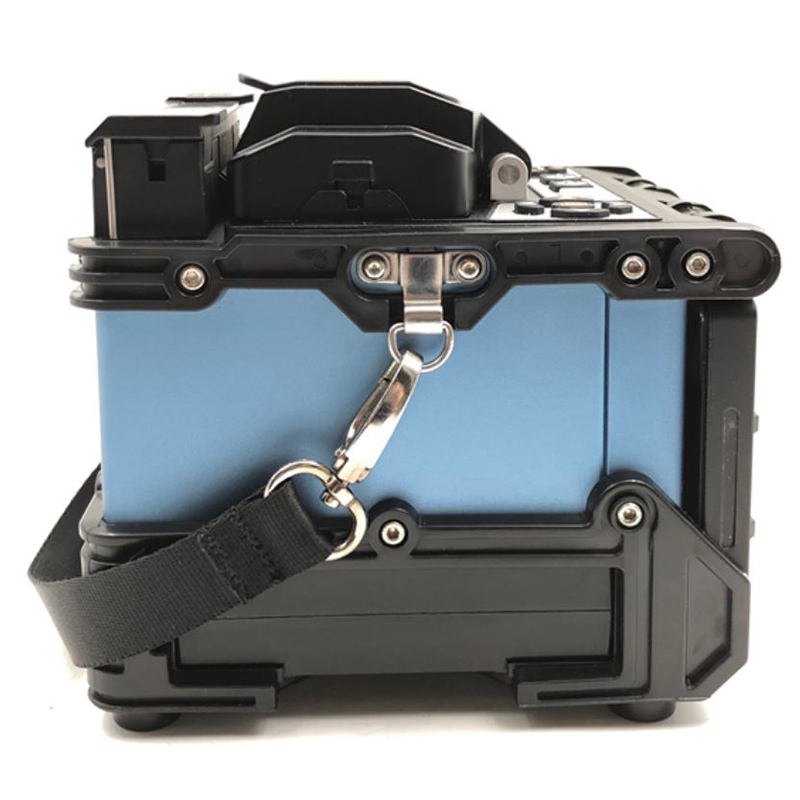

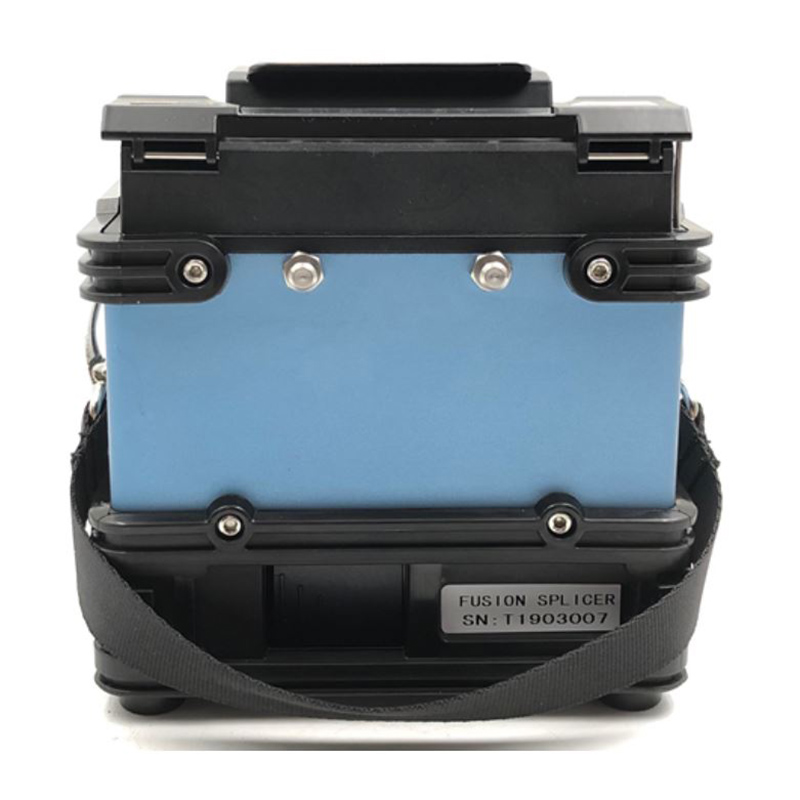

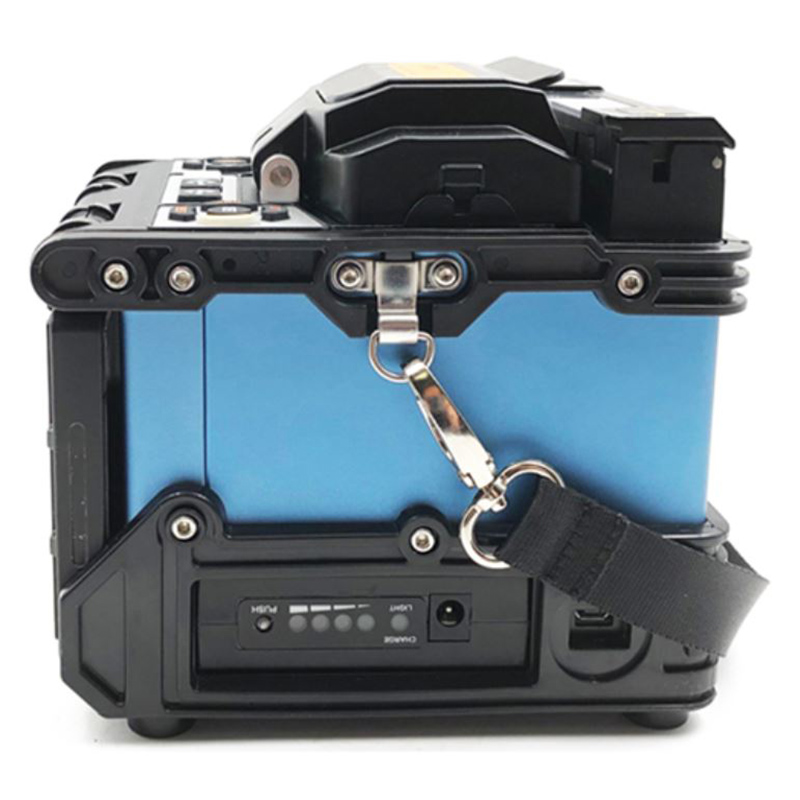

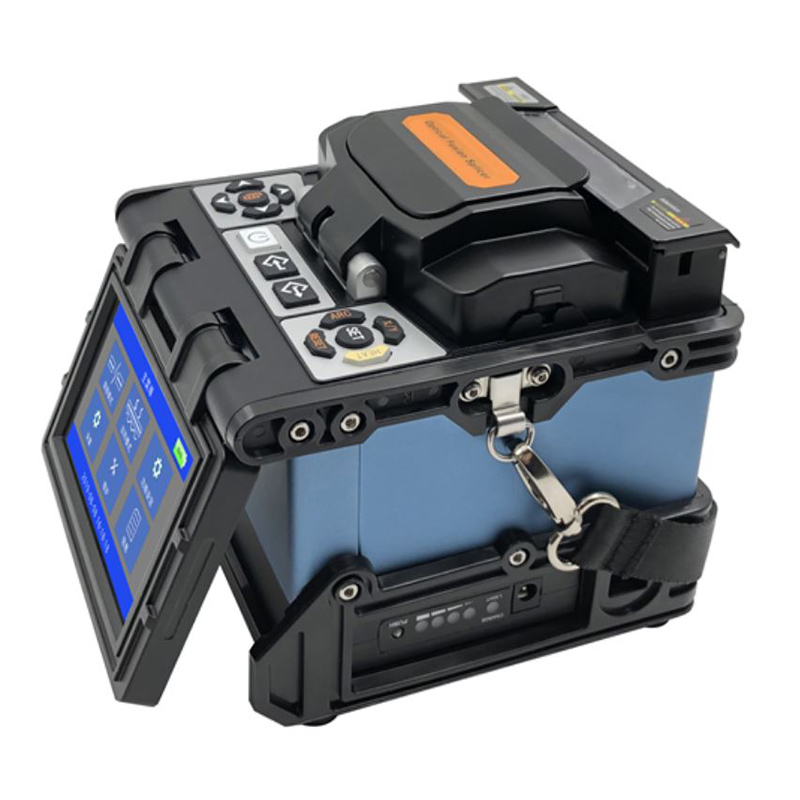

PC-100 is a high-precision large-core fiber fusion splicer with excellent workmanship and reliable quality. It is a precise,
durable and convenient fiber fusion splicing instrument designed for special fiber fusion splicing. It can be used for the
production and maintenance of fiber laser generators.
durable and convenient fiber fusion splicing instrument designed for special fiber fusion splicing. It can be used for the
production and maintenance of fiber laser generators.
* 1. Suitable for optical fiber with cladding diameter of 200um-400um;
* 2. PAS is precisely aligned to ensure low-loss connection;
* 3. The X/Y axis is displayed separately or the X/Y axis is displayed at the same time, and the magnification is 200/150 times;
* 4.5-inch digital high-definition LCD screen, while observing the optical fibers in the X-axis and Y-axis directions;
* 5. The operation is simple and fast.
Details
Precise alignment with resolution of 0.03μm for fiber axis.
Fiber clamps land gently to prevent damage to the fiber.
Easy and intuitive touch panel operation and GUI.
Releasing the fiber clamp links allow the fiber clamps to be placed without closing the canopy.
Parameter
|
Fiber type
|
cladding diameter 200um-400um, various types of fiber
|
|
Connection loss
|
less than 0.05dB
|
|
Return loss
|
more than 60dB
|
|
Operation mode
|
manual, semi-automatic, fully automatic
|
|
Fiber alignment
|
Advanced center alignment method
|
|
Welding time
|
≤9s
|
|
Heating time
|
≤30s
|
|
Cutting length
|
8～16mm
|
|
Magnification
|
200/150 times
|
|
Image display
|
High-performance 5-inch LCD screen, providing clear and delicate image display
|
|
Tension test
|
Standard 2N (optional) heat shrinkable tubing 60mm, 40mm and a series of heat shrinkable tubing
|
|
Battery capacity
|
typical fusion splicing 300 times, charging time is about 3 hours (can be used while charging)
|
|
Battery life
|
300～500 charging cycles, easy and convenient battery replacement
|
|
Electrode life
|
3000 times, electrode replacement is simple and convenient
|
Application
MAX/JPT/RECI/FEIBO/DK/STR laser source repair
Raycus laser source repair
