Description
- Brand Name: Q-LINE
- Certification: NONE
- Origin: Mainland China
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Power: 200mw
- Model Number: 650nm
Parameters
Laser head size: 50mmx33mmx33mm

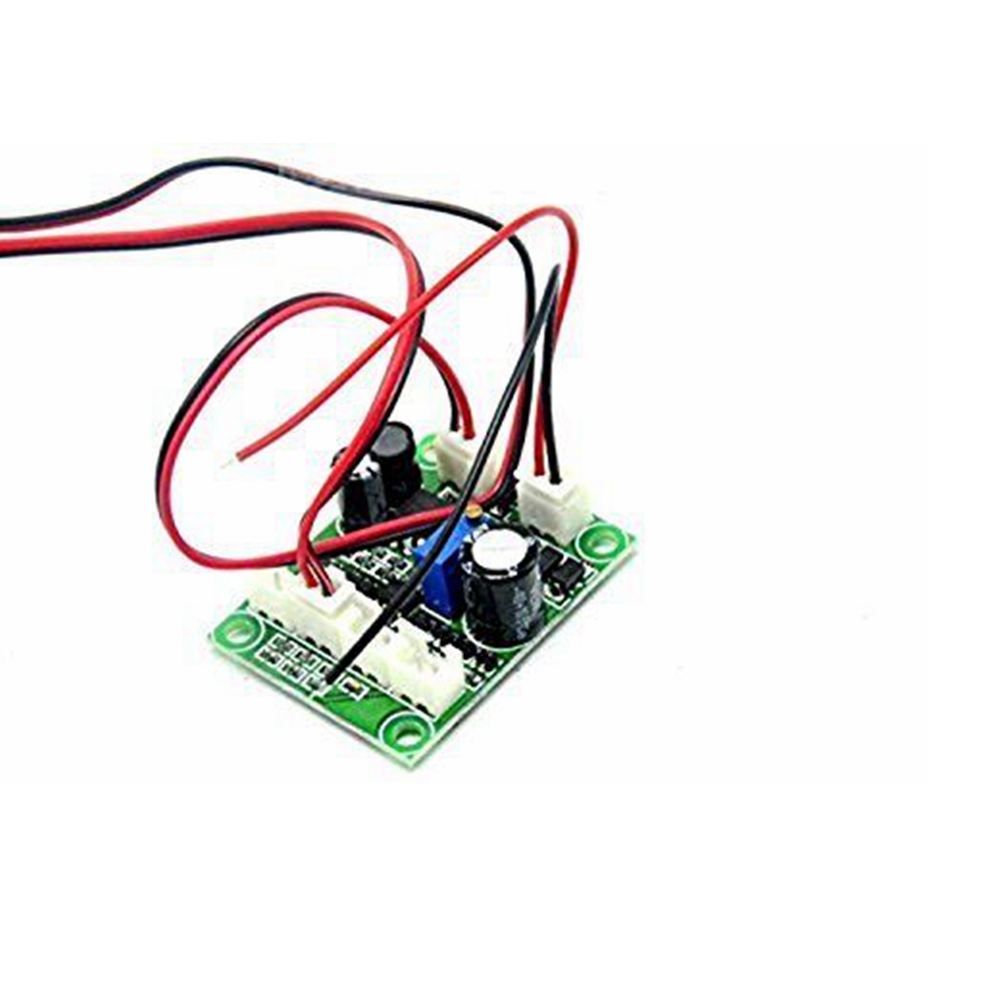

Circuit Board size: 45mm*34mm
Wavelength: 650nm-660nm
Output power: 200mW
Laser shape:Line
laser beam color: red
Focusable:YES
Modulation frequency: Adujstable TTL modulation
Working:Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Features
1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. Please wear 650nm laser protection goggles to protect your eyes when working on this module.(Suitable item No:282325404576)
Package

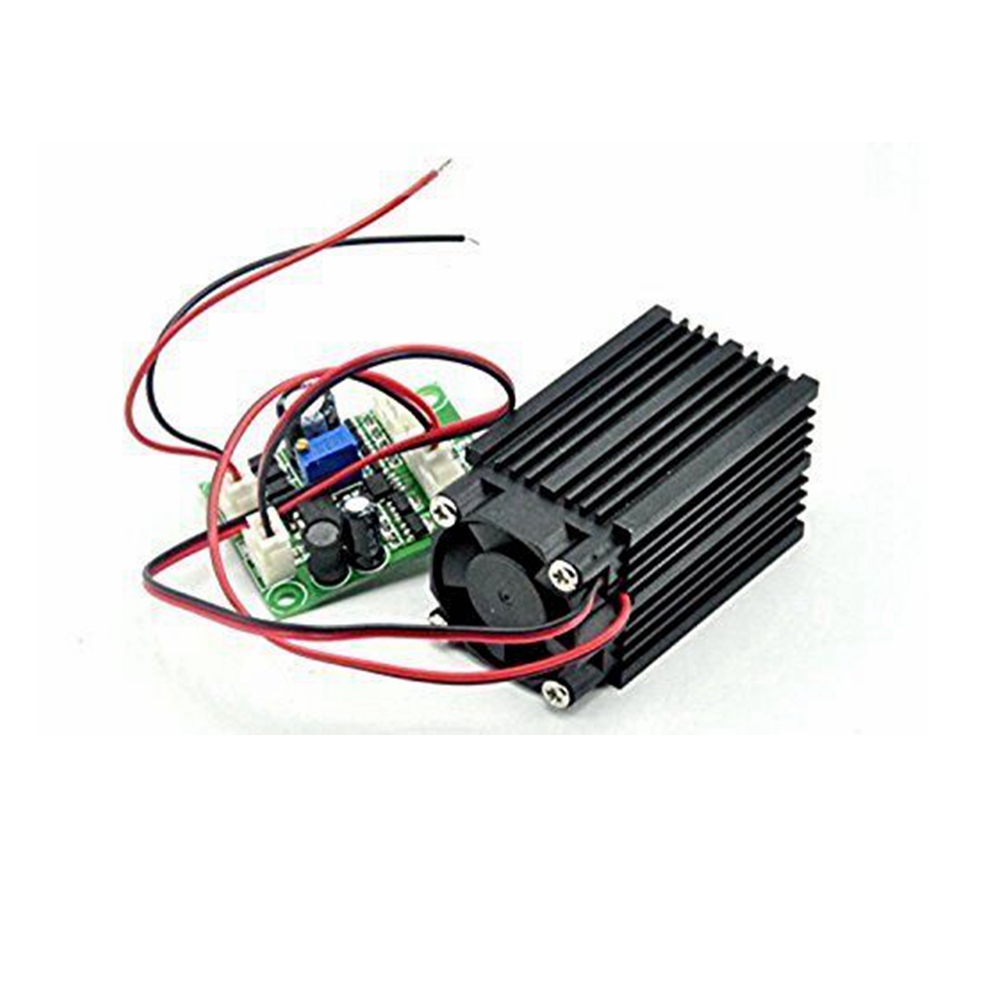

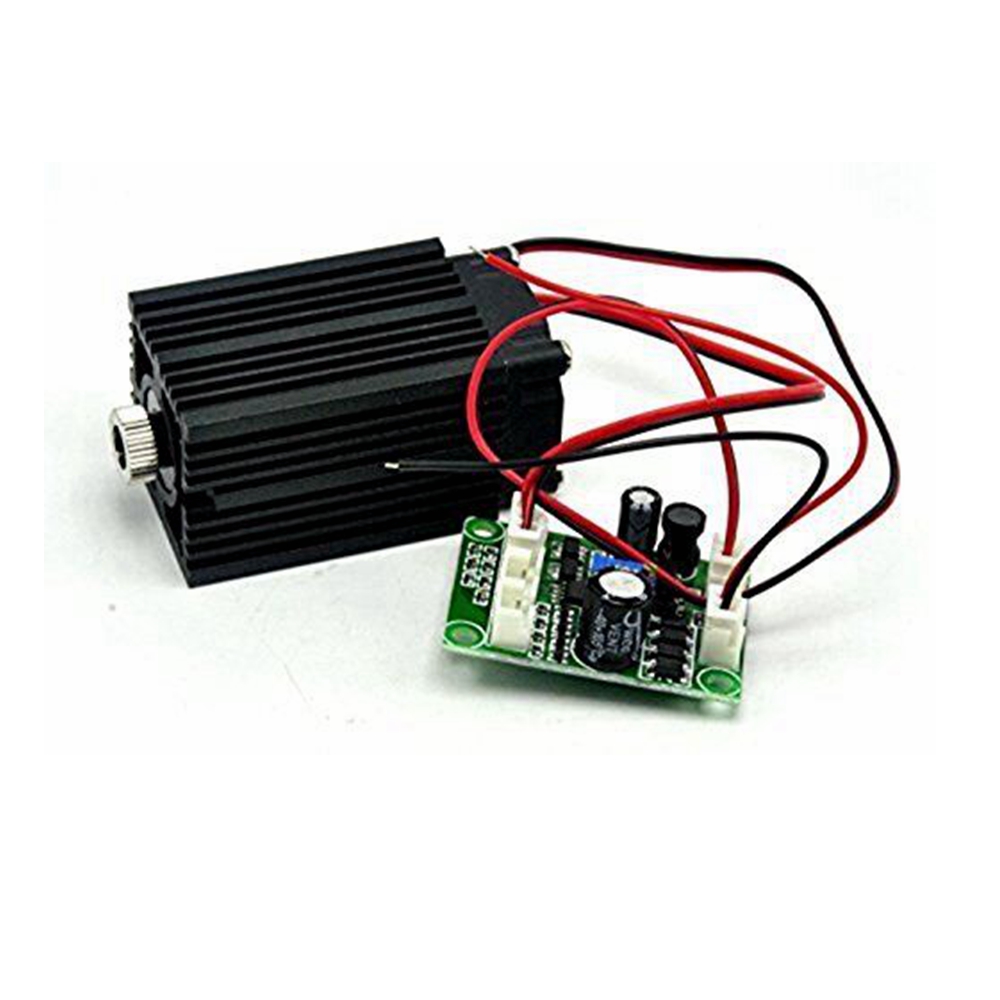

1pc DC12V Focusable 200mw 650nm 660nm Red Line Beam Laser Module + TTL + Fan Cooling
