Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Shape: Candle
- Place of Origin: Zhejiang, China
- Brand Name: Contrastech

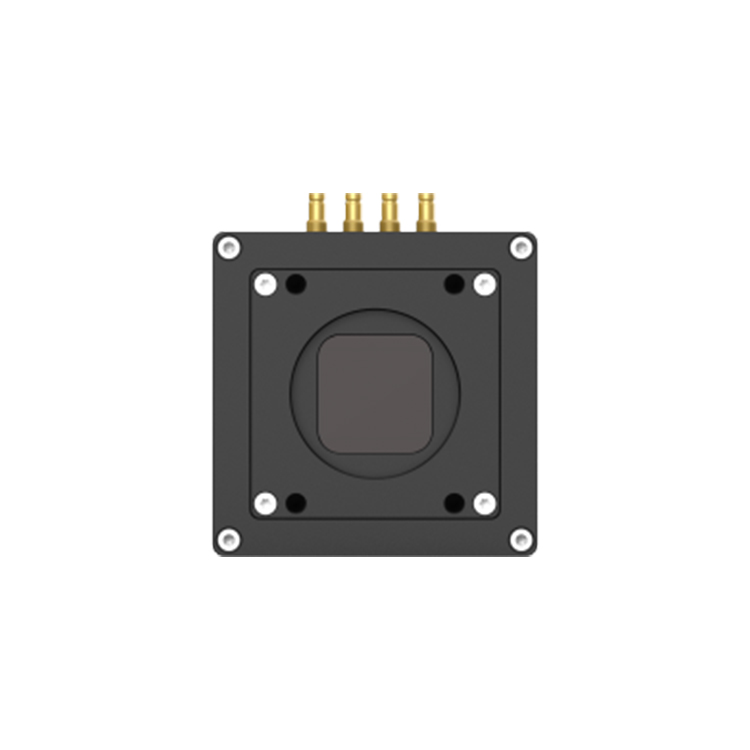

- Model Number: Mars25MG-150xm/xc-M42
- Warranty: 1 Year
- Special Features: high resolution
- Sensor: CMOS, GMAX0505
- Style: BOX Camera
- Function: CoaXPress
- Video Compression Format: /
- Data Storage Options: PC
- Application: Indoor
- Customized support: Online technical support
- Resolution: 5120*5120
- Pixel Pize [μm]: 2.5
- Lenses Mount: M42
- Frame Rate: 150fps
- Data Bit: 10bit
- Conformity: CoaXPress, GenICam
- Operating System: Windows
- Driver: Frame Grabber control software compliant with CoaXPress protocol
- Housing Size [l*w*h]: 80.0 * 80.0 * 65.3 mm (890g)
- Certification: ce
#detail_decorate_root .magic-0{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-1{margin-bottom:0}#detail_decorate_root .magic-2{position:relative;width:100%}#detail_decorate_root .magic-3{vertical-align:top}#detail_decorate_root .magic-4{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{width:375px;height:251px;overflow:hidden}#detail_decorate_root .magic-7{position:relative;left:-79px;top:-157px;width:548px;height:548px}#detail_decorate_root .magic-8{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-9{width:364px;border-collapse:collapse}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:100px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{font-size:18px}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:223px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{width:750px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:700px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:700px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:63px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:-6px;margin-left:1px;width:750px;height:436px}#detail_decorate_root .magic-18{width:750px;border-collapse:collapse}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:147px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{text-align:center}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:112px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:36px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:110px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:88px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:98px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:147px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:112px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:36px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:110px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:88px;box-sizing:content-box}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:71px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:-5px;margin-left:-4px;width:787px;height:74px}#detail_decorate_root .magic-33{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-34{margin-top:-1px;margin-left:7px;width:750px;height:71px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:605px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:-16px;margin-left:-1px;width:750px;height:630px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:695px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:695px}#detail_decorate_root .magic-39{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-40{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-41{text-align:justify}#detail_decorate_root .magic-42{font-size:16px}
|
Model
|
Mars25MG-150xm/xc-M42
|
|
Resolution [H*V]
|
5120*5120
|
|
Sensor
|
GMAX0505
|
|
Pixel Pize [μm]
|
2.5
|
|
Operating System
|
Windows
|
|
Conformity
|
CoaXPress, GenICam
|
|
Model
|
Resolution
|
FPS
|
Sensor Size
|
Sensor
|
Pixel Size
|
|
Mars12MC-188xm/xc
|
4096 x 3072
|
188
|
22.5 x 16.9 mm
|
CMV12000
|
5.5
|
|
Mars25MG-90xm/xc
|
5120 x 5120
|
90
|
1.1”
|
GMAX0505
|
2.5
|
|
Mars25MG-150xm/xc
|
5120 x 5120
|
150
|
1.1”
|
GMAX0505
|
2.5
|
|
Mars46MD-44xm
|
9344 x 5000
|
44
|
33.9 mm
|
/
|
3.2
|
|
Mars50MC-30xm/xc
|
7920 x 6004
|
30
|
35 mm
|
CMV50000
|
4.6
|
|
Mars65MG-32xm
|
9216 x 7000
|
31.5
|
29.9 x 22.4 mm
|
GMAX3265
|
3.2
|
|
Mars65MG-71xm
|
9344 x 7000
|
71
|
37.4 mm
|
GMAX3265
|
3.2
|
|
Mars150MS-6xm
|
14192 x 10640
|
6.2
|
53.4 x 40.0 mm
|
SONY IMX411
|
3.76
|
As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware
and equipments. Contrastech has been researching and developing machine vision applications, major products including industrial
camera, scientific standard camera, high definition frame grabber card, industrial FA lenses, telecentric lens, machine vision
lightings and image processing software. The Engineering Dept. of Contrastech has a lot of mature and successful machine vision
solutions which based on automatic industrial inspection, high precision measuring and the module distinguishing.
