Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Warranty: 1 year
- Customized support: OEM, ODM
- Place of Origin: Shaanxi, China
- Brand Name: Desun Uniwill
- Application field: Tap water/Sewage treatment/ natural waters
- Calibration: 1 or 2 point calibration
- Accuracy: 0.01mg/L COD
- Housing material: POM/SS316
- Output signal: RS485/Modbus
- Measuring range2: COD 0.15 to 75 mg/l equiv. KHP
- pH resolution3: TOC 0.06 to 30 mg/l equiv KHP
- Power supply: 12VDC /-5%
- Measuring range: SAC 0.1 to 50 1/m
- Product name: Water Hardness Analyzer Online Supplier
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:18px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:205px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:495px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{display:none}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:196px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:280px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:195px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:204px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{text-align:left}#detail_decorate_root .magic-15{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-16{margin-bottom:0}#detail_decorate_root .magic-17{position:relative;width:100%}#detail_decorate_root .magic-18{width:750px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:1107px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:1107px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:751px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:751px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:1345px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:1345px}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:126px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:569px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:127px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:568px;box-sizing:content-box}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:1050px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:1050px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:1803.7974683544305px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750.0000000000001px;height:1803.7974683544305px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:1329px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:1329px}
Product Description

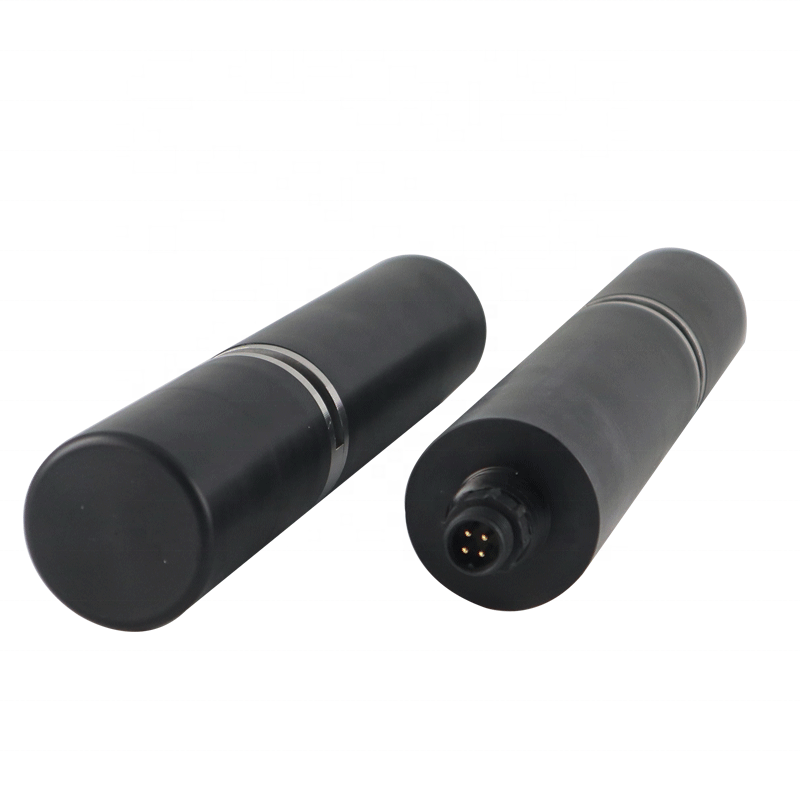

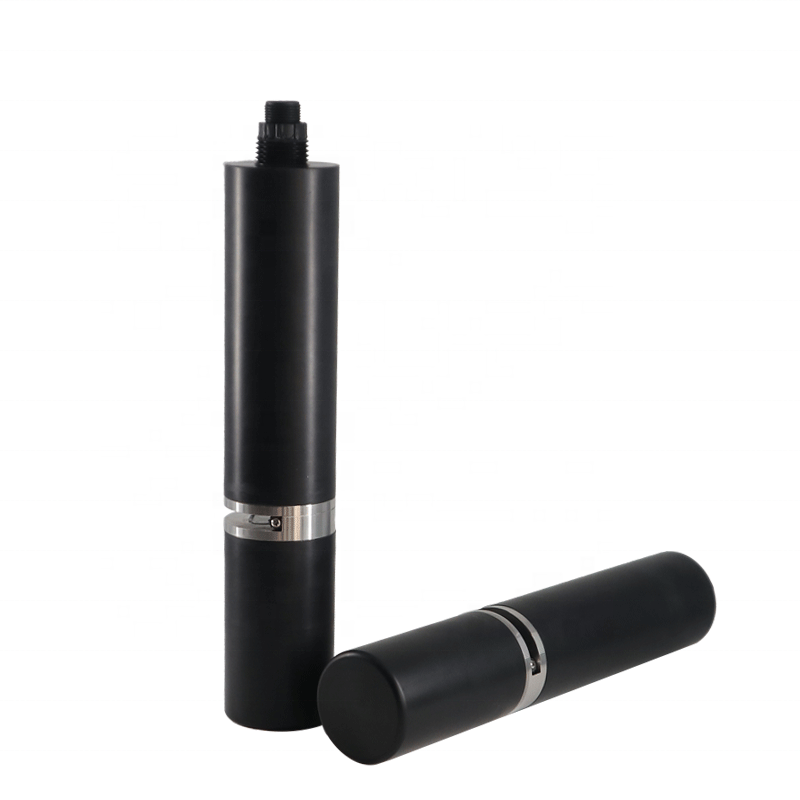

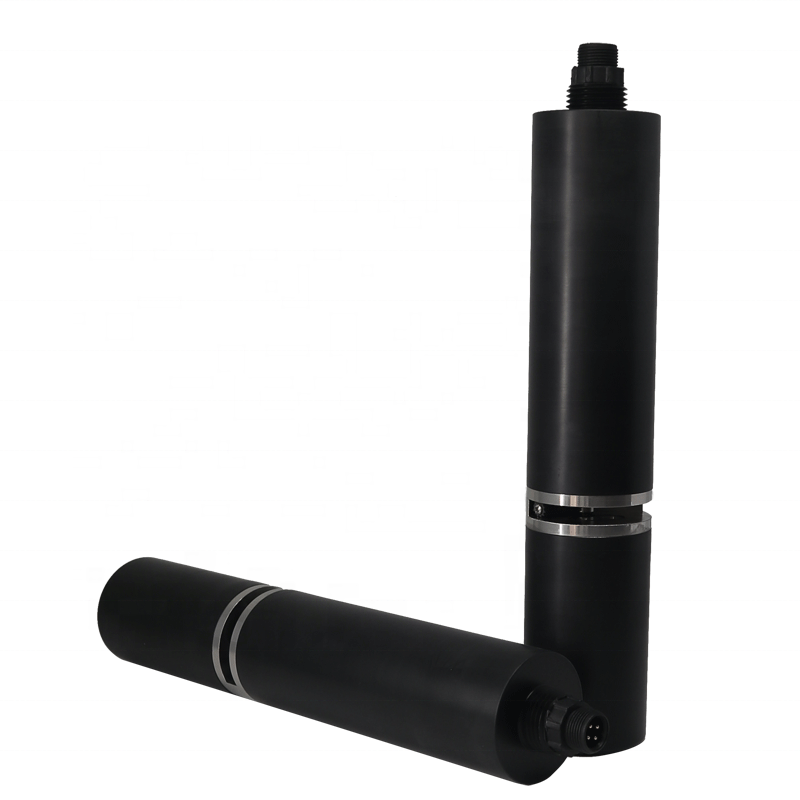

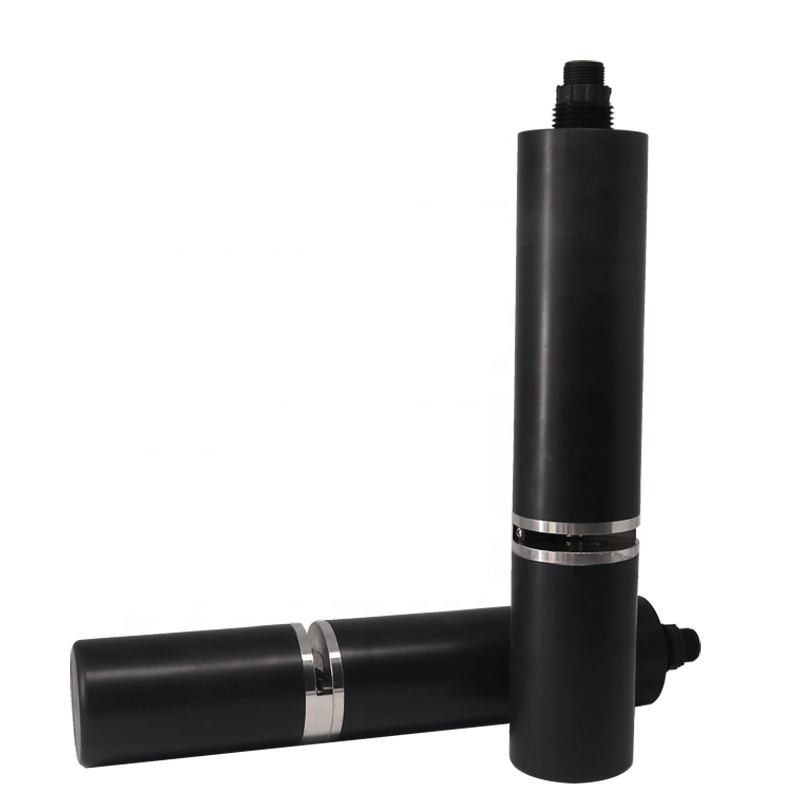

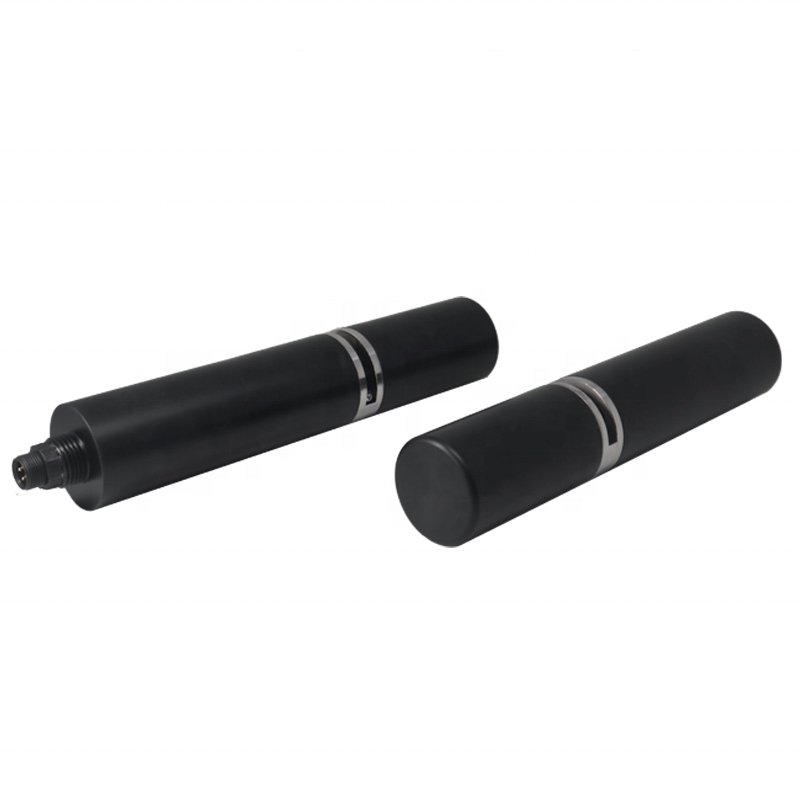

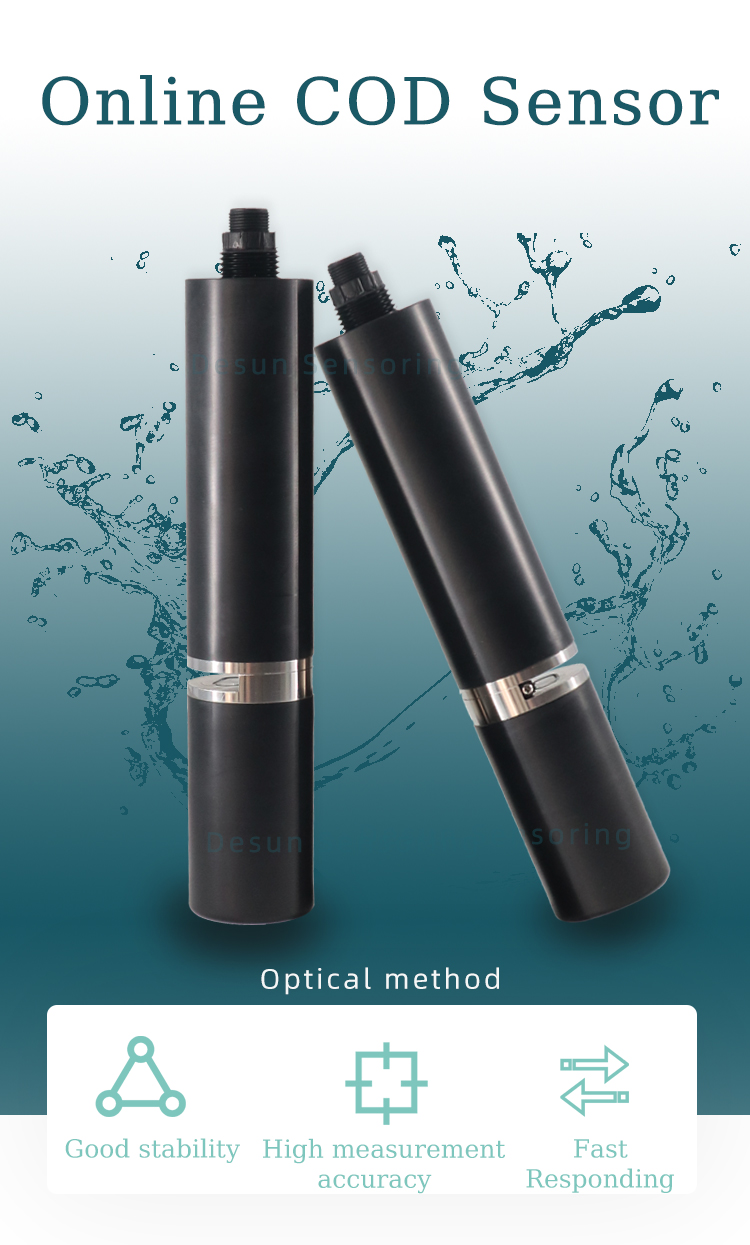

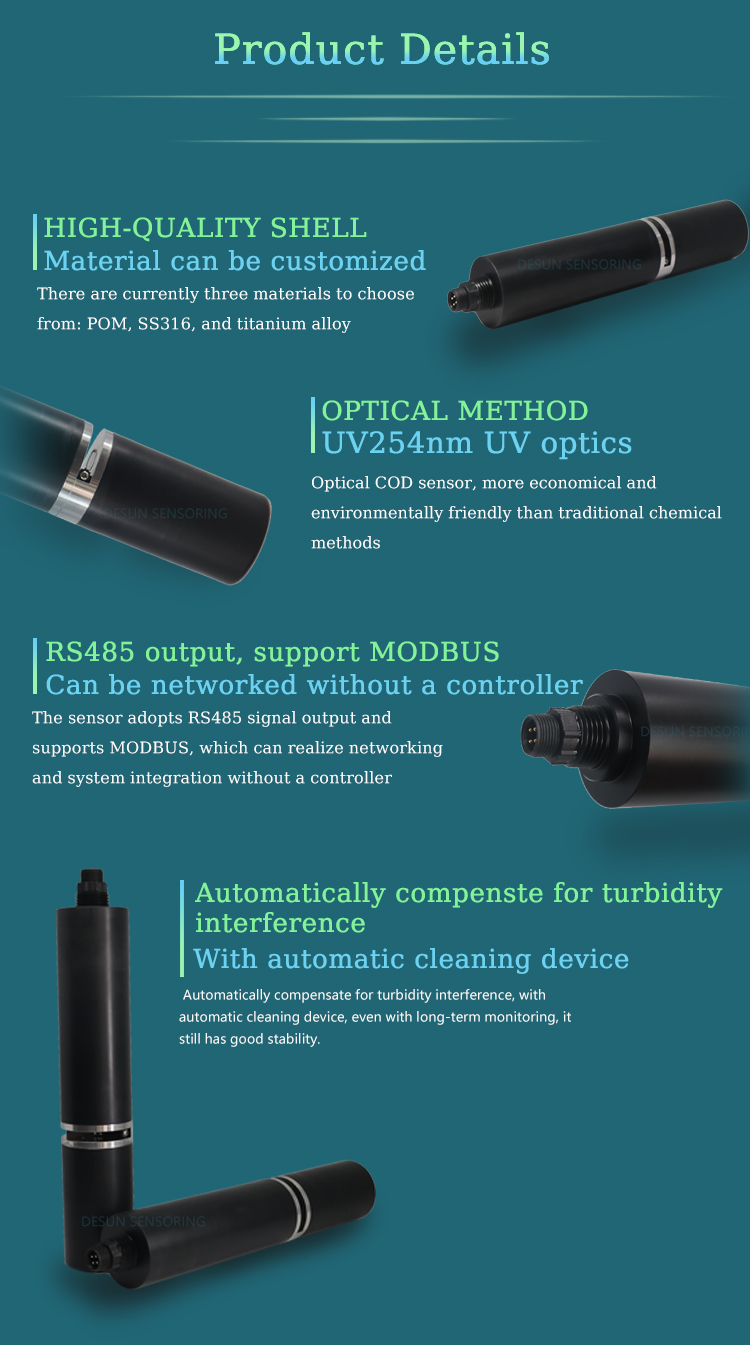

Online COD sensor DS500 series cod sensor is a new generation of environmental protection type COD / TOC sensor launched by our company, which is reagent free, pollution-free, more economic and environmental protection. Small size, more convenient installation, online continuous water quality monitoring. Automatic compensation for turbidity interference, with automatic cleaning device, even long-term monitoring still has excellent stability. Many organic substances dissolved in water absorb ultraviolet light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm. DS500 series sensors use two light sources, one 254nm ultraviolet light and one 850nm infrared light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement

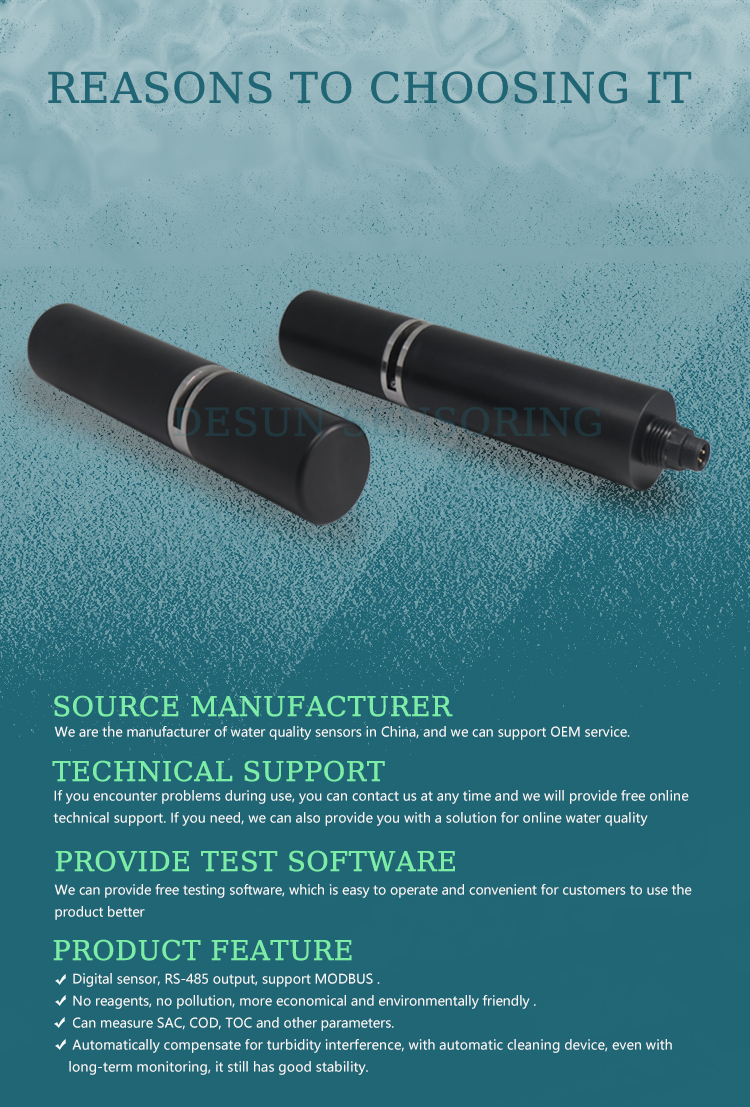

* Digital sensor, RS-485 output, support MODBUS * No reagents, no pollution, more economical and environmentally friendly * Can measure SAC, COD, TOC and other parameters * Automatic compensation for turbidity interference for excellent test performance
|
Item
|
Parameters
|
||
|
Model
|
Measuring range
|
Application field
|
|
|
DS500(6 mm gap)
|
SAC 0.1 to 50 1/m
COD 0.15 to 75 mg/l equiv. KHP
TOC 0.06 to 30 mg/l equiv KHP
|
Tap water
|
|
|
pH range
|
SAC 0.5 to 250 1/m
COD 0.75 to 370 mg/l equiv. KHP
TOC 0.3 to 150 mg/l equiv KHP
|
Sewage treatment plant outlet, natural waters
|
|
|
DS500(6 mm gap) |
SAC 1.5 to 2000 1/m
COD 2.5 to 3000 mg/l equiv. KHP
TOC 1.5 to 1100 mg/l equiv KHP
|
Industrial process control
|
|
|
Power supply
|
12VDC+/-5%
|
||
|
Output signal
|
RS485/Modbus
|
||
|
Accuracy
|
0.01mg/L COD
|
||
|
Calibration
|
1 or 2 point calibration
|
||
|
Housing material
|
POM/SS316
|
||

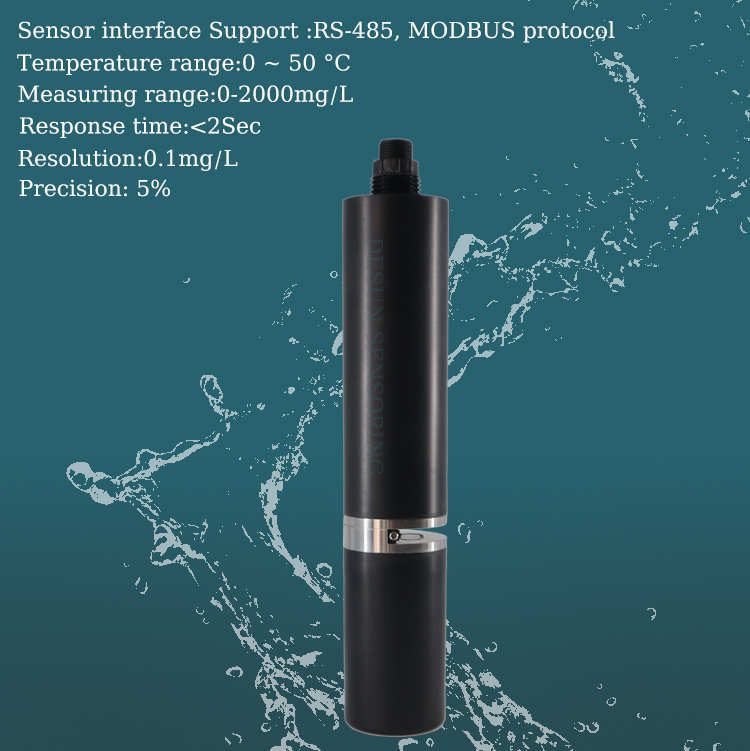

Specification
Packing & Delivery
|
Package
|
Safe export carton
|
||||||
|
Delivery time
|
4-7 days on the way
|
||||||
Company Profile
FAQ
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N
sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the
certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after
received payment.
Q: How about warranty?
A: 12 months warranty
