Description
- Brand Name: annoytools
- Certification: NONE
- Origin: CN(Origin)
- Model Number: 500mw-15000mw
- Size: 33mm
- Power: 500MW-15000MW
- 500mw-5500mw: focus adjustable
- 15000mw: fixed-focus not adjustable
- Support: TTL/PWM 0-5V

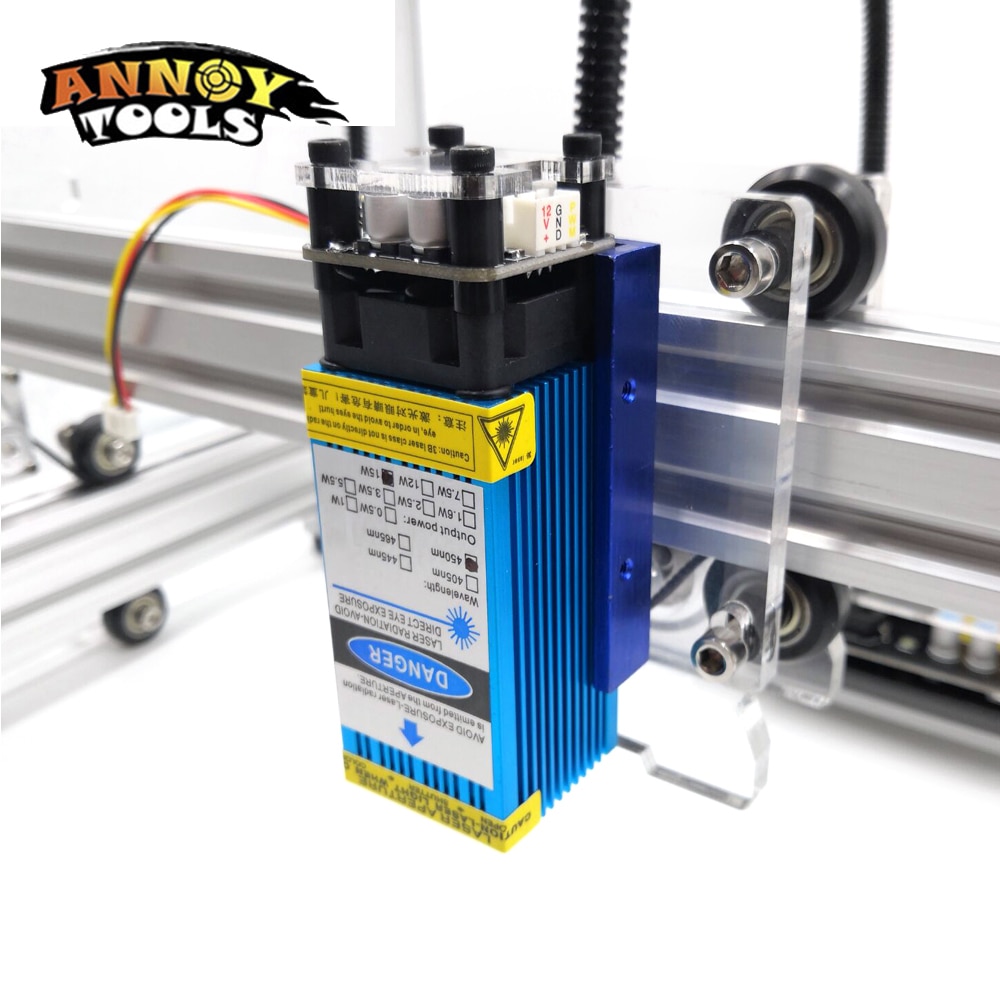

500mw -5500mw 15000mw 33mm adjustable Blue Laser Module CNC Laser Engraving PWM/TTL Module 5500mw Laser Can Cut 3mm Light Wood
–Engraving distance:500MW-3500MW within 5-10cm, 5500MW within 3cm, 15000mw 2cm
–Wave length: 405NM-450NM
–Power : 500MW-15000MW
–Voltage: DC 12V
–Laser size: 33*33*70mm
–Power supply: 12V 1A-5A
–Working temperature: +10 ~+60
–Driver module:TTL/PWM( 0-5V)
–Power supply: 12V 1A-5A
–Warranty: 12 monthsļ¼If you have any question , just contact us as free anytime)
–Engraving: The laser almost can engrave all theĀ flammable materials
—5500mw and 15000mw laser can engrave on 304stainless steel and anodized aluminum.
If you want to know whether the material cab be dengraved, please leave the message to us, we are glad to help you !

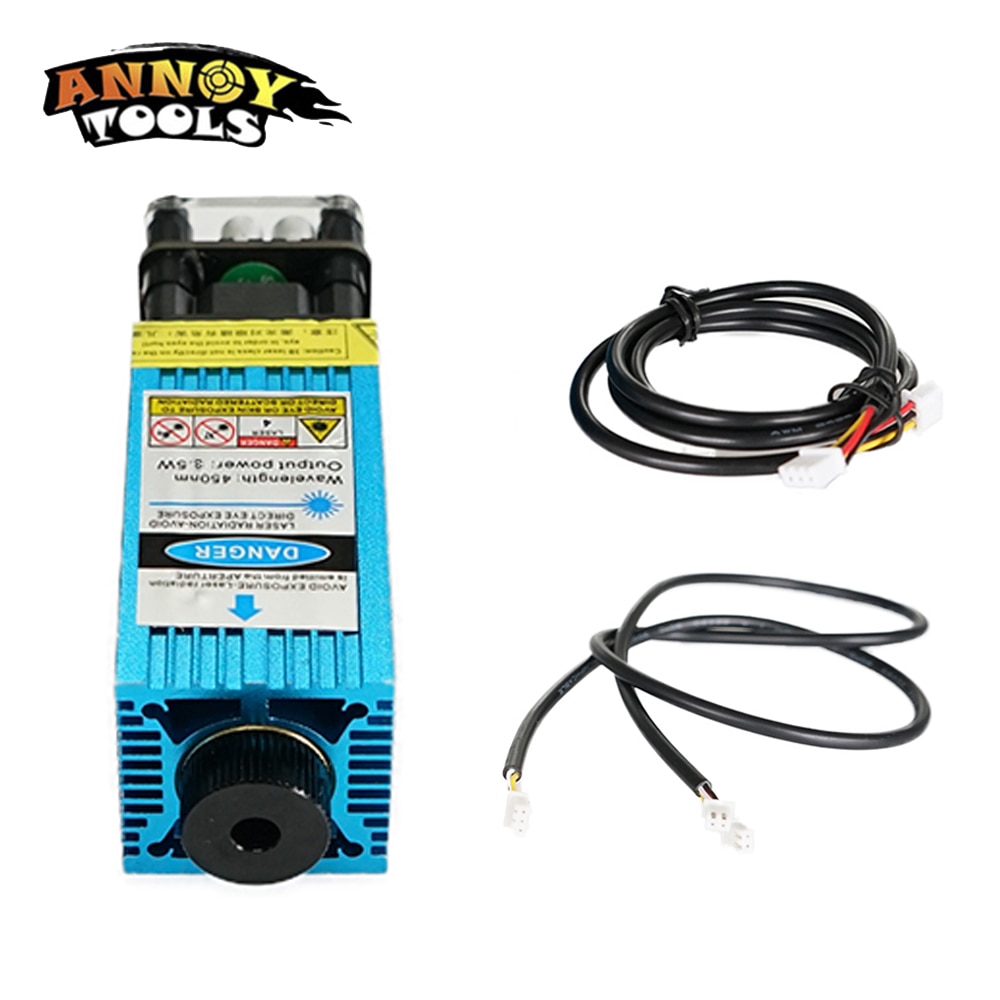

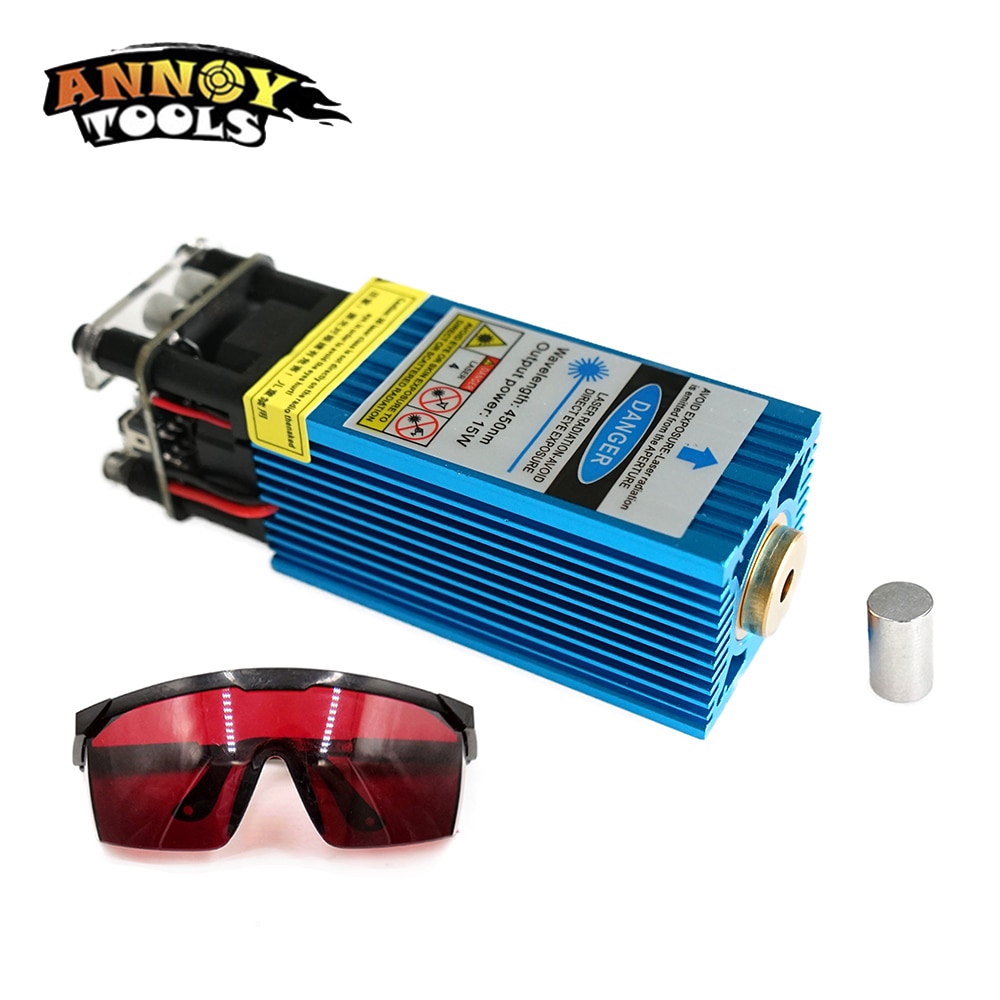

500mw laser : 1*500mw laser+ 3Pin cable+ļ¼Pin cable+protection glasses
2500mw laser : 1*2500mw laser + 3Pin cable+ļ¼Pin cable+protection glasses
3500mw laser : 1*3500mw laser + 3Pin cable+ļ¼Pin cableļ¼protection glasses
5500mw laser : 1*5500mw laser + 3Pin cable+ļ¼Pin cable+protection glasses
15000mw laser : 1*15000mw laser + 3Pin cable+ļ¼Pin cable+protection glasses
Tips:
—Wesuggest5500mw to cut 1-3mm plywod(setting speedĀ 100-200)
— We suggest 15000mw laser engrave metal(201,304stainless steel and anodized aluminum)

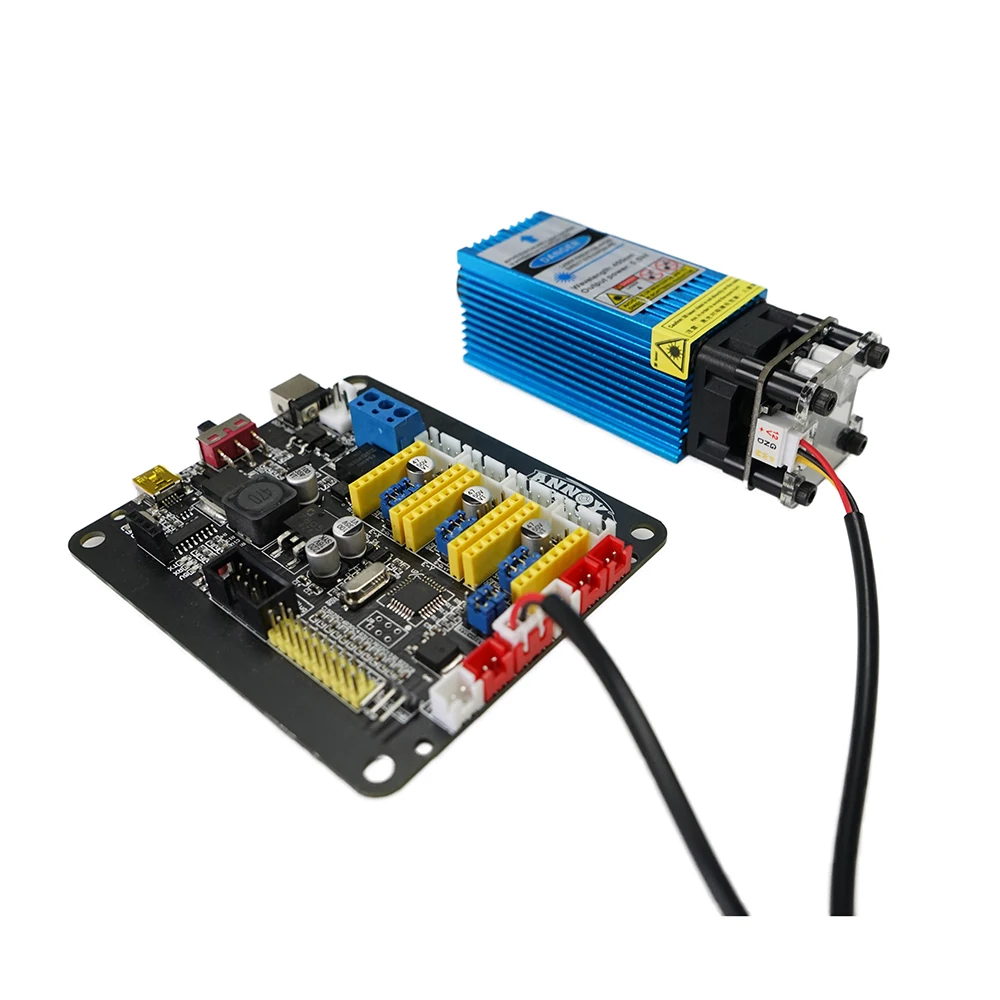

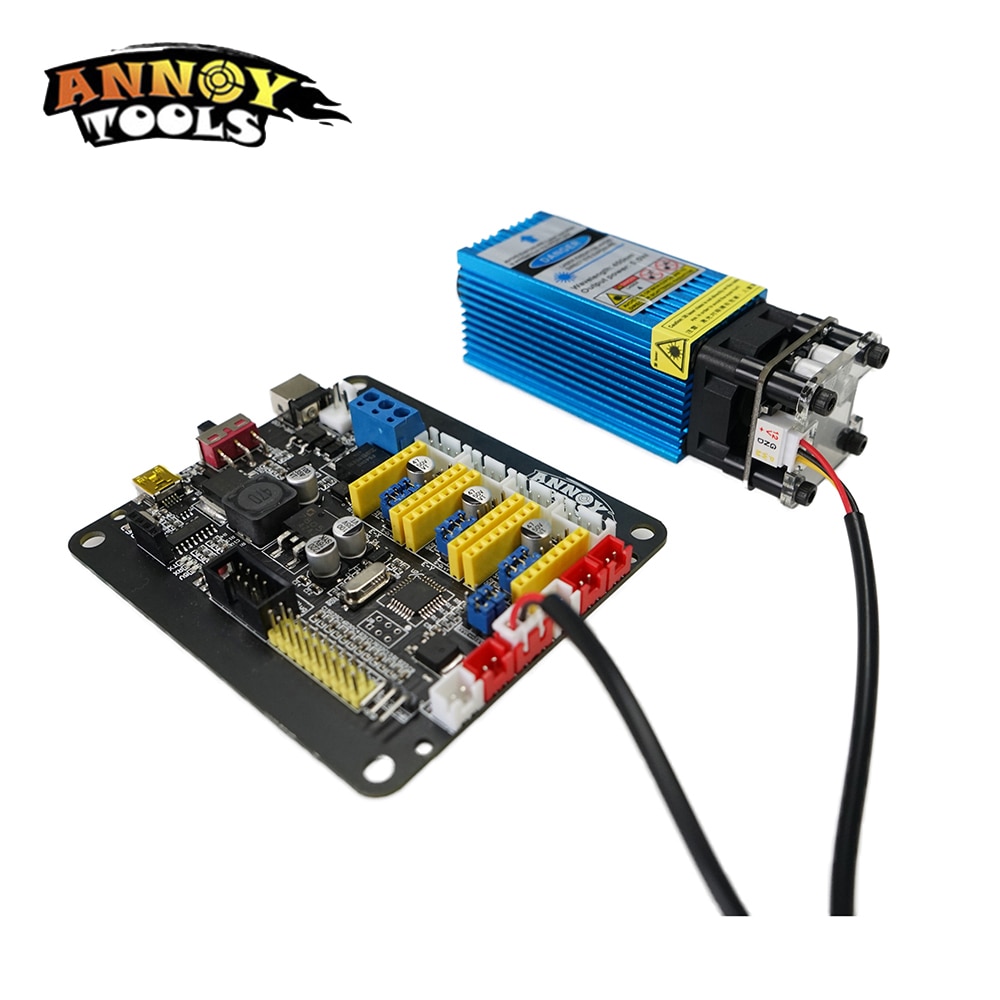

—This laser can be install on CNC 3018pro, CNC2418, CNC1610 engraving machine and so on. you can contact us before make the order.

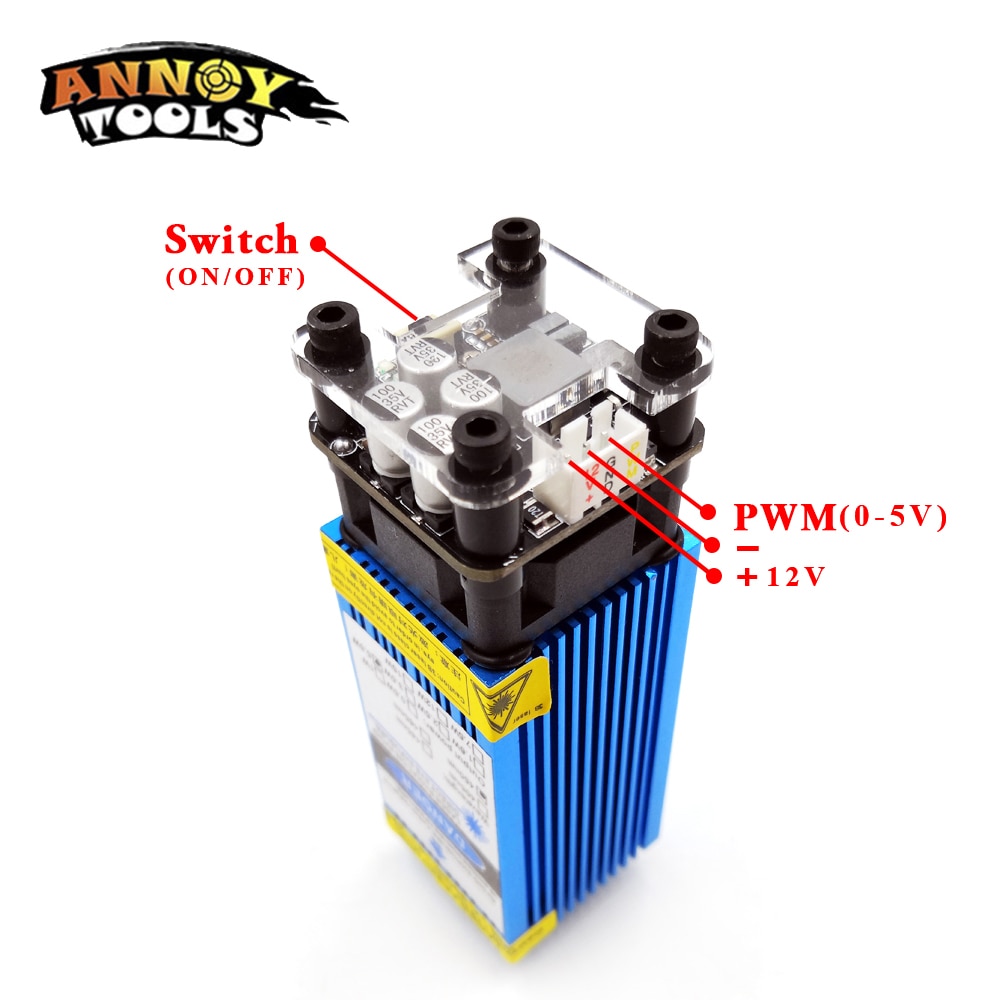

—Please pay attention to wire order:Red cable +, black cable -,yellow TTL/PWM , Please check it carefulely if you need to change
