Description
- Brand Name: TwoWin
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: CNC 3018
- CNC or Not: CNC
- milling cutter: 3.175mm
- Function: Wood Router milling machine
- spindle: 775 spindle motor
- Control Software: GrblController
- engraving area: 30x18x4.5cm

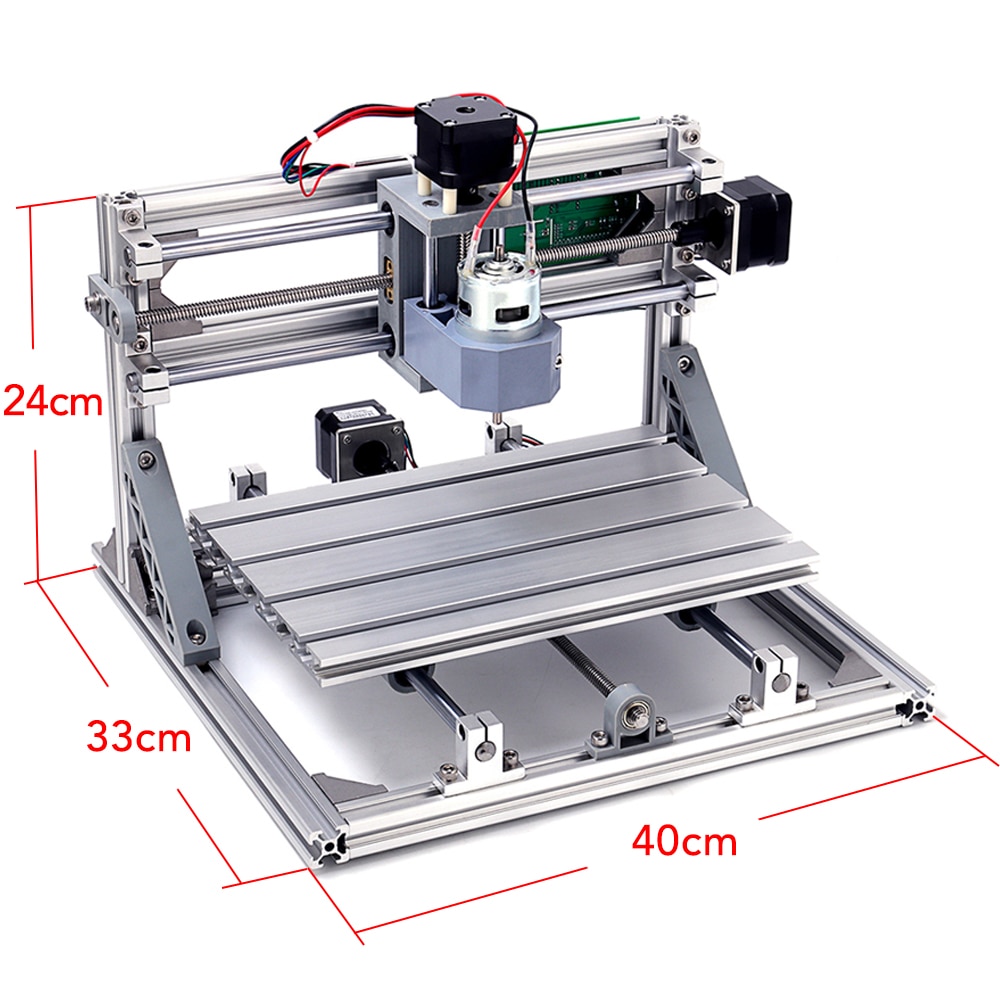

- Profile Dimensions: 33x40x24cm
- 3018 Engraving Machine: CNC DIY Milling
- Type: Mini PCB Milling Machine
CNC 3018 Pro Mini Laser Engraver 15W Laser Metal DIY Milling Machine 3-axis Laser Engrave GRBL Controller PCB Wood Router
Introduction:

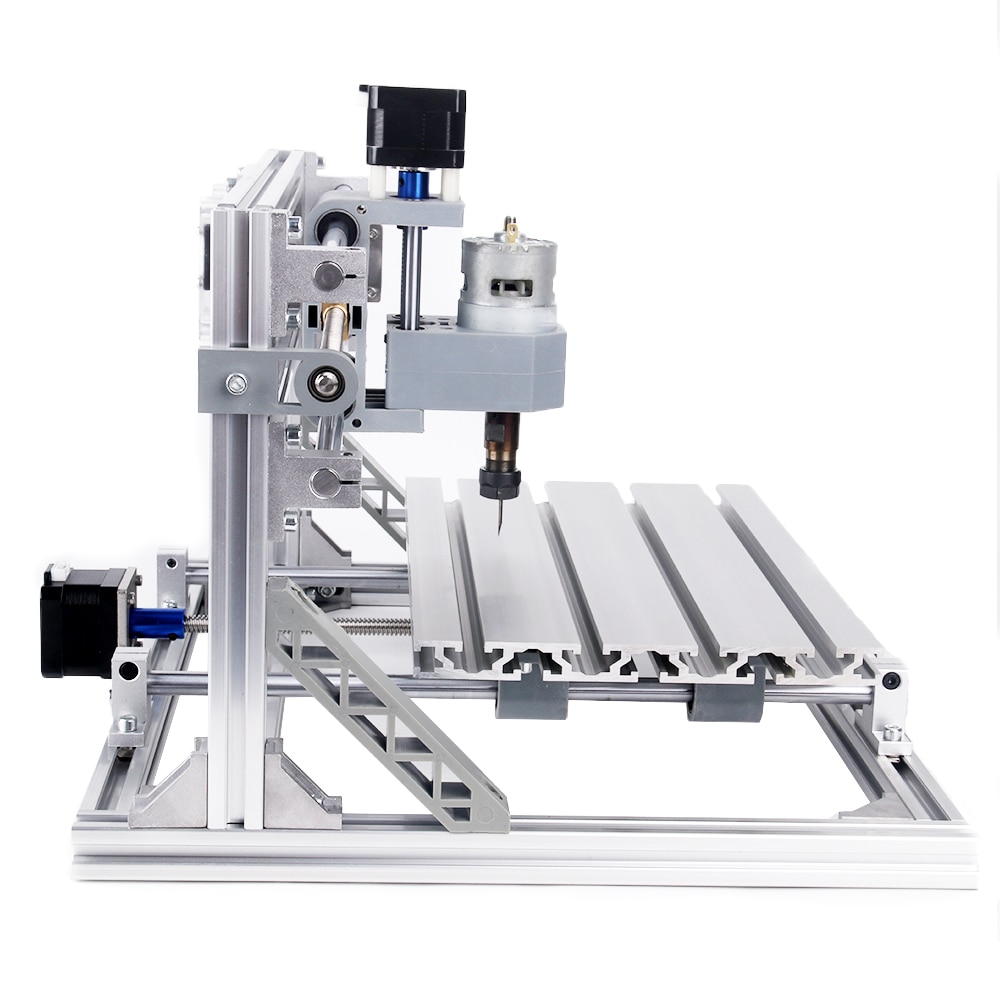

3018 engraving machine is a miniature three-axis CNC machine tool (engraving range 30*18cm, engraving thickness 4.5cm), light weight, very suitable for learning programming, learning three-axis engraving and numerical control related knowledge.

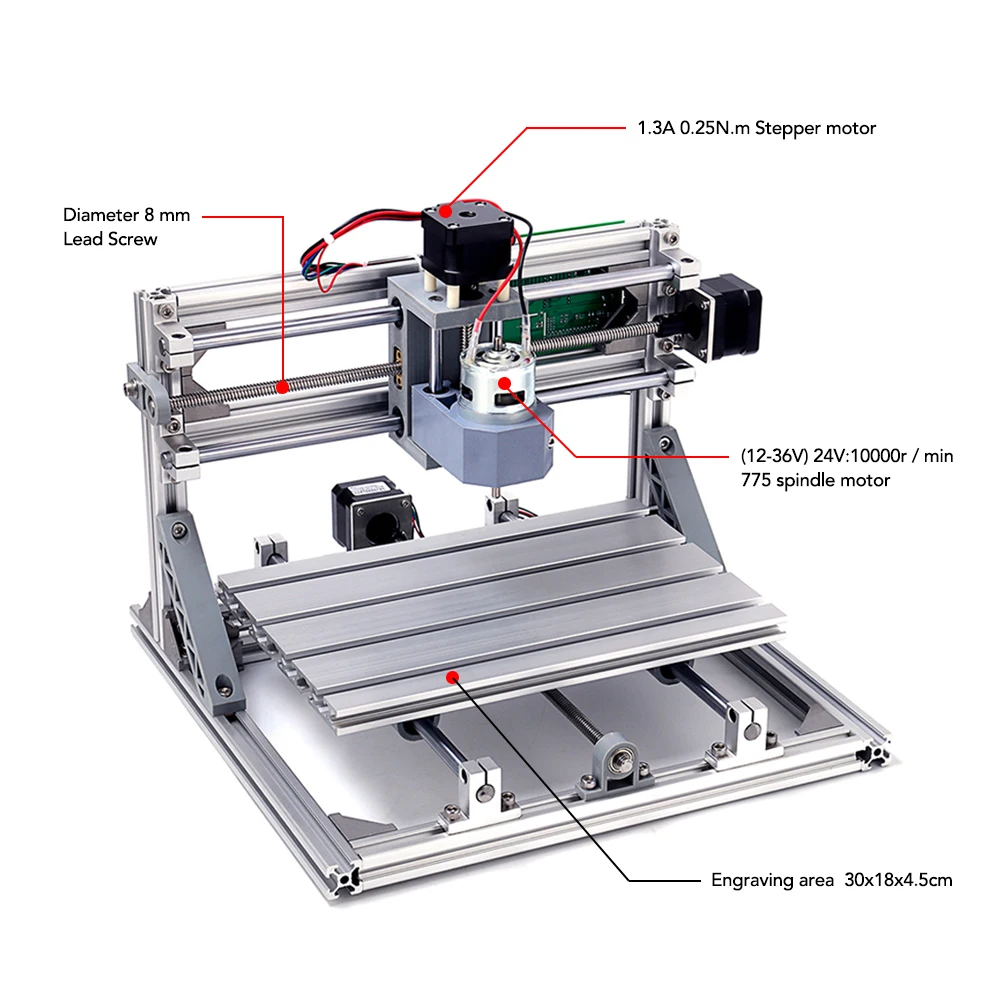

Specification:

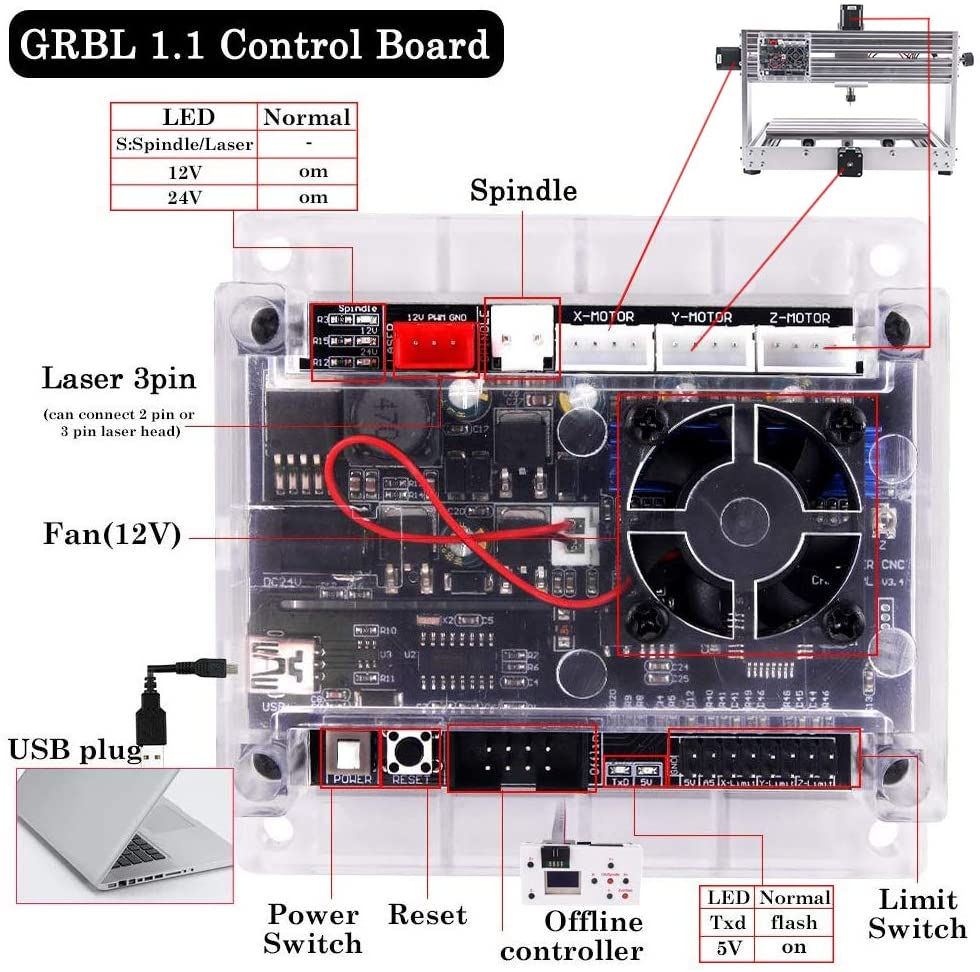

Control software :GRBL control
Engarving area : 300*180*45mm
Frame size : 400*330*240mm
Construction :Aluminum + plastic

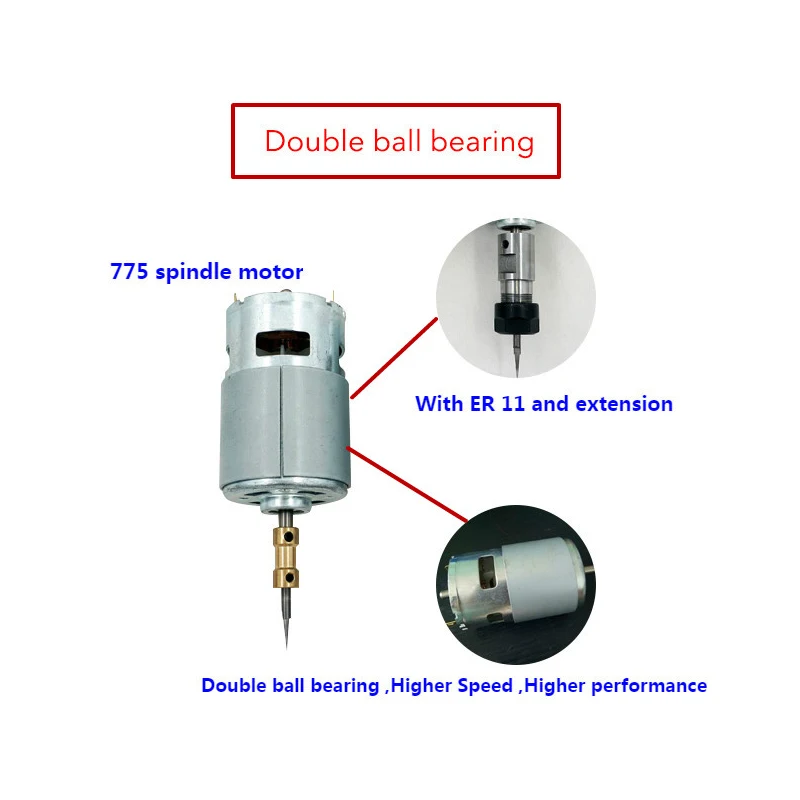

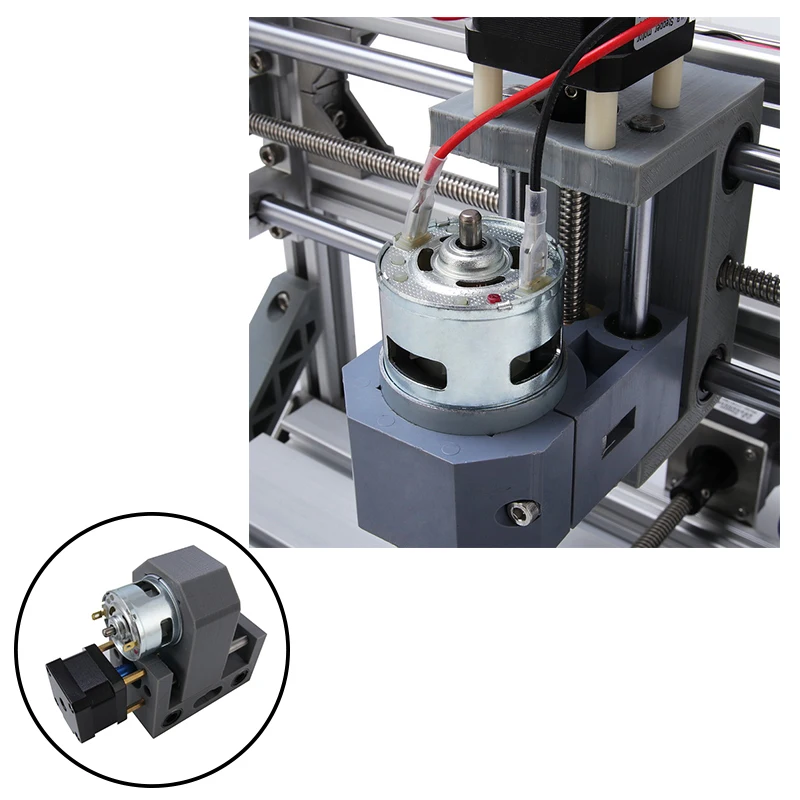

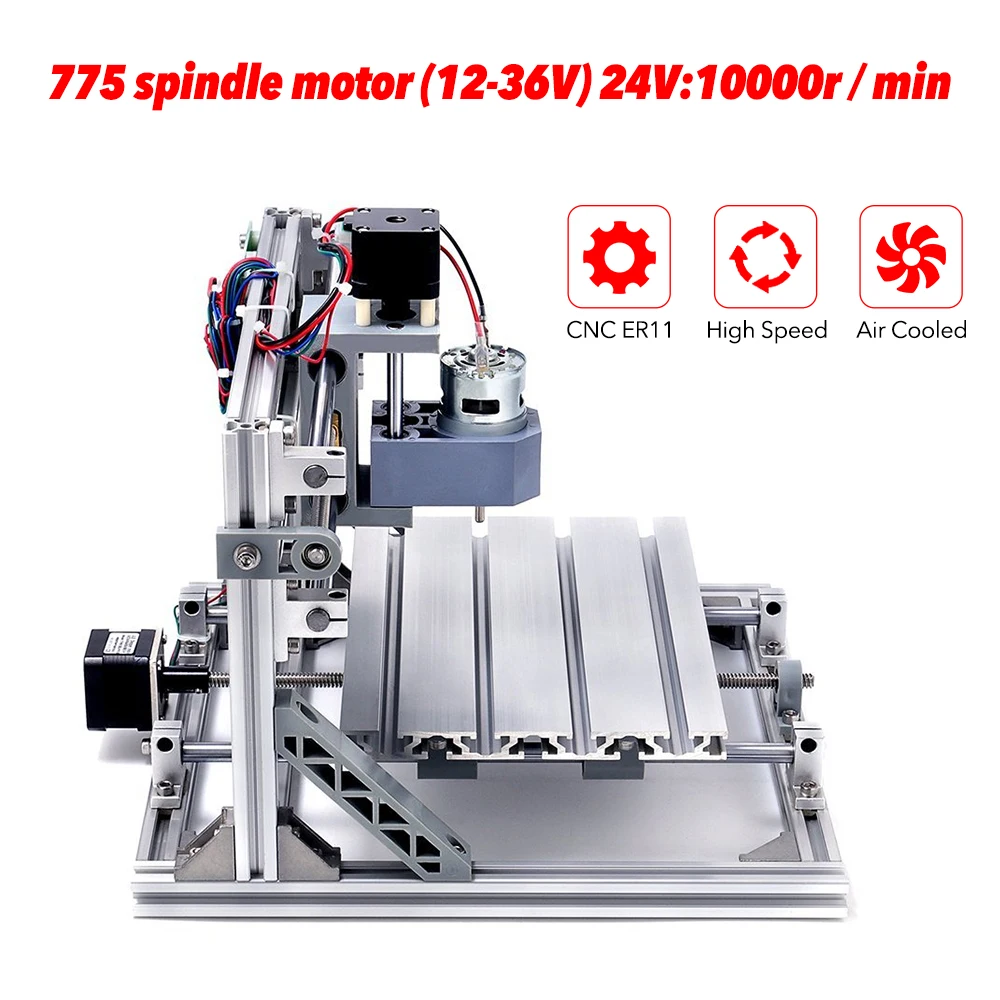

Spindle :Â 775 spindle motor (12-36V) 24V: 10000r/min
Step motor : 1.3A  0.25N.m
Power supply : 24V  , 5.6A
Drill bits Diameter: 3.175mm tip: 0.1mm length: 30mm

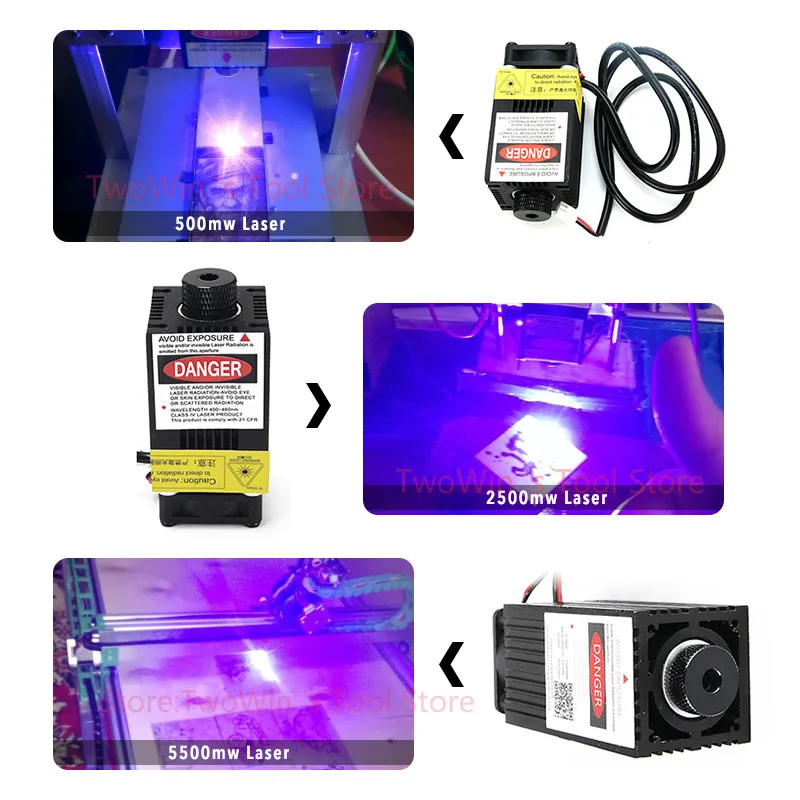

Laser power:2500mw/5500mw/7w/10w/15w
Laser Engraving:

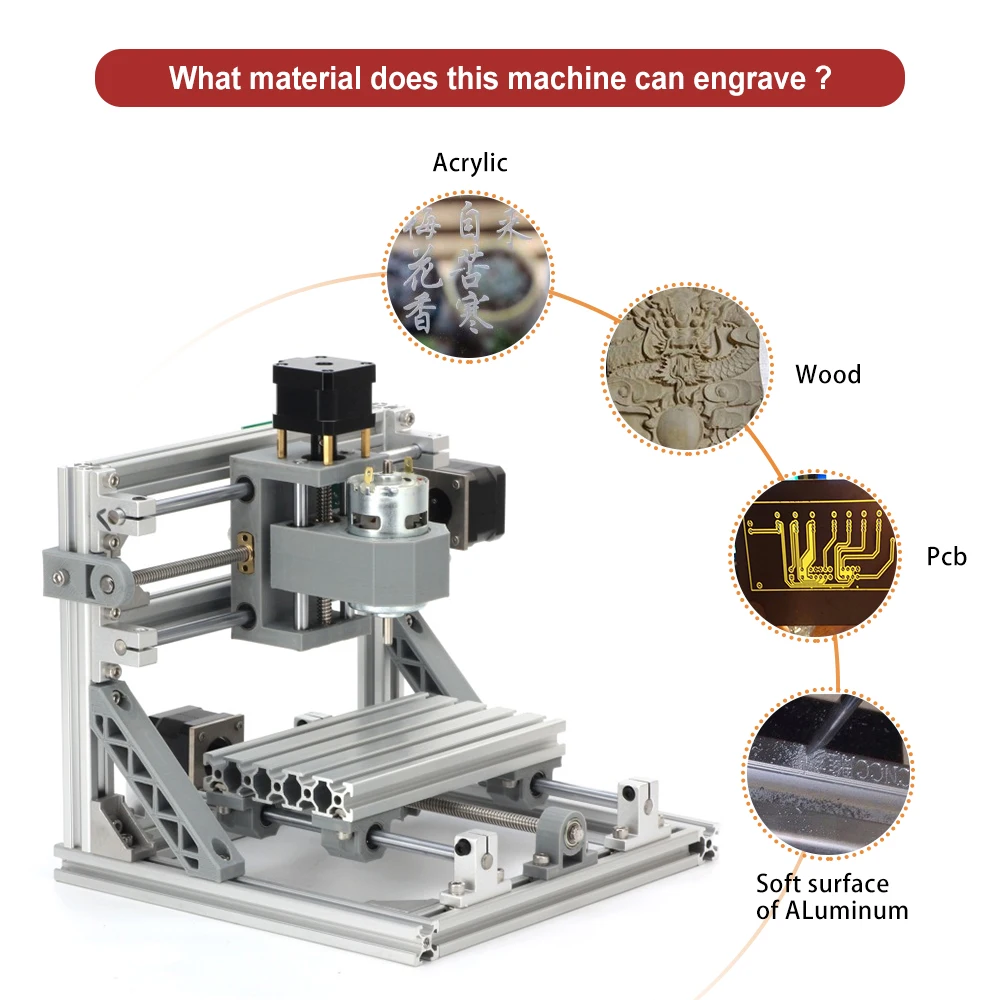

The spindle motor can be replaced with a laser head, and the laser pattern can be used to engrave a flat pattern on wood, plastic, paper, leather, bone, shell, stone and other materials.

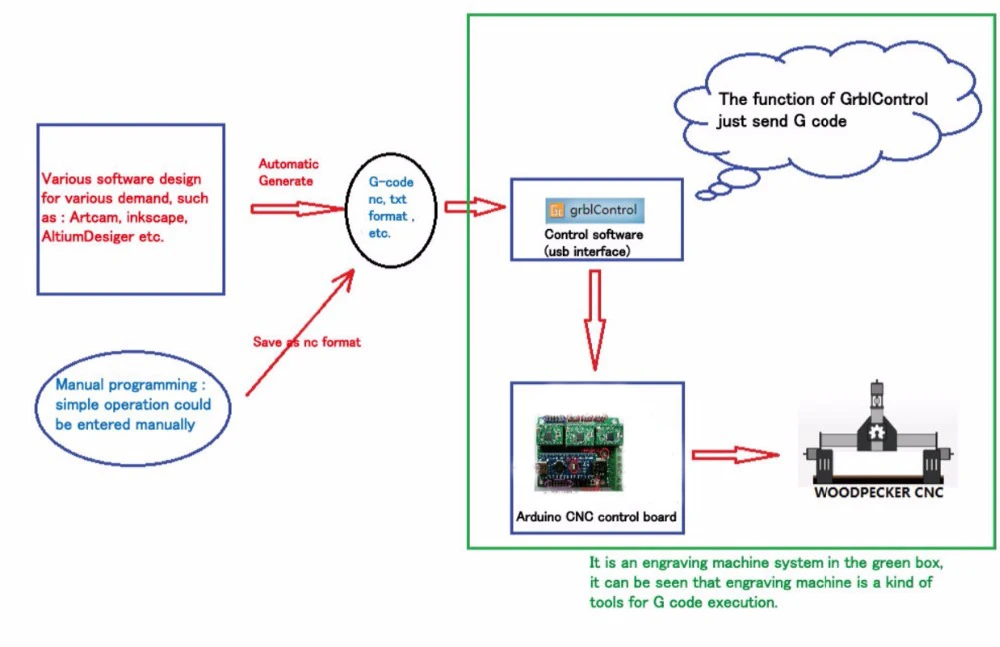

(Laser engraving only needs to import pictures to engrave, no need to design G code, because laser engraving does not need physical contact with the workpiece, so the precision will be better, we provide laser engraving software to import pictures directly into the software to control The machine can also import images into the software and save them as G code and then download them to the offline controller for engraving.)
The link for:
Installation: https://yadi.sk/i/VkEF1JTo3WgVf6
Manual and software: https://yadi.sk/d/DcwdIfK33TfZ8o
Operate video: https://yadi.sk/i/Rz5K_L3G3QxHbL

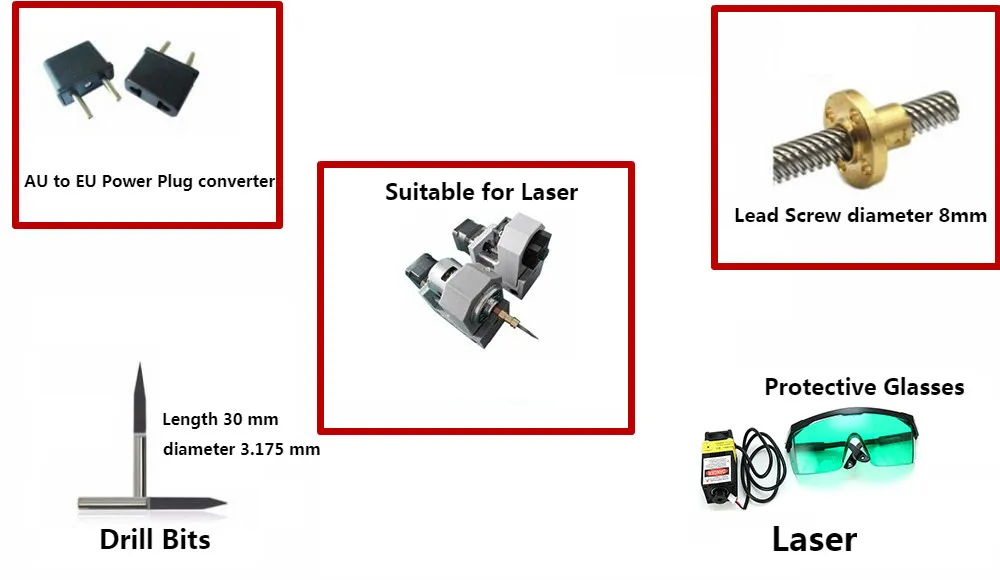

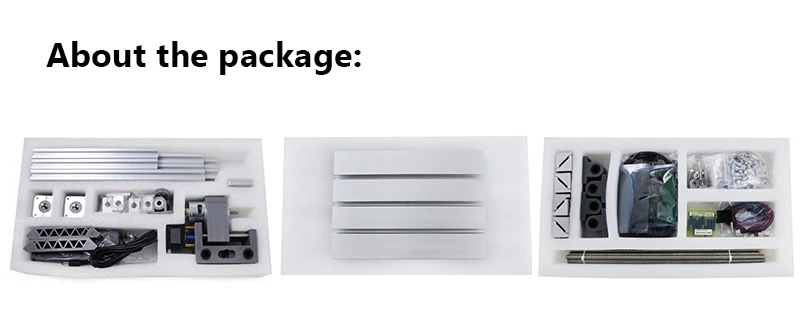

Package Included :

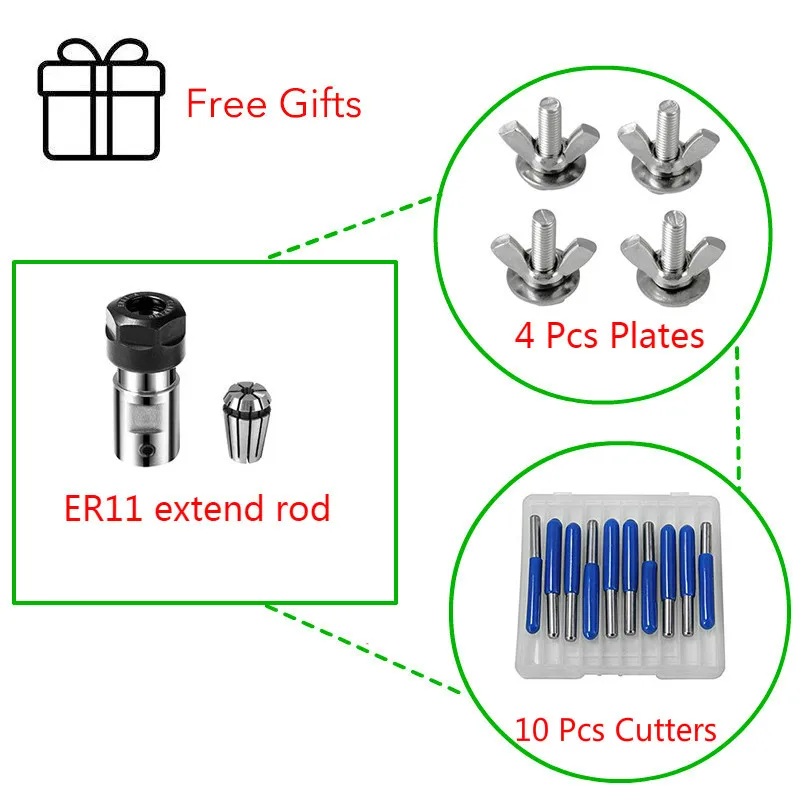

Standard: CNC3018 PRO-Max + 4pcs clips + 10pcs cutters + 1pc ER11 collet + 2pcs wrenchs

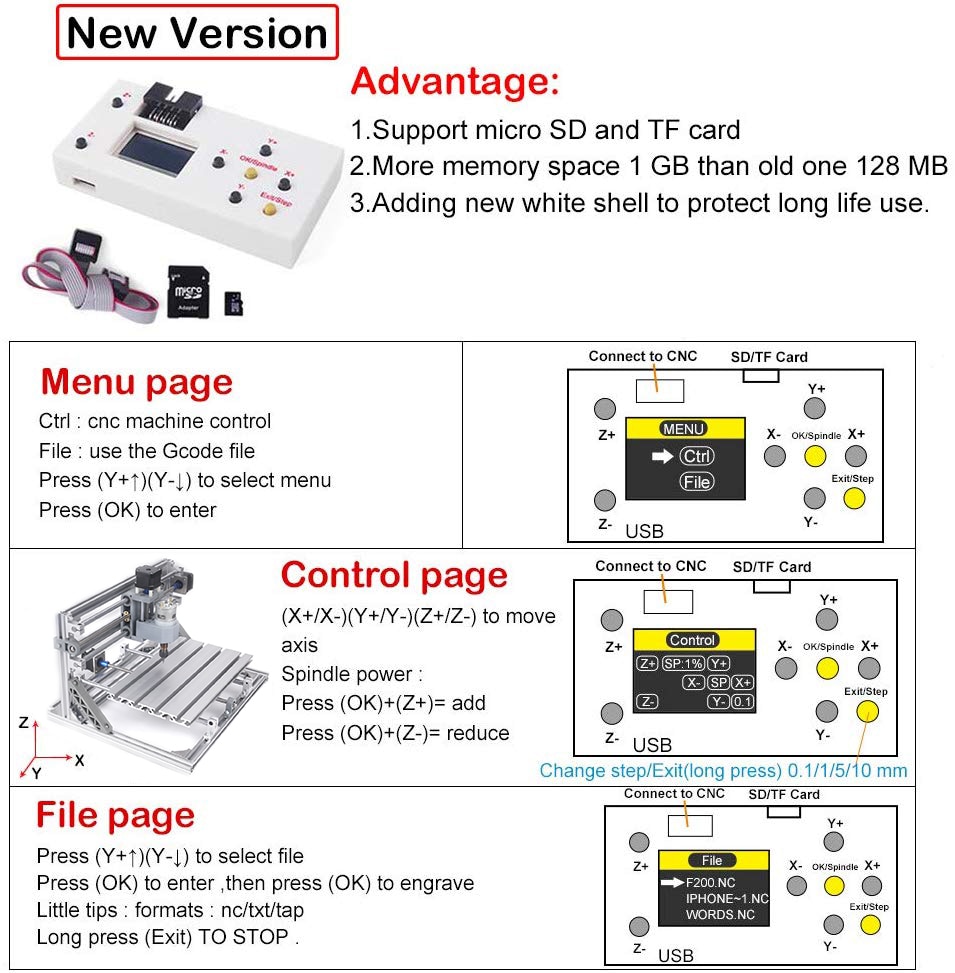

Add Offline Controller: CNC3018 PRO-Max + 4pcs clips + 10pcs cutters + 1pc ER11 collet + 2pcs wrenchs + Offline Controller
Add Laser: CNC3018 PRO-Max + 4pcs clips + 10pcs cutters +1pc ER11 collet + 2pcs wrenchs + Goggle + Laser(Which one you choose)
