Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Place of Origin: Guangdong, China
- Warranty: /
- Type: Coating Thickness Gauge
- Customized support: OBM
- Brand Name: Graigar
- Model Number: CM8806FN
Product Description
CM8806FN Coating Thickness Gauge Digital Galvanizing Electronic Power and Auto Testing Machine Usage
Specification:
|
Range |
0 – 1250um; 0 – 50mil (Max. add to 2000um/80mil) |
|
Resolution |
1um, 0.1mils |
|
Accuracy |
plusmn (3%+2um), plusmn (3%+0.1mils) |
|
Response time |
0.6 sec |
|
Sensor type |
Fe & NFe 2 in 1 |
Features:
-Large and clear TFT Screen(160x128TFT), read easily at any condition and angle
-Auto recognition of the substrate material (Fe or NFe)
-Metric/imperial switchable (mil/um switchable)
-Single / Continue measurement selectable
-Flip display
-Simultaneously displays 5 readings: (easy for data analysis and comparison)
Measuring Reading , Average Reading , Max. Reading , Min. Reading and Standard Deviation.
New Functions:
Data storage increased : 99 group.
Over range indication, or indicates the probe is not placed in the right way
Indication of auto off
General Information :
Battery: 1.5Vx2 AAA size (not included)
Dimension: 119x52x28mm
Weight: 40g

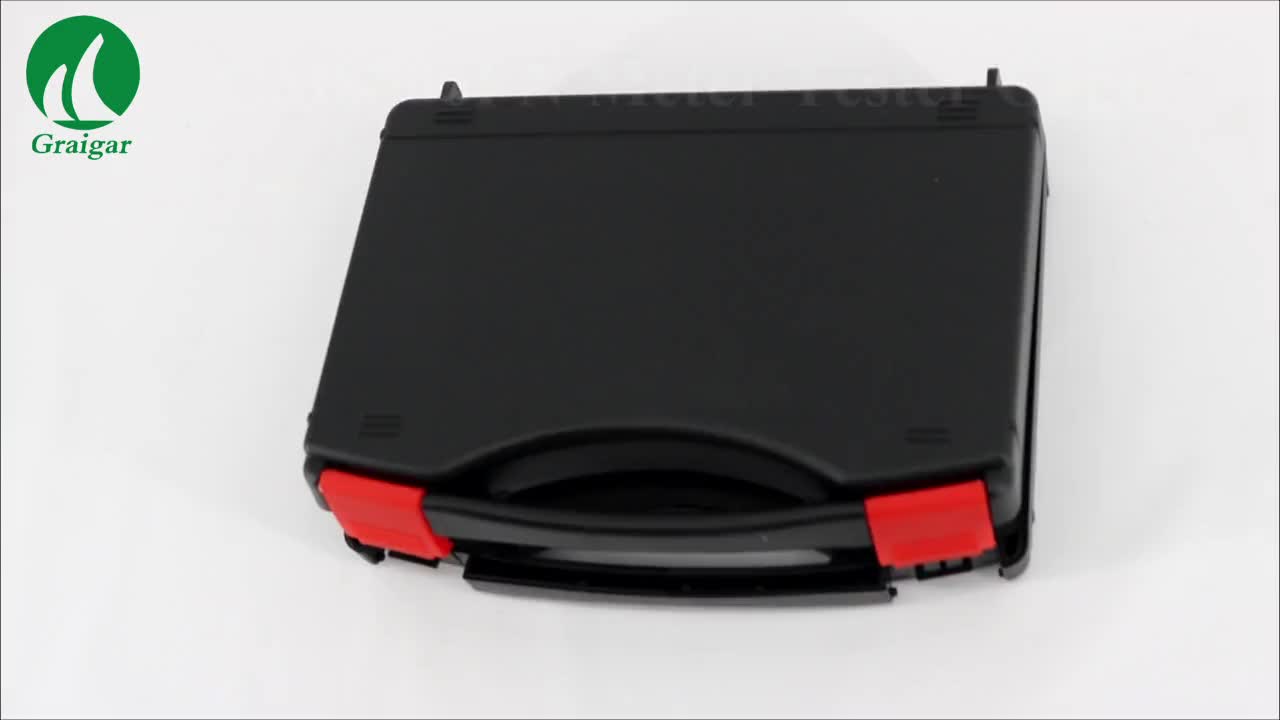

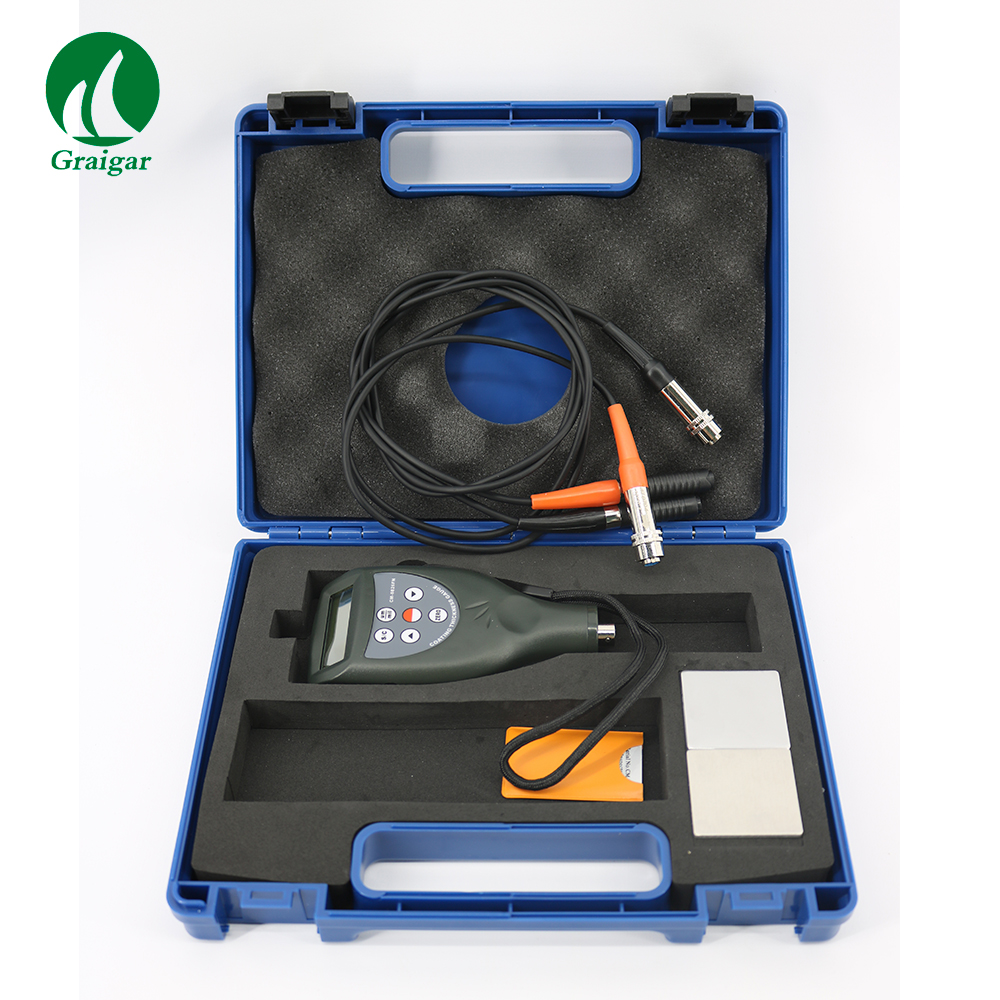

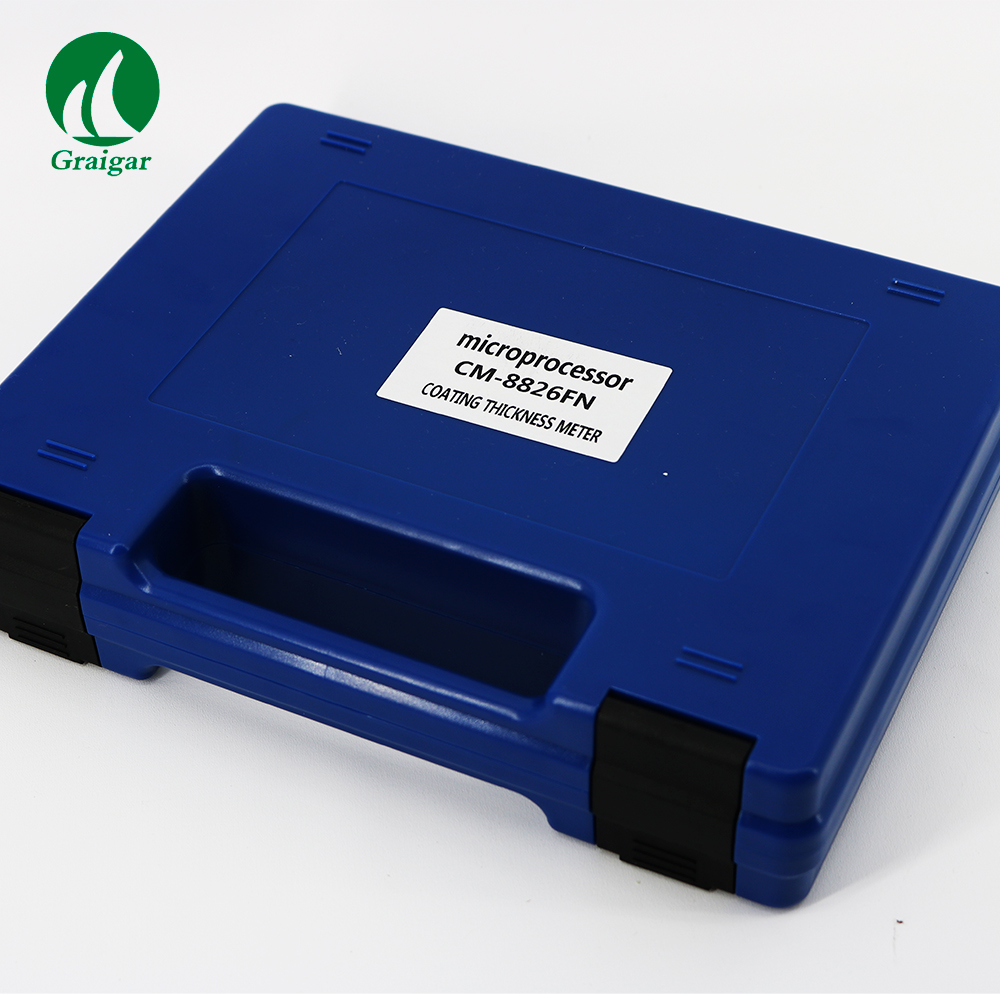

Packing: carrying case, substrate blocks (steel x 1pc, Aluminumx1pc), Calibration foils x 1set, English manual

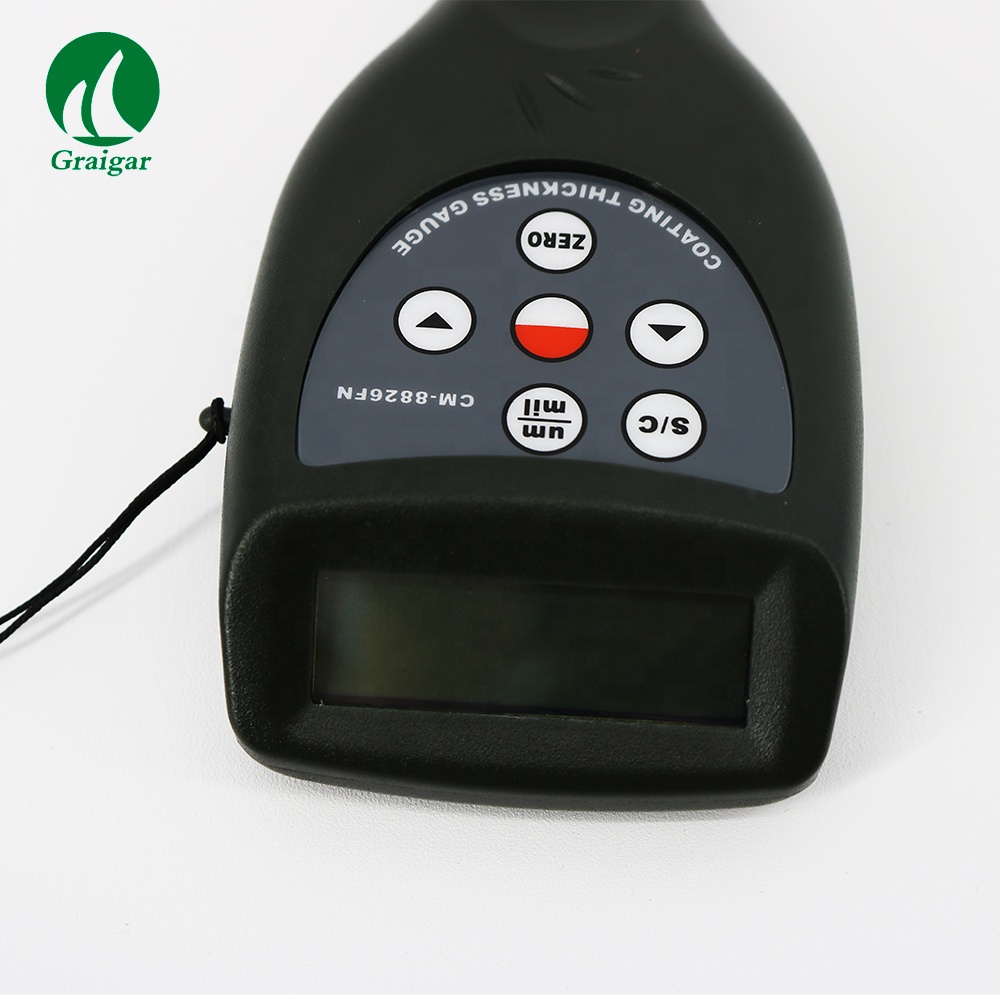

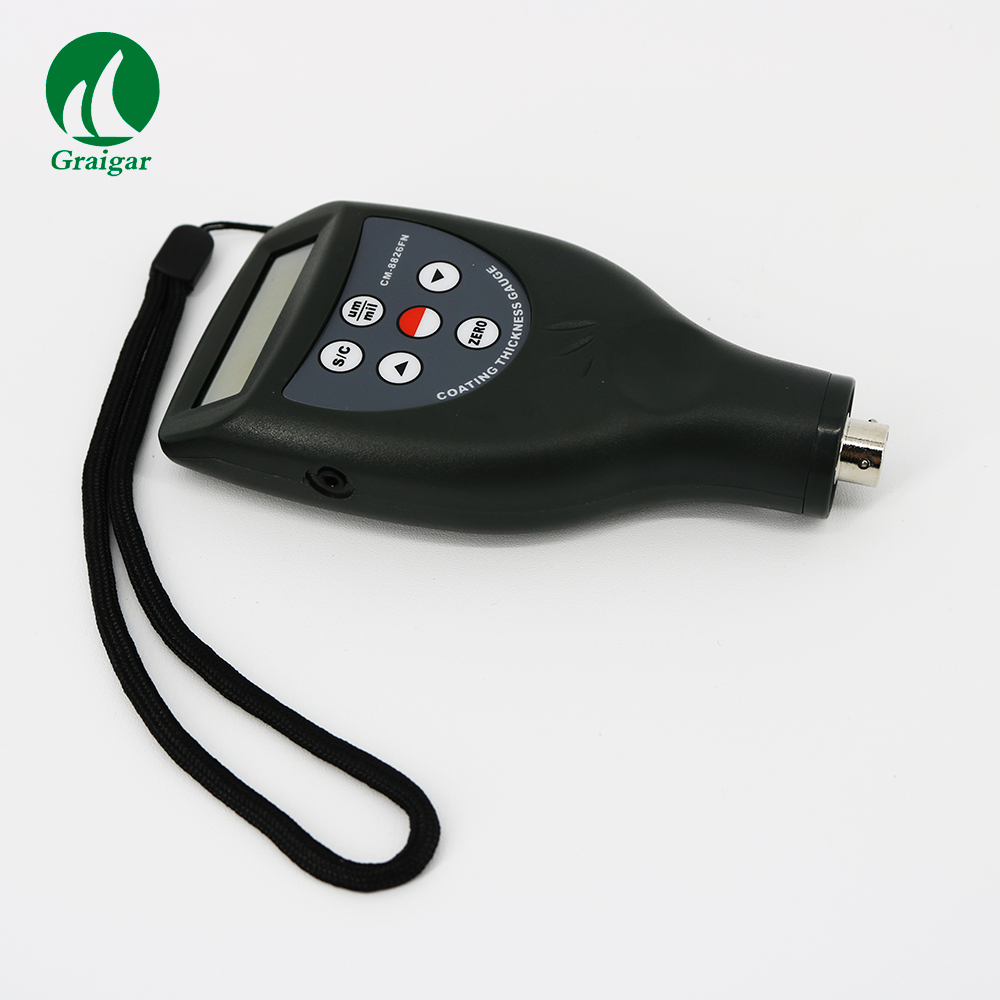

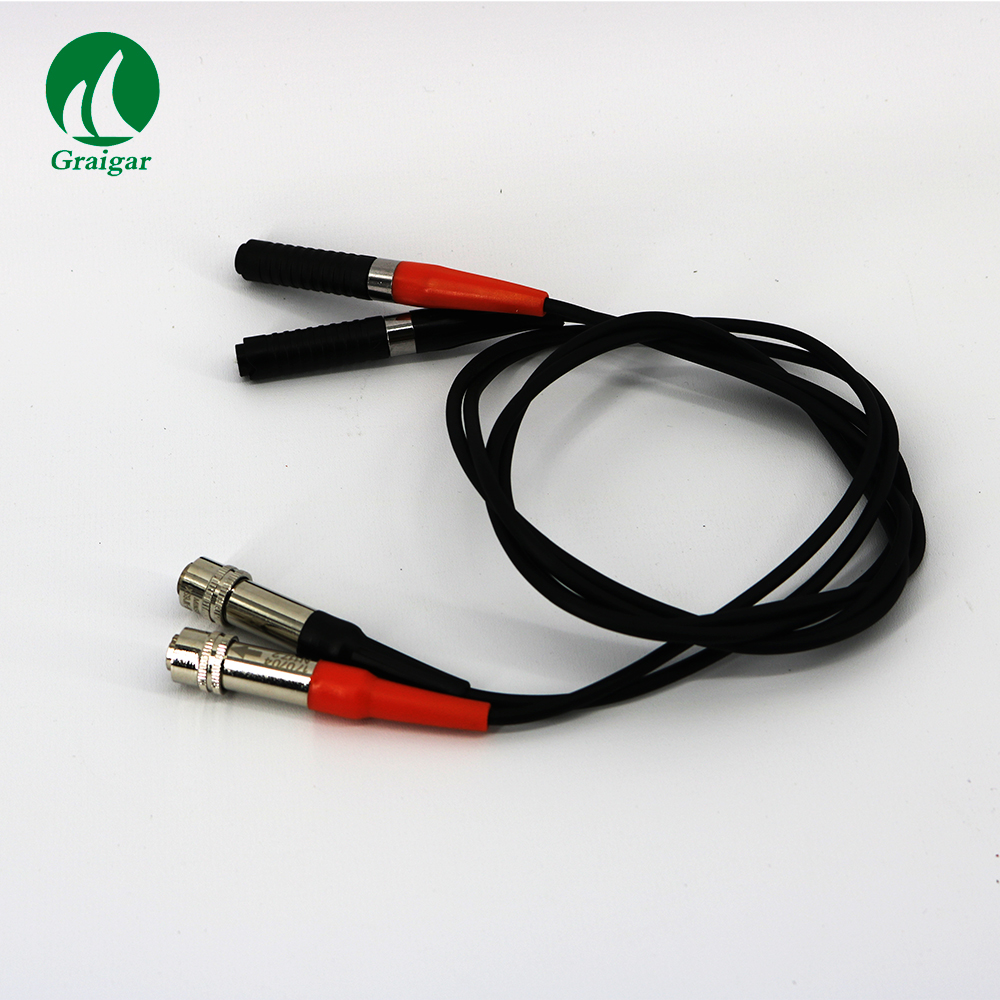

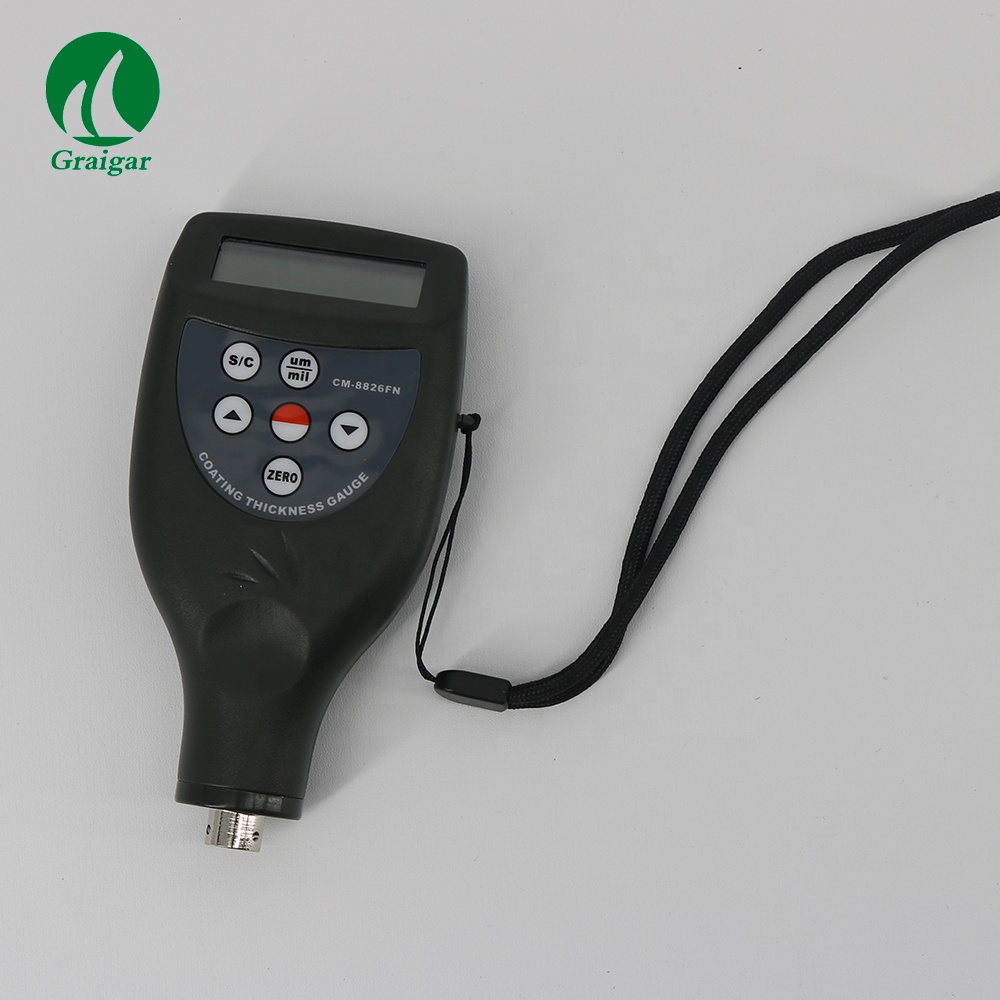

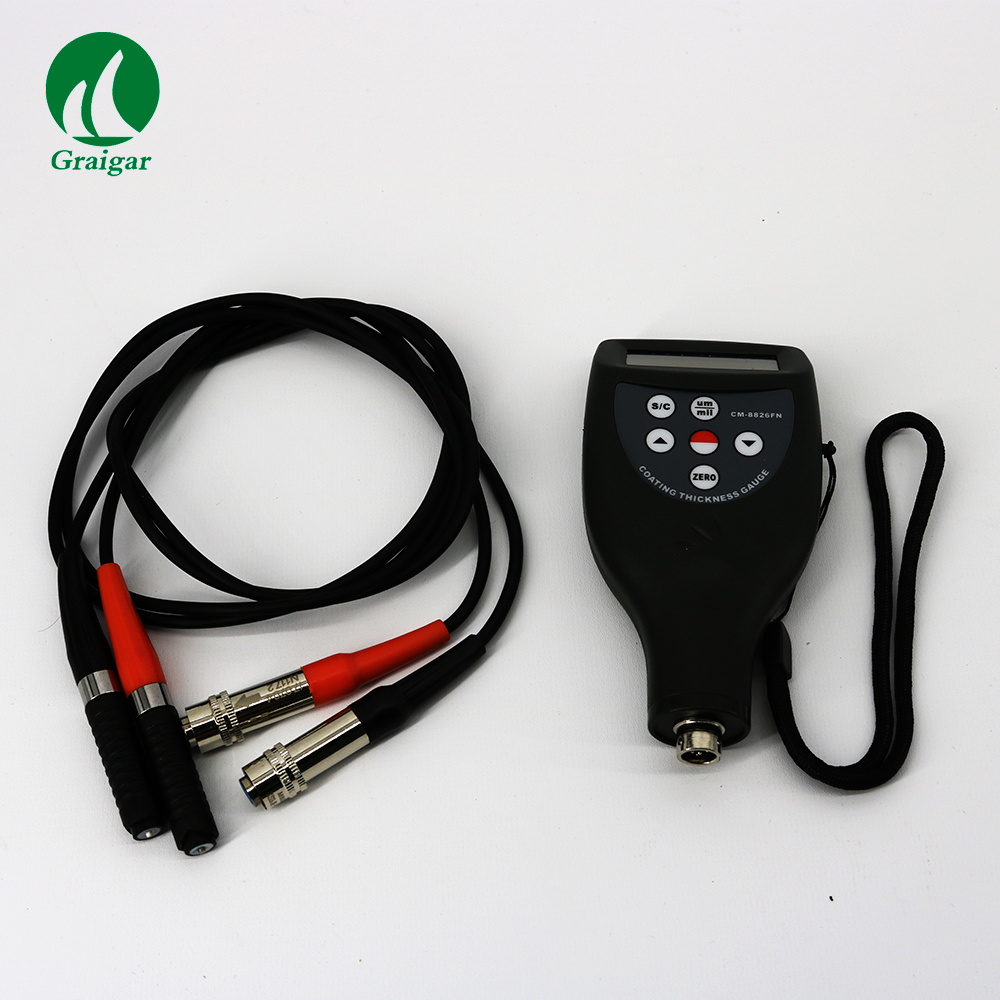

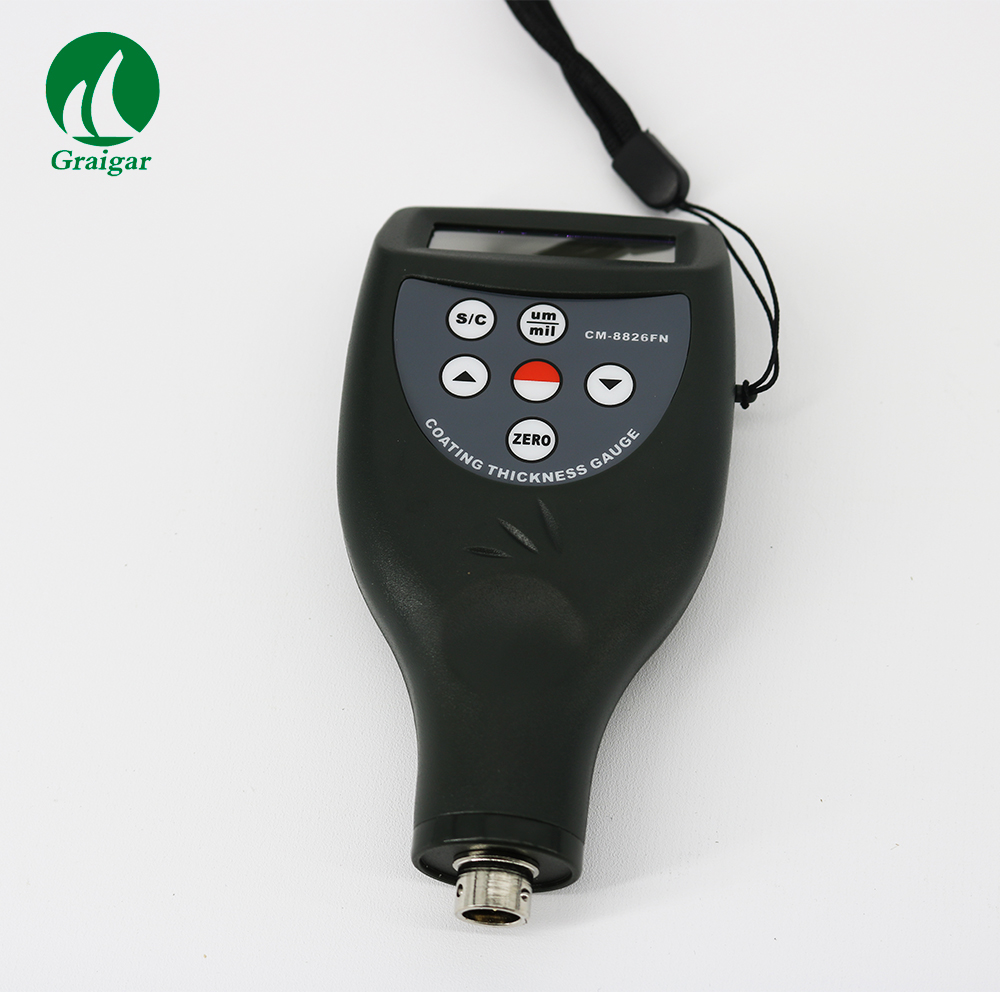

Product Images:
