Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Guangdong, China
- Brand Name: CEM
- Model Number: DT-6650
- Display Type: Digital Only
- Measuring Range: 4000MΩ
- Testing Voltage: 1000V
- Accuracy Class: ±(2% 10)
- Operating Temperature: 0°C-40°C
- Dimensions: 220mm x 96.5mm x 60.5mm
- Product name: Multifunctional electrical comprehensive tester
- Type: DT-6650
- Pixel: 320×240
- Function 1: Resistance,Voltage,RCD ,RFG,PSC
- Function 2: Memory card, USB,
- Screen: 3.5″ TFT color LCD
- Certification: CE
- Battery: 8×1.5V
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-6{font-size:24px}#detail_decorate_root .magic-7{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:725px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:719px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{display:none}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:116px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:101px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:81px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:118px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:89px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:110px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:88px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:203px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:202px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:115px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:247px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:451px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:342px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:471px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:227px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{width:750px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:464.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:464.0625px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:419.54314720812187px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:419.54314720812187px}#detail_decorate_root .magic-34{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-35{overflow:hidden;width:373px;height:248.0541871921182px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:373px;height:248.0541871921182px}#detail_decorate_root .magic-37{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-39{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:569px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:569px}#detail_decorate_root .magic-43{font-size:16px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:62px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:62px}

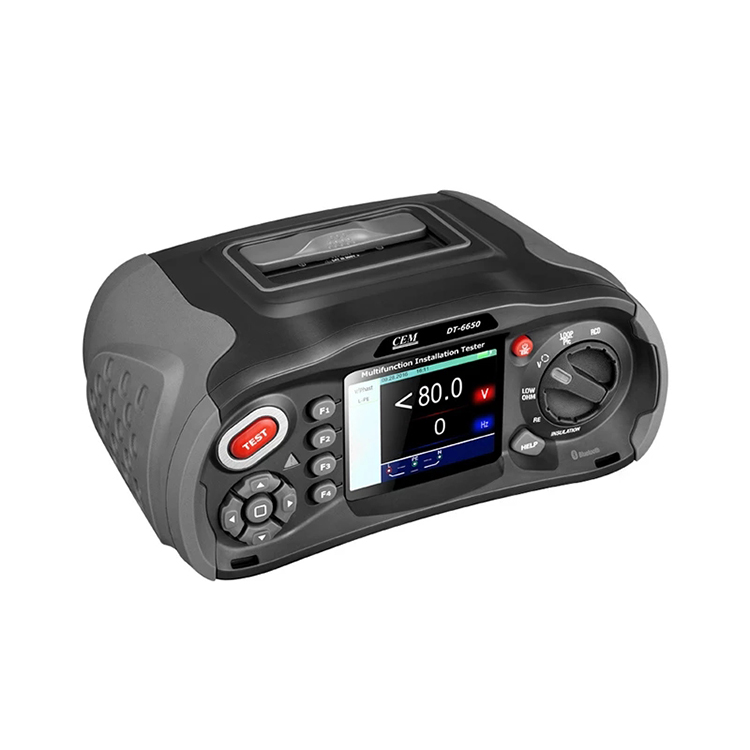

DT-6650 Fast high current loop test Multifunction
Insulation Resistance Tester
Products Description

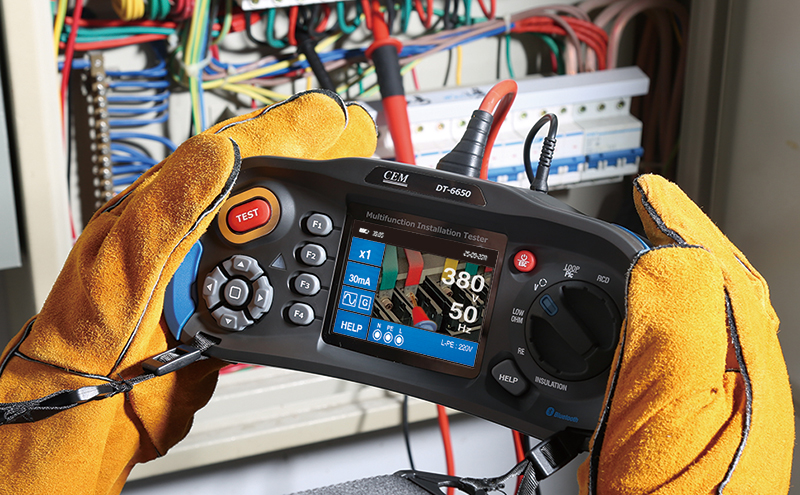

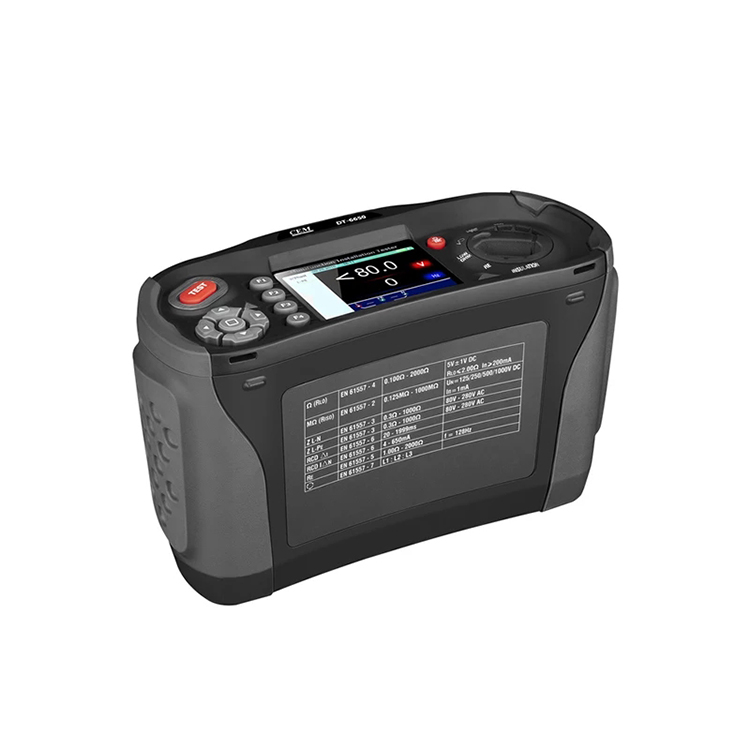

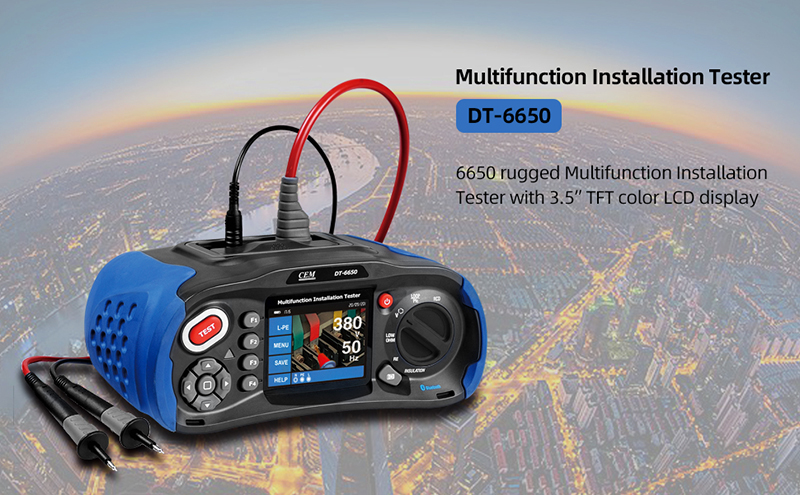

DT-6650 rugged Multifunction Installation Tester with 3.5″ TFT color LCD display, provides insulation resistance, earth
resistance, loop impedance, voltage, RCD, PFG and PSC testing. It is designed with software system and ensure the safety ofelectrical installations in domestic, commercial and industrial applications. 6650 series can ensure the fixed wiring is safe and correctly installed. It’s fast sampling and dual display, clear symbols and exceptionally wide viewing angle are for easy and safe read
resistance, loop impedance, voltage, RCD, PFG and PSC testing. It is designed with software system and ensure the safety ofelectrical installations in domestic, commercial and industrial applications. 6650 series can ensure the fixed wiring is safe and correctly installed. It’s fast sampling and dual display, clear symbols and exceptionally wide viewing angle are for easy and safe read
|

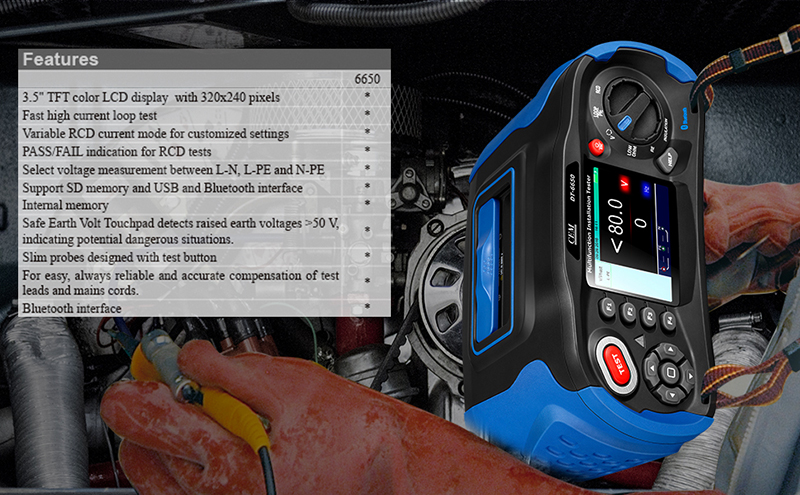

Features
|
|
3.5″ TFT color LCD display with 320×240 pixels
|
|
Fast high current loop test
|
|
Variable RCD current mode for customized settings
|
|
PASS/FAIL indication for RCD tests
|
|

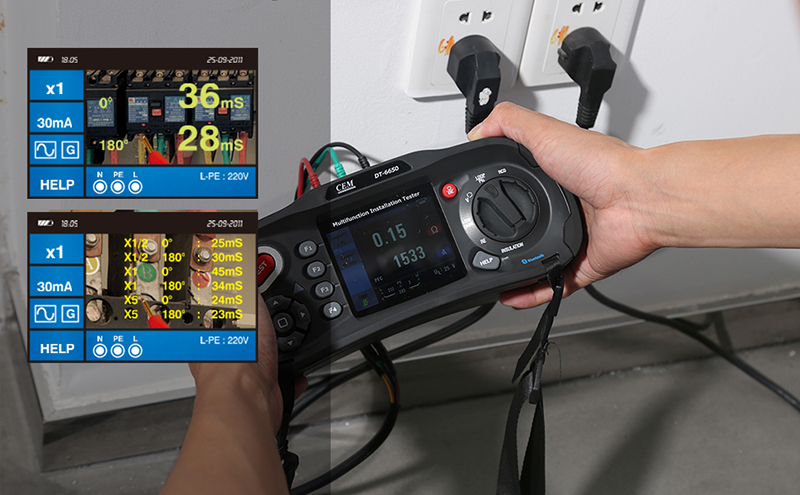

Select voltage measurement between L-N, L-PE and N-PE
|
|
Support SD memory and USB and Bluetooth interface
|
|
Internal Memory
|
|
Safe Earth Volt Touchpad detects raised earth voltages >50 V, indicating potential dangerous situations.
|
|

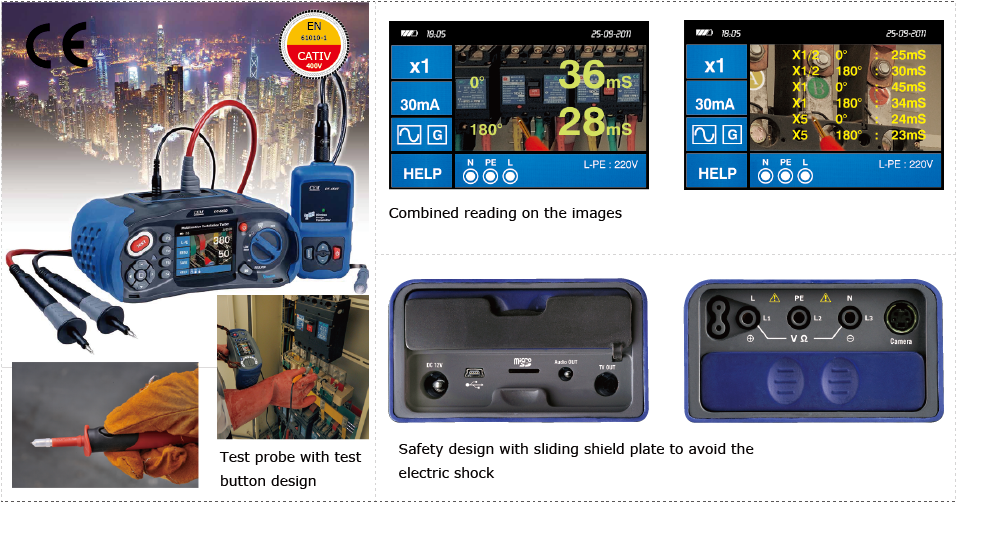

Slim probes designed with test button
|
|
For easy, always reliable and accurate compensation of test leads and mains cords.
|
|
Specifications
|
||||||||||
|
Insulation
|
||||||||||
|
Terminal Voltage
|
Range
|
Max Resolution
|
Accuracy
|
Test Current
|
Short circuit current
|
|||||
|
125V (0% ~ +10)
|
0.125~4000MΩ
|
0.001MΩ
|
±(2%+10)
|
1mA@load 125kΩ
|
≤1mA
|
|||||
|
250V (0% ~ +10)
|
0.250~4000MΩ
|
0.001MΩ
|
±(2%+10)
|
1mA@load 250kΩ
|
≤1mA
|
|||||
|
500V (0% ~ +10)
|
0.500~4000MΩ
|
0.001MΩ
|
±(2%+10)
|
1mA@load 500kΩ
|
≤1mA
|
|||||
|
1000V (0% ~ +10)
|
1.000~4000MΩ
|
0.001MΩ
|
±(3%+10)
|
1mA@load 1MΩ
|
≤1mA
|
|||||
|
Low OHM
|
||||||||||
|
Range
|
Resolution
|
Accuracy
|
Max. open Circuit Voltage
|
Overload Protection
|
||||||
|
4.000Ω
|
0.001Ω
|
±(1.5%+30)
|
5.8V
|
250Vrms
|
||||||
|
40.00Ω
|
0.01Ω
|
±(1.5%+3)
|
||||||||
|
400.0Ω
|
0.1Ω
|
|||||||||
|
Continuity Beeper
|
||||||||||
|
Range
|
Resolution
|
Operation Resistance
|
Max. open Circuit Voltage
|
Overload Protection
|
||||||
|
Continuity
|
0.01Ω
|
Resistance≤35Ω
|
5.0V±1VDC
|
250Vrms
|
||||||
|
Short circuit current
|
≥200mA
|
|||||||||
|
LOOP Resistance
|
||||||||||
|
L-PE (Hi-Amp)
|
||||||||||
|
Range (Ω)
|
Max. Resolution (Ω)
|
Accuracy
|
||||||||
|
0.00~999
|
0.01
|
±(4% of reading+6 digits)
|
||||||||
|
L-PE(No Trip): Measuring Current:15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(56,60Hz)
|
||||||||||
|
Range (Ω)
|
Resolution (Ω)
|
Accuracy
|
||||||||
|
0.00~999
|
0.01
|
±(5% of reading+6 digits)
|
||||||||
|
L-N: Measuring Current:2.0A / Range of the Voltage Used:195V a.c.~260V a.c.(56,60Hz)
|
||||||||||
|
Range (Ω)
|
Max. Resolution (Ω)
|
Accuracy
|
||||||||
|
0.00~999
|
0.01
|
±(4% of reading+4 digits)
|
||||||||
|
RCD Testing
|
||||||||||
|
Test current
|
Accuracy
|
|||||||||
|
x1/2, x1, x2, x5
|
1.5%~ -9%
|
|||||||||
|
Voltage and Frequency
|
||||||||||
|
Measurement Range (V)/ AC-DC
|
Resolution
|
Accuracy
|
||||||||
|
80-500V/(45-400Hz)
|
1V
|
±(2% of reading+2 digits)
|
||||||||
Recommend Products
Company Profile

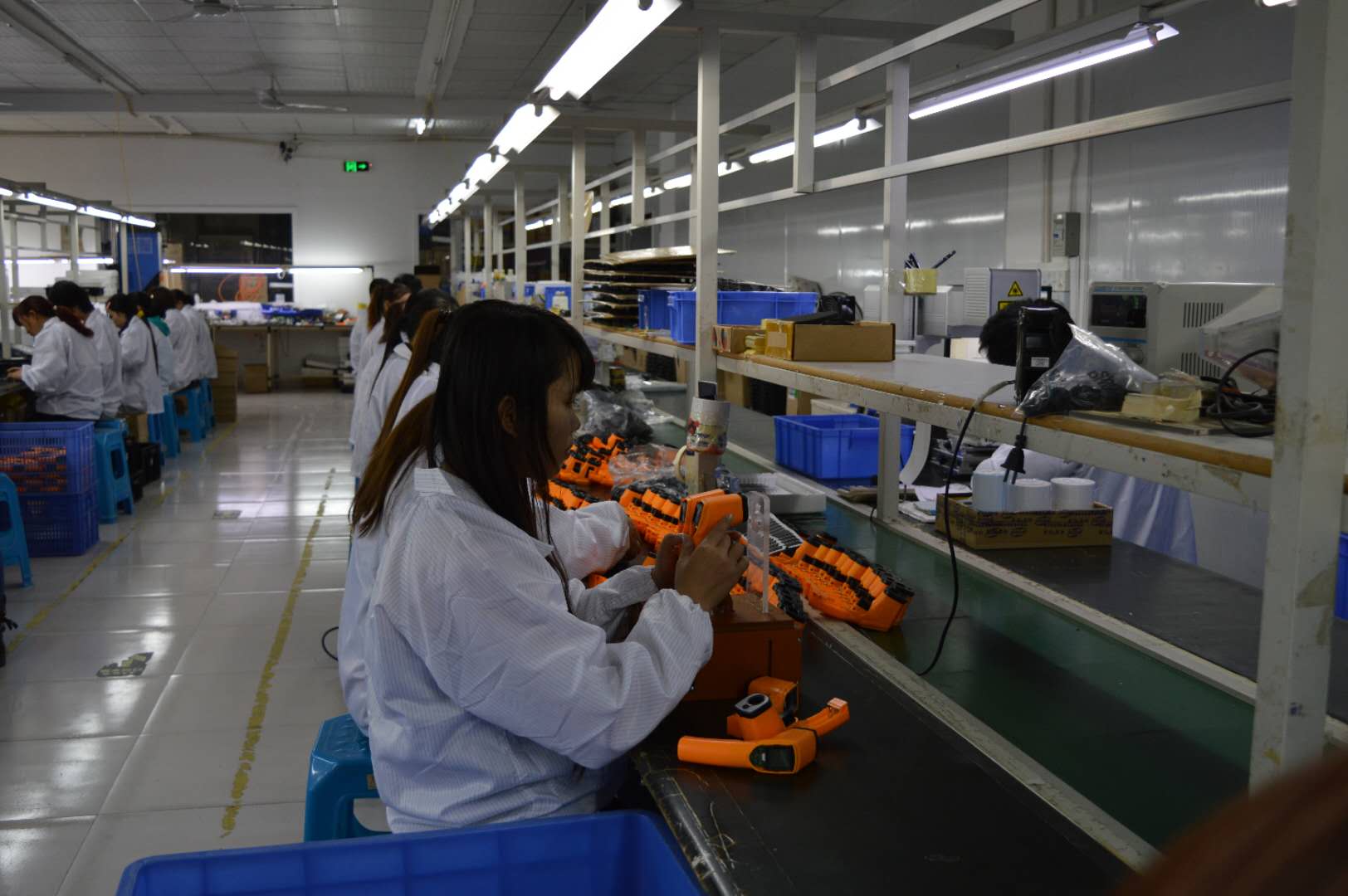

Shenzhen Horizon Max Technology Co., Ltd was established in 2013, and it is located in beautiful Shenzhen Futian District. We are a new high-tech enterprise which combines research and development, product design, manufacturing and sales. We specialize in producing Infrared Thermometer, Digital Anemometer, Digital Sound Level Meter, Humidity & Temperature Meter, Ultrasonic Thickness Gauge, Film/Coating Thickness Gauge, Vibration Meter, High Voltage Insulation Tester, Digital Lux Meter, Micro Power Monitor, Pressure Manometer, Combustible Gas Detector, Wood Moisture Meter, Surface Resistance Meter, and so on. Product lines have been continuously expanded to meet the market’s growing needs. The company always stick to the guideline “high starting point and strict management” and never stop introducing advanced technology at home and abroad to accomplish independent research and development and produce new products with high quality, high efficiency and utility. We are active in the market and gain the advantage through continuous self-improving. The company and all of our staffs sincerely appreciate your attention and support,
