Description
- Brand Name: YHDAA
- Type: Barcode Scanner
- Scan Element Type: CMOS
- Origin: CN(Origin)
- Optical Resolution: 300*300
- Scan Breadth: A4
- Scan Speed: 200 scans/second
- Interface Type: USB
- Product Type: Bar Code Scanner
- Certification: CE
- Colour Depth: 32 Bit
- Model Number: Wired Barcode Scanner Module
- Novelty: New
- Scanning Light Source: Laser Light
- BAR CODE READER: 2d scanner
- BARCOD SCANNER 2D: QR READER
- barcode reader: SCANNER QR CODE
- bar code: SCANNER CODE
- data matrix scanner: BAR CODE
- BAR CODE SCANNER: SCANNER BARCOD
- Automotive scanner: QR SCANNER
- Code Reader Scanner: 2d barcode scanner
- Barcode scanner module: portable scanner
- 2D Scanner: qr code scanner
- PDF417 scanner: BAR CODE SCANNER
- CODE READER SCANNER: BAR CODE SCANNER
- Mini Barcode Scanner: CODE READER SCANNER
- barcode reader: CODE SCANNER
- code system: usb barcode scanner
- barcode system: 2d barcode scanner
1D 2D Barcode Scanner Module Engine Embedded CCD Fixed Bar Code Reader Module for Kiosk RS232 USB Interface

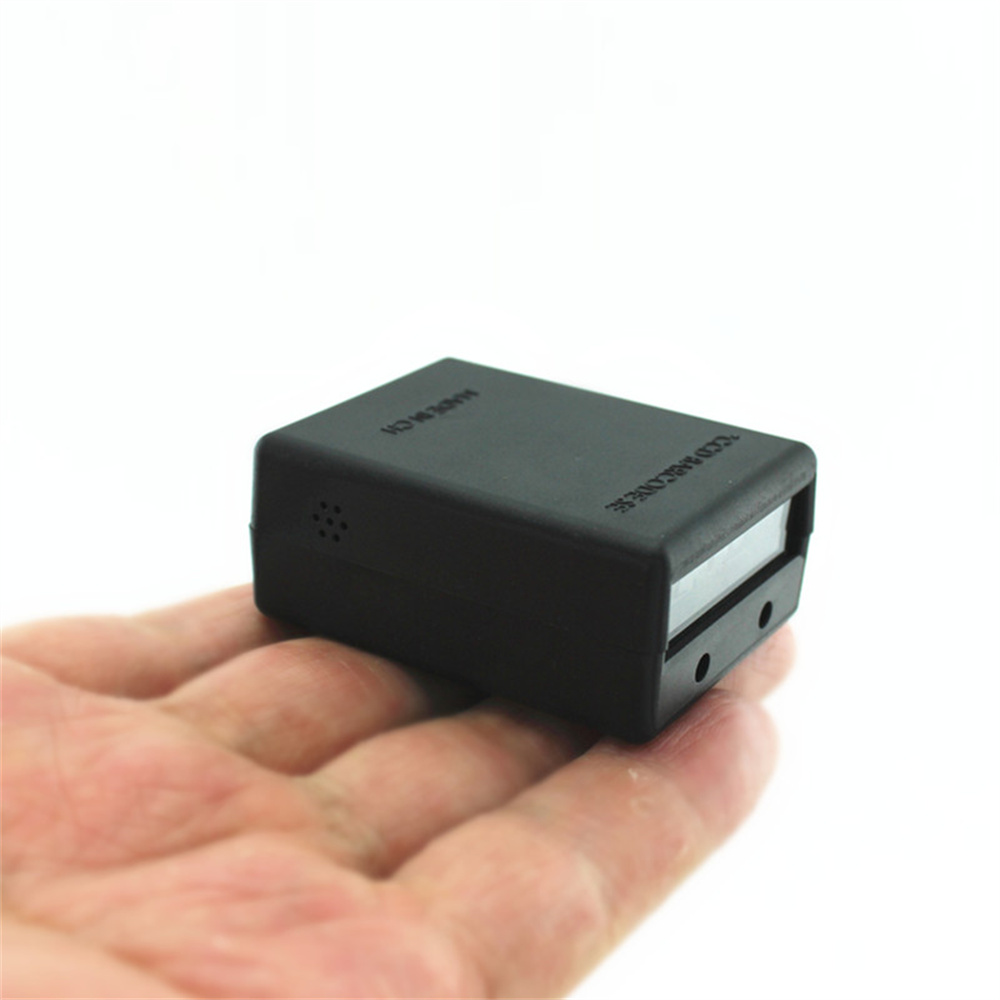

Model: YHD-M300D Barcode Scanner Module

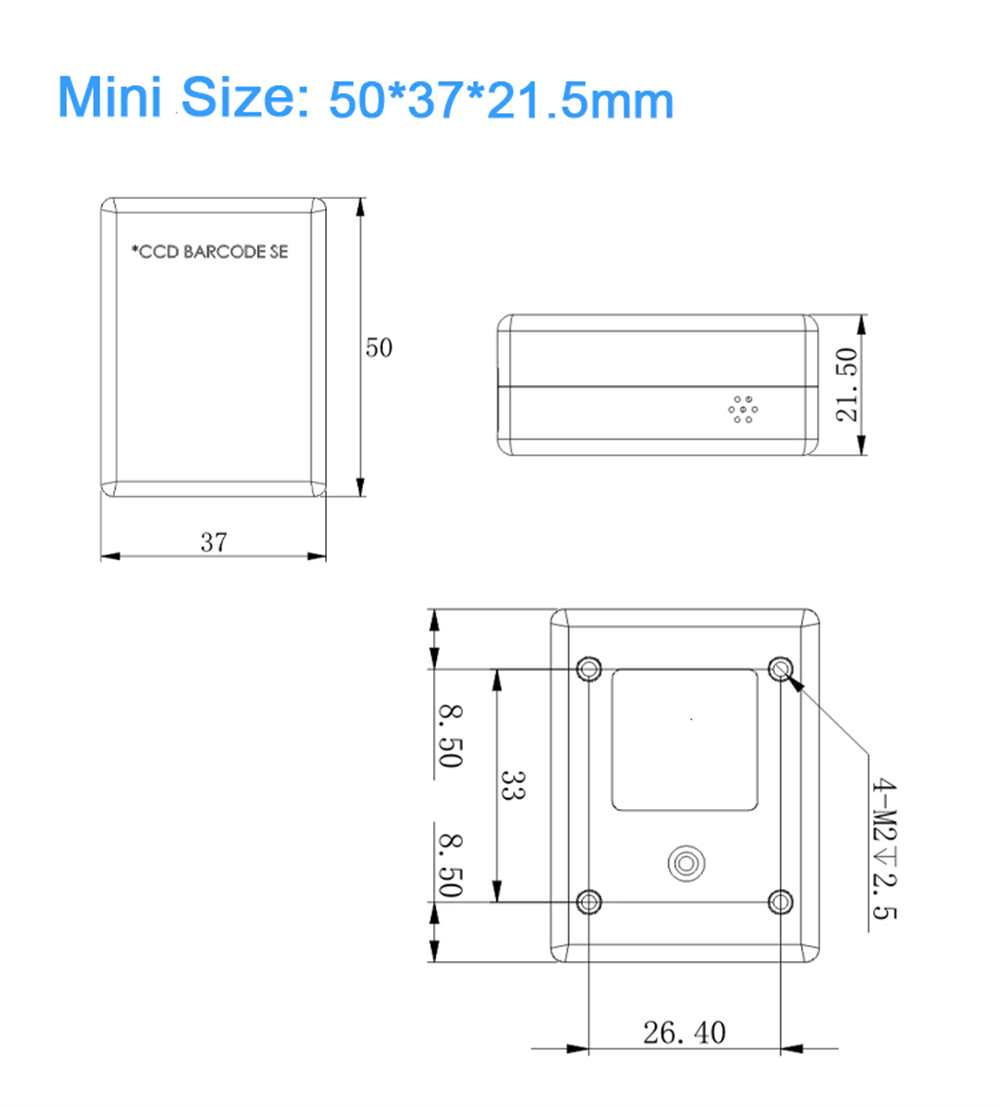

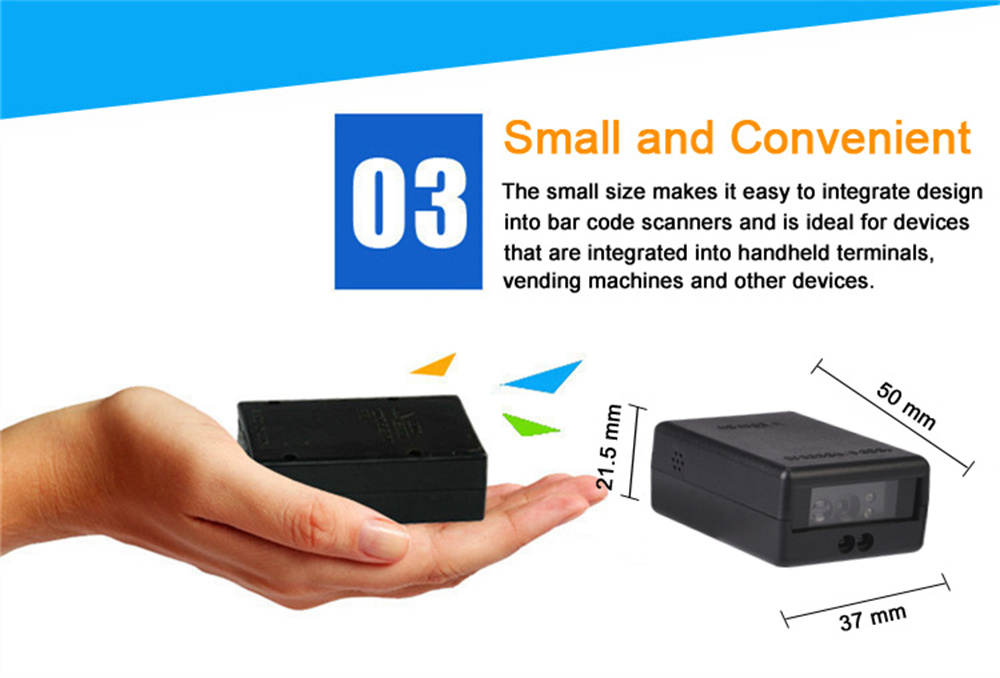

* Mini Size: 5 *3.7 *2.2cm/ 1.9 *1.4 *0.8in.

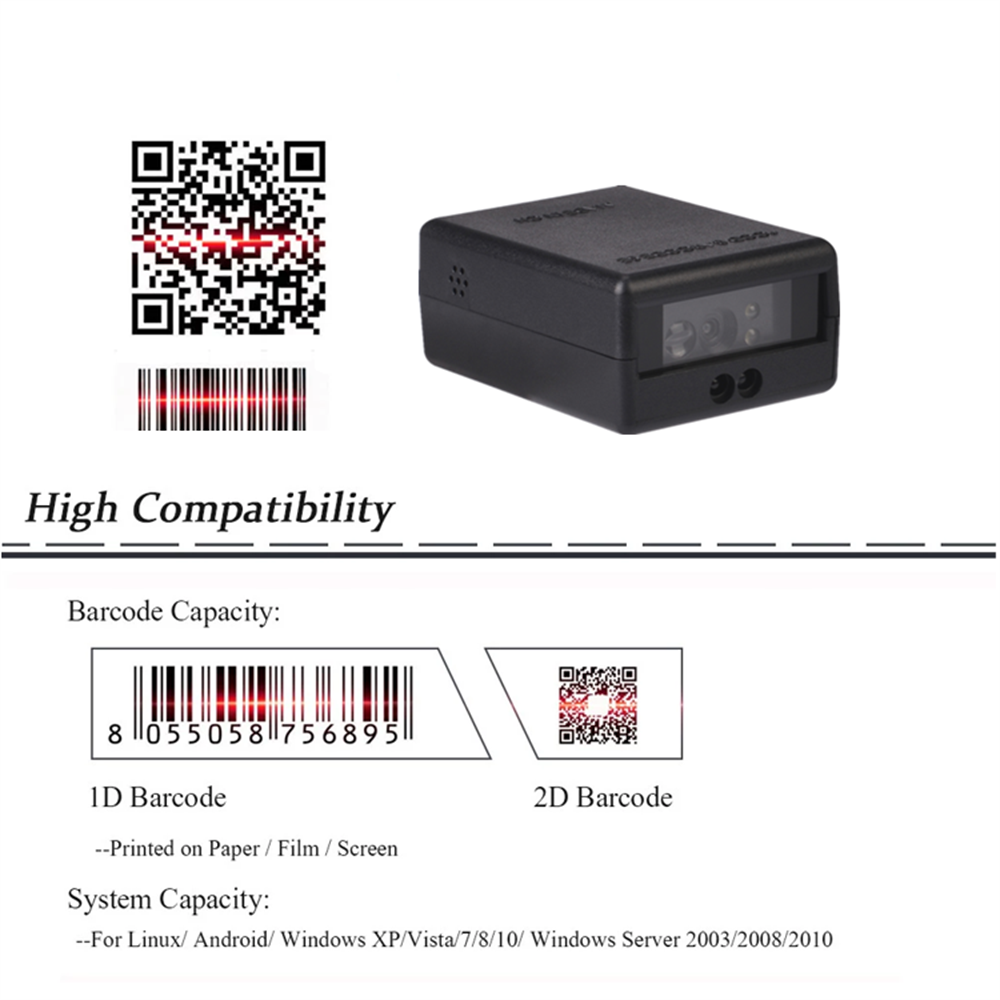

* Powerful decoding capacity for most 1D and 2D codes.
* Plug and play, driver-free, convenient for usage.

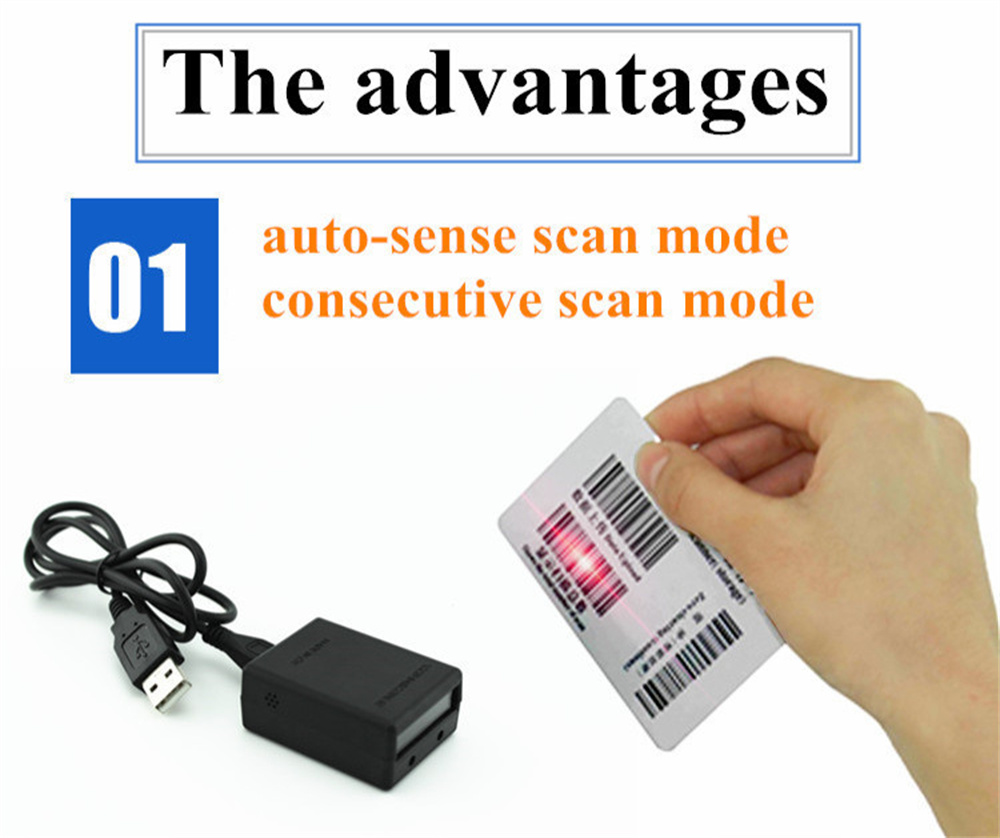

* Supports Continuous/Auto-Induction , 2modes for option.

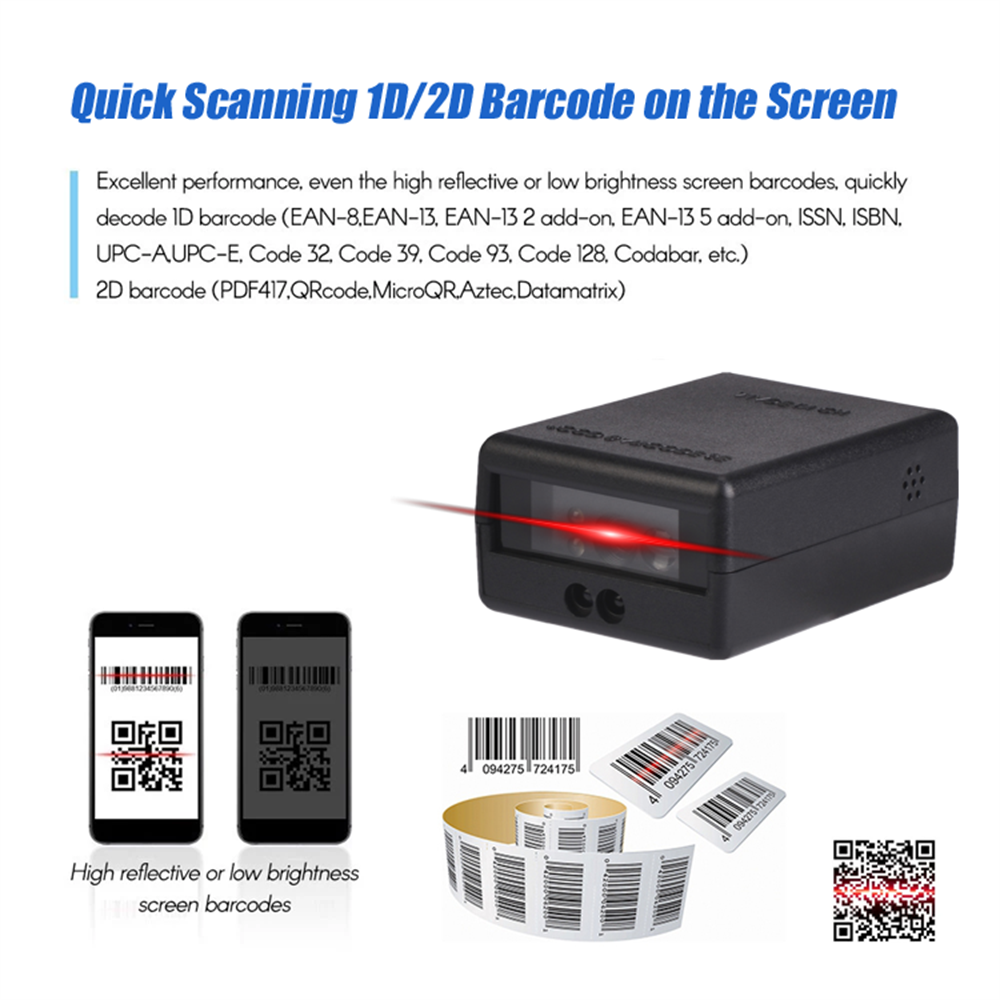

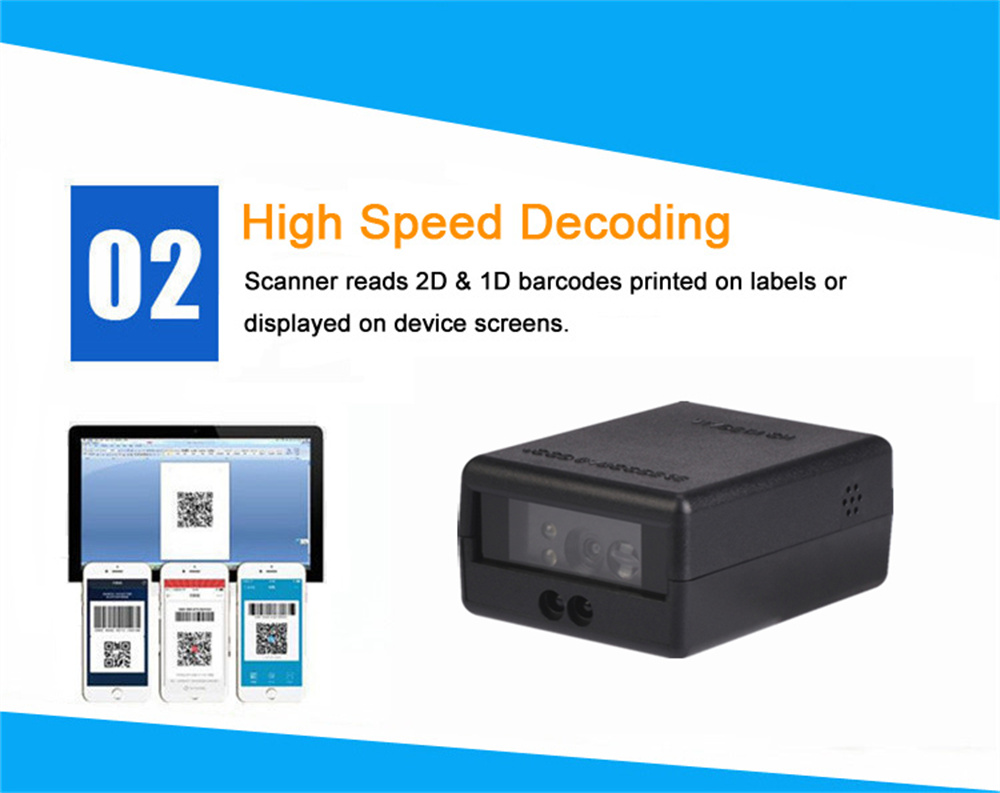

* Can scan the phone, computer and other electronic screen.
* Super scanning and decoding ability, can read incomplete and fuzzy codes.
* Small size,easily to integrate into any device, especially for limit space application.

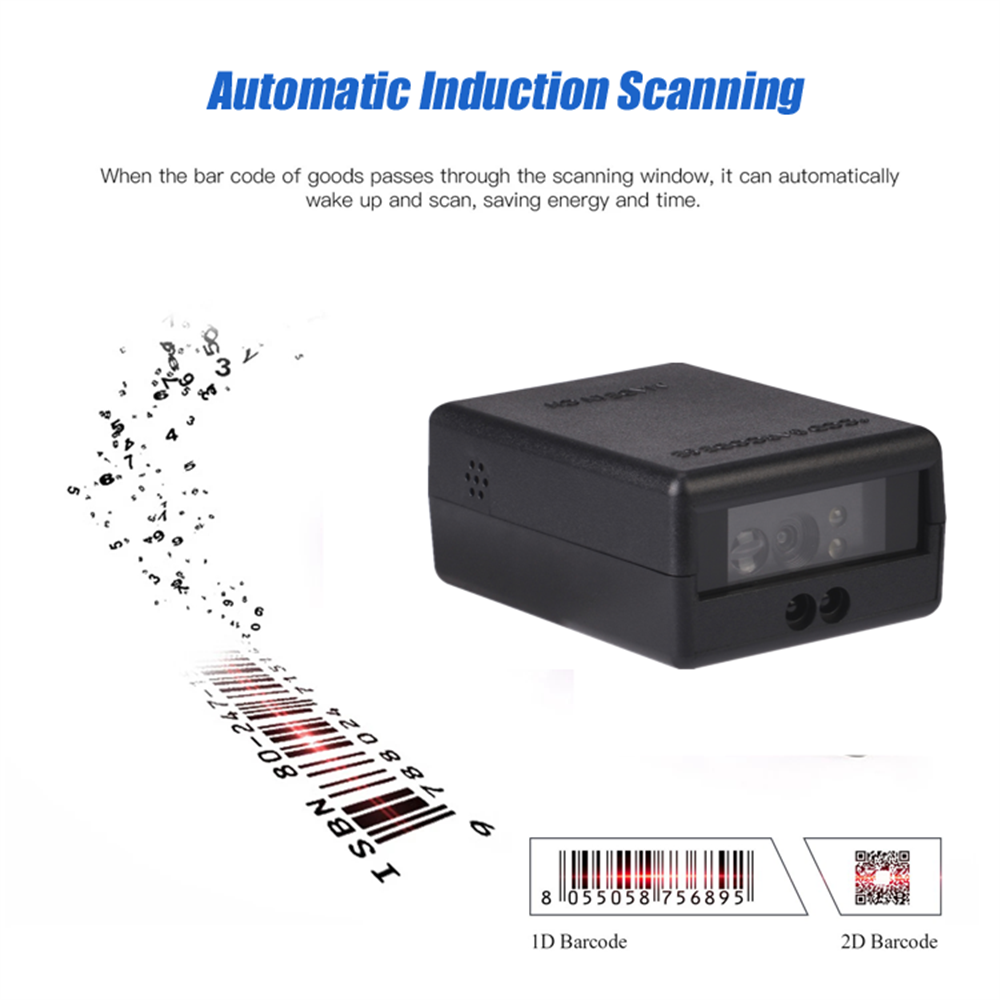

* Auto-sensing scanning saves power and time — when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.
* Support secondary development — the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

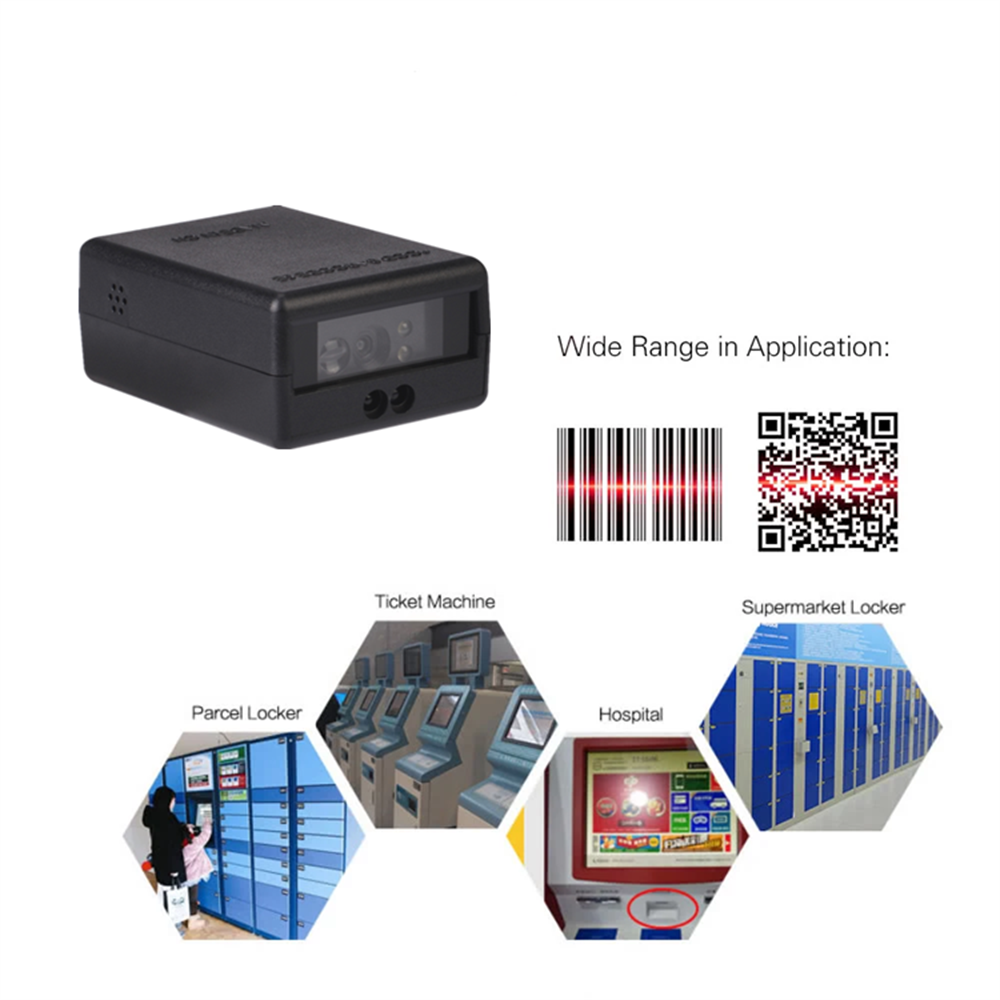

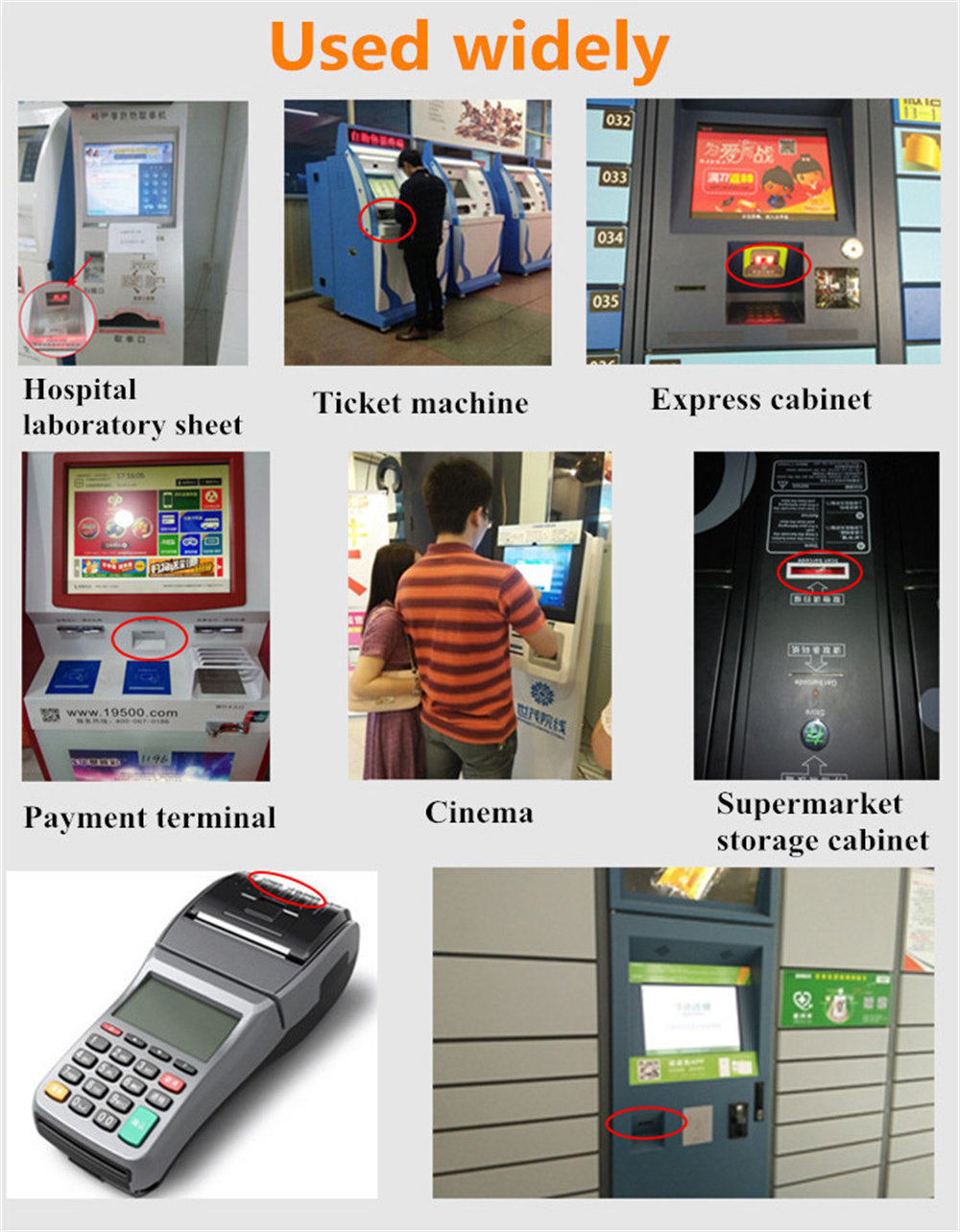

* Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.
|
Product Specification |
YHD-M300D 2D QR CMOS Barcode Scanner Module |
|
Imaging Sensor |
CMOS |
|
Optical Source |
620nm Visible red light diode |
|
Trigger Mode |
Continuous,Auto-Induction |
|
Indication |
Buzzer & LED |
|
Resolution Ratio |
640*480(30 million pixels) |
|
Interface |

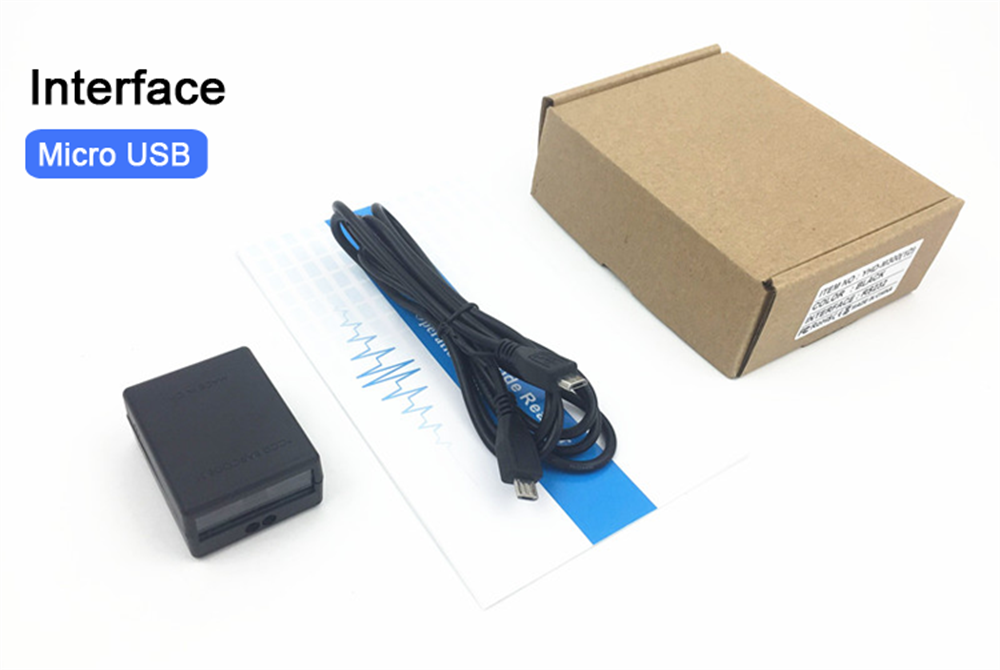

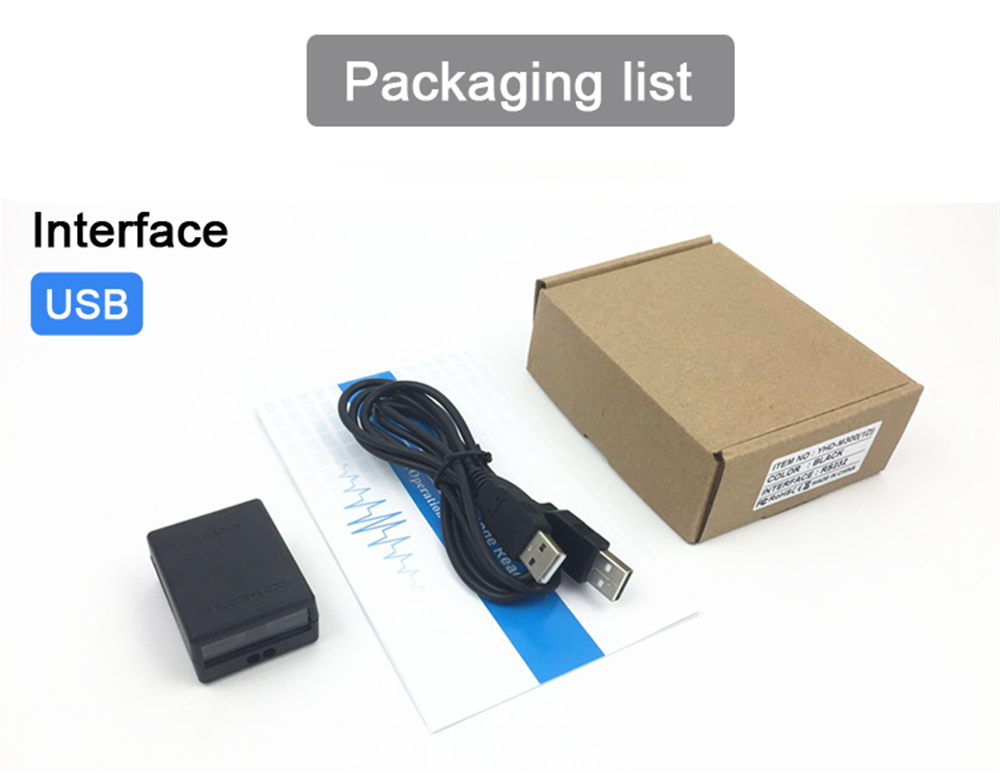

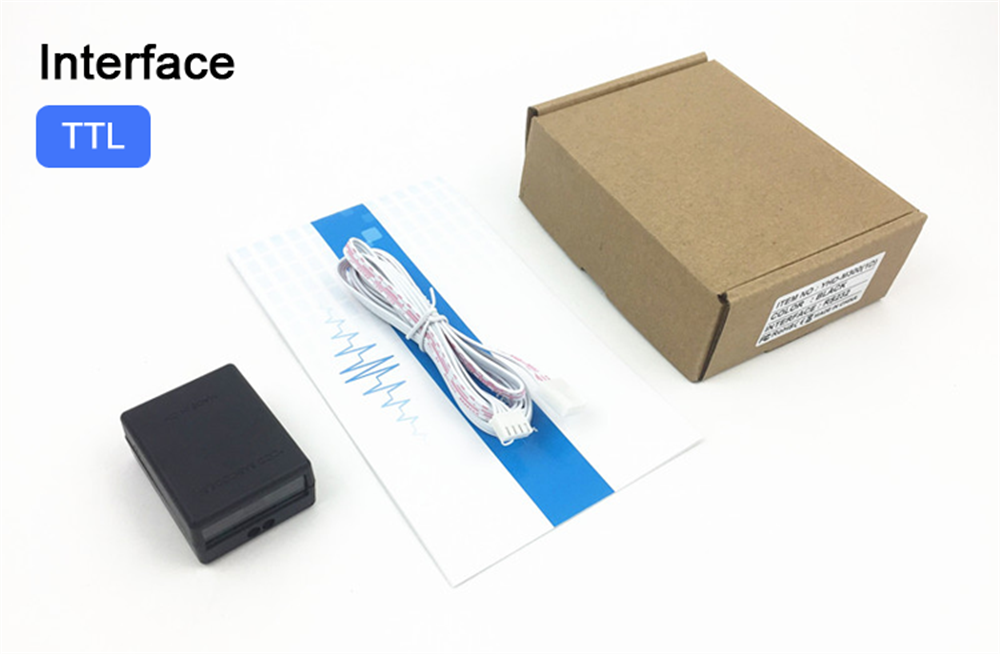

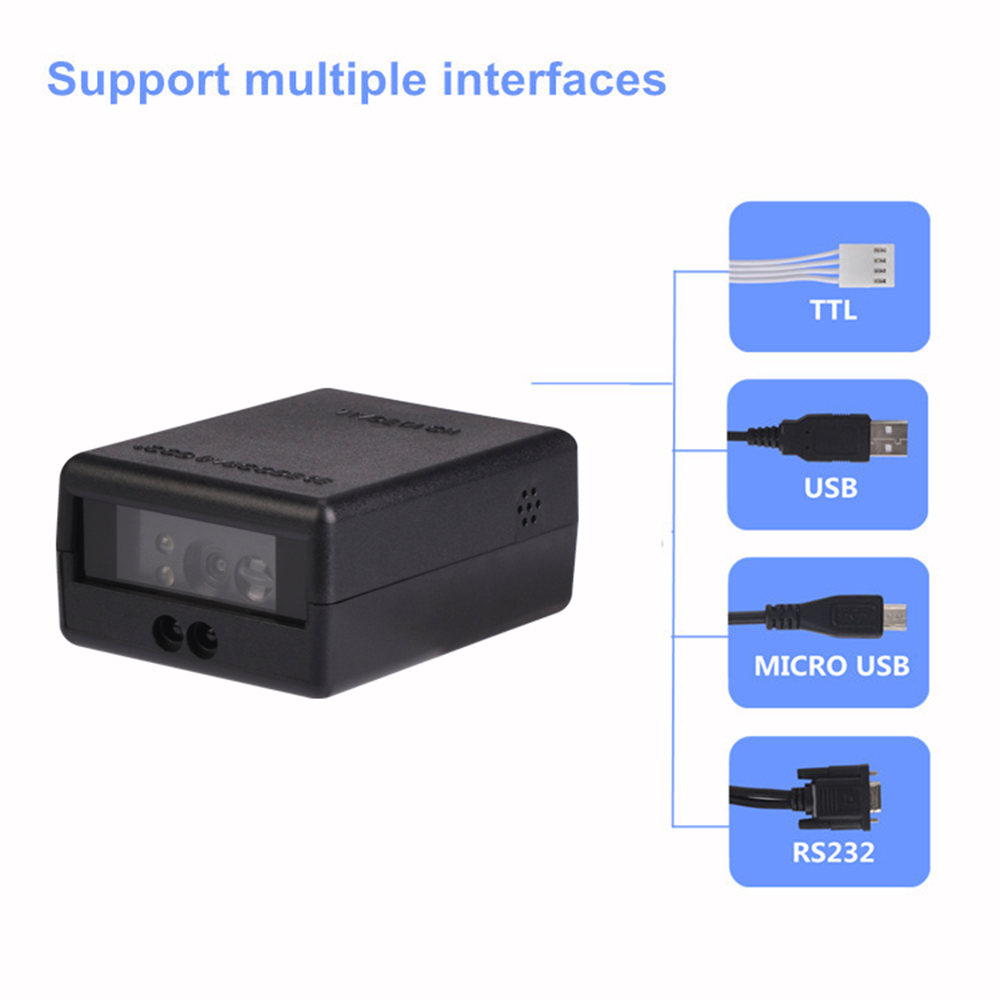

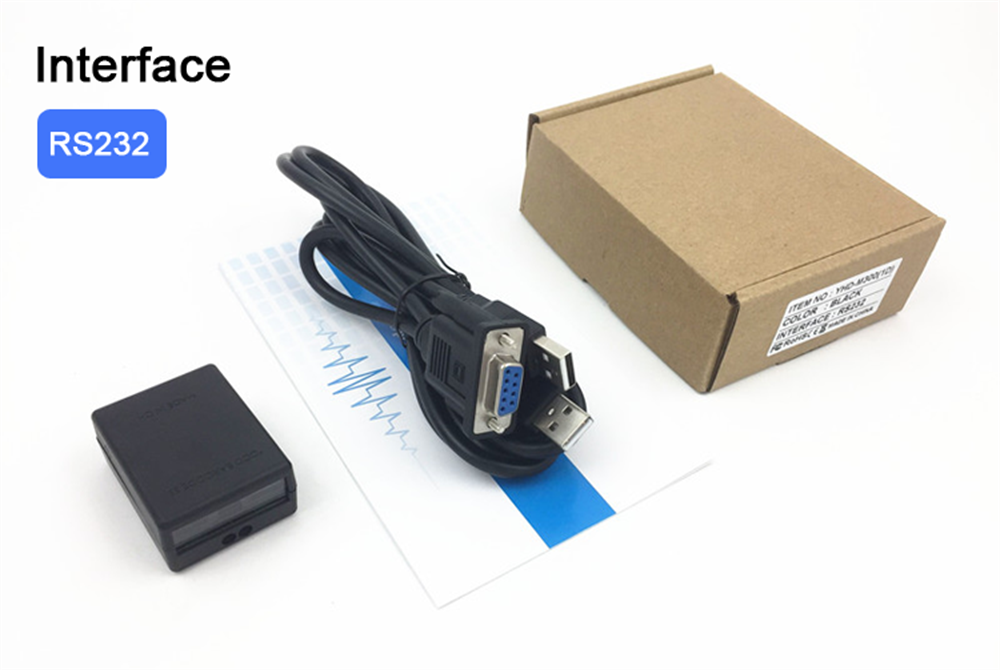

RS232,USB,TTL,Micro USB |
|
Resolution |
4mil |
|
Weight (without cable) |
22g |
|
Dimensions(scanner) |
50×37×22 mm(Length x Width x Height) |
|
Minimum Contrast |
≥ 25% |
|
Decoding Capability |
1D: CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5 ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128 Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey MSI_Plessey 2D: PDF417QR Aztec DataMatrix Maxicode MicroPDF417 etc |
|
Scan Angle |
Roll360°,Pitch±65°,Skew±60° |
|
Working Voltage |
DC5/3.3 V ± 10% |
|
Current |
Max. : 212mA Working : 156mA~212mA Stand-by : 156mA |
|
Temperature |
Storage: -40°C ~ 60°CWorking: -20°C ~ 60°C |
|
Relative Humidity |
5%-95%Relative humidity, no condensation state |
|
Drop test |
1.5m fall to concrete |
|
Certificate |
CE,FCC,RoHS,IP54 |
