Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: FST-16S
- Type: Fiber fusion splicer
- Place of Origin: Guangdong, China
- Brand Name: OEM
- Use: FTTX FTTH
- Warranty Time: 1
- Lighting: 3 White LEDs
- Dimension: 140W*165L*145H
- Weight: 2.2 KG (with battery)
- Return Loss: ≥60dB
- Operating Methods: Button/Touch Screen
- Splicing Time: Quick mode 6s
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{font-size:18px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{text-align:justify}#detail_decorate_root .magic-9{width:750px;border-collapse:collapse}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:209px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:491px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{text-align:left}#detail_decorate_root .magic-13{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-14{margin-bottom:0}#detail_decorate_root .magic-15{position:relative;width:100%}#detail_decorate_root .magic-16{font-size:20px}#detail_decorate_root .magic-17{width:750px}#detail_decorate_root .magic-18{overflow:hidden;width:247.33333333333334px;height:310.2327586206897px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:247px;height:310px}#detail_decorate_root .magic-20{overflow:hidden;width:247.33333333333334px;height:309.417004048583px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:500px}
Aimit is one of the most advanced and capable factories which is professionally engaging in researching, developing, manufacturing, and marketing fiber optical communication products.
Products Description
Automatic Intelligent Ftth Fttx Active Cladding Alignment Fusion Splicer FST-16S Fiber Fusion Splicer Machine
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that
light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region
surrounding it are almost as strong as the virgin fiber itself.
light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region
surrounding it are almost as strong as the virgin fiber itself.
Technical Data
|
ITEM
|
Technical Parameters
|
|
Number of Fiber
|
Single
|
|
Appicable Fibers
|
SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
|
|
Compatible Fiber/Cable
|
0.25-3.0mm/Indoor Cable
|
|
Cleaved Length
|
Diameter: 0.125-1mm/Cleave Length:8-16mm
|
|
Cladding Diameter
|
80- 150 μm
|
|
Splicing Mode
|
Pre-set 41 splicing modes, max 100 modes
|
|
Heating Mode
|
Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
|
|
Typical Splice Loss
|
SM: 0.03dB 1 MM: 0.02dB/ DS: 0.05dB 1 NZDS: 0.05 dB/ G.657: 0.03dB (ITU-T Standard)
|
|
Return Loss
|
≥60dB
|
|
Lighting
|
3 White LEDs
|
|
Splicing Time
|
Quick mode: 6s
|
|
Estimated Splice Loss
|
Available
|
|
Heating Sleeve Length
|
20-60mm
|
|
Heating Time
|
Quick heating time: 13s, typical heating time: 30s
|
|
Results Storage
|
20000 latest records & 200 images
|
|
Tension Test
|
1.96 – 2.25N
|
|
Display
|
90° bi-directional view, 5.0″ Color High Resolution Display
|
|
Fiber View & Magnification
|
X, Y, XY, X/Y: 400X Magnification
|
|
Power Supply
|
AC Input 100 – 240V, DC Input 12- 15V
|
|
No. of Splice/Heating with Battery
|
5200mAh Battery Capacity, Typical 250 times (Splice + Heat)
|
|
Operating Methods
|
Button/Touch Screen
|
|
Automatic Calibration
|
Automatic ARC calibration by air pressure and temperature
|
|
Electrode Life
|
5000 arcs
|
|
Terminal
|
Mini USB 2.0
|
|
Weight
|
2.2 KG (with battery)/ 1.8 KG (without battery)
|
|
Dimension
|
130W*160L*145H (excluding rubber bumper) / 140W*165L*145H (including rubber bumper)
|
|
Operating Condition
|
Operating Altitude 0-5000m above sea level, 0-95% relative humidity,-10~50℃, max wind 15m/s
|
|
Storage Condition
|
0~95% relative humidity, -40~80℃
|
Products Features
* Industrial quad core CPU, high quality and low loss
* 5“high resolution color LCD touch screen, 400X magnification, visible clearly with bare eyes * Packed with detachable 5200mAh battery, more than 250 times of splicing and heating * 3 high-power white LEDs and illuminated keypads simplifies your work at night * German CNC technique and integrated fiber-adjust frame, which make performance much stable * Detachable multifunction fixture, suitable for various fiber type * Dust-proof, water-proof, high-temperature resistance ,adapting to various altitude and harsh environment * Built -in Japanese components and Korean chipset
Application
* FTTX, FTTH, CATV projects

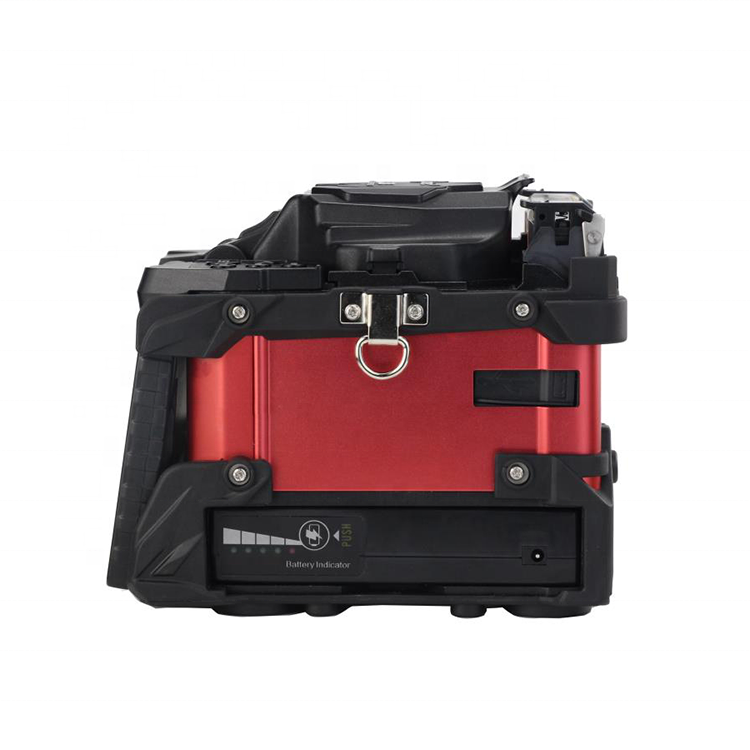

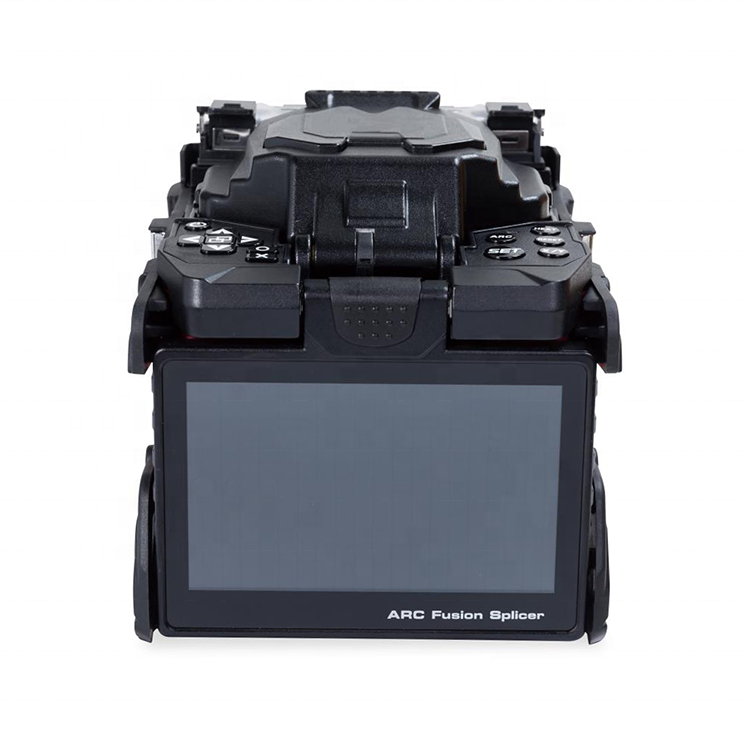

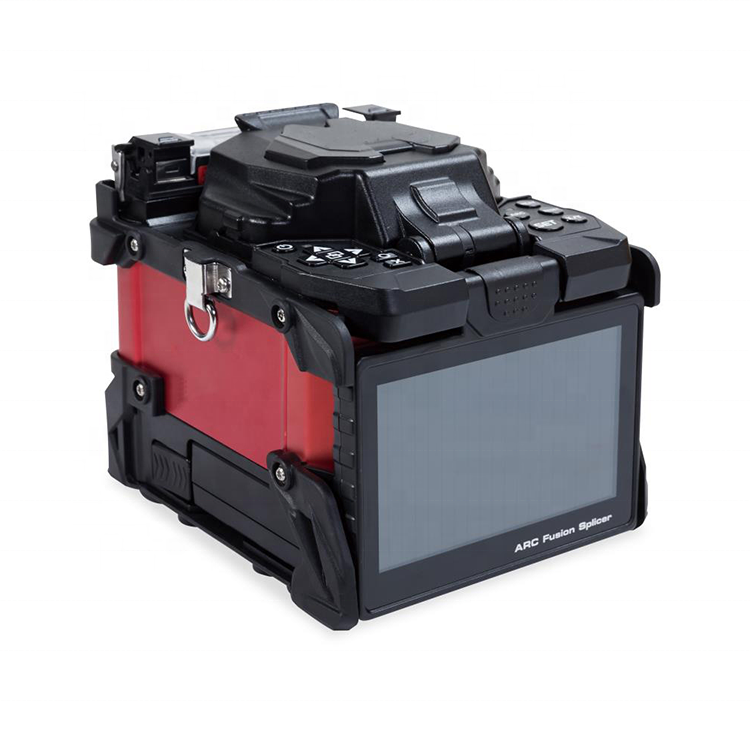

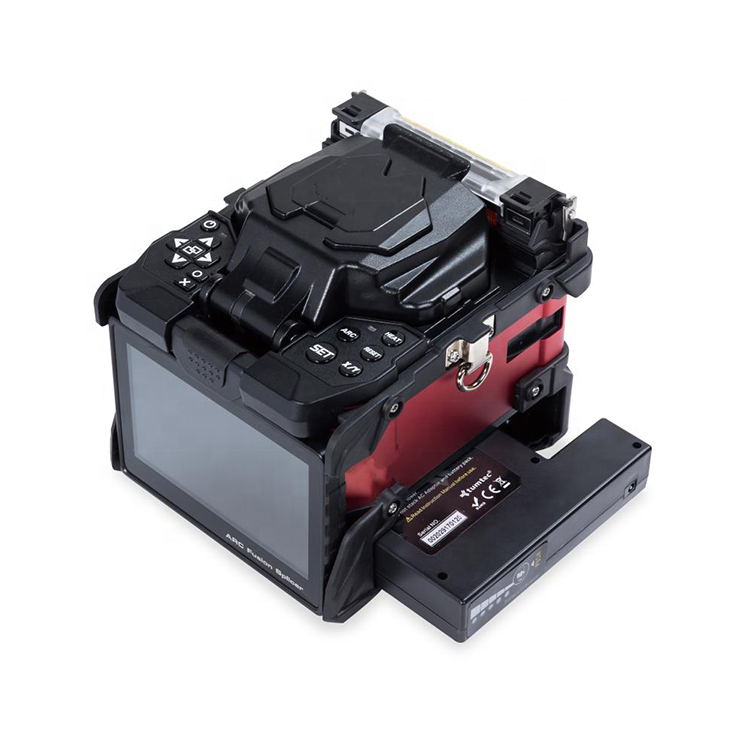

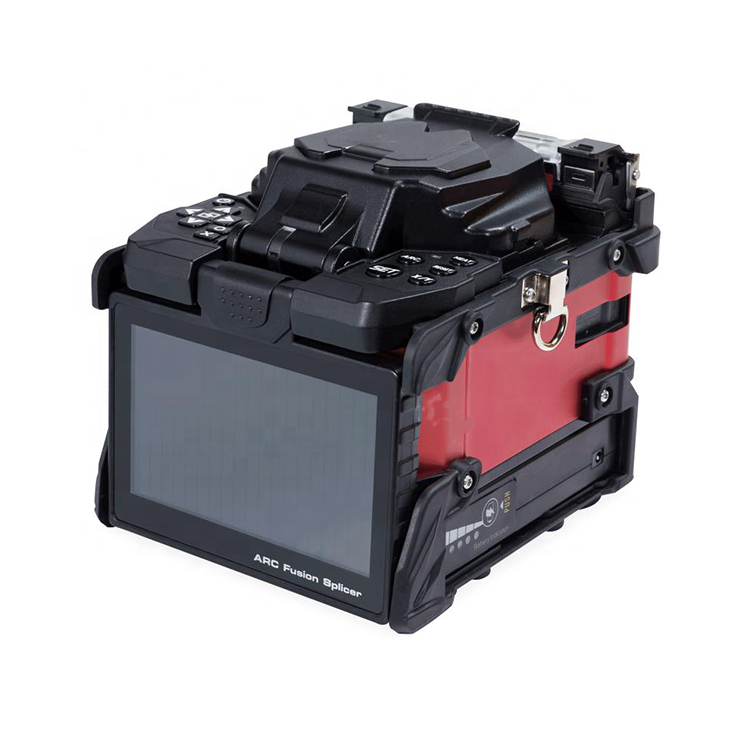

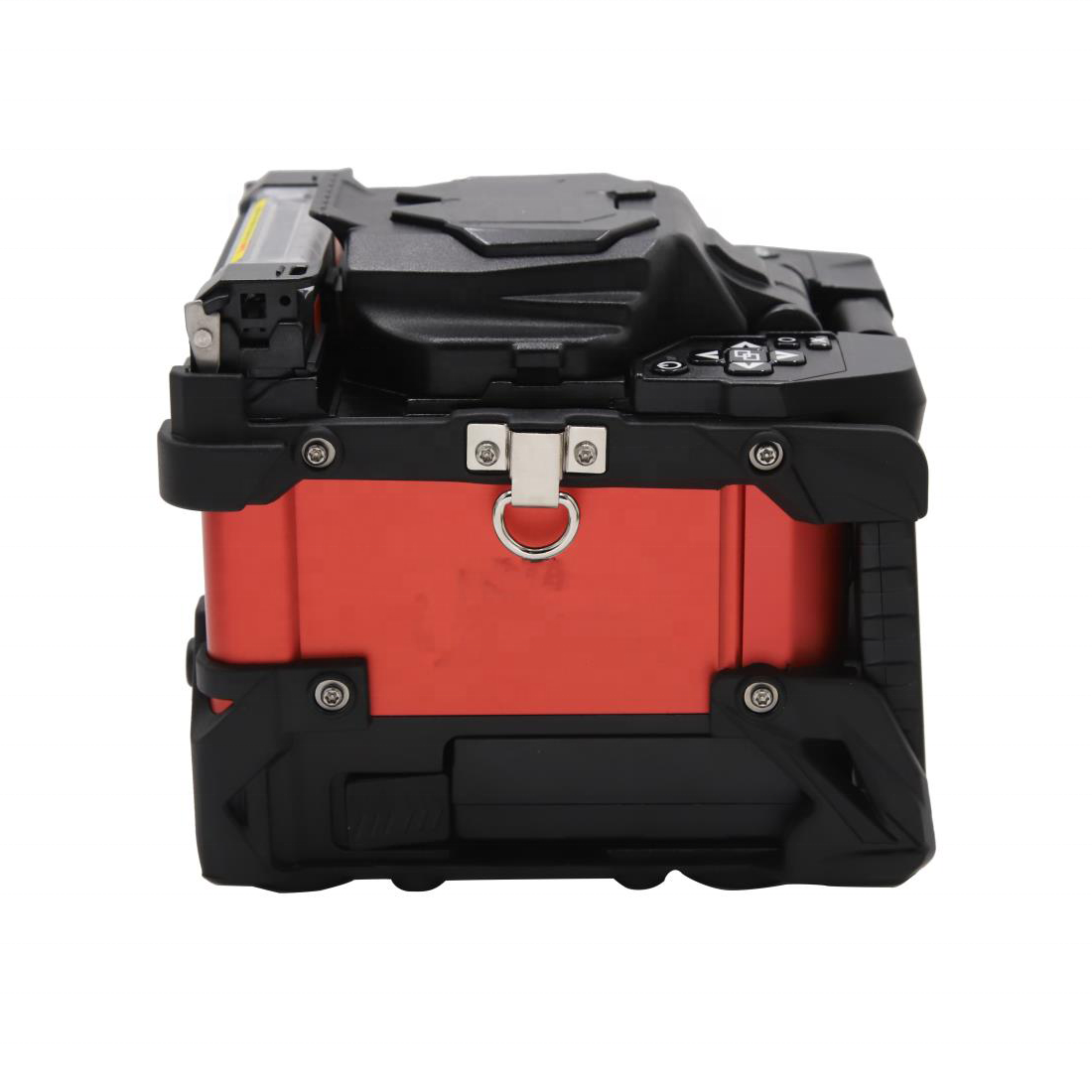

Details Images
Our Company
Aimit Communication (Shenzhen) Co.,Ltd, located in Shenzhen, China, was founded in 2008.
Aimit is one of the most advanced and capable factories which is professionally engaging in researching, developing, manufacturing, and marketing fiber optical communication products.
Aimit main products are fiber optical cable, Patch Cord, Pigtail, PLC Splitter, Fiber Closure, Fiber Connector, adaptor & other telecommunications and electric power related products. Our company has more than 10 production lines for fiber cable, 5 assembly lines for patch cord, fiber closures and so on.
Strictly follow the ISO9001 quality management system, the products and material comply with the request of directive of European union and request of different laws and regulations.
As an export-oriented enterprise, in addition to meet the demand of Chinese market, our products have been exported to North America, South America, Western Europe, Africa, Middle East, etc.. Welcome worldwide customers to visit our factory and build a long term business relationship with us!
WORKSHOP & EQUIPMENT

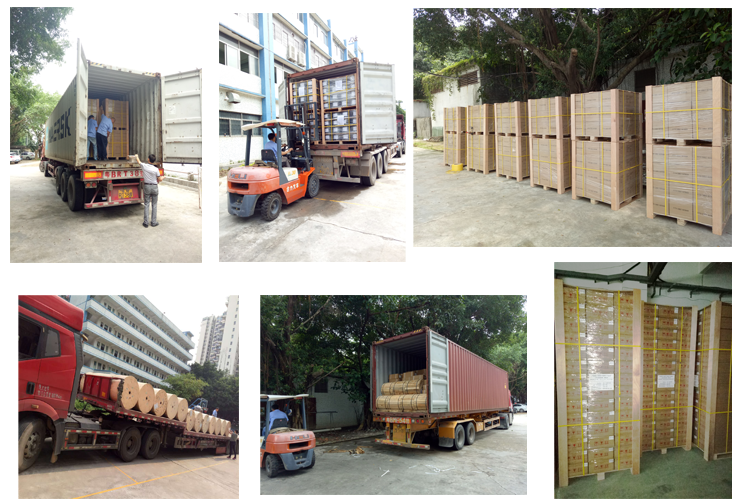

PACKAGING & DELIVERY
