Description
- Origin: CN(Origin)
- Certification: CE
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500x3000mm
- Cutting Speed: 8 m/min
- Graphic Format Supported: AI, PLT, BMP, DXP
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Place of Origin: Guangdong, China
- Brand Name: WSX
- Laser Source Brand: Raycus
- Laser Head Brand: WSX
- Weight (KG): 2.4 KG
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Pressure vessel, Bearing, Gear
- Mode of Operation: continuous wave
- Configuration: 4-axis
- Products handled: Sheet Metal and Tube
- Feature: Water-cooled
- Laser-type: Fiber LaserLaser
- Certification: ce
- After-sales Service Provided: Online support
- After Warranty Service: Video technical support
#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Times New Roman;font-size:24px;color:#53647a;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-2{width:750px}#detail_decorate_root .magic-3{width:446px}#detail_decorate_root .magic-4{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:-1.1893333333333334px;width:446px;height:446px}#detail_decorate_root .magic-6{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-7{text-align:center}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{text-align:justify}#detail_decorate_root .magic-10{font-size:16px}#detail_decorate_root .magic-11{vertical-align:top}#detail_decorate_root .magic-12{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-13{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-14{width:375px;height:313px;overflow:hidden}#detail_decorate_root .magic-15{position:relative;left:12px;top:-18px;width:375px;height:375px}#detail_decorate_root .magic-16{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-17{width:364px;border-collapse:collapse}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:182px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{font-size:16px;font-family:”Times New Roman”}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:141px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:182.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:141.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{margin-top:-16.650666666666666px;margin-left:110.608px;width:235px;height:511px}#detail_decorate_root .magic-24{overflow:hidden;width:247.33333333333334px;height:157.7986666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:247px;height:157px}#detail_decorate_root .magic-26{overflow:hidden;width:247.33333333333334px;height:157.2118758434548px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:247px;height:163px}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:247px;height:147px}#detail_decorate_root .magic-29{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:182.07457627118646px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:373px;height:182.07457627118646px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:182px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:373px;height:210.79864636209814px}
Product Description

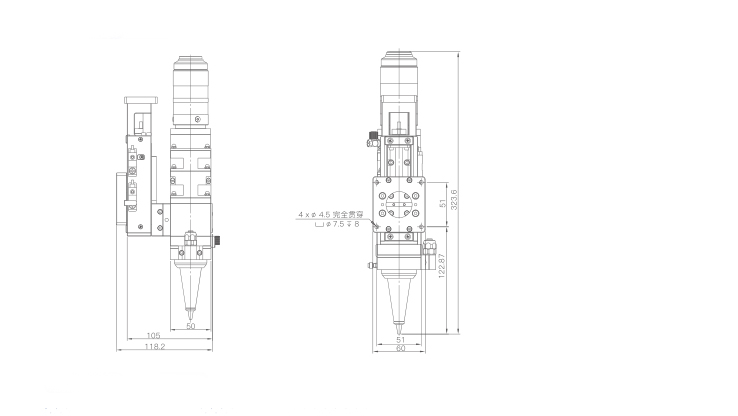

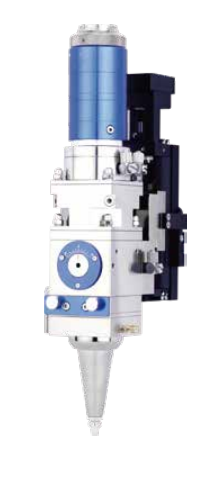

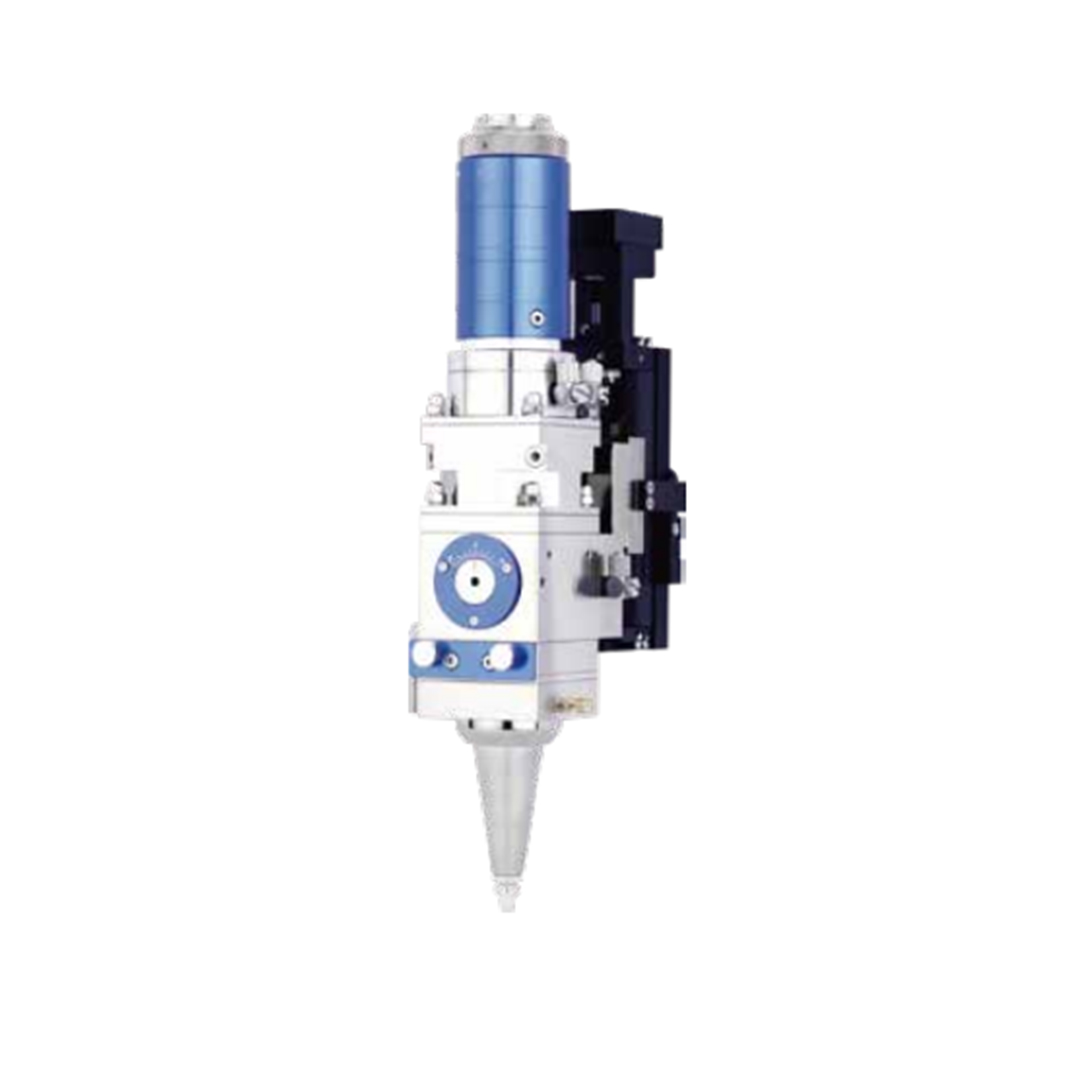

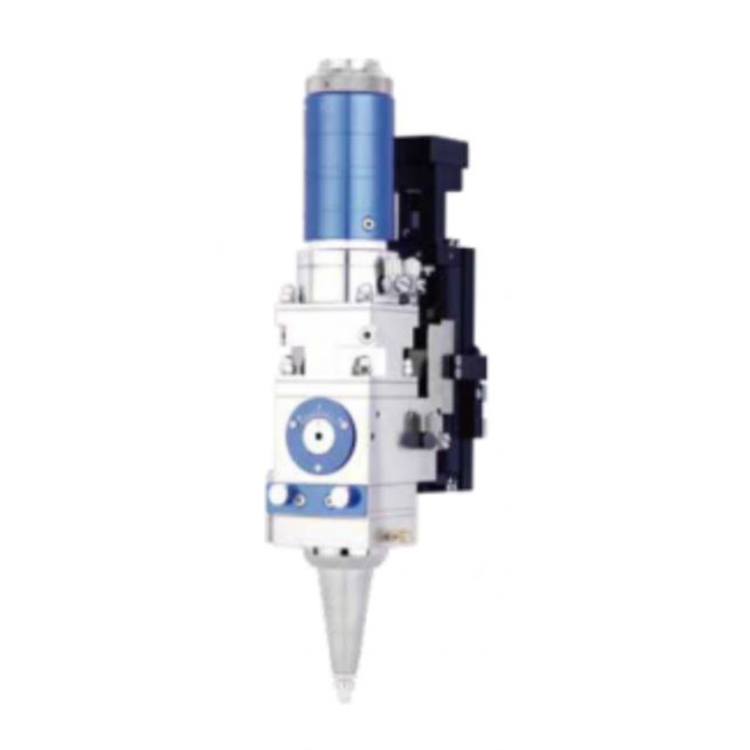

WSX-SW15 3D Cutting Head
SW15 3D cutting head has a strong advantage in the application of small and medium power and small format fiber laser cutting. The internal structure of the laser head is completely sealed to prevent the optical part from being polluted by dust. The laser head adopts two-point centering adjustment, and the focusing adopts a cam structure, which is precise and convenient. The protective lens is installed in a drawer type and is easy to replace. Can be equipped with various lasers with QBH connectors. The overall lightness, compact structure, with sliding seat screw, suitable for use on manipulators.
Specification
|
Max. Air Pressure
|
25 Bar
|
|
Collimator Focal Length
|
75mm/100mm
|
|
Focusing Focal Length
|
125mm/150mm
|
|
Vertical Adjustment Range
|
± 4mm
|
|
Horizon Adjustment Range
|
± 1.5mm
|
|
Clear Apeture
|
20mm
|
|
Weight
|
2.4KG
|
Features
SW15 3D Cutting Head
1. This cutting head has strong advantages in the application of small and medium power and small format fiber laser cutting.
2. The internal structure of the laser head is completely sealed to prevent the optical part from being polluted by dust.
3. The laser head adopts two-point centering adjustment, and the focusing adopts a cam structure, which is precise and convenient.
4. The protective lens adopts drawer type installation, which is easy to replace. 5. It can be equipped with various lasers with QBH connectors.
6. Lightweight overall, compact structure, with sliding seat screw, suitable for use on manipulators.
