Description
- Type: Hand Tool Parts
- Origin: Mainland China
- Model Number: AS-21C
- Type: Photoelectric Sensor
- Place of Origin: Guangdong, China
- Brand Name: Akusense

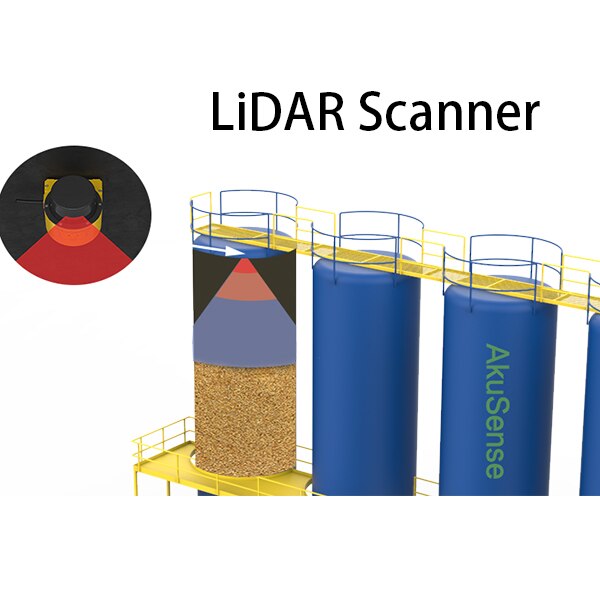

- Usage: Measuring Material Level
- Theory: Laser TOF Measuring
- Description: LiDAR Scanner
- Sensing range: 0.1-20m
- Laser safety level: Class 1
- Scanning angle range: 300°
- Scanning frequency: 25Hz
- Scanning angle reolution: 0.5°
- 10% reflectivity range: 10m
- Outdoor performance: Anti-dusty, Anti-sunlight
- Operating voltage: DC 9V~28V
- Protection Degree: IP65
- Warranty: One year
Hello, if I do not reply in time, you can leave your WhatsApp contact details or contact me through the following:
Email: 1962233699@qq.com
（WH.ATSAPP）:+8613807408738
Tel: +8618975888645
（We.Chat）: +8613762714002
Welcome your inquiry, we will reply as soon as possible
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#fff;font-family:Roboto;font-size:18px;color:#fff;background-color:#5bcd45;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-4{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-5{width:750px;border-collapse:collapse}#detail_decorate_root .magic-6{min-height:18px;padding:5px 10px;width:272px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-7{display:none}#detail_decorate_root .magic-8{min-height:18px;padding:5px 10px;width:11px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:430px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:103px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:148px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:95.667px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:101.778px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:272px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:430px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:13px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:19.667px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:35.222px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:103px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:82px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:48.556px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:55.222px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:61.889px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:68.556px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:75.222px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:81.889px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:97.444px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:108.556px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:115.222px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:121.889px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:18px;padding:5px 10px;width:128.556px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:18px;padding:5px 10px;width:135.222px;box-sizing:content-box}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:604.4642857142857px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:749.9999999999999px;height:604.4642857142857px}#detail_decorate_root .magic-35{vertical-align:top}#detail_decorate_root .magic-36{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-37{font-size:18px}#detail_decorate_root .magic-38{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-39{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-40{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:224.85768500948768px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:-5px;width:750px;height:224.85768500948768px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:271.63461538461536px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:-5px;width:750px;height:271.63461538461536px}#detail_decorate_root .magic-45{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:852px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:852px}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:491px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750px;height:491px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:610px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:610px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:960px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:960px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:619px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:619px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:300px}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;margin-right:0;margin-bottom:0;width:undefinedpx;min-height:0}#detail_decorate_root .magic-59{width:180px;height:144px;max-width:100%;max-height:100%}
Product Description
Specification
|
Light source
|
Infrared laser(905nm)
|
||
|
Laser safety level
|
Class 1 (GB7247.1-2012, Eye-safe IEC)
|
||
|
Laser spot light diameter
|
8mm
|
||
|
Laser spot light scan angle
|
12.5 mrad
|
||
|

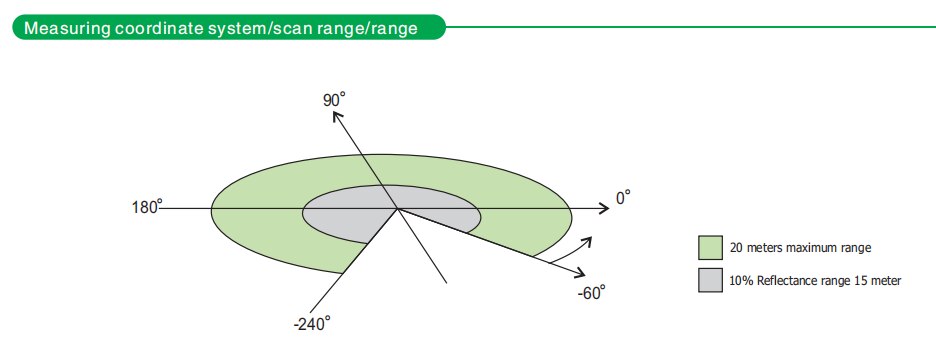

Scanning angle range
|
300°
|
||
|
Scanning frequency
|
25Hz(system default)/12.5Hz/6.25Hz
|
||
|
Scanning angle resolution
|
0.5°(system default)/0.25°/0.125°
|
||
|
Sensing range
|
0.1m ~ 20m
|
||
|
10% reflectivity range
|
15m
|
||
|
Outdoor performance
|
Anti-dusty, Anti-sunlight
|
||
|
Rain fog and smoke penetration
|
Supported
|
||
|
Measurement
error |
System error (typical)
|
±5cm
|
|
|
Statistical error (1σ)
|
±2cm
|
||
|

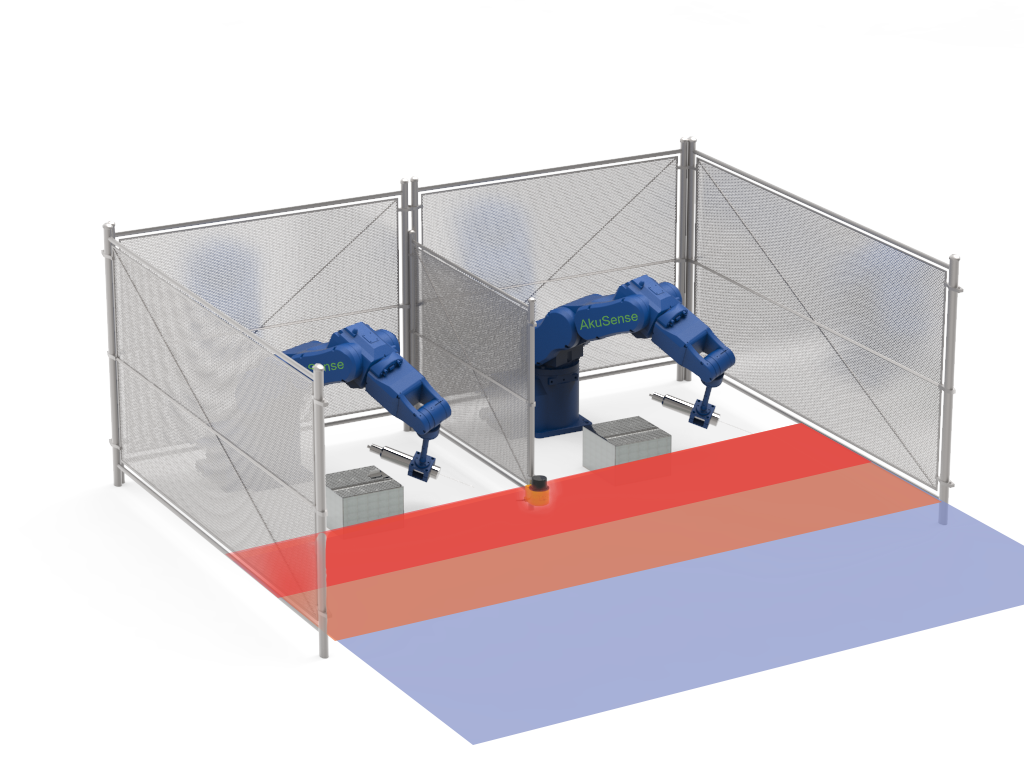

Built-in application
Regional monitoring |
Monitoring mode: Point number monitoring / target width monitoring / contour monitoring
|
||
|
Monitor signal level: Attention / warning / alarm
|
|||
|
Number of regional groups: 16 groups, support self-learning background exclusion
|
|||
|
Concurrent work area group number: 16 (max)
|
|||
|
Guide the network camera to monitor the target video positioning and tracking
|
|||
|
Self-test equipment
|
Contents:Transparent cover dirt / block / high temperature / low temperature Output mode: Indicator + TCP packets
|
||
|

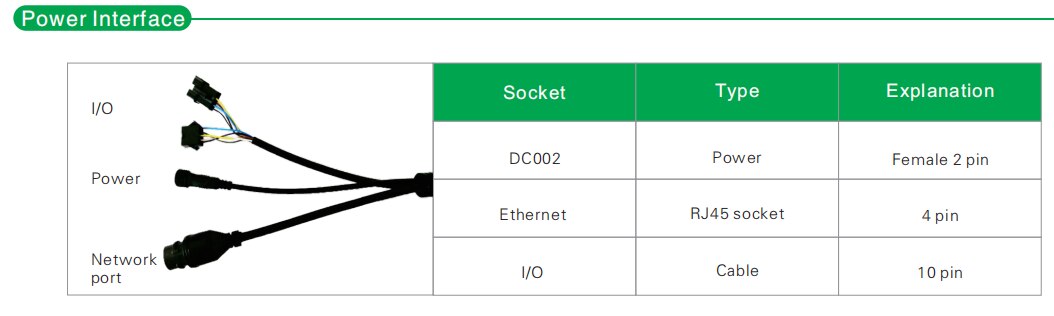

Ethernet
|
Rate: 10/100 Mbps; Network protocol: TCP/IP;
Function: Device configuration / measurement data output /monitor signal output |
||
|
I/O Input
|
Quantity：4; Type: Switching level input; High level range：10V~28V DC; Low level range：0V~5V DC
Preset function: Monitor area selection (0x0 – 0xF); Regional monitoring disarm / forced alarm, active level: high level |
||
|
I/O Output
|
Quantity: 4; Type: PNP switch output ; Output voltage: Supply voltage;Power on: OFF;Device ready (OUT),
active state: pass (High level), zone detection signal output (OUT2/OUT3/OUT4) active state: configurable |
||
|
Indicator light
|
Quantity: 2; Definition: ERR (Device alarm: Fault/Abnormal ,Transparent cover dirty / block, high and low
temperature, Dense fog); HTR (operation status indication: detection signal / self-learning ） |
||
|
Front panel button
|
Quantity: 1; Definition: Shielded monitor signal output / start background self-learning /restart device
|
||
|
Operating voltage
|
10V~ 28V DC
|
||
|
Power
|
5W(measuring),3.6W@DC 12V/14.4W@DC 24V(heating)
|
||
|
Outer covering protection rank(IP)
|
IP65(GB4208~2008)
|
||
|
Insulation resistance
|
1ＭΩ(GB16796~2009.5.4.4)
|
||
|
Electrical strength
|
0.5KV(GB16796~2009.5.4.3)
|
||
|
Weight
|
0.6kg
|
||
|

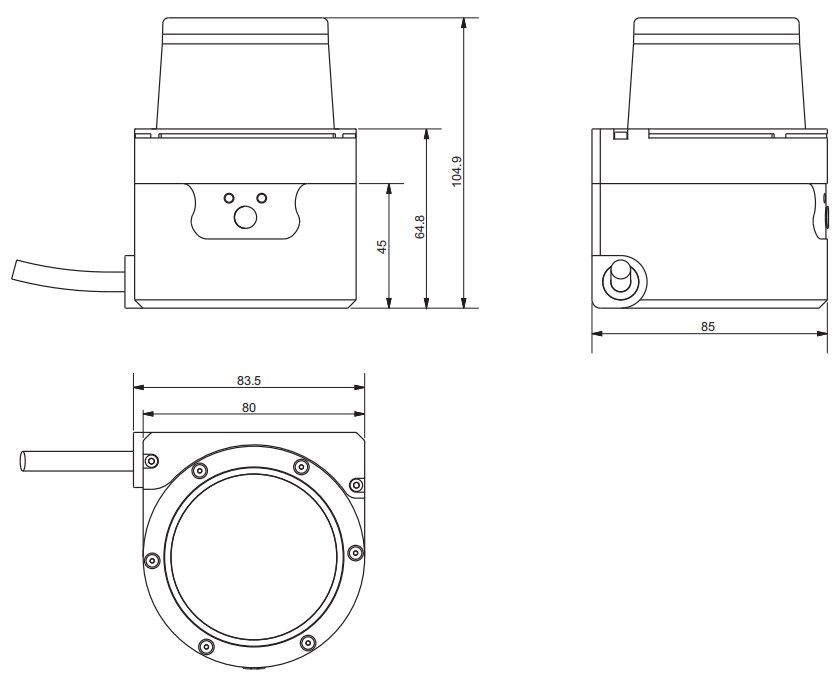

Dimension(L×W×H)
|
83.5×85×104.9(mm)
|
||
|
Electromagnetic
compatibility (EMC) |
Electrostatic discharge
|
6KV (GB/T17626.2~2006，class 3)
|
|
|
Fast bursts
|
1KV (GB/T17626.4~2008，class 2)
|
||
|
Electromagnetic field
radiation immunity |
GB/T17626.3~2006，class 2
|
||
|
Surge immunity
|
GB / T17626.5-2008 Power interface: 1.2 / 50μs, 2KV / 1KA (Class 3)
Ethernet interface: 10 / 700μs, 1KV / 25A (Class 2); I / O interface: 1.5 / 50μs, 0.5KV / 0.25KA (Class 1) |
||
|
Impact
|
GB/T 2423.5
|
||
|
Single impact
|
15g, 11ms
|
||
|
Continuous impact
|
10g, 16ms
|
||
|
Vibration
|
GB/T 2423.10
|
||
|
Frequency Range
|
10Hz~150Hz
|
||
|
Amplitude
|
5g
|
||
|
Humidity
|
93%, +40℃, 2h（GB/T 2423.3）
|
||
|
Operating temperature range
|
-25℃~+50℃
|
||
|
Storage temperature range
|
-30℃~+70℃
|
||
|
Ambient illumination range
|
≤70,000lux
|
||
|
Model NO.
|
AS-21C
|
||

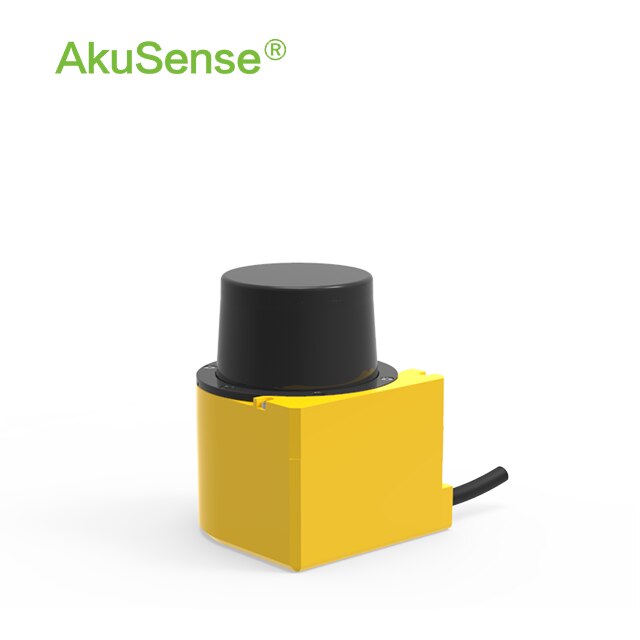

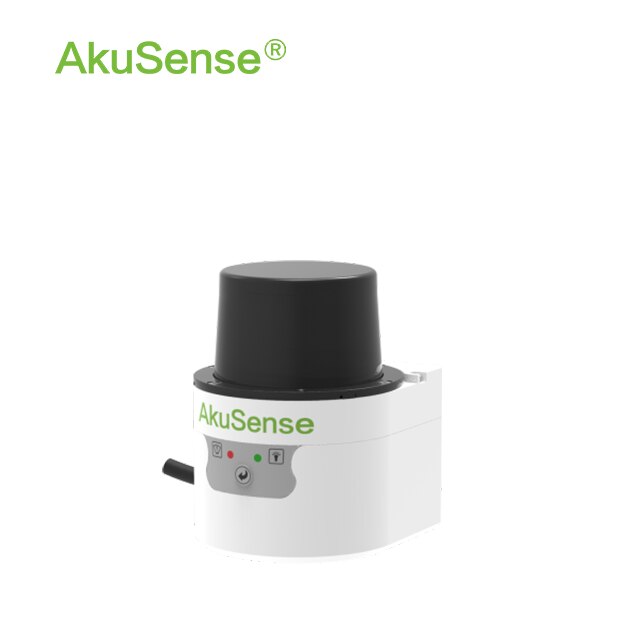

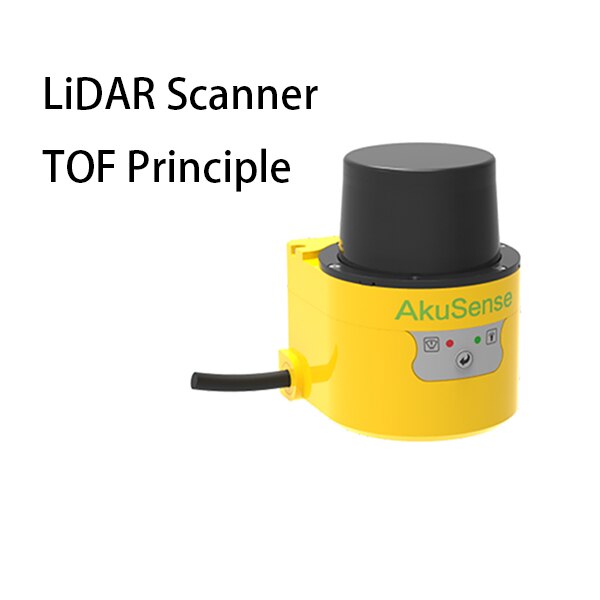

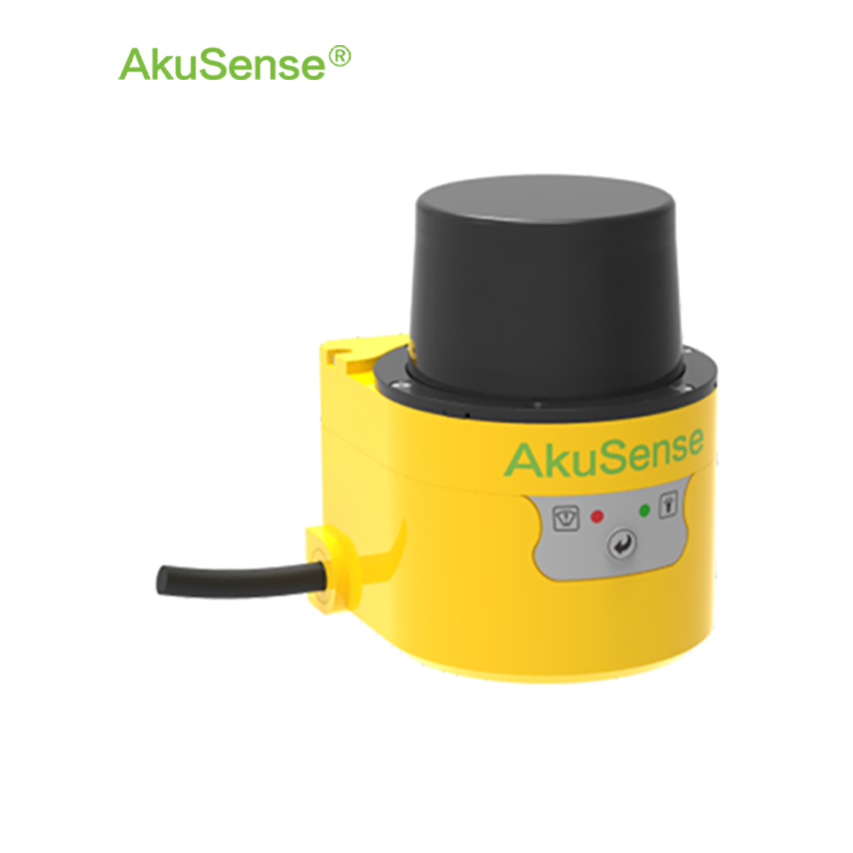

TOF LiDAR scanner
● 20M Sensing distance, the aviation aluminum
● 300°Examination range
● 25HZ Maximum scanning frequency
● 0.125°Highest resolution

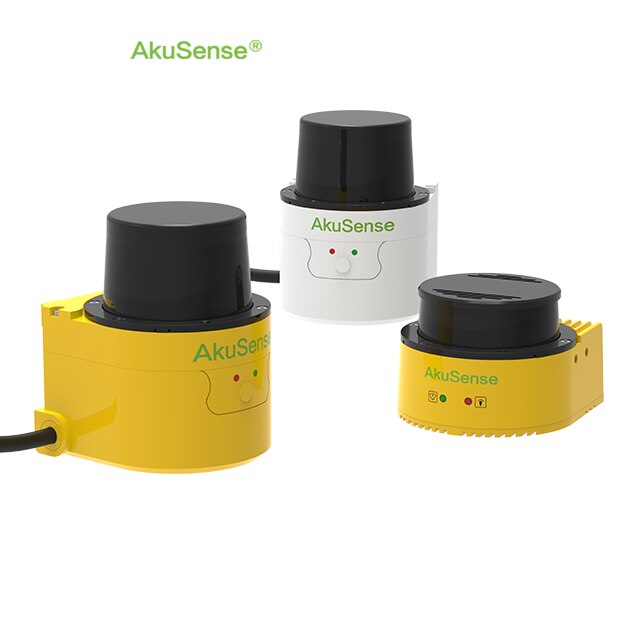

Recommend Products
Packing and Shipping

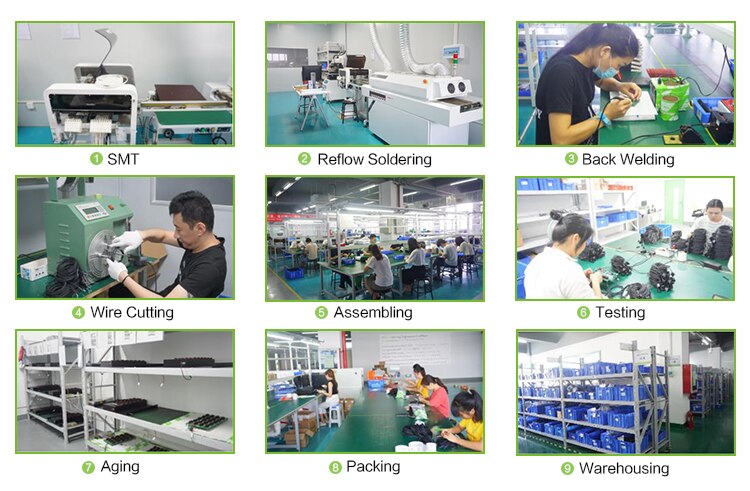

Production Process
