940nm 50mW Infrared Laser Diode TO-18 5.6mm N-Type Invisible Light 930nm 950nm LD

$83.40

Brand Name: ZRHF Certification: RoHS Origin: CN(Origin) Item Type: Stage Lighting Effect Light Output: 50mW Operating Voltage: 1.8V Operating Current: 60mA Monitor Current: 0.1mA Features 1. Absolute maximum ratings：50mW (CW) 2. Φ5.6mm package 3. Single mode Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:940nm(±10nm) Typ. Optical Output:50mW Threshold Current:10mA Operating Current:60mA Operating Voltage:1.8V Monitor Current: 0.1mA Beam Divergence(FWHM) Parallel:8deg Perpendicular:28deg External dimensions(Unit : mm) Pin…

8 in stock

SKU: 1005002556156299
Category:

Description

  • Brand Name: ZRHF
  • Certification: RoHS
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Light Output: 50mW
  • Operating Voltage: 1.8V
  • Operating Current: 60mA
  • Monitor Current: 0.1mA

Features

1. Absolute maximum ratings：50mW (CW)
2. Φ5.6mm package
3. Single mode

Electrical and Optical Characteristics(Tc=25℃)

Lasing Wavelength:940nm(±10nm) Typ.
Optical Output:50mW
Threshold Current:10mA
Operating Current:60mA
Operating Voltage:1.8V
Monitor Current: 0.1mA

Beam Divergence(FWHM)
Parallel:8deg
Perpendicular:28deg

External dimensions(Unit : mm)

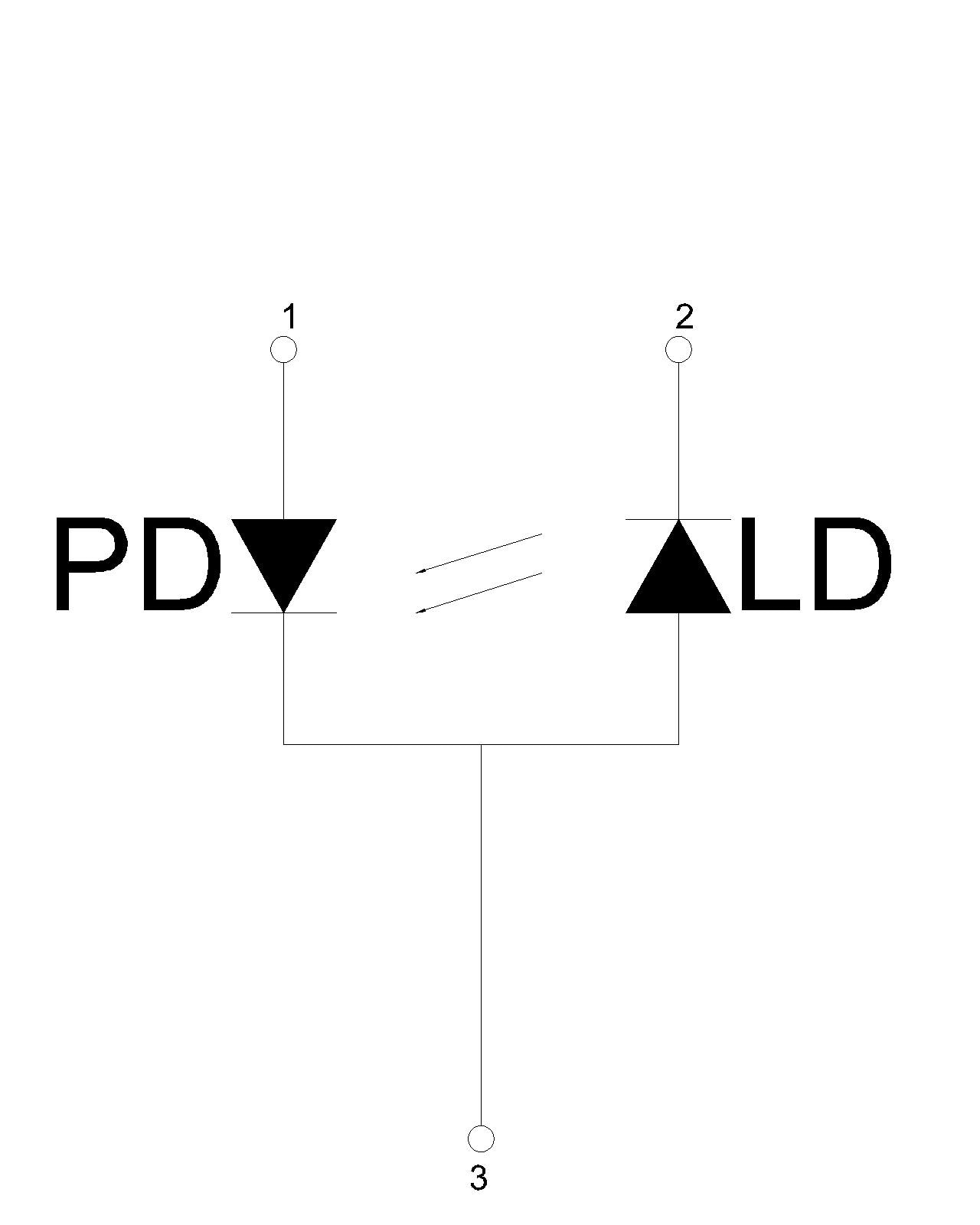

Pin Description
