Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Guangdong, China
- Brand Name: LaserWorks
- Model Number: M35-600M
- Size: 59*30*34mm
- Item: Laser Rangefinding Module
- Control interface: RS232 & TTL
- Working voltage: 3v-5v
- Working temperature: -20 to 60°C
- Weight: 36.5g
- Frequency: 1HZ
- TTL output serial output: 2.5V to 5V ( Customized )
- RS232 output serial output: -10V to 10V
- Wavelength: 905nm
- Measurement accuracy: ±1m (depending on range)

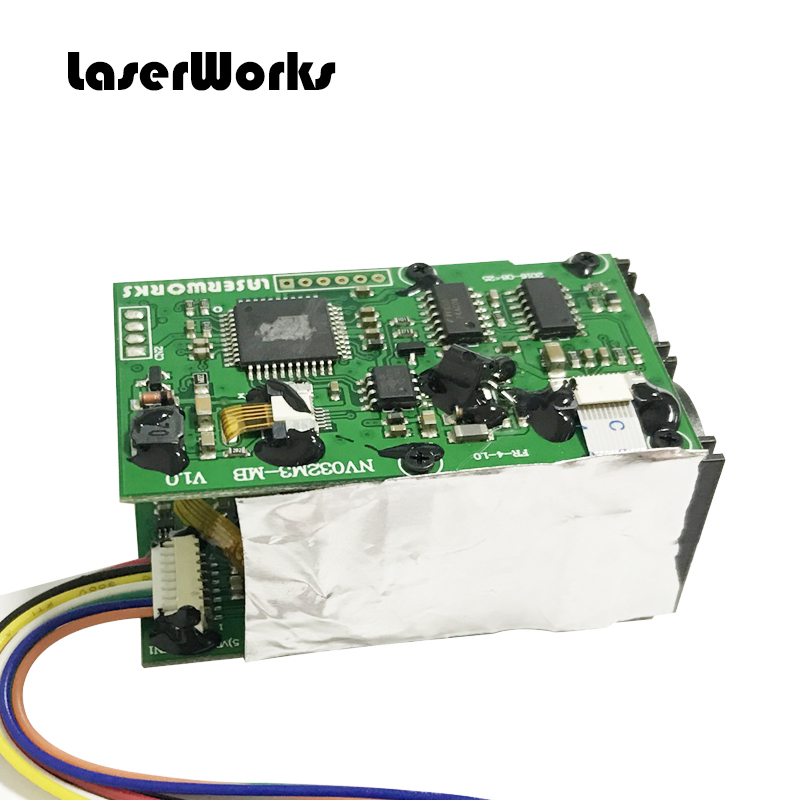

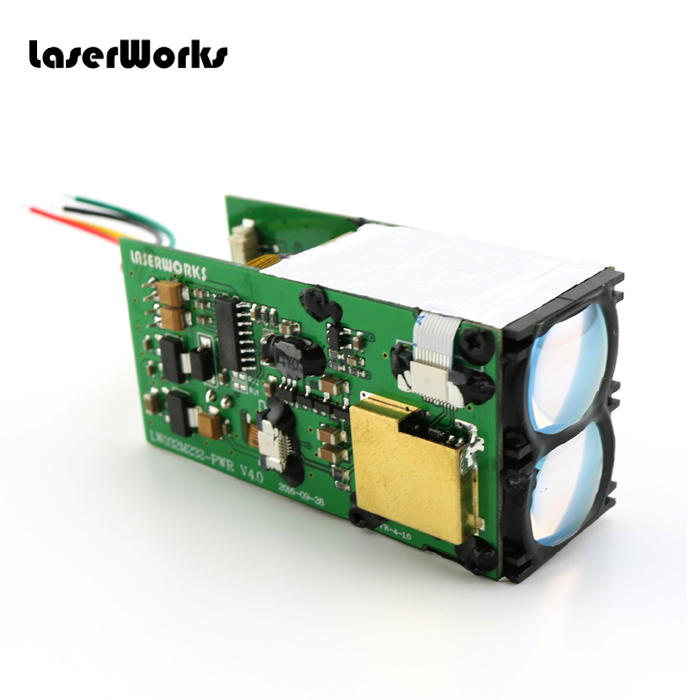

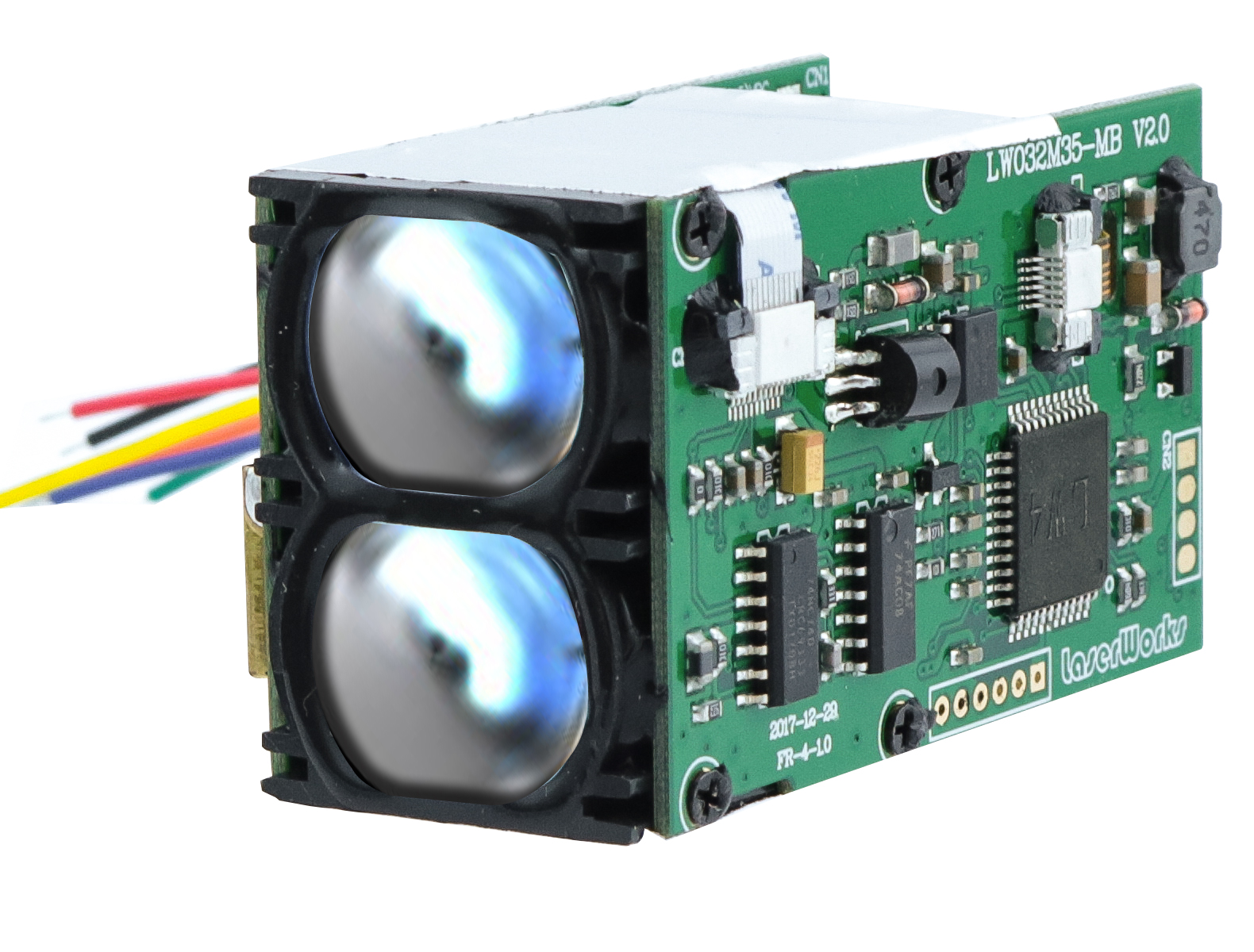

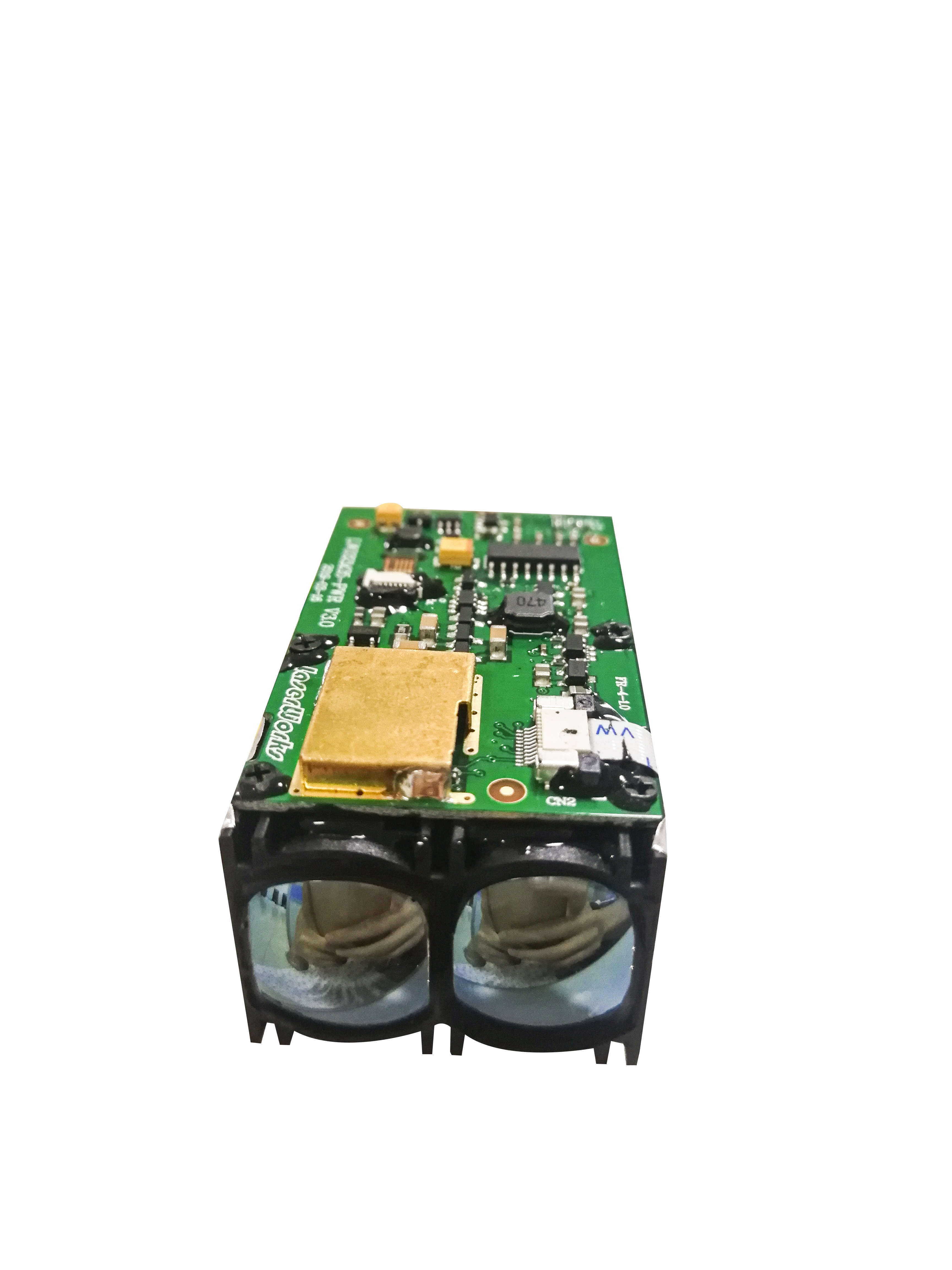

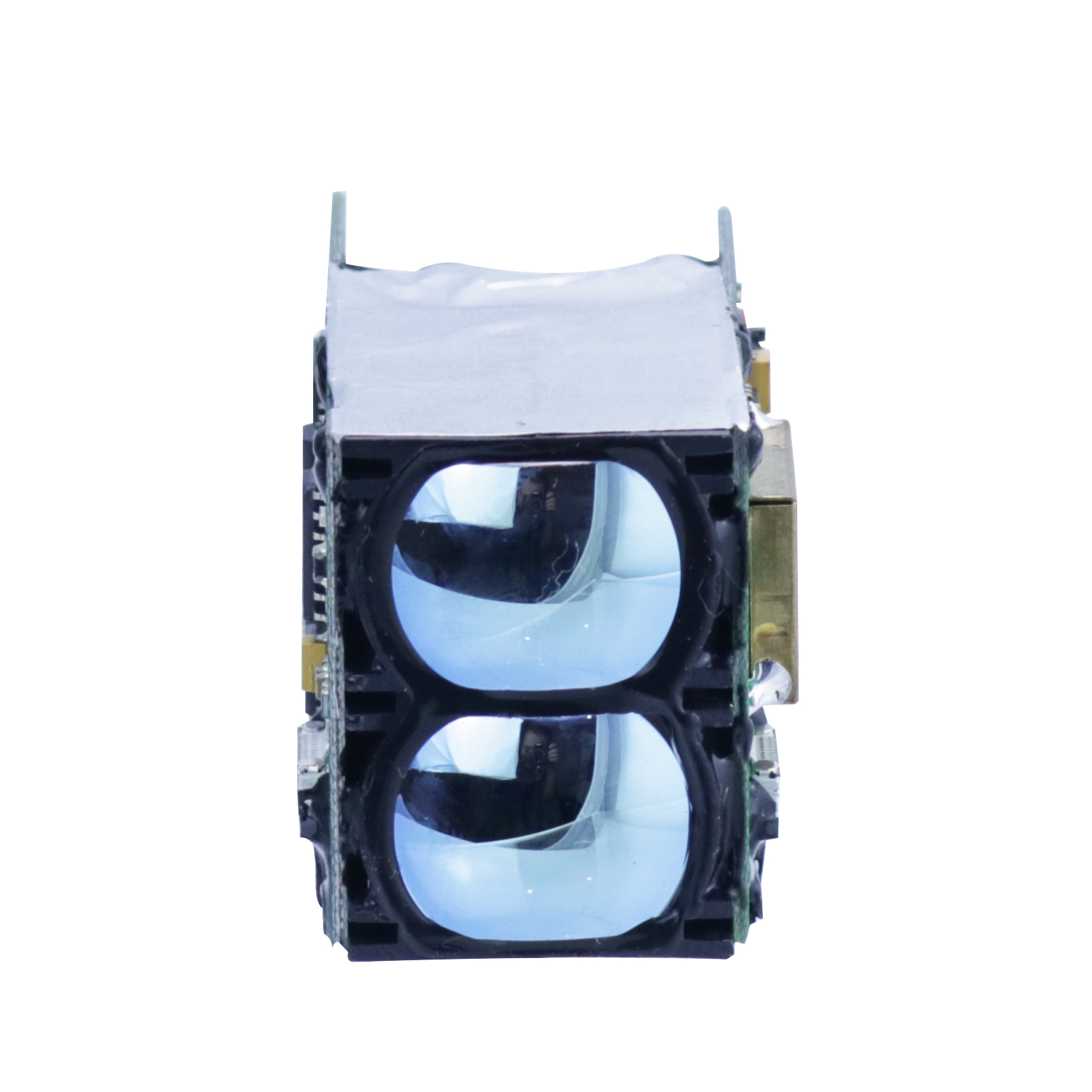

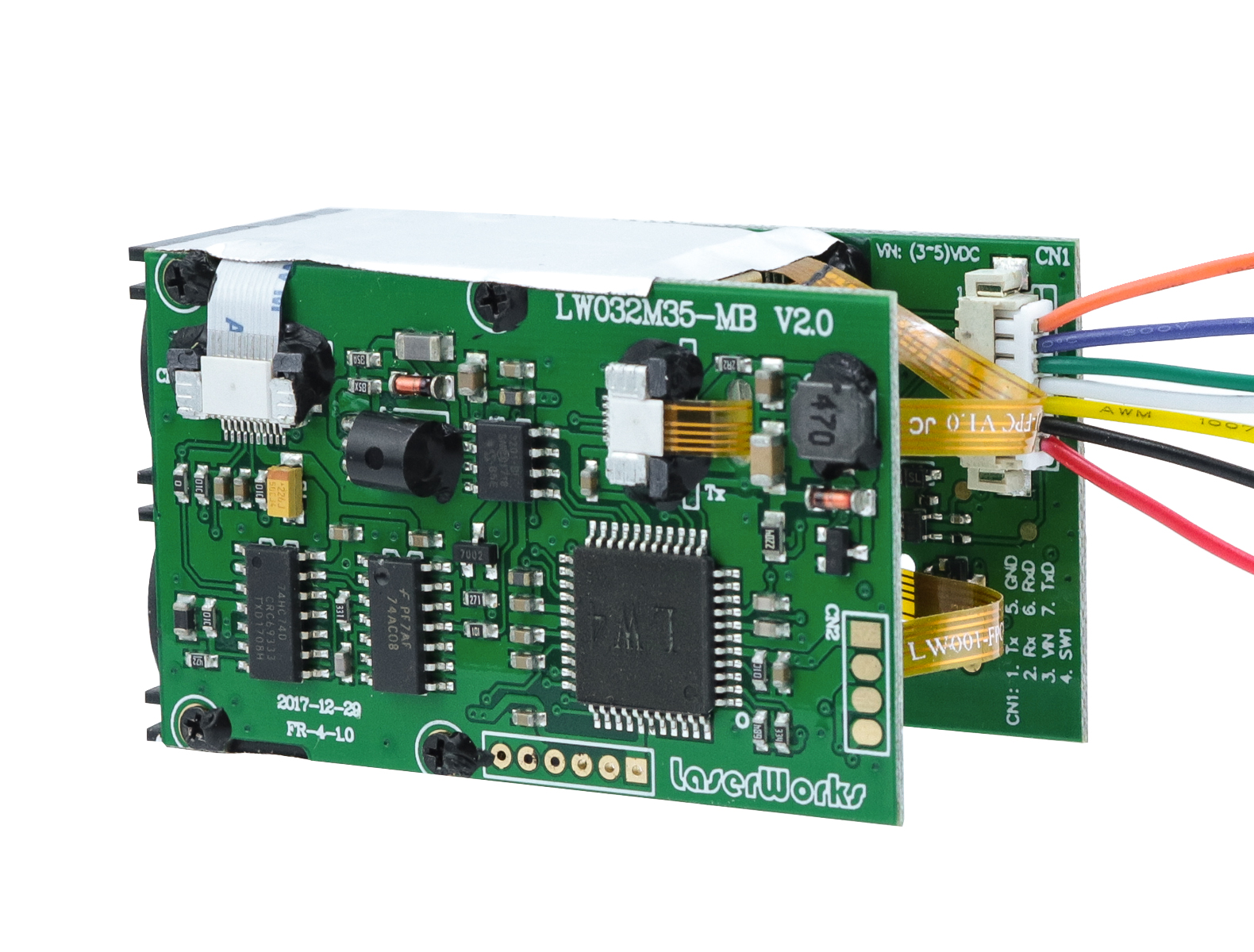

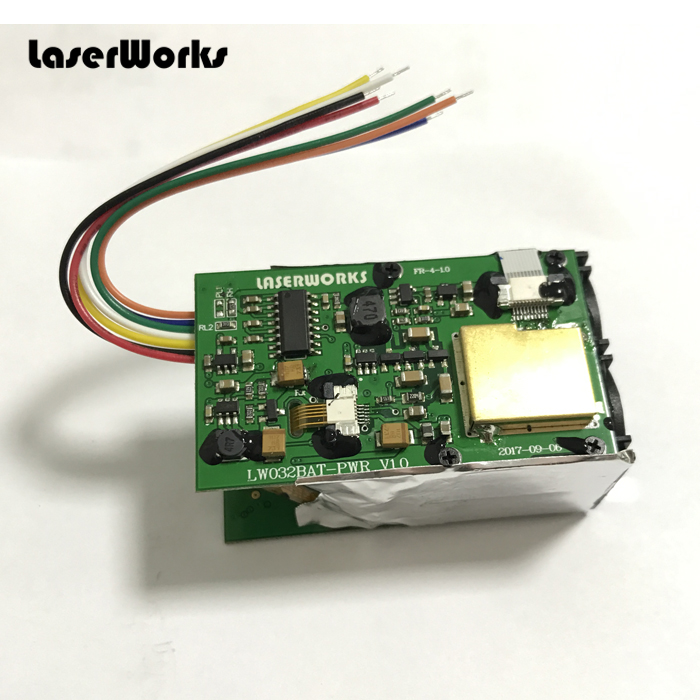

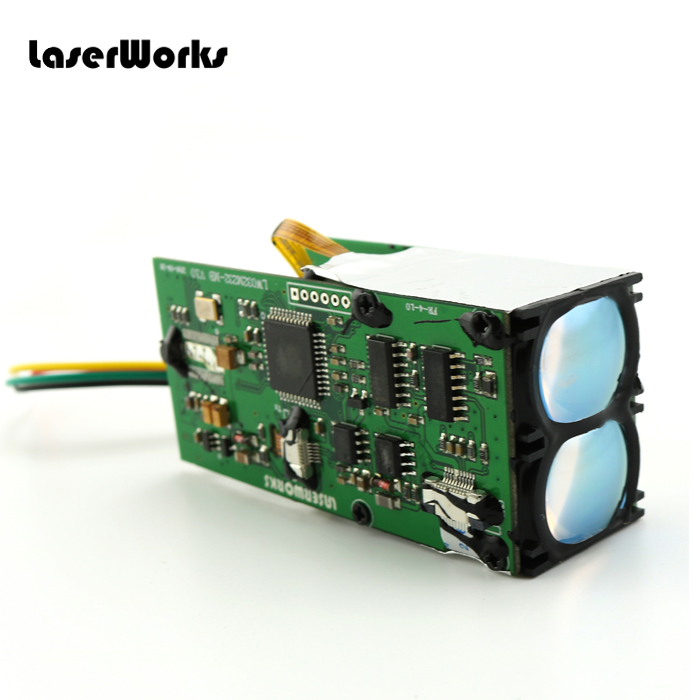

905nm 1HZ Laser Rangefinder Module 2000 meter TTL Laser Rangefinding Module
M35 Laser Rangefinder Modules offer outstanding technical characteristics combined with an excellent price performance-ratio for the integration of length and/or position measurement systems, especially in the fields of industrial and security applications.
At an operational wavelength of 905nm the measurement range is 4 to 600m/5-1000m with an measurement accuracy of +/-0.5m. The special processing electronics enable the Laser Rangefinder a maximum range capability within eye-safety class 1.
Multi-fields Application:
The module can be used for the secondly development by installing to surveillancy system, thermal imaging device, night vision, drones, UAVs ,robert for measuring purpose in the field of ship docking security,fire fighting,industrial security,outdoor and so on .
| Max range: 1000m,1500m ,2000m available | Frequency: 1HZ |
| Class 1 laser eye safe, wavelength 905nm | Weight: 37.2g |
| Data interface: RS232 or TTL | Size: 59*30*34mm |
| TTL output serial output: 2.5V ~ 5V | Working voltage:3V – 5V |
| RS232 output serial output: -10V to +10V | Working temperature: -20 to 60°C |
| Accuracy: +/-0.5m |
