Description
- Item Type: Laser Flashlight
- Brand Name: Q-BAIHE
- Model Number: 795D-35-5*6-BL

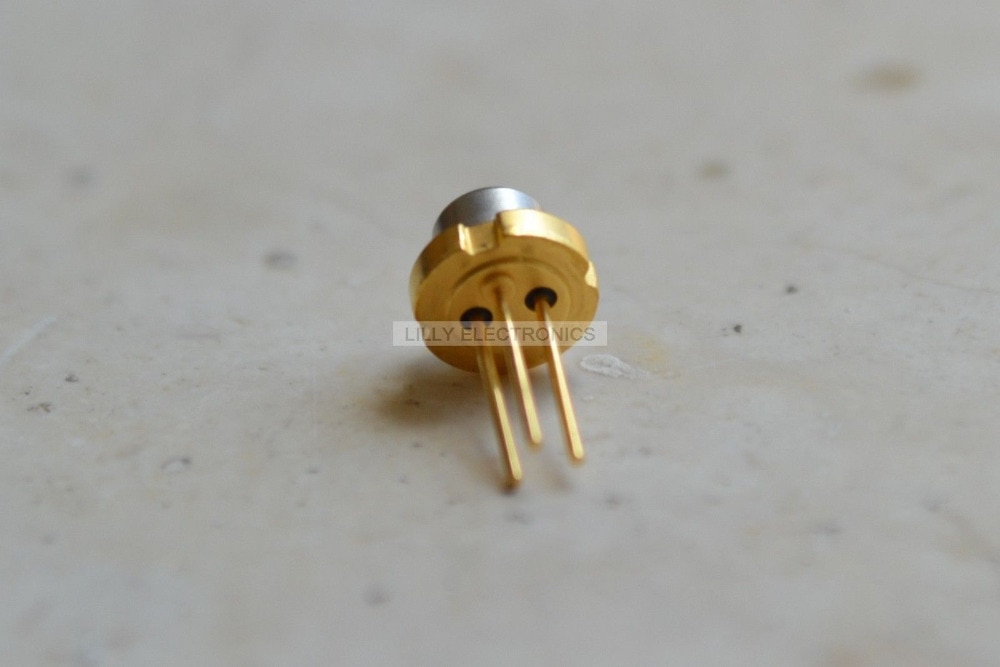

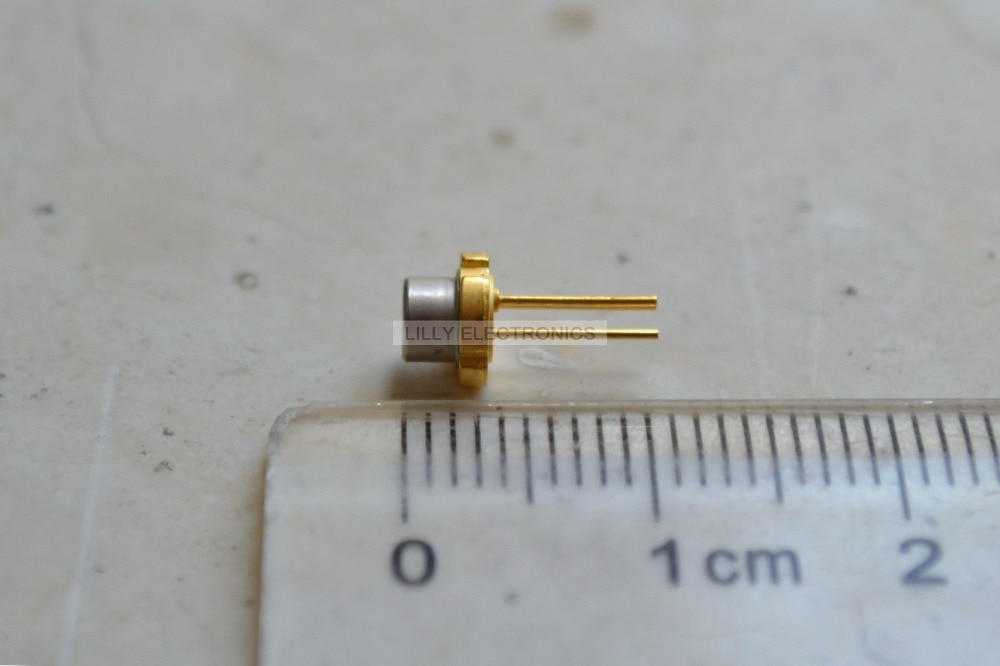

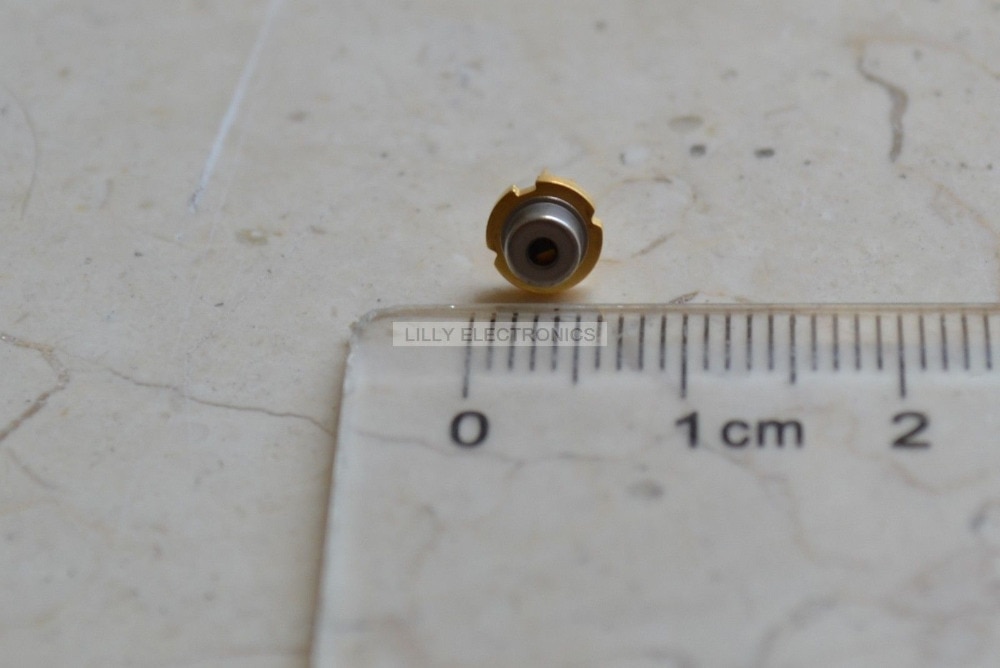

795nm 35mw 5.6mm InfraRed IR Laser Diode TO-18
Specification:
Wavelength: 795 (±5nm)
Power: 35mw
Operating temperature: 25 degrees C
Operating Current: 70mA
Threshold current: 20mA
Operating voltage: 2.1V
Operating Temperature: -10 ~ 50 degrees C
Storage Temperature: -40 ~ 80 degrees C
Divergence angle: 15 * 30
Package: To-18 (φ5.6mm)
Life span: 10000h
Feature
This is 795nm 35mw 5.6mm Laser diode, New & Original parts, Laser diode serial number is HLD7950035.
The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. and Don't operate when the power is connected.
Package:
1x New 795nm 35mw 5.6mm InfraRed IR Laser Diode TO-18
