Product Description

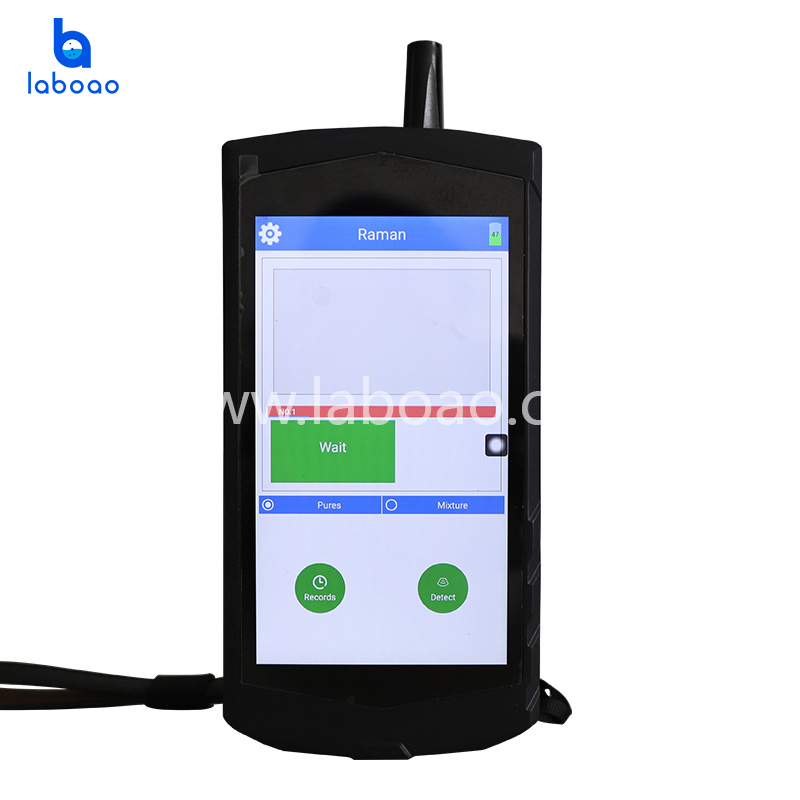

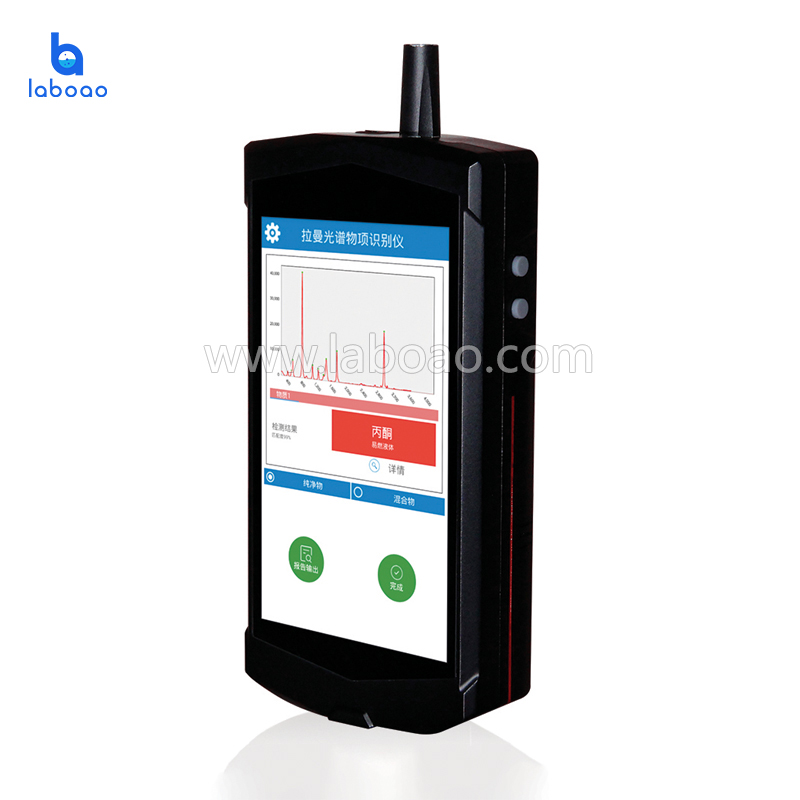

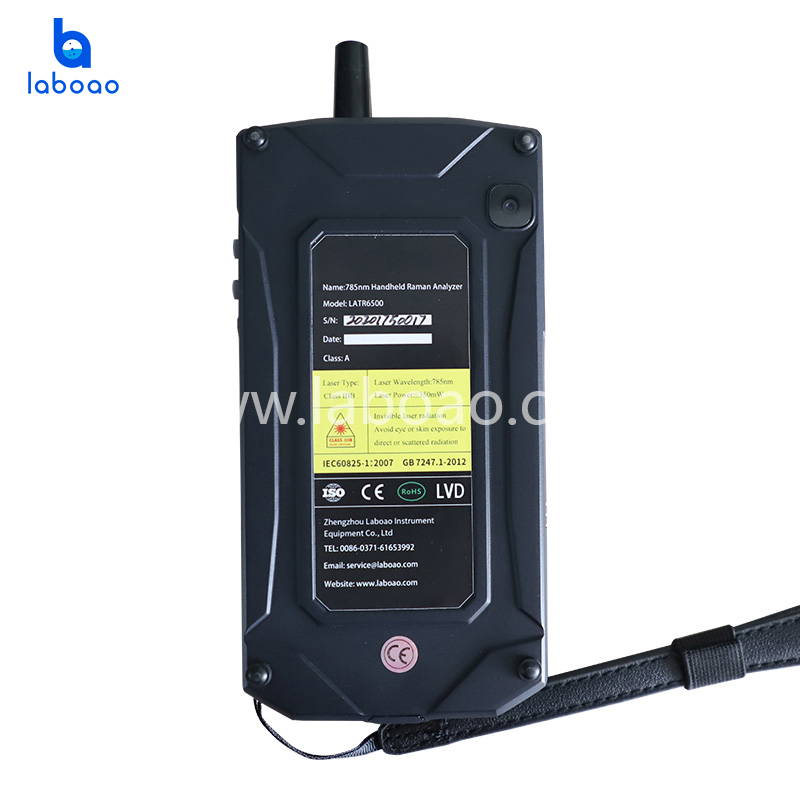

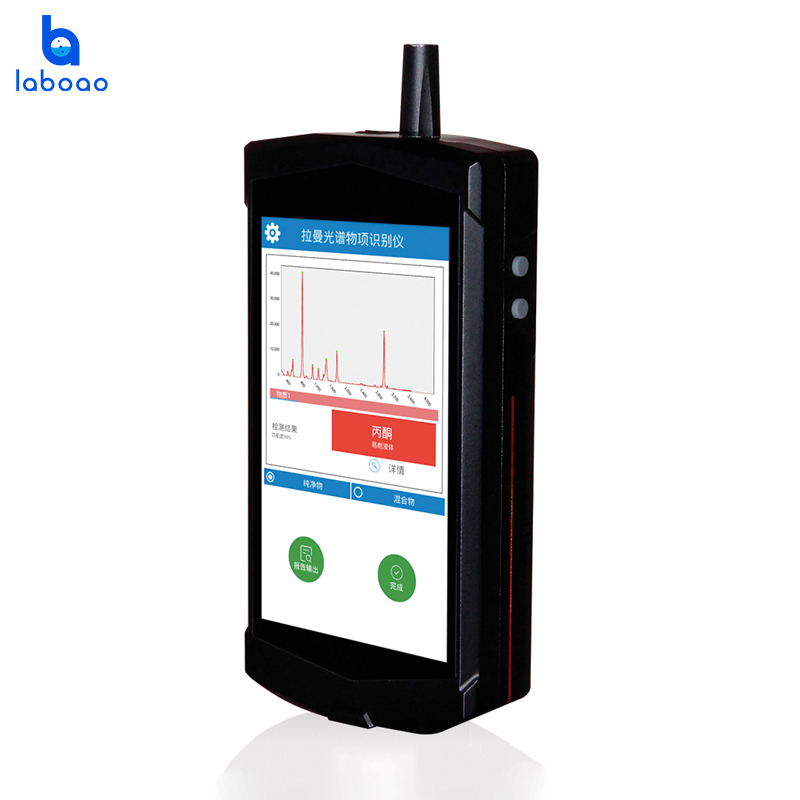

785nm Portable Raman Spectrometer Analyzer for Compound Sample



LATR6500 is the 4th generation handheld Raman analyzer, with compact size, lightweight (450g), and easy-to-held, it can be widely applied to industries of customs, public safety, |ab, plant, warehouse, deck etc. It can fast detect drugs, precursor chemicals, explosives, gemstones, raw materials, and also fast identify additives, residues of pesticide & veterinary drugs.



Excellent spectral identification algorithm are embedded in Handheld Raman spectrometers to easily identify substance, and enable users to add their own spectral data. It employs Android system, simple interface,5.5″ high definition screen, double cameras of 13-mega plus 8-mega taking evidence pictures in the field, multiple modes of inbuilt WIFI, Bluetooth, GPS etc.



Laboao company provides full technical support and services, including spectral library building, method & verification, IQ/OQ/PQ validation etc.

Intelligent Mobile Instrument Available in Your Hand!





Feature:



1.      Non-Destructive, Fast Detect & ldentify, One-touch Operation;

2.      Advanced algorithm, mixture detection;

3.      HD 5.5″ capacitive touch screen, smooth operation system;

4.      double cameras of 13-mega plus 8-mega;

5.      Barcode & QR scan;

6.      Precision GPS positioning;

7.      Multiple modes of 4G, GPS, GPRS, Bluetooth, WIFI;

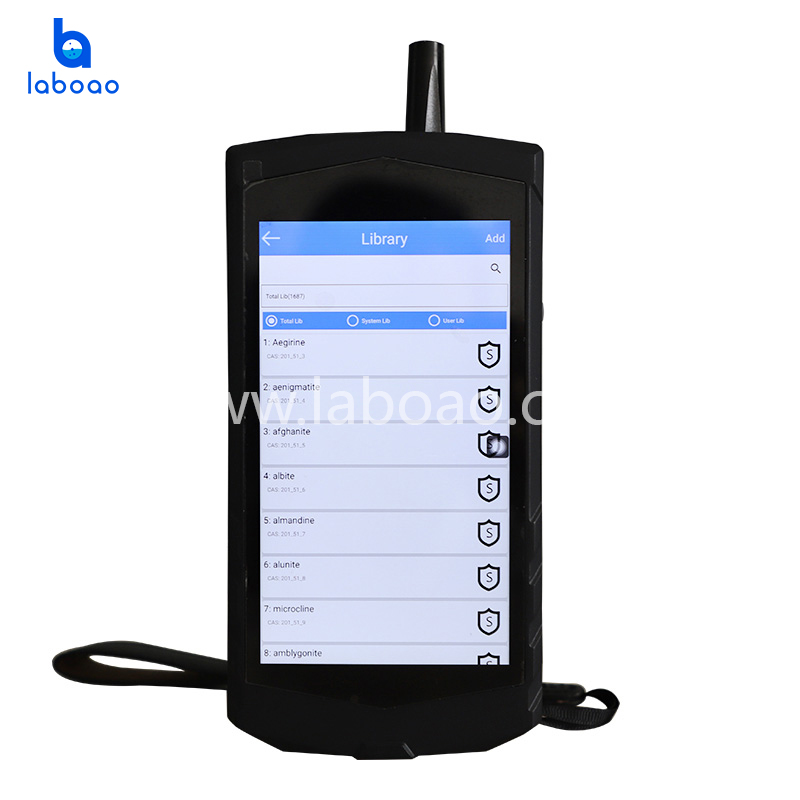

8.      Self-Built Spectral Library;

9.      Test results report export pdf;

10.   Built-in Li battery continuous operation 4-6hrs;

11.   Lightweight (450g) ,easy-to-take;

12.   IP-67;





Application:

• Public Safety; Food Safety;
• Dangerous Chemicals Detect at High Speed Train, Metro Entrance;
• APls & Pharmaceutical Excipients;
• Gemstones & Materials ldentification, Mineral sorting
• Experimental Research;
• Antique authentication;







Model		LATR-6500
Operative System		Android
Excitation Wavelength		785±0.5nm
Wavenumber Range		200-4000cm-1
Resolution		10cm-1
Touch Screen		5.5” , 1920×1080,c
Size		6.7”x3.1”x1.2”
Weight		450g
Interface		WIFI, USB Type-C, Bluetooth, GSM

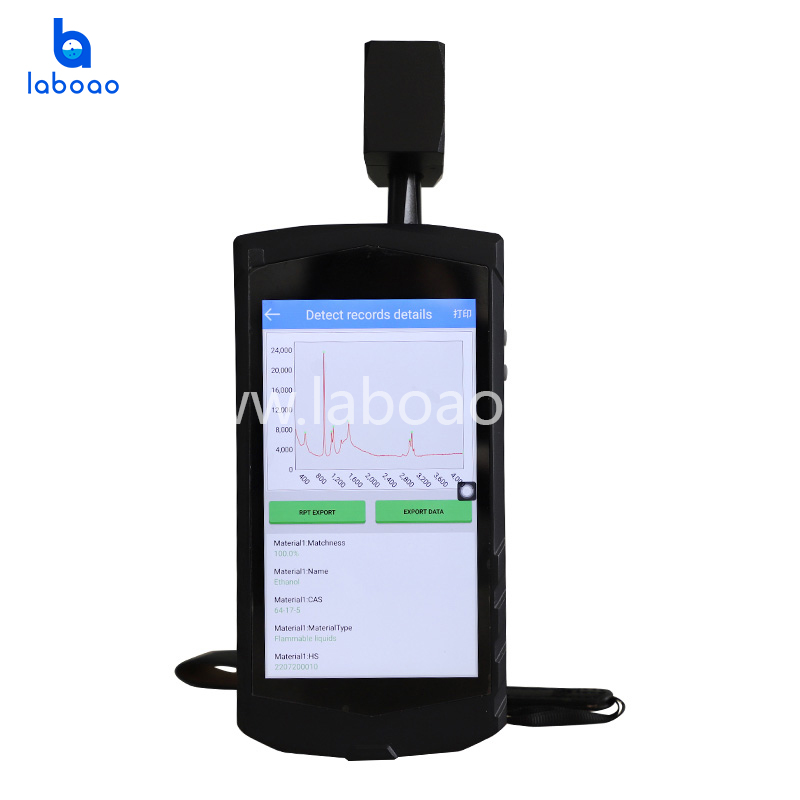

Export Report		Export report including detect result, spectral info, evident pictures
Battery		4-6hour continuous operation
Charging Type		USB Type-C
Operating Temperature		-20 ~ 50°C
Library	Item	Spectral Library	Application
	LATR-6500	Self-built Spectral Library	Scientific Research
	LATR-6500DH	Pharmaceutical drugs: Heroin, Cocaine, Metamfetamine, Ketamin… Precursor: (-)-ephedrine, Chloroform, Diethyl ether… Explosives: TNT,RDX,TATP, Ammonium nitrate… Hazardous chemicals: Sulfate, Gasoline, Nitric acid, Toluene… Food Safety: llelgal food additives, residues of pesticide, veterinary drugs…	Police Customs Metro Court Prison Public Safety
	LATR-6500PH	APIs, excipients…	Pharmaceutical Factory
	LATR-6500GM	Gemstones: Diamond, Agate, Emerald…	Gemstones
