Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Jilin, China
- Brand Name: REALPOO
- Model Number: RPGTGS

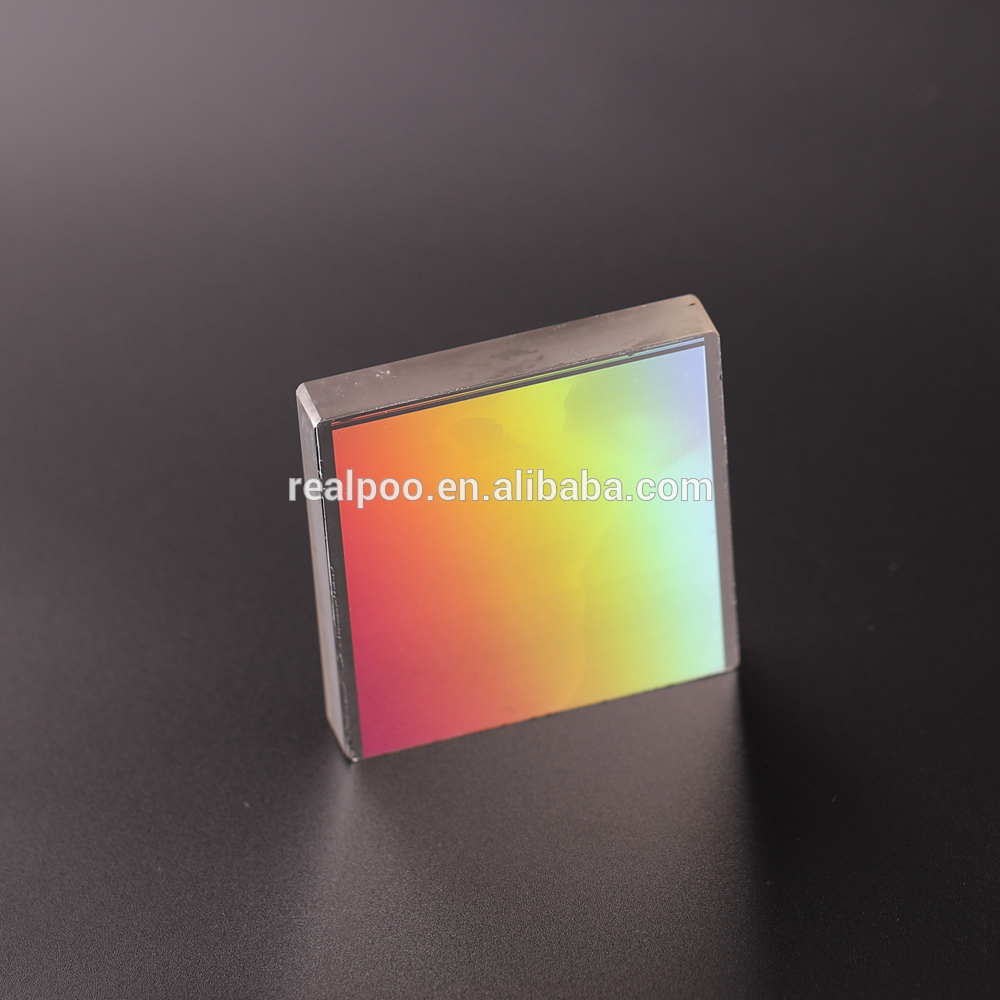

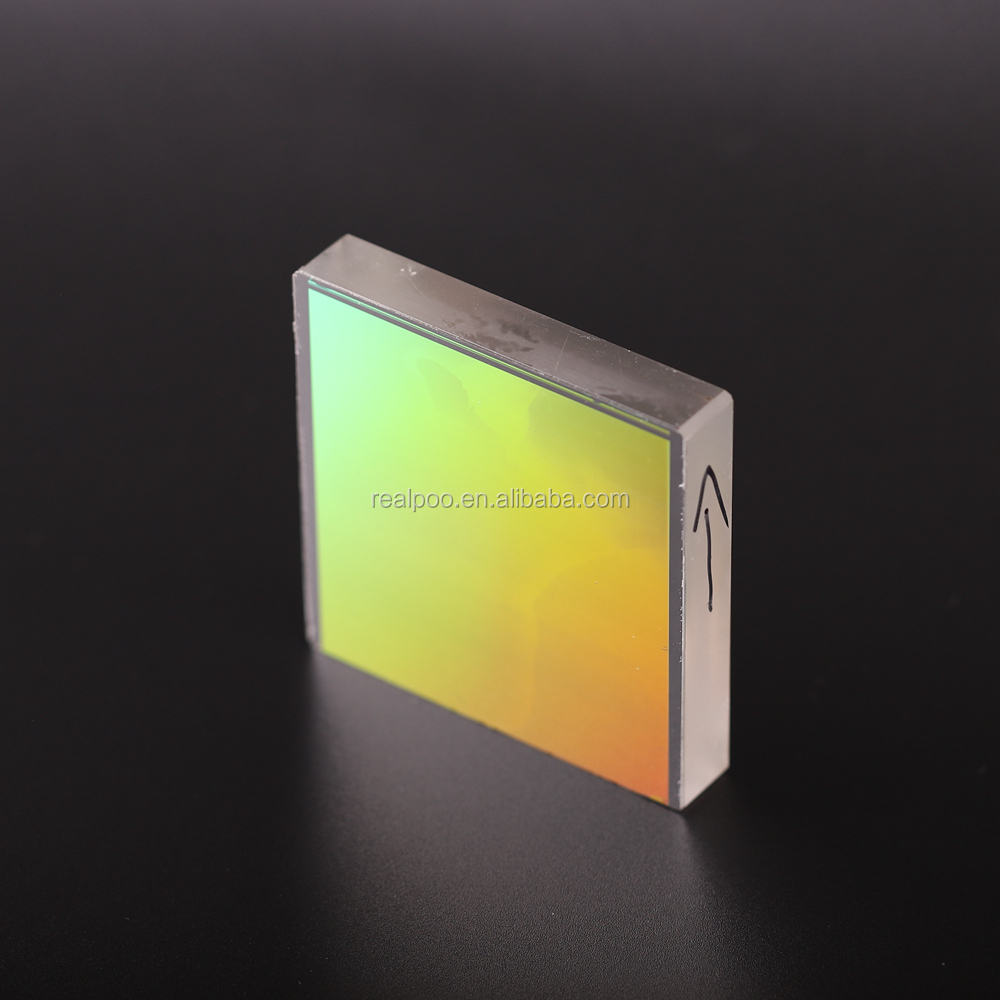

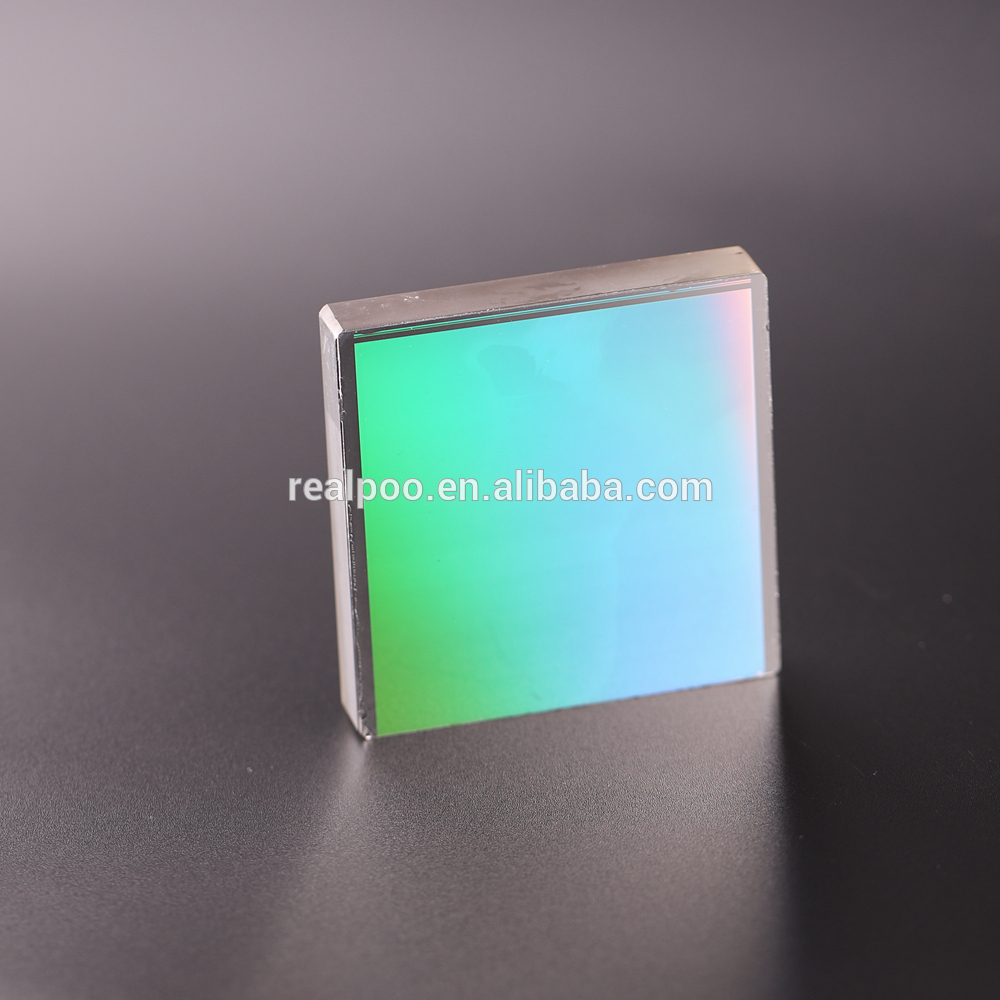

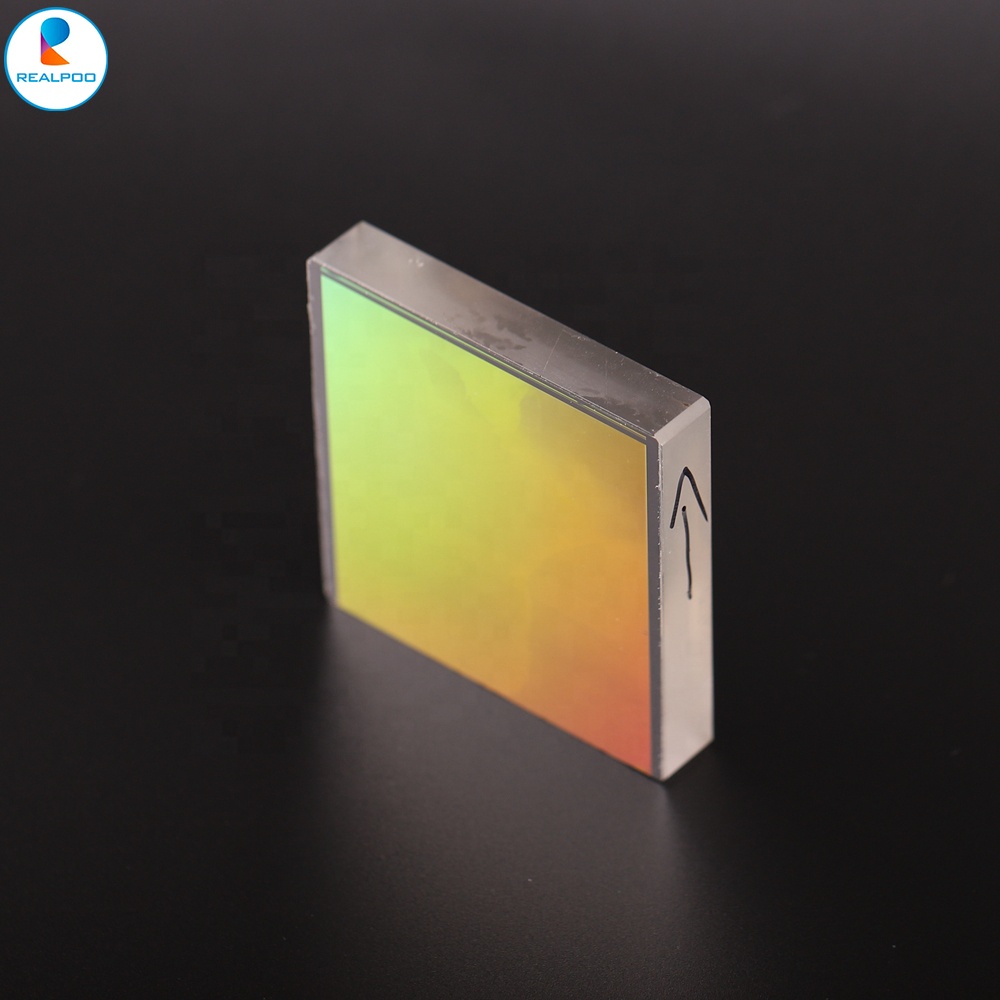

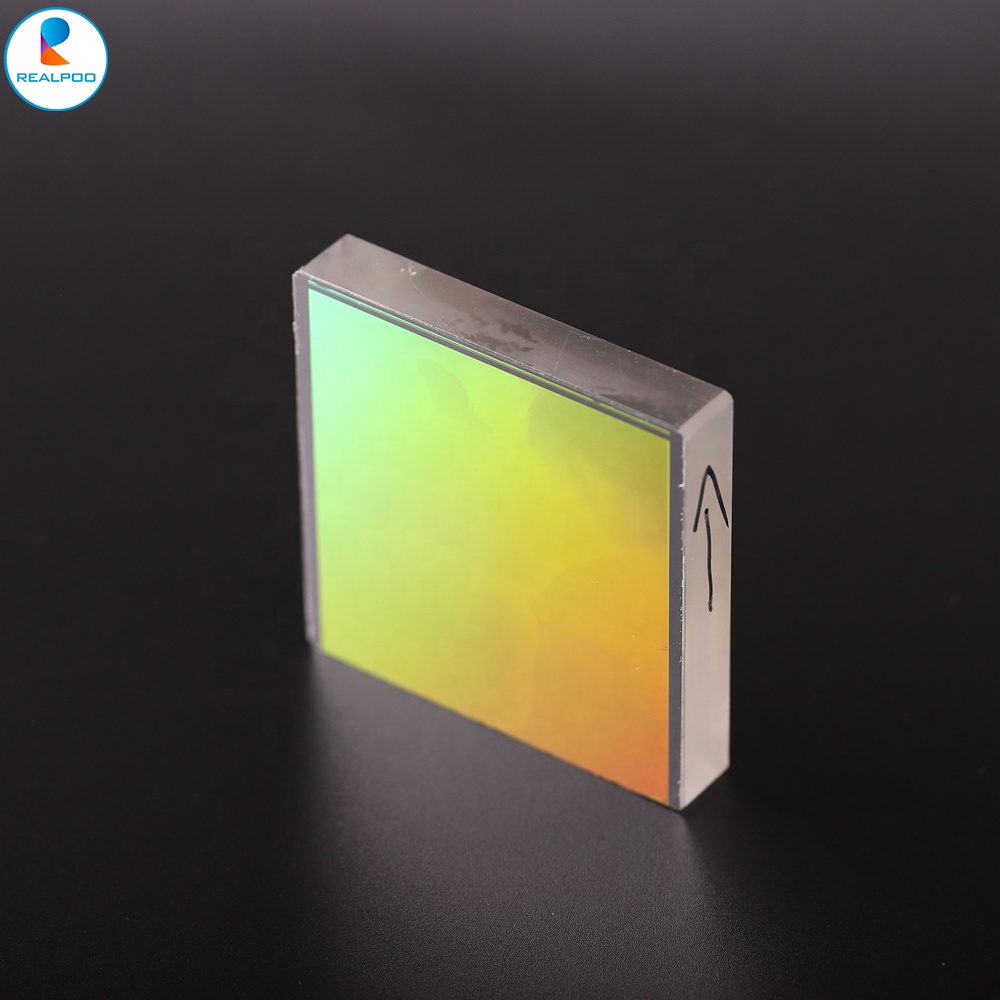

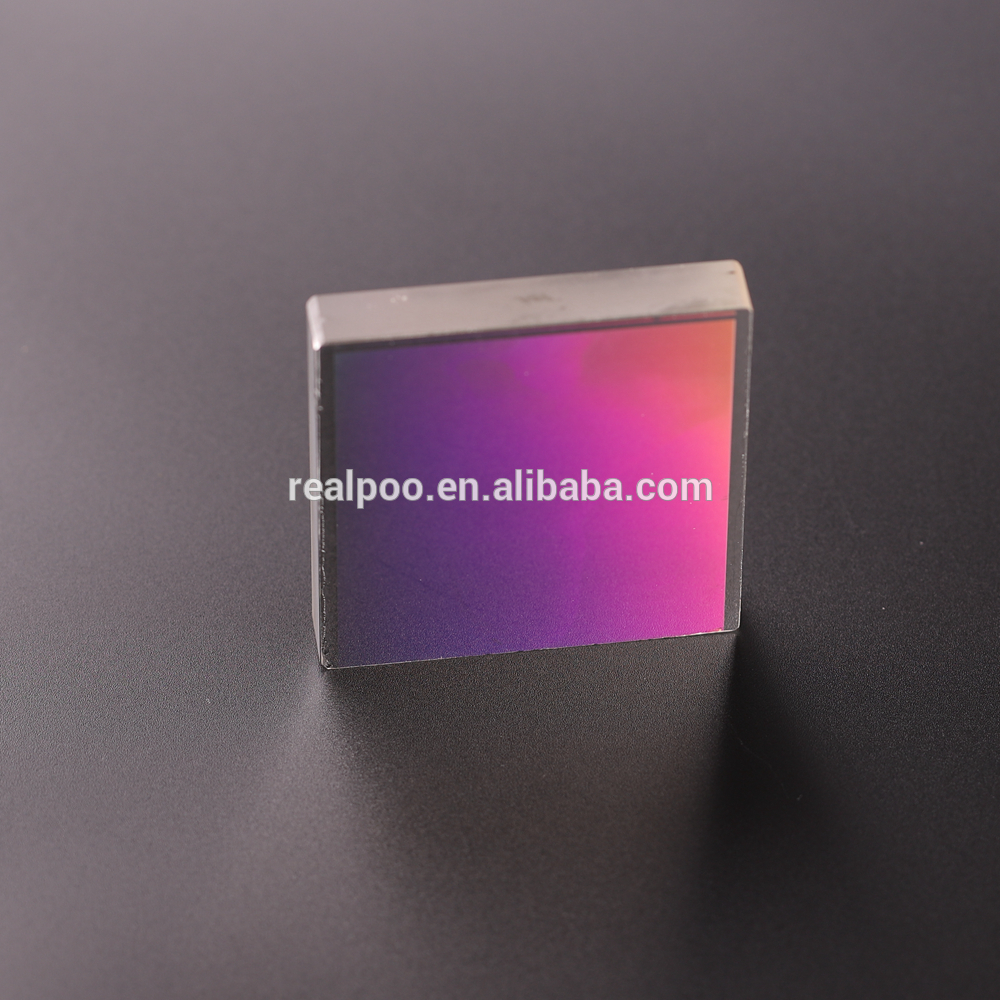

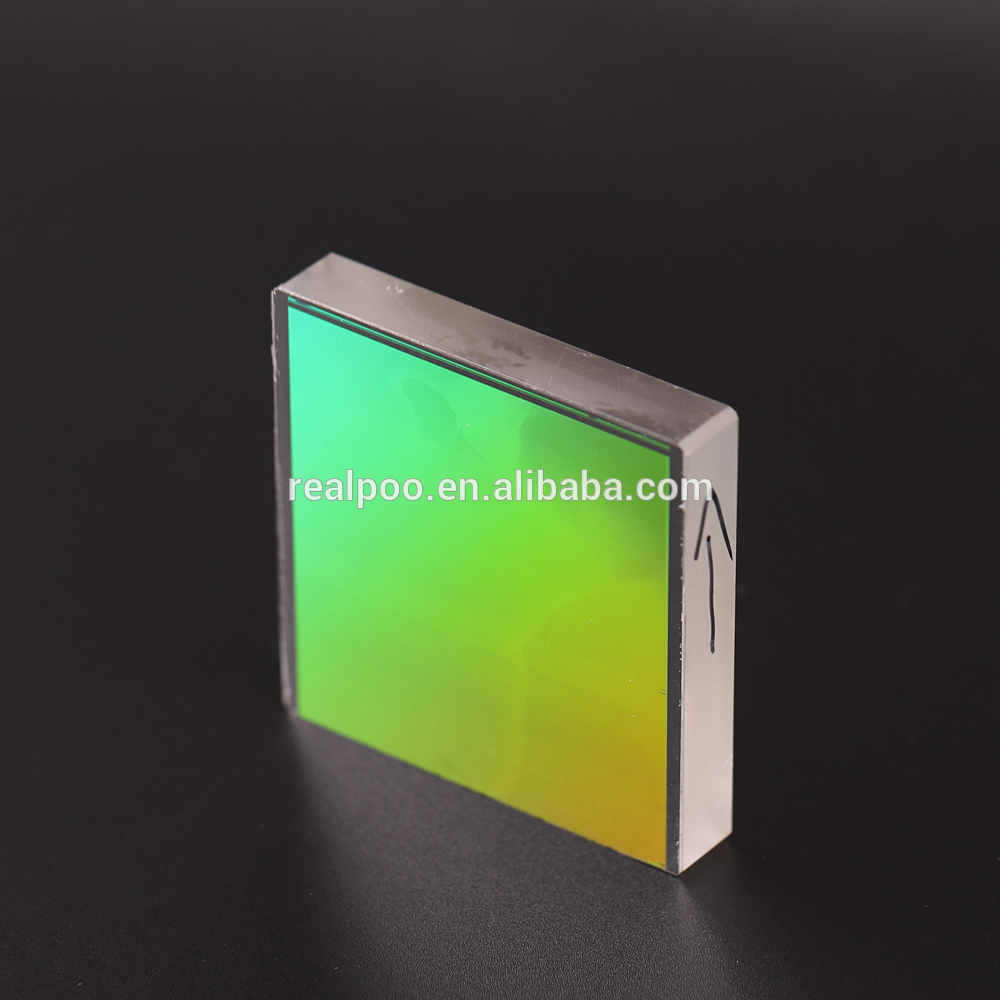

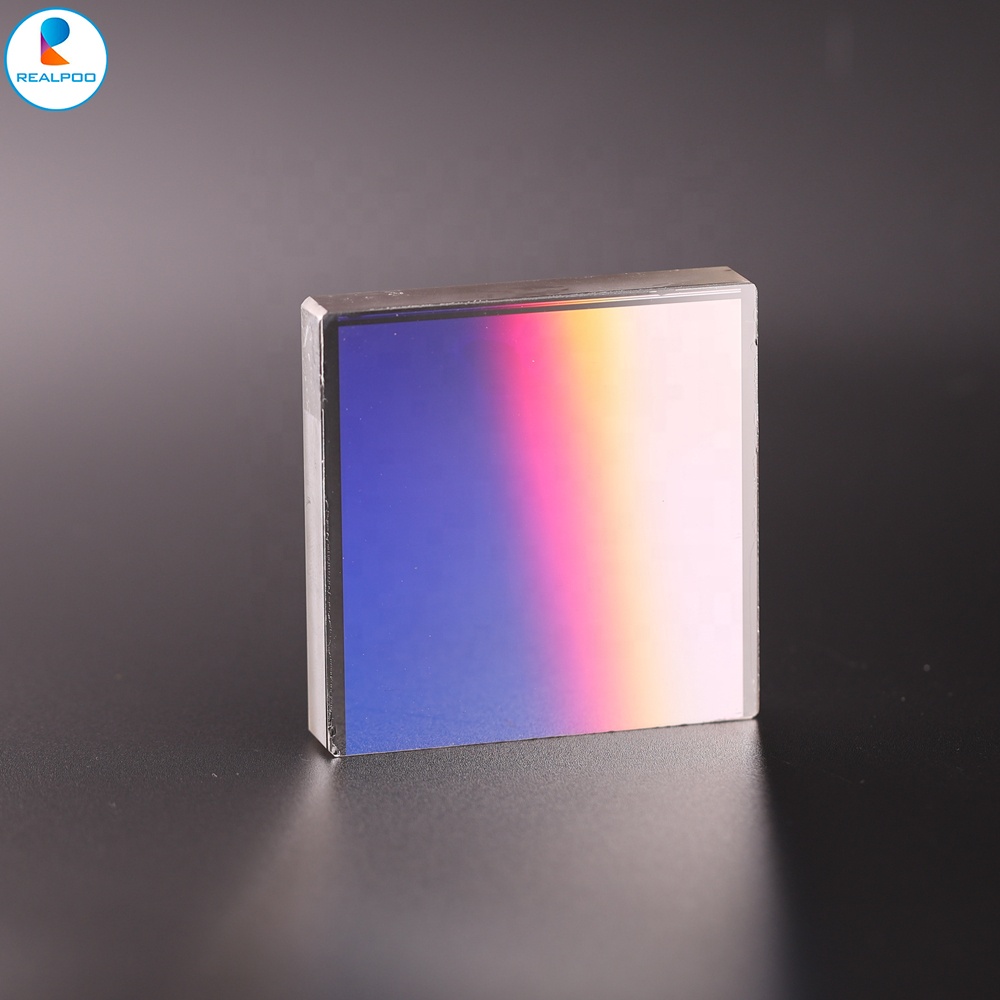

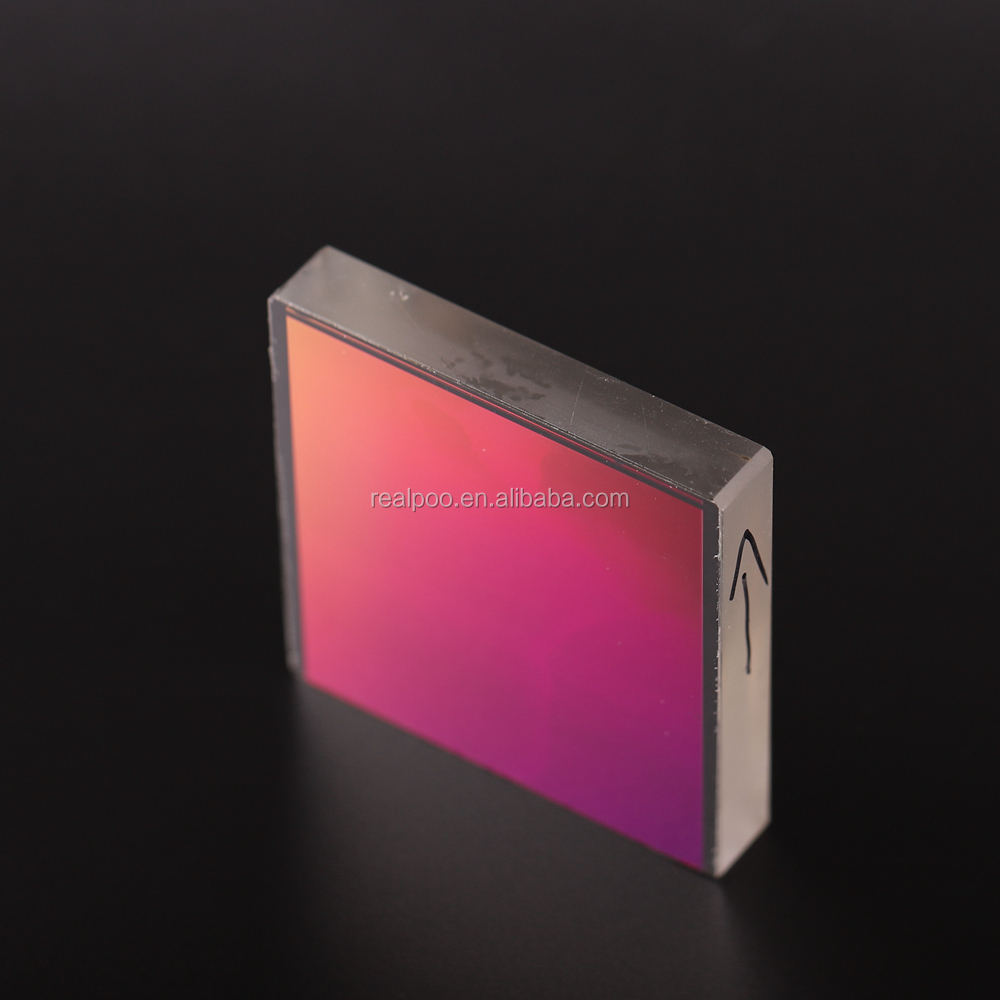

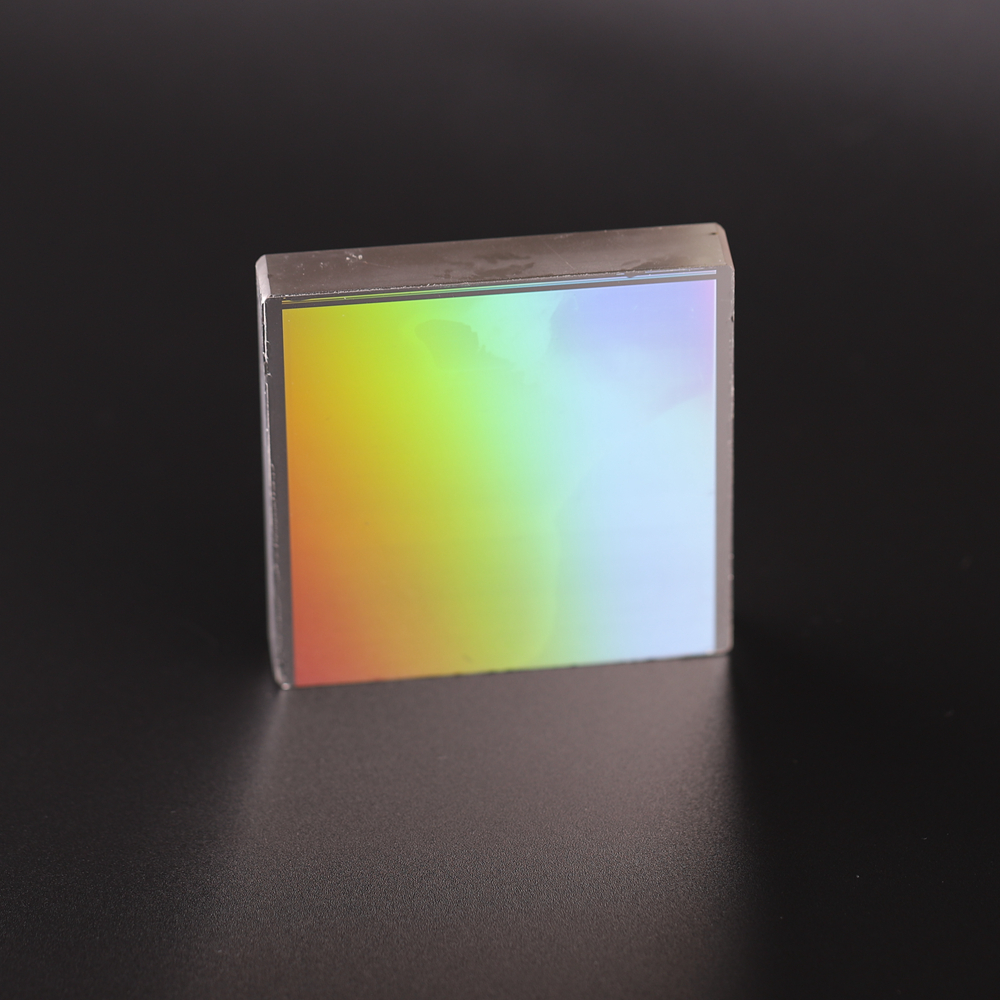

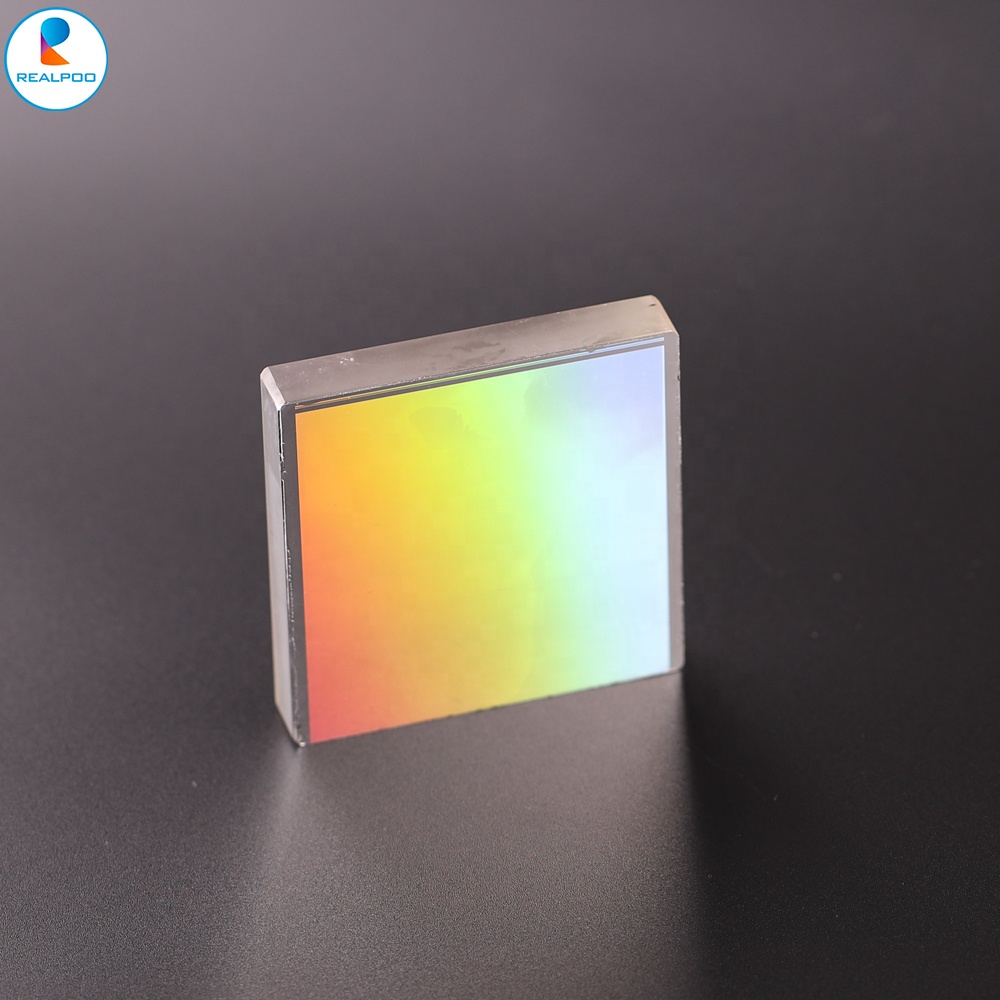

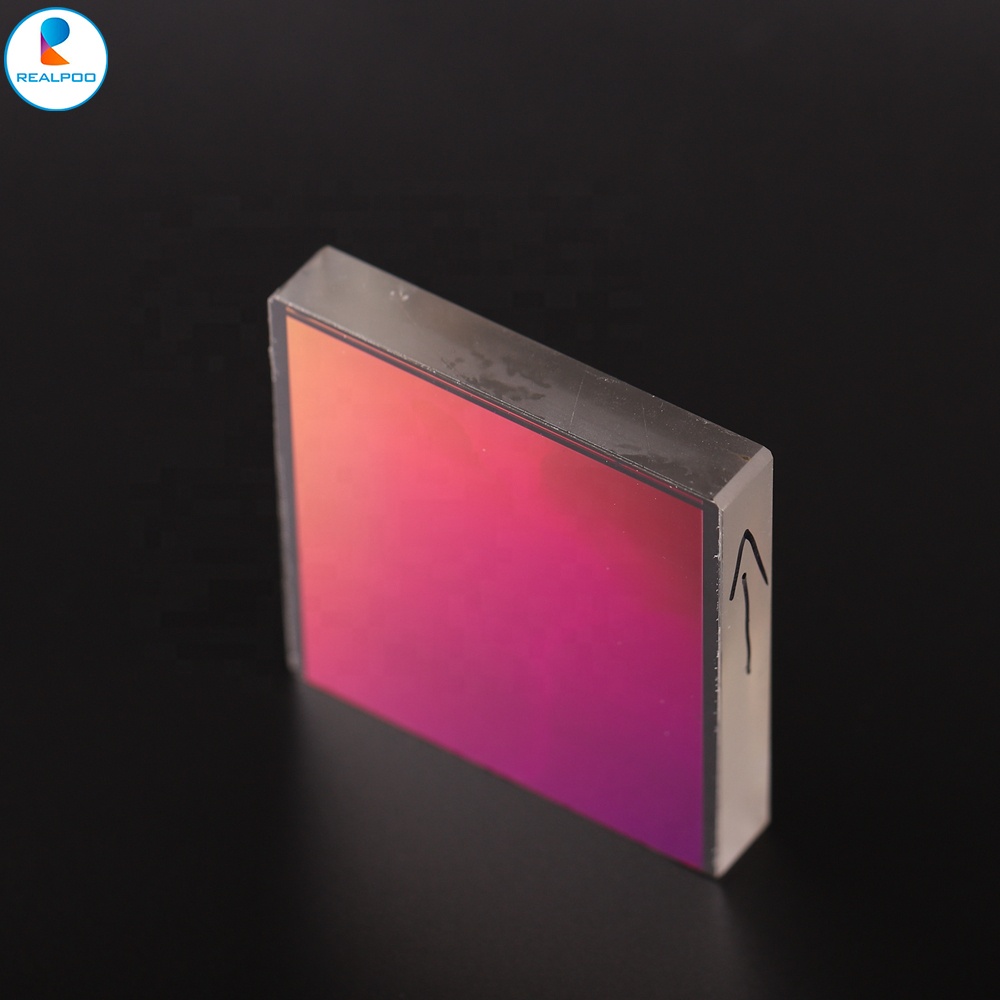

- Product Name: Plano diffraction grating
- Size: 70*70mm
- Lines/mm: 1200L
- Thickness: 12mm
- Using Wavelength: 200-900nm
- Blazed Wavelength: 250nm
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{width:371px;height:371px;overflow:hidden}#detail_decorate_root .magic-4{position:relative;left:0;top:0;width:371px;height:371px}#detail_decorate_root .magic-5{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-6{width:364px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:129px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{text-align:left}#detail_decorate_root .magic-9{font-family:Tahoma}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:194px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;margin-left:4px;margin-right:4px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-13{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-14{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-15{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-16{width:750px}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:800px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:800px}#detail_decorate_root .magic-19{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-21{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-22{margin-top:-2.0026990553306345px;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-23{width:750px;border-collapse:collapse}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:125.667px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:148px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:183px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:201px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:125.667px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:147.667px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:18px;padding:5px 10px;width:183px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:18px;padding:5px 10px;width:200.667px;box-sizing:content-box}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:616.7763157894736px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:749.9999999999999px;height:616.7763157894736px}#detail_decorate_root .magic-35{width:446px}#detail_decorate_root .magic-36{overflow:hidden;width:446px;height:446.00000000000006px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:446.00000000000006px;height:446.00000000000006px}#detail_decorate_root .magic-38{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-39{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:700;font-stretch:inherit;font-size:14px;line-height:20px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#333;letter-spacing:normal;orphans:2;text-align:left;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-40{box-sizing:content-box;margin:10px 0 0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:14px;line-height:25px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#333;white-space:pre-wrap;letter-spacing:normal;orphans:2;text-align:left;text-indent:0;text-transform:none;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-41{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:21px;font-family:inherit;vertical-align:baseline}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:1255px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:1255px}
|
Size
|
70*70mm
|
|
Thickness
|
12mm
|
|
Thickness Tolerance
|
±0.1
|
|
Grooves Density
|
1200L/mm
|
|
Using Wavelength
|
200-900nm
|
|
Blazed Wavelength
|
250nm
|
|
Coating
|
Aluminum
|
Product Description

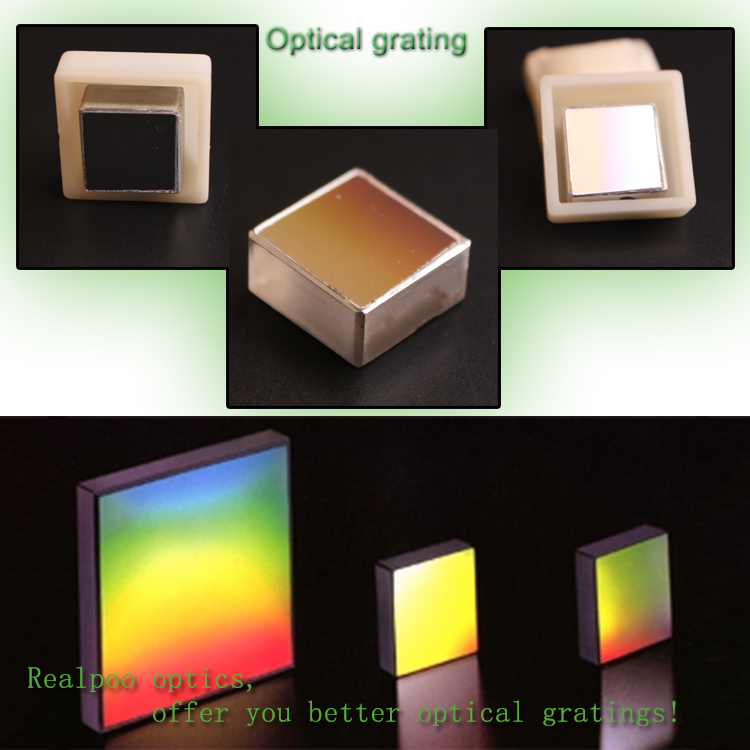

What is diffraction grating?

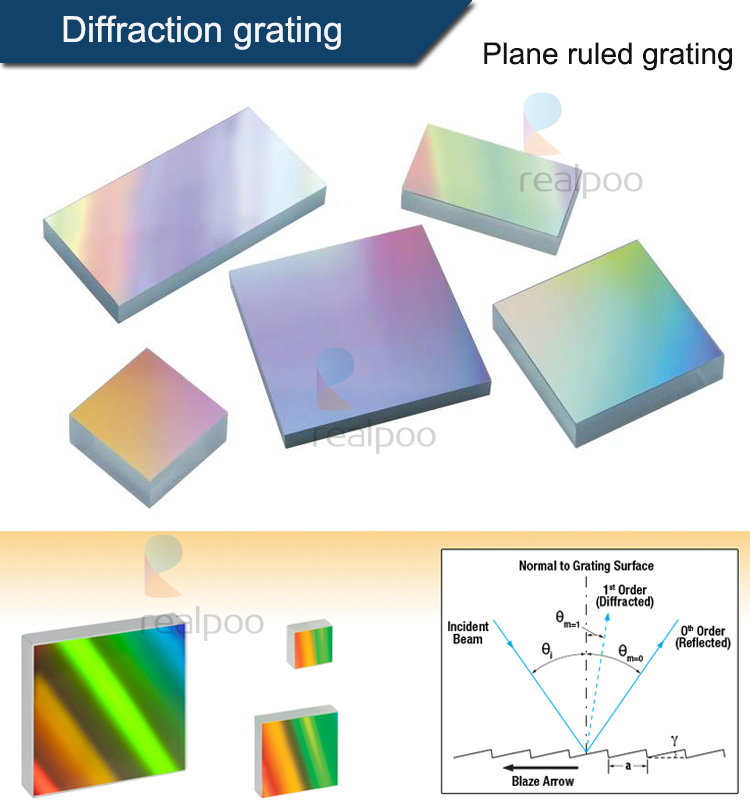

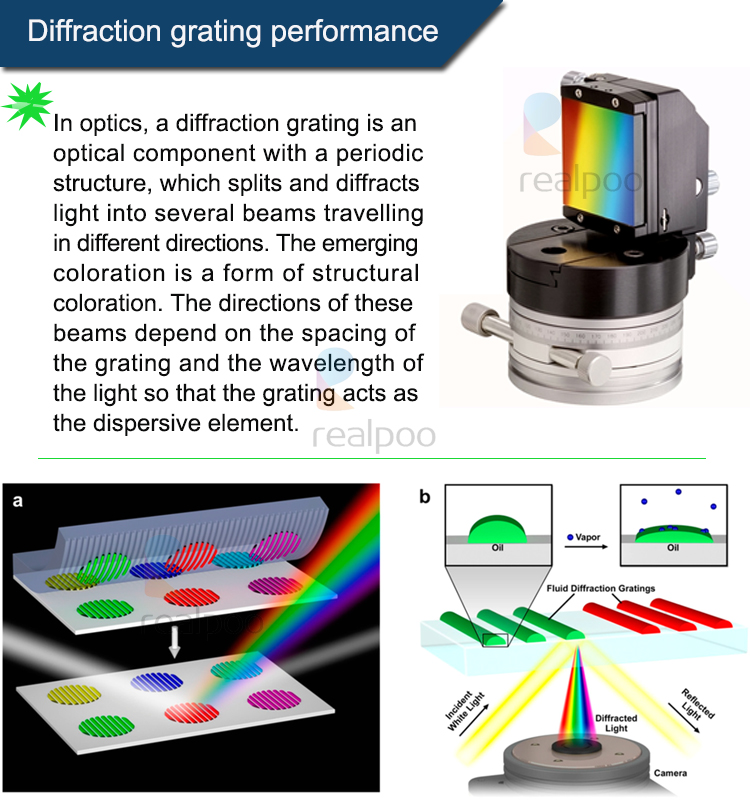

Diffraction Gratings are optical components used to separate light into its component wavelengths. Diffraction Gratings are used in spectroscopy, or for integration into spectrophotometers or monochromators. Diffraction Gratings consist of a series of closely packed grooves that have been engraved or etched into the Grating’s surface. Diffraction Gratings can be either transmissive or reflective. As light transmits through or reflects off a Grating, the grooves cause the light to diffract, dispersing the light into its component wavelength.

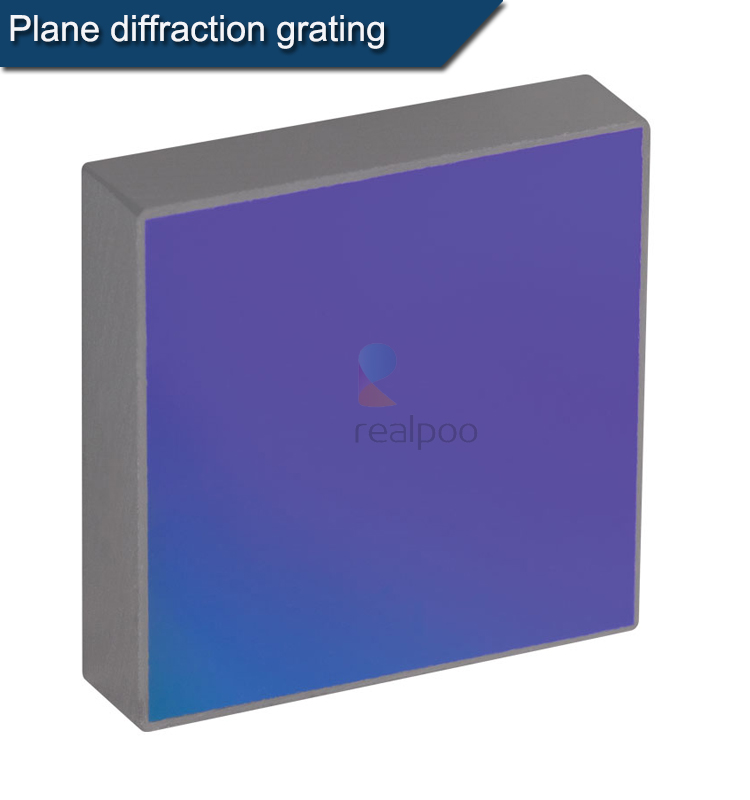

Detailed Images

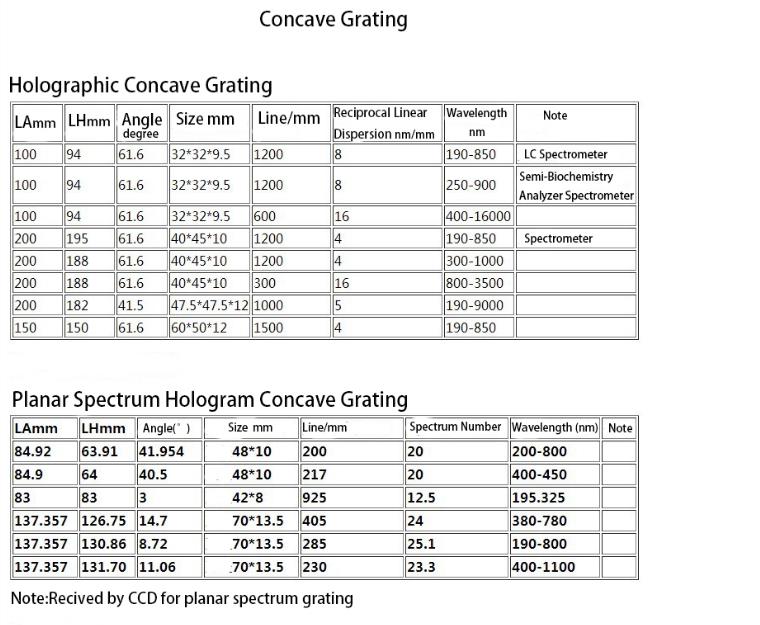

Catalogue for plano diffraction grating
|
Line/mm
|
Size(mm)
|
Blazed Wavelength(nm)
|
Using Wavelength(nm)
|
|
50
|
70*70
|
1200
|
400-2400
|
|
66.6
|
64*64
|
2500-10000
|
2500-25000
|
|
75
|
50*30
|
1500
|
800-4000
|
|
100
|
55*55
|
2500
|
1000-5000
|
|
100
|
68*68
|
500
|
400-1000
|
|
150
|
55*55
|
2000
|
1000-4000
|
|
150
|
35*25
|
250
|
200-1000
|
|
300
|
70*70
|
500
|
300-1000
|
|
300
|
55*55
|
1000
|
400-1500
|
|
300
|
90*90
|
3300
|
2500-5000
|
|
300
|
70*70
|
200
|
200-850
|
|
600
|
70*70
|
300
|
300-900
|
|
600
|
70*70
|
1500
|
500-2500
|
|
600
|
55*55
|
500
|
300-900
|
|
900
|
70*70
|
250
|
200-900
|
|
1200
|
110*110
|
500
|
400-1000
|
|
1200
|
110*110
|
640
|
400-1200
|
|
1200
|
70*70
|
750
|
400-1200
|
|
1200
|
58*58
|
250
|
200-900
|
|
1800
|
68*68
|
200
|
190-850
|
|
1800
|
110*110
|
250
|
200-900
|
|
1800
|
110*110
|
500
|
300-900
|
|
2400
|
110*110
|
250
|
200-900
|
|
3600
|
78*78
|
200
|
190-600
|
|
4320
|
78*78
|
200
|
190-600
|
Warning
The grating can be easily damaged by moisture, fingerprints, aerosols, or slight contact with any friction material. The grating can only be taken when necessary and can only be clamped through the edges. Rubber gloves or similar protective covers should be worn to prevent grease on the fingers from touching the grating surface. Clean the grating only with purified dry air or nitrogen. No other operation is allowed. The solvent is likely to damage the grating surface.
