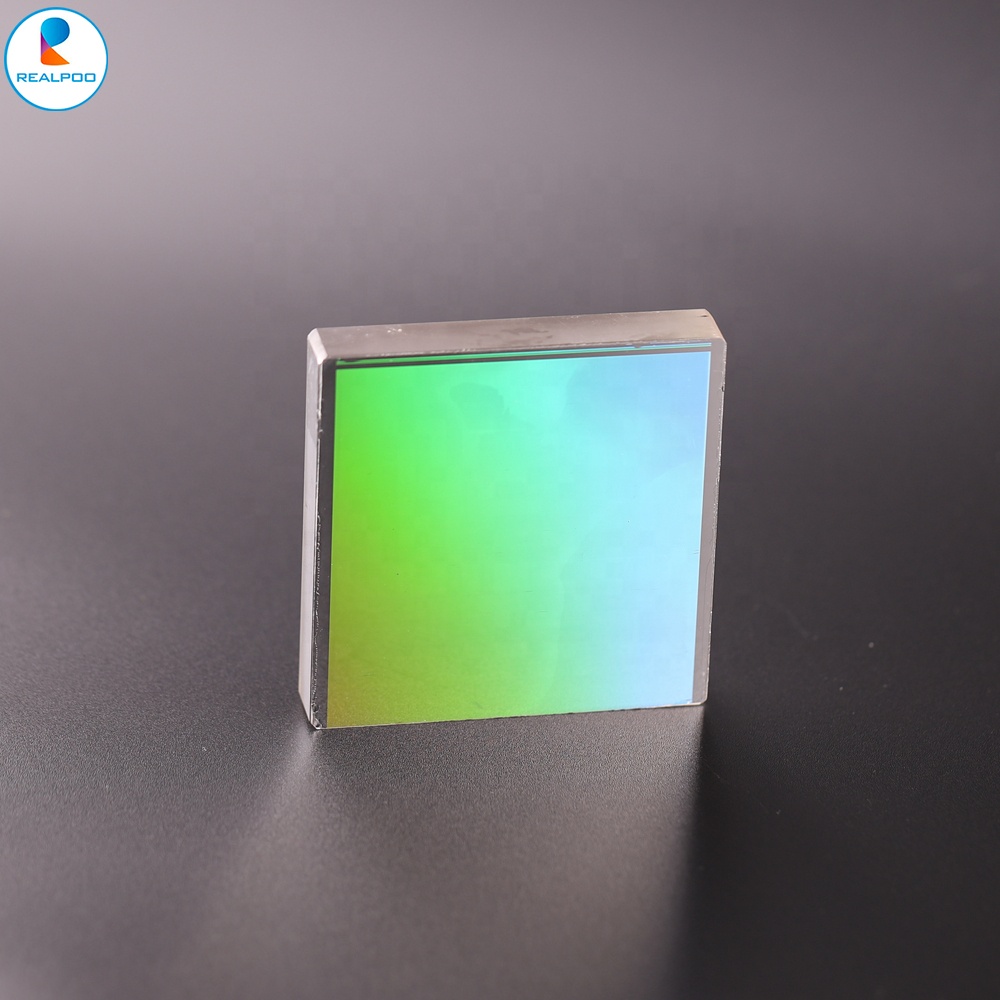

68mmx68mm 300L/mm 3400nm blazed plano ruled reflective diffraction grating for spectrometer

$203.50

10001 in stock

SKU: 1005002328576610 Category:

Description

  • Brand Name: LanYuXuan
  • Certification: CE
  • Origin: CN(Origin)
  • Place of Origin: Jilin, China
  • Brand Name: REALPOO
  • Model Number: RPGTGS
  • Product Name: Plano diffraction grating
  • Size: 68*68mm
  • Lines/mm: 300L
  • Using Wavelength: 2500-5000nm
  • Blazed Wavelength: 3400nm
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-3{color:#333;font-family:Tahoma;font-size:medium;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;float:none;display:inline !important}#detail_decorate_root .magic-4{color:#333;font-family:Tahoma;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-5{width:446px}#detail_decorate_root .magic-6{overflow:hidden;width:446px;height:213.229381443299px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:446px;height:213.229381443299px}#detail_decorate_root .magic-8{overflow:hidden;width:446px;height:251.03189493433396px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:446px;height:251.03189493433396px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:800px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:800px}#detail_decorate_root .magic-12{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-14{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-15{margin-top:-2.0026990553306345px;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-16{vertical-align:top}#detail_decorate_root .magic-17{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-18{text-align:center}#detail_decorate_root .magic-19{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-20{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-21{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-22{width:750px;border-collapse:collapse}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:125.667px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:148px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:183px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:201px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:125.667px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:147.667px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:183px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:18px;padding:5px 10px;width:200.667px;box-sizing:content-box}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:616.7763157894736px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:749.9999999999999px;height:616.7763157894736px}#detail_decorate_root .magic-34{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:700;font-stretch:inherit;font-size:14px;line-height:20px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#333;letter-spacing:normal;orphans:2;text-align:left;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-35{box-sizing:content-box;margin:10px 0 0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:14px;line-height:25px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#333;white-space:pre-wrap;letter-spacing:normal;orphans:2;text-align:left;text-indent:0;text-transform:none;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-36{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:21px;font-family:inherit;vertical-align:baseline}#detail_decorate_root .magic-37{overflow:hidden;width:446px;height:446.00000000000006px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:446.00000000000006px;height:446.00000000000006px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:1255px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:1255px}

Product Description

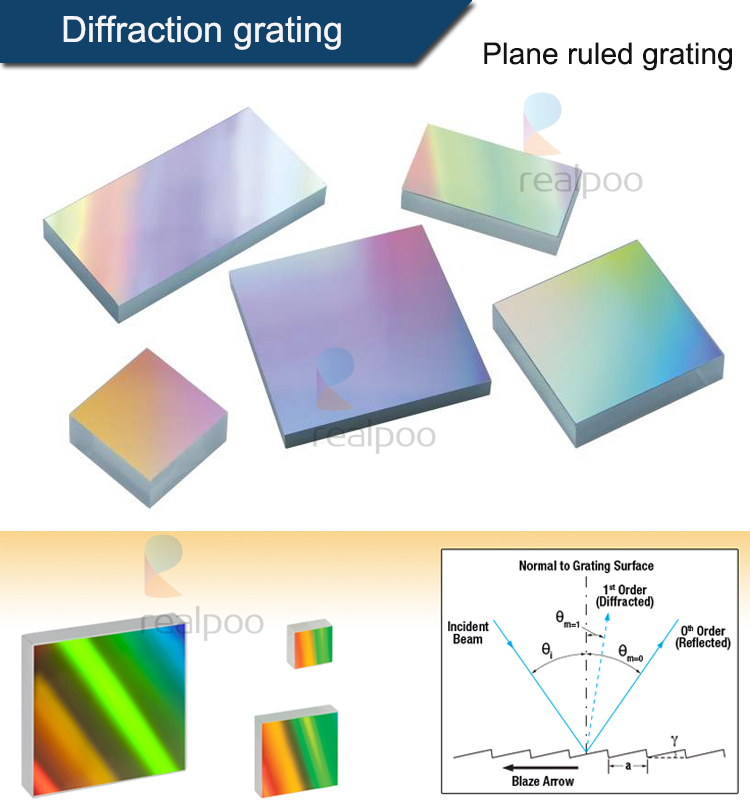

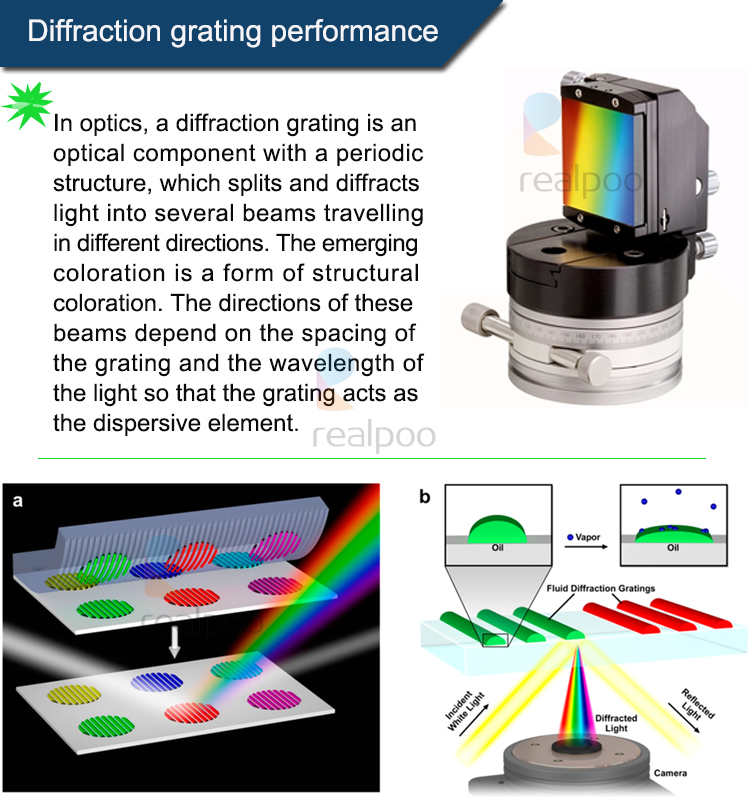

What is diffraction grating?

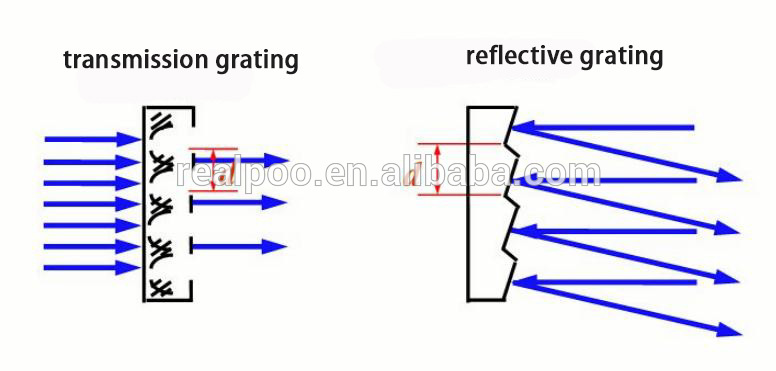

Diffraction Gratings are optical components used to separate light into its component wavelengths. Diffraction Gratings are used in spectroscopy, or for integration into spectrophotometers or monochromators. Diffraction Gratings consist of a series of closely packed grooves that have been engraved or etched into the Grating’s surface. Diffraction Gratings can be either transmissive or reflective. As light transmits through or reflects off a Grating, the grooves cause the light to diffract, dispersing the light into its component wavelength.

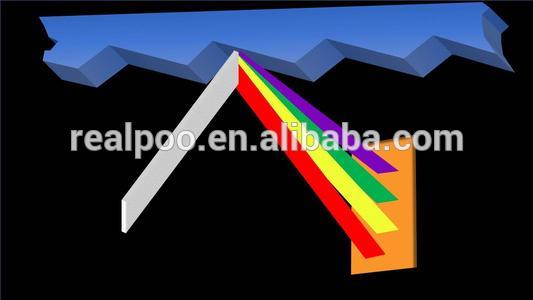

What is blazed grating?
When the grating is carved into a zigzag groove section, the light energy of the grating is concentrated in the predetermined direction, that is, at a certain spectral level. When you look in that direction, the spectrum is at its maximum intensity, and that’s called a blaze.

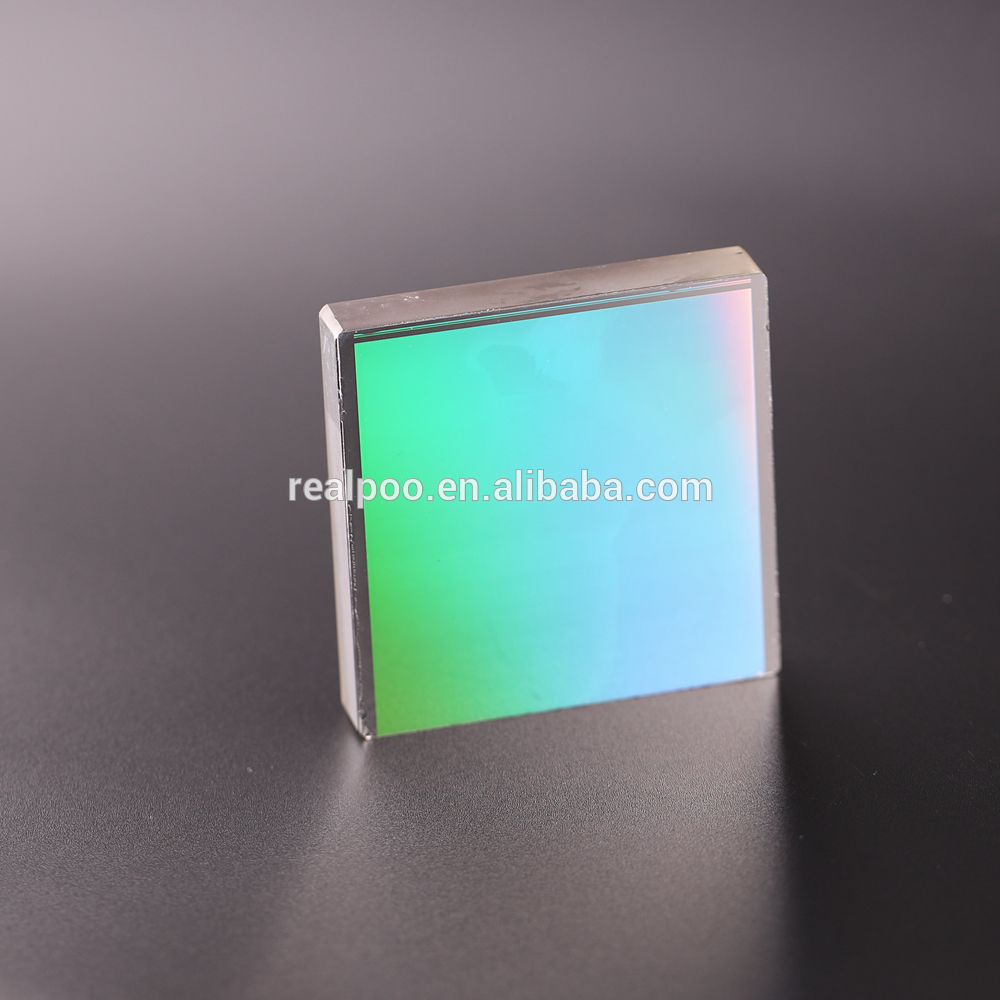

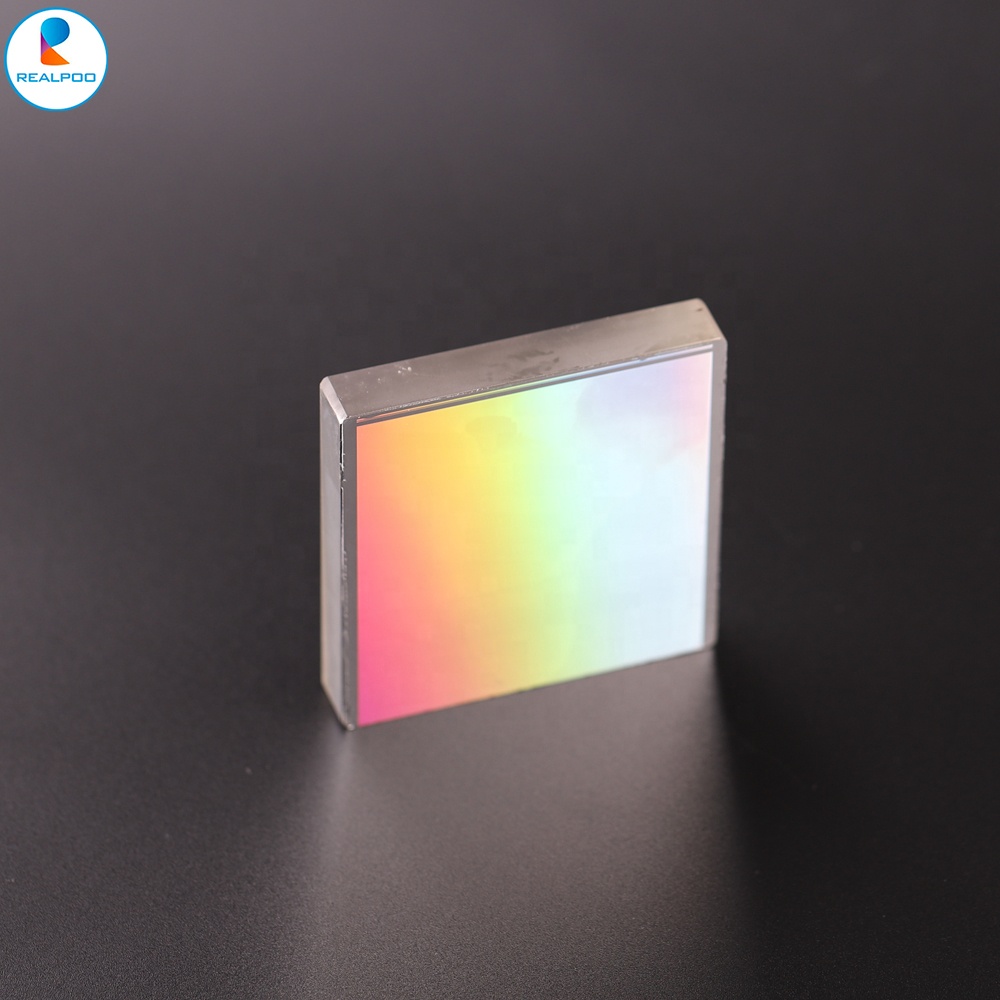

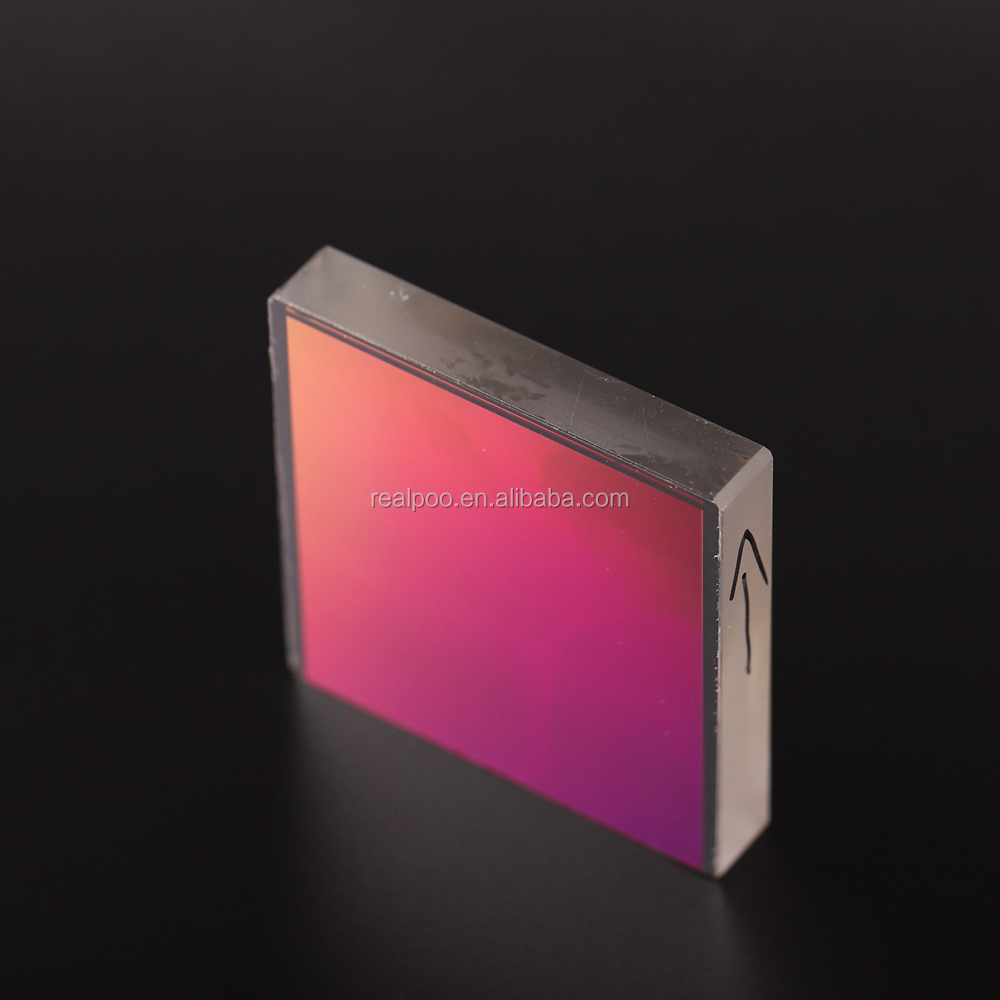

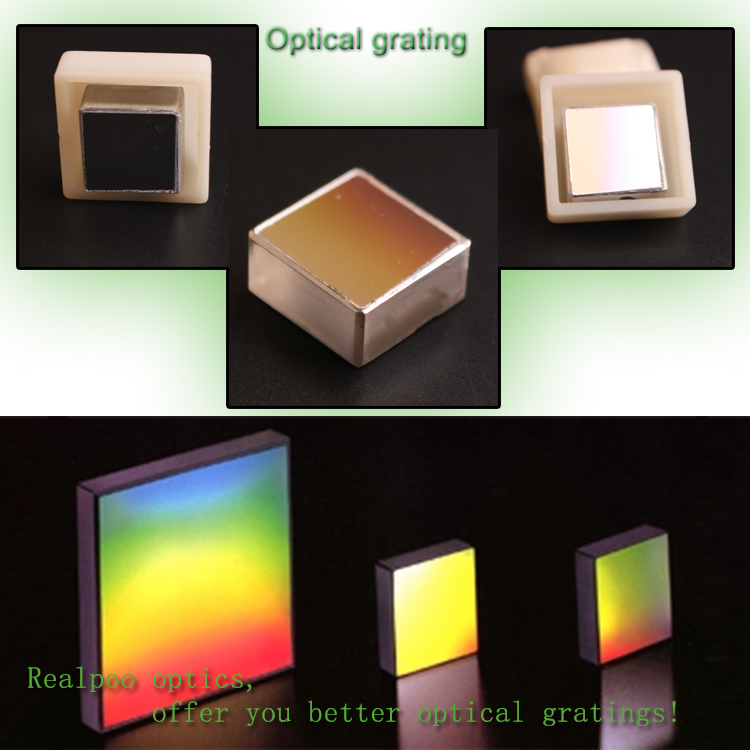

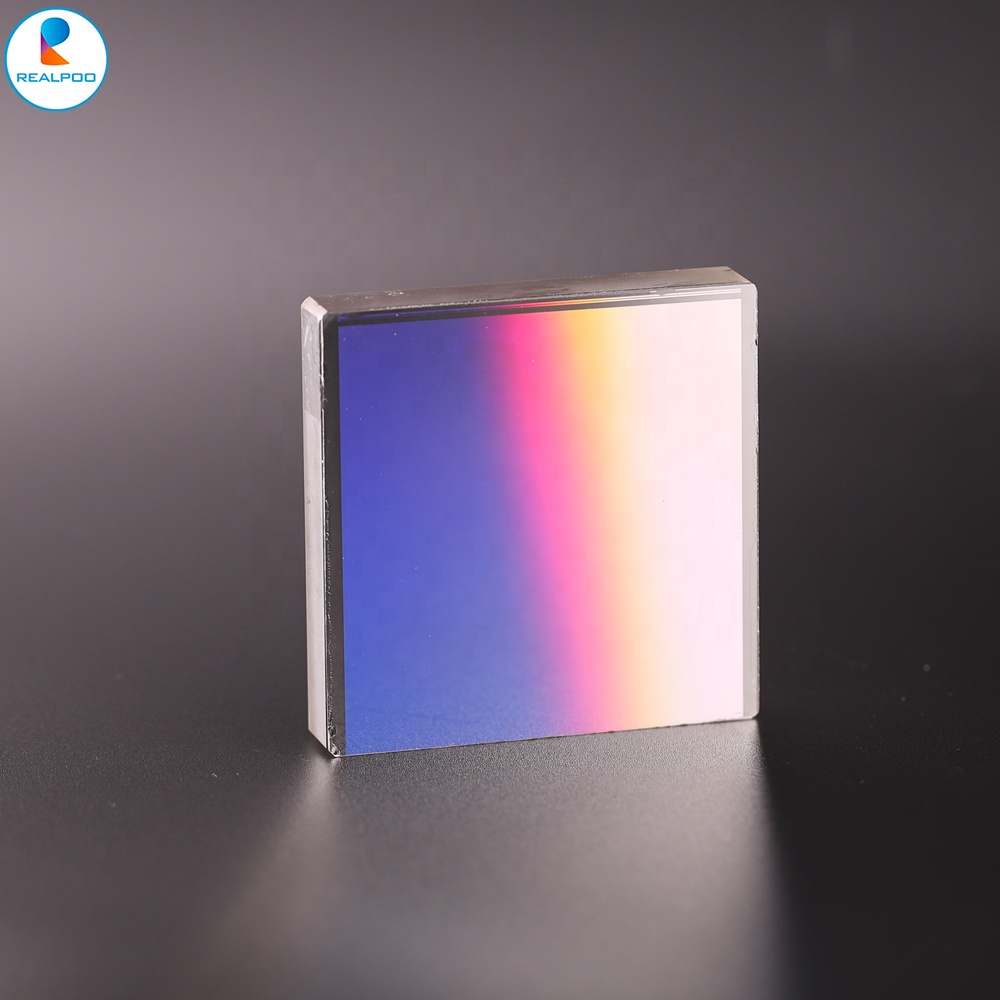

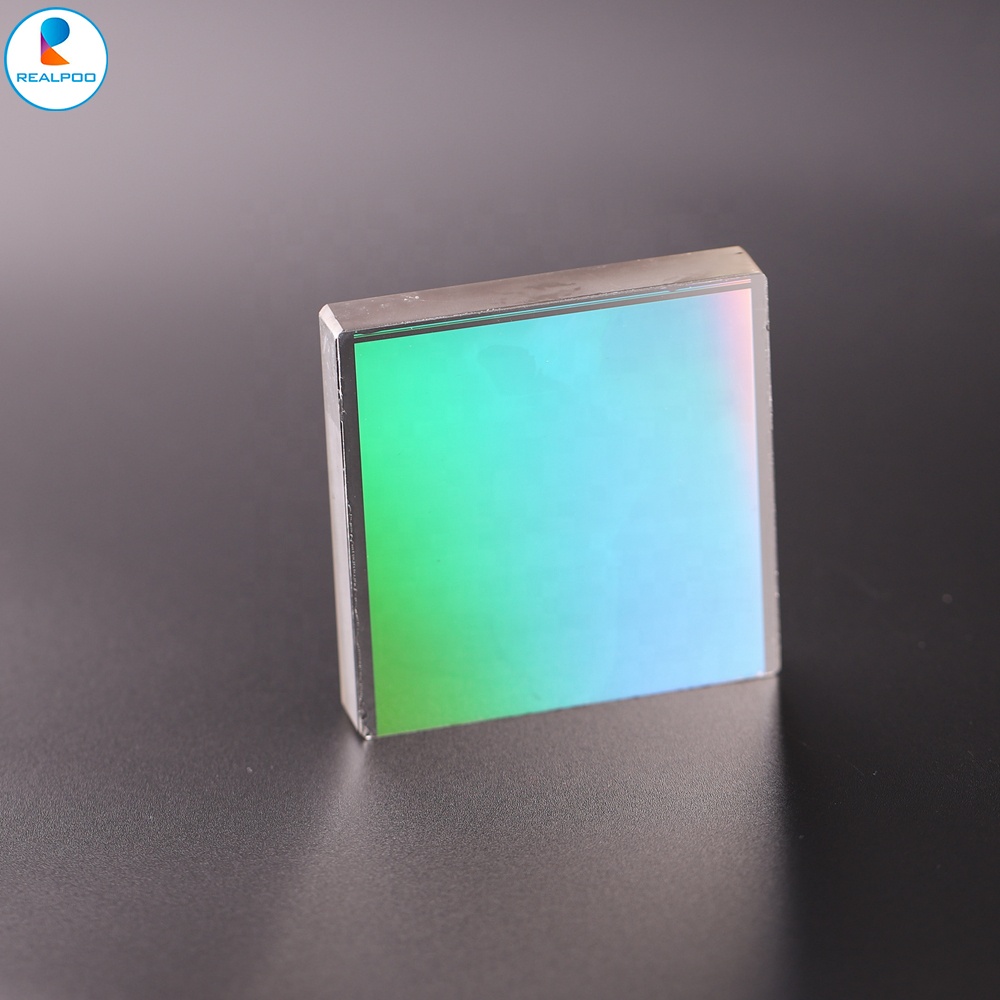

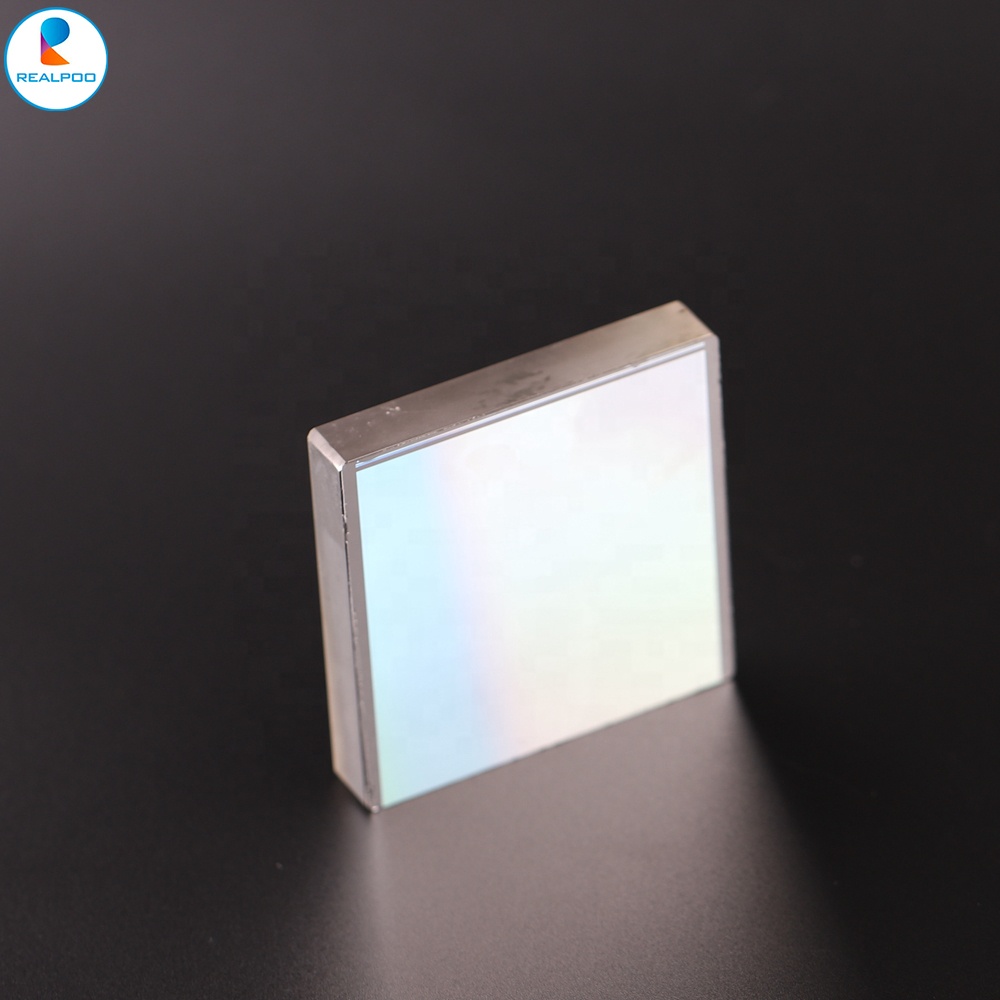

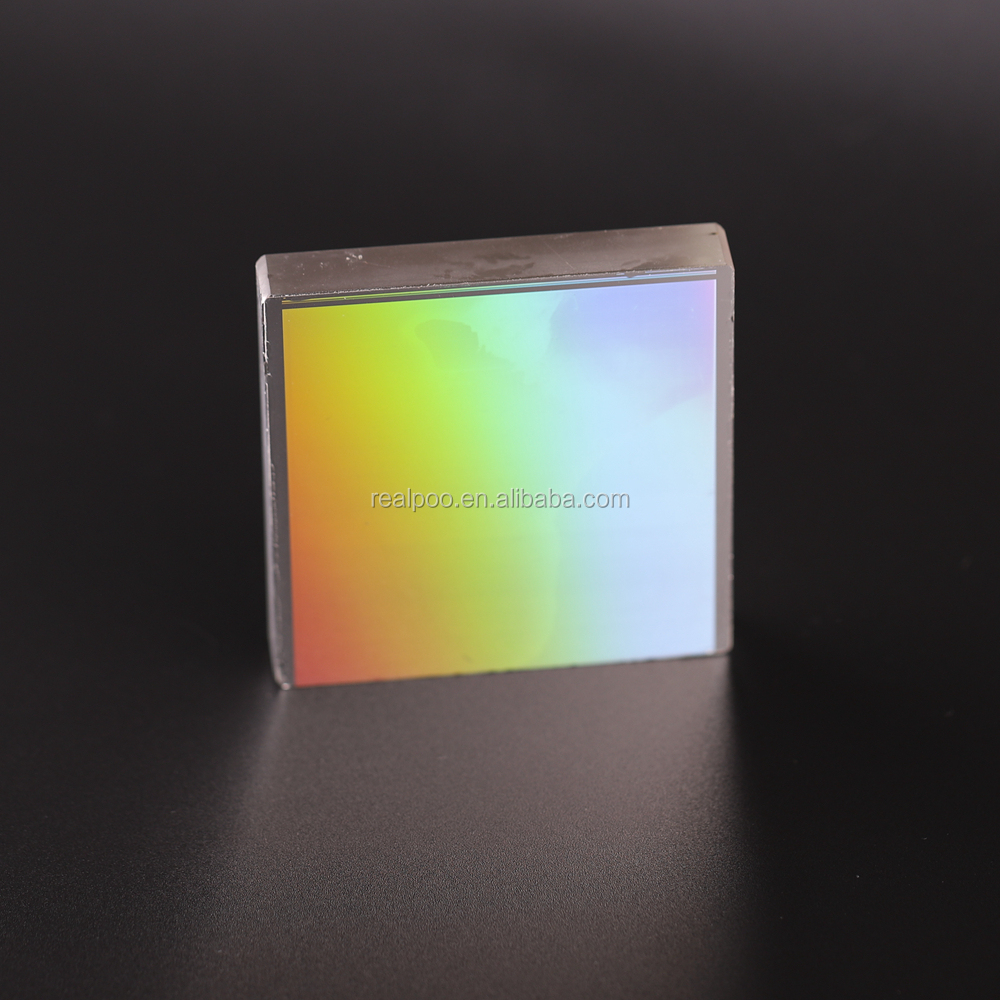

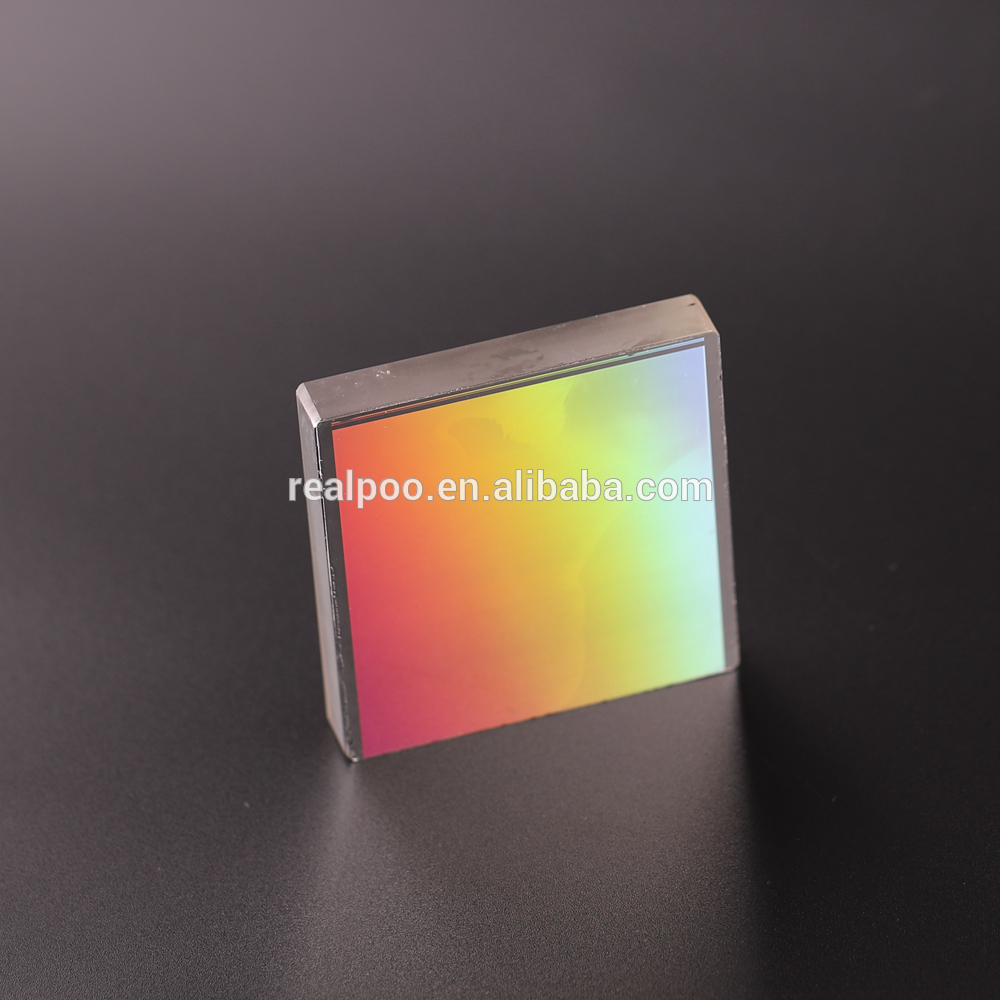

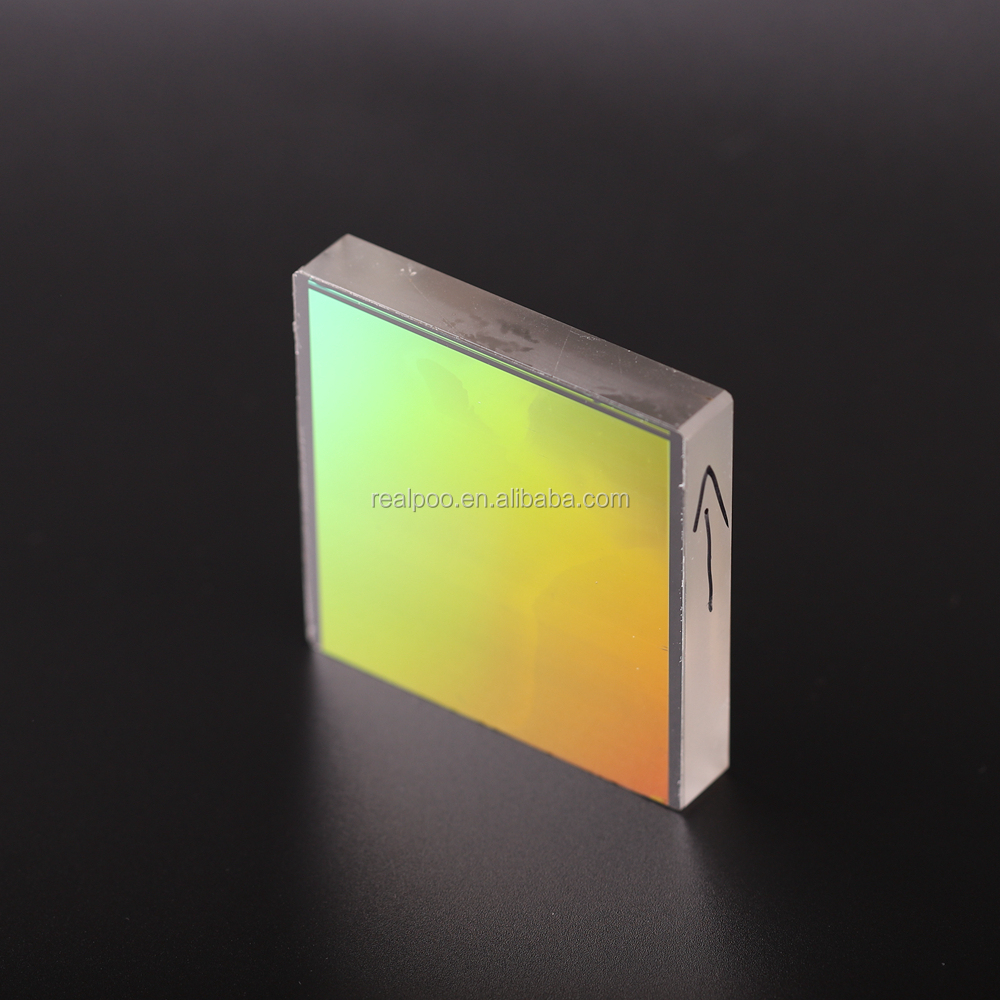

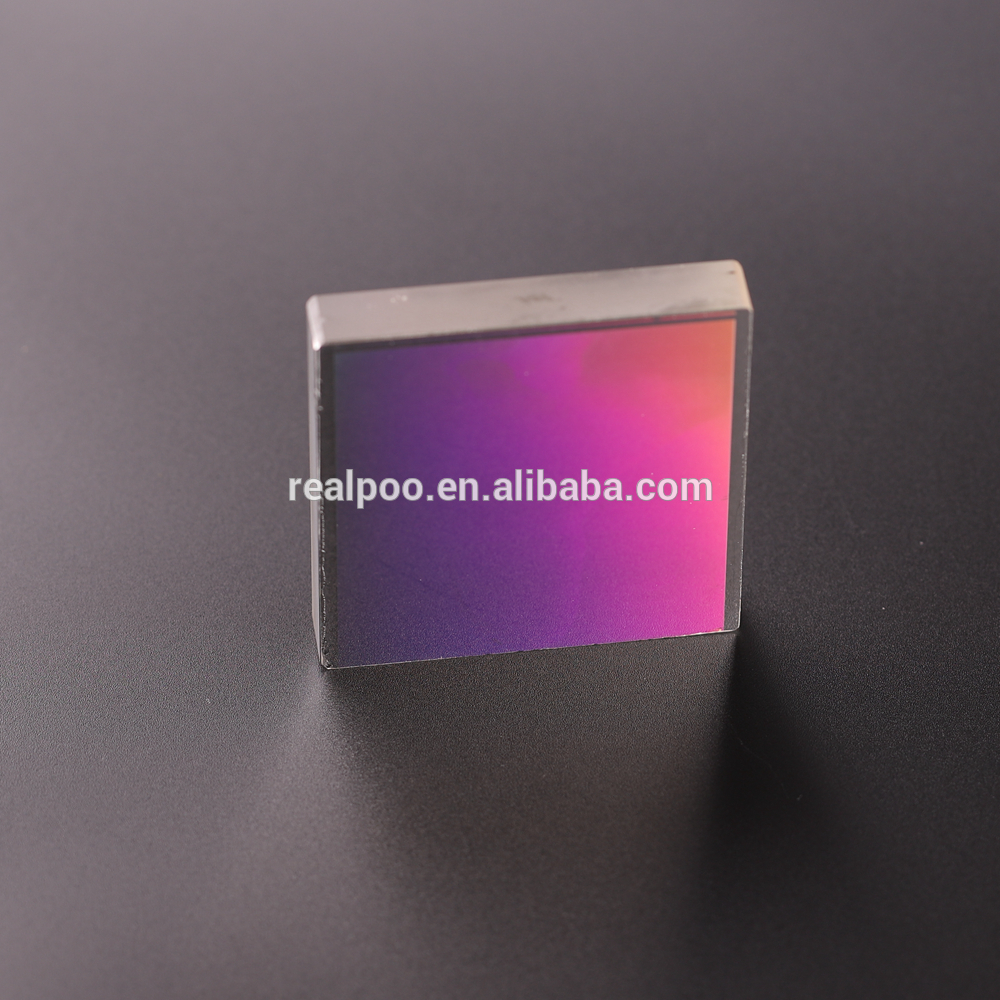

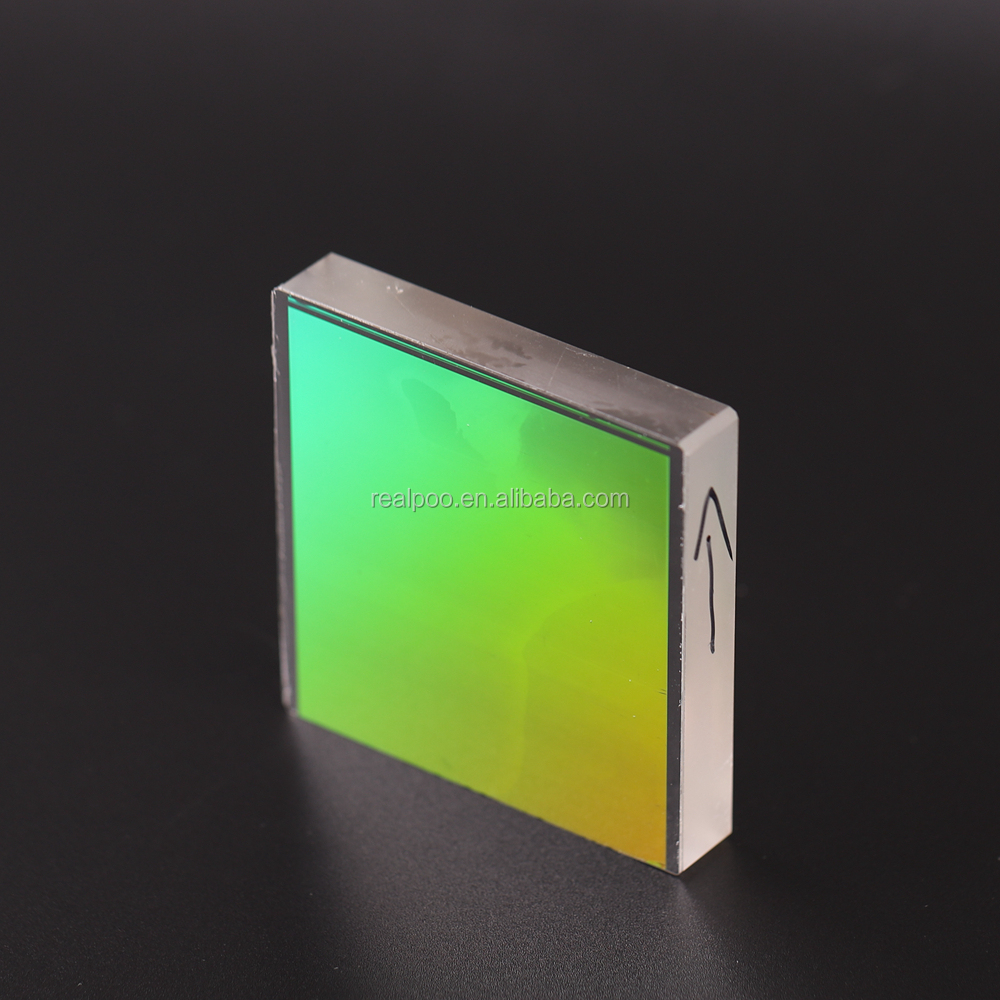

Detailed Images

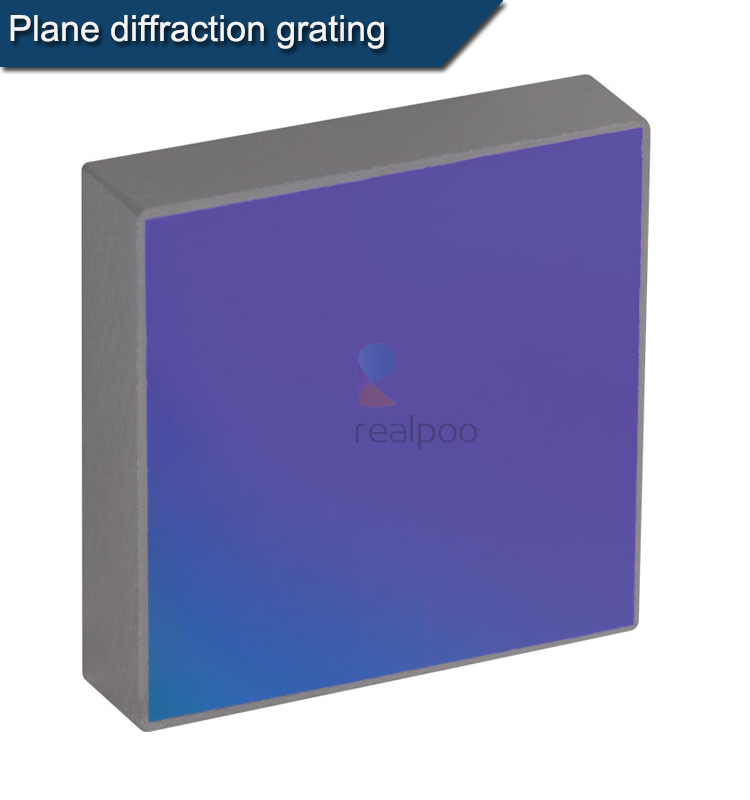

Catalogue for plano diffraction grating

Line/mm

Size(mm)

Blazed Wavelength(nm)

Using Wavelength(nm)

50

70*70

1200

400-2400

66.6

64*64

2500-10000

2500-25000

75

50*30

1500

800-4000

100

55*55

2500

1000-5000

100

68*68

500

400-1000

150

55*55

2000

1000-4000

150

35*25

250

200-1000

300

70*70

500

300-1000

300

55*55

1000

400-1500

300

90*90

3300

2500-5000

300

70*70

200

200-850

600

70*70

300

300-900

600

70*70

1500

500-2500

600

55*55

500

300-900

900

70*70

250

200-900

1200

110*110

500

400-1000

1200

110*110

640

400-1200

1200

70*70

750

400-1200

1200

58*58

250

200-900

1800

68*68

200

190-850

1800

110*110

250

200-900

1800

110*110

500

300-900

2400

110*110

250

200-900

3600

78*78

200

190-600

4320

78*78

200

190-600

Warning
The grating can be easily damaged by moisture, fingerprints, aerosols, or slight contact with any friction material. The grating can only be taken when necessary and can only be clamped through the edges. Rubber gloves or similar protective covers should be worn to prevent grease on the fingers from touching the grating surface. Clean the grating only with purified dry air or nitrogen. No other operation is allowed. The solvent is likely to damage the grating surface.
