Description
- Type: Other
- Origin: CN(Origin)
Product name: Default parameter configuration:
Model: LM65053D6-CUT

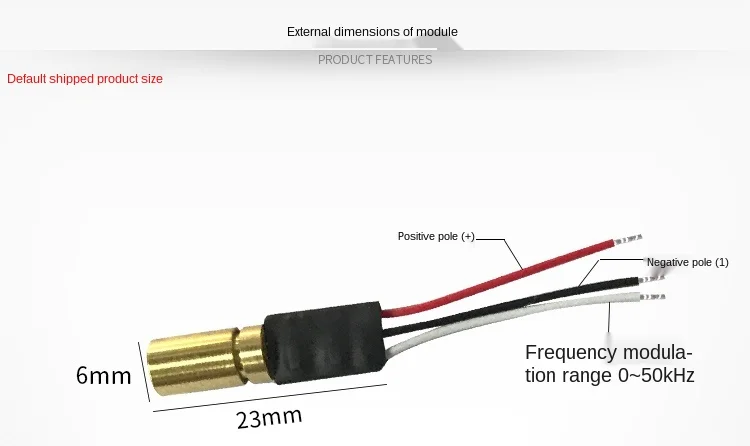

Size: default shipping 6*23MM
Material: Environmental protection copper
Surface treatment: None
Service life:> 10000 hours
Output wavelength: 660±10NM
Output power: <5MW
Range (indoor): >100 meters
Spot size at 10 meters: ellipse 8*12MM
Fixed/adjustable focus: fixed focus
Lens material: imported acrylic optical lens
Circuit control: TTL duty cycle/APC control dual mode
TTL level voltage: 3V-5V/high open, low close
Control frequency: 0HZ-50HZ
Duty cycle: optical power is proportional to duty cycle
Working voltage: DC: 3.0V-5V
Maximum working current: <30MA
Working mode: continuous or FM
Wire length/wiring: 150MM/red positive, black negative; white position is control wire
Working temperature: -10°C~+50°C
Storage temperature: -40°C~+80°C
