Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 0
- Model Number: DB-RI
- Voltage: 0
- Occasion: Professional Stage & DJ

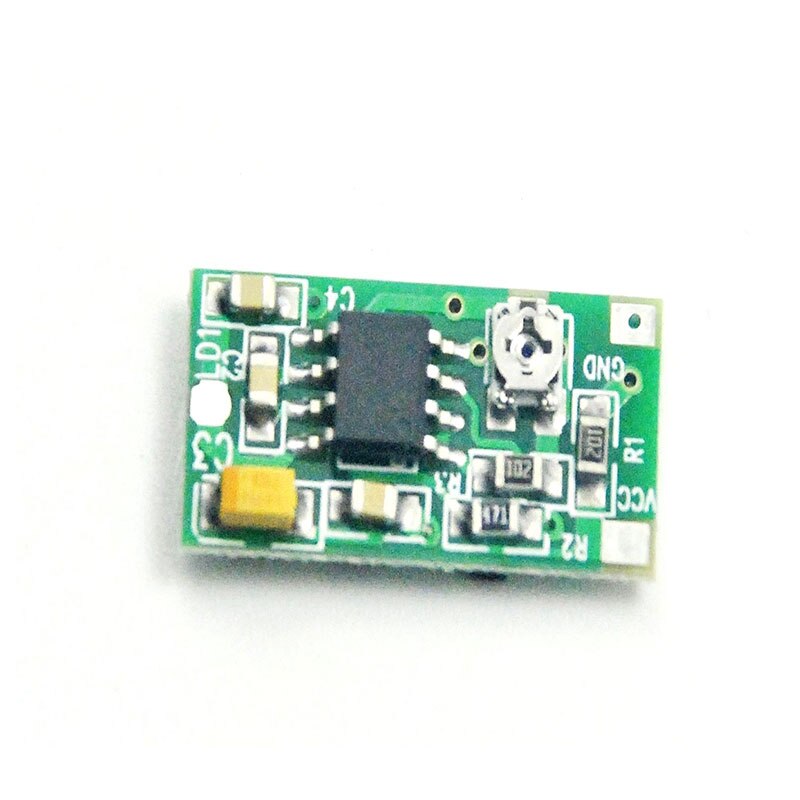

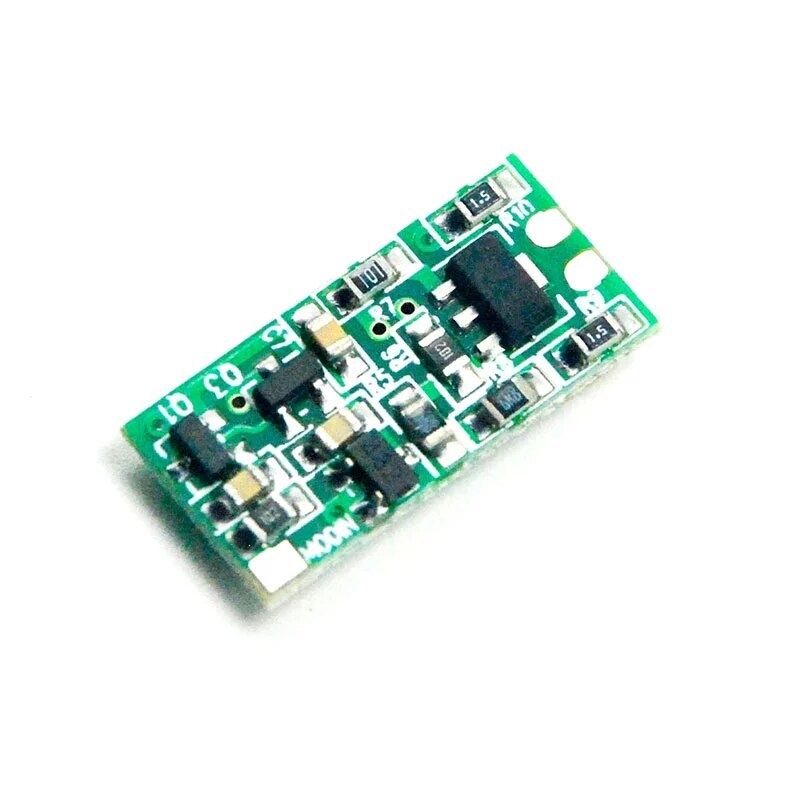

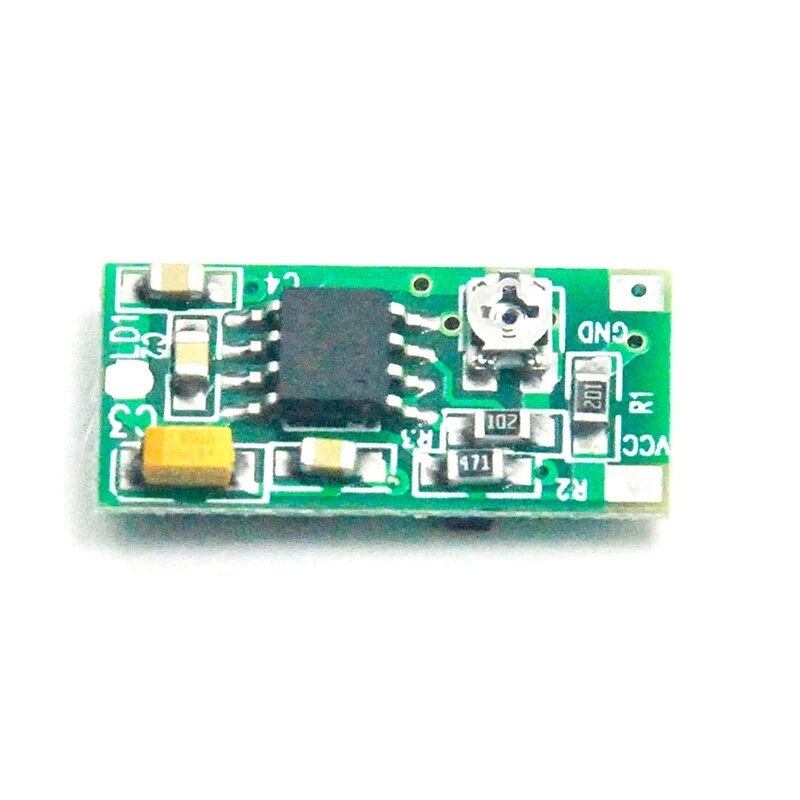

650nm 780nm 808nm 850nm 980nm Red IR Laser Diode Power Driver Circuit Board
Parameters
wavelength:650nm 780nm 808nm 980nm
Recommended working voltage:4.75-5.25V
Working current:50-300mA
Constant current control, Can drive:
660nm 50-300MW
780nm 50-300MW
808nm 50-300mw
850nm 50-300mw
980nm 50-300mw
Dimension:10×25 mm
Normally the current can only be within 50-300mA,if you need it bigger, you need to drop the two resistors of 100ohm and 10ohm properly
wavelength:650nm 780nm 808nm 980nm
Recommended working voltage:4.75-5.25V
Working current:50-300mA
Constant current control, Can drive:
660nm 50-300MW
780nm 50-300MW
808nm 50-300mw
850nm 50-300mw
980nm 50-300mw
Dimension:10×25 mm
Normally the current can only be within 50-300mA,if you need it bigger, you need to drop the two resistors of 100ohm and 10ohm properly
Package
650nm 780nm 808nm 850nm 980nm Red IR Laser Diode Power Driver Circuit 50mW-300mW
