Description
- Type: Other
- Origin: CN(Origin)
- working principle: laser
- Ranging distance: 250m
- Article number: H600S
- Decoration and construction contents: Installation works

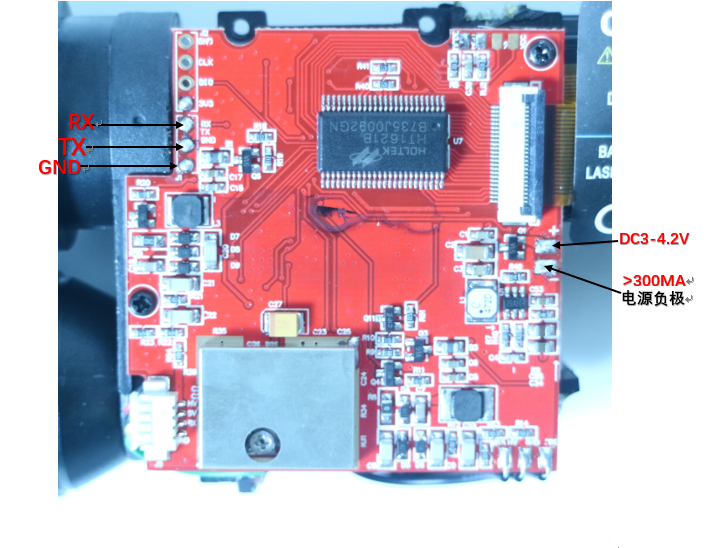

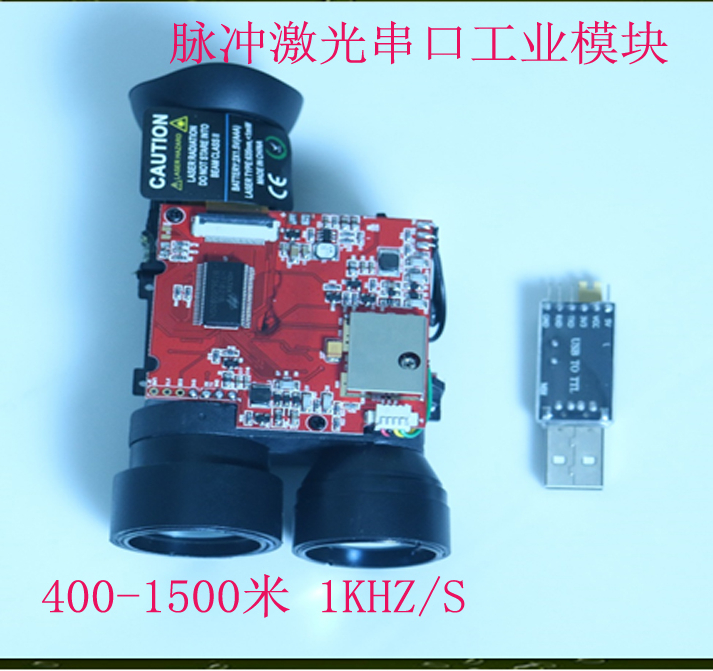

This is a pulse laser high-speed range, velocity, angle and height transmitter，high-precision 30-100Meter accuracy+-0.1 -+-5M ,For cars，Navigation, etc Voltage3-4V
|
type number |
H600S H1000S H1500S |
|
Ranging range |
3m-400M/600m/1000M、1500M |
|
Ranging accuracy |
±0.1mm-0.5m@300m,1m@300-600m |
|
Measurement time |
1000 HZ -300HZ @100M, 100HZ @ 200m |
|
Velocity measurement accuracy |
<5km/h |
|
working temperature |
-5-40℃ |
|
Laser wavelength（nm） |
905±5nm |
|
Laser peak power（W） |
50w |
|
pulse width（ns） |
25ns@ FWHM |
|
Telescope magnification（X） |
7 |
|
Telescope eyepiece aperture（mm） |
16 |
|
Telescope objective aperture（mm） |
24 |
|
Exit pupil distance（mm） |
10 |
|
Receiving objective aperture（mm） |
25 |
|
size（L xHxW） |
115X58X35MM |
|
weight（g） |
99G |
|
Laser safety level |
CLASS 1 |
‘
