Description
- Item Type: BALL
- Model Number: 5W Seoul Viosys UV 365nm
- Certification: ce
- Voltage: 3.0-3.6V
- Current: 1000mA
Product Description:
– High power UV LED series are designed for high current operation and high power output applications.
– It incorporates state of the art SMD design.
– Z5 NUV LED is ideal UV light source for curing, printing, and detecting applications
Features and Benefits
– High power output
– Designed for high current operation
– SMT type
– Lead Free product
– RoHS compliant
Product Specifications:
| Peak Wavelength: | 367nm |
| Radiant Flux: | 1800mW |
| Forward Voltage: | 3.7V |
| Forward Current: | 1000mA |
| Spectrum Half Width: | 9nm |
| View Angle: | 120-Degree |
Package Content:1 x UV LED Emitter

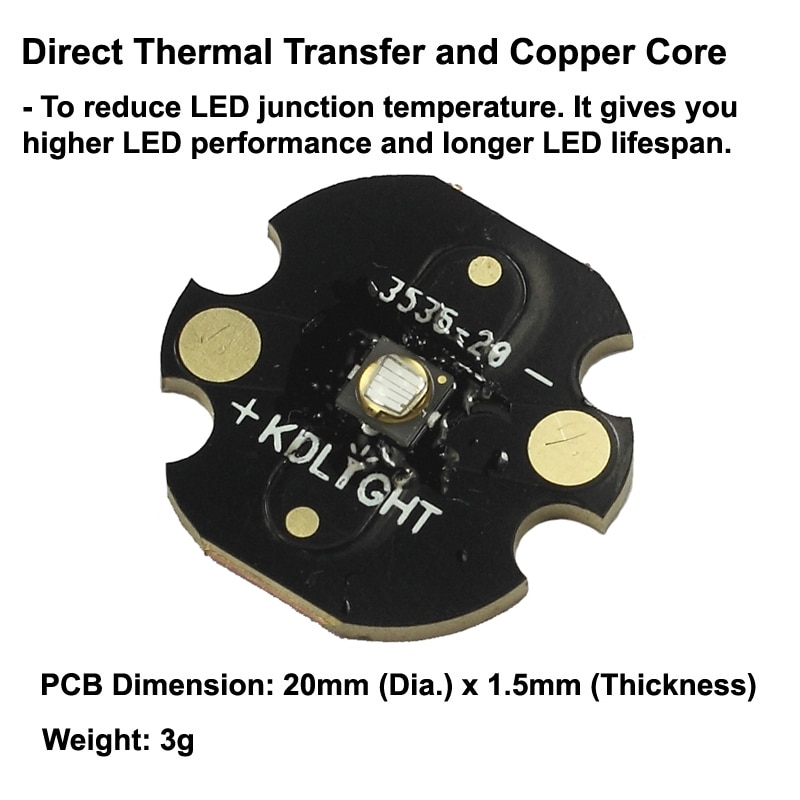

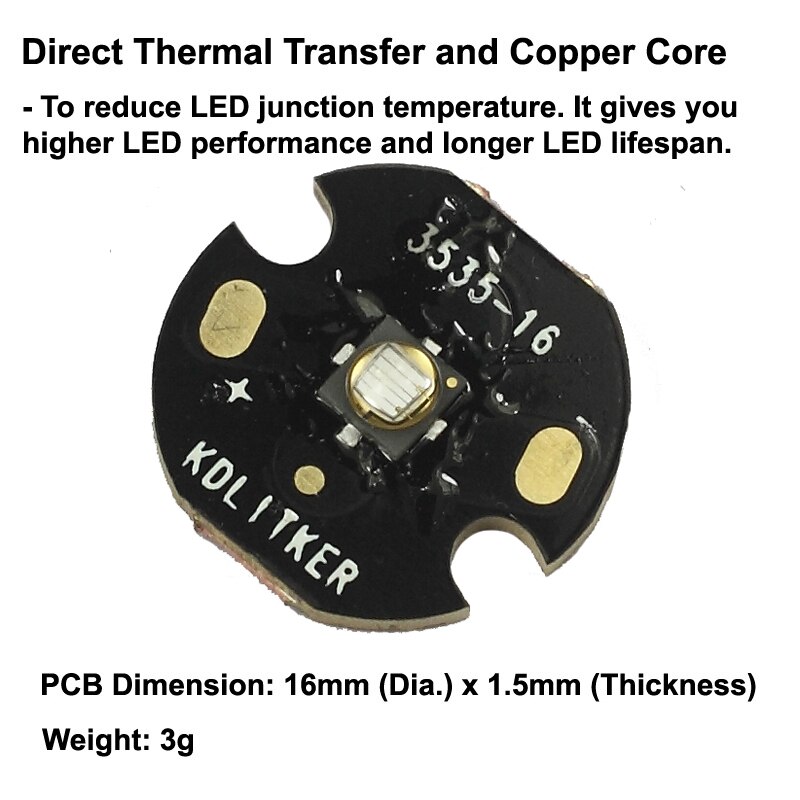

With KDLITKER DTP Copper MCPCB
Product Specifications:

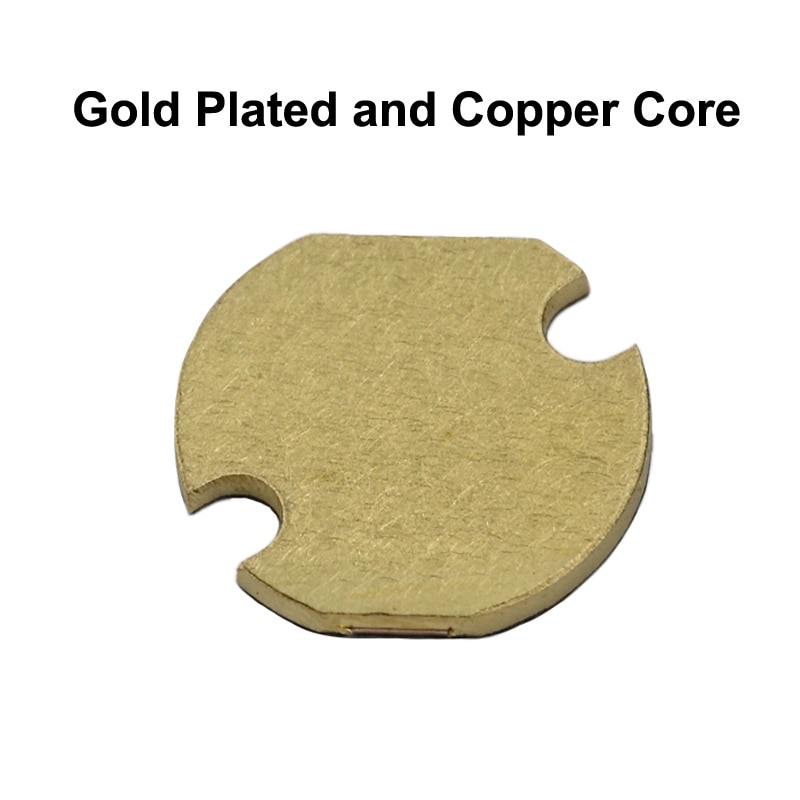

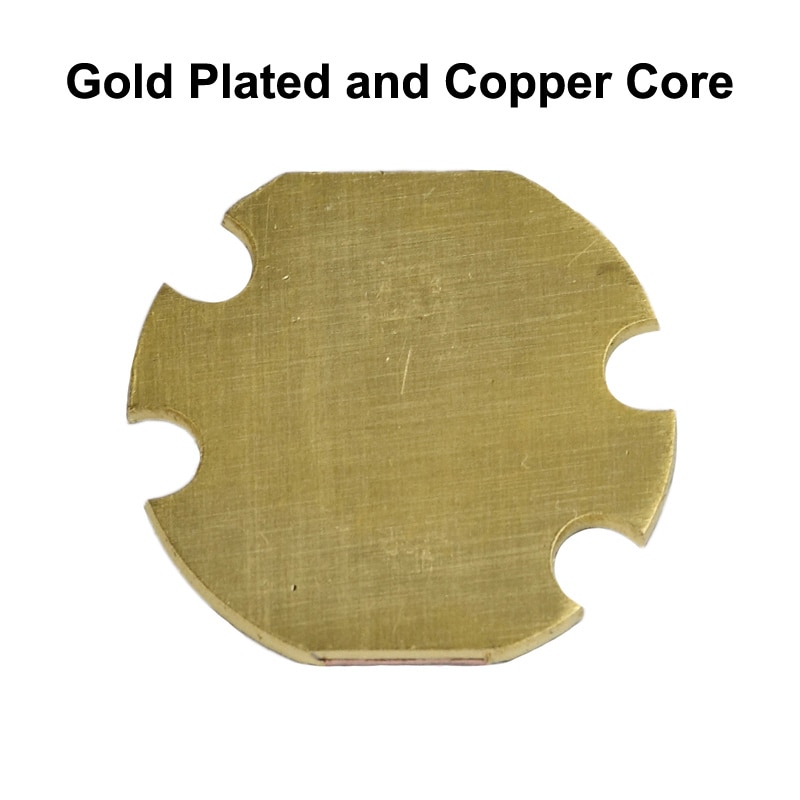

| Material: | Copper |

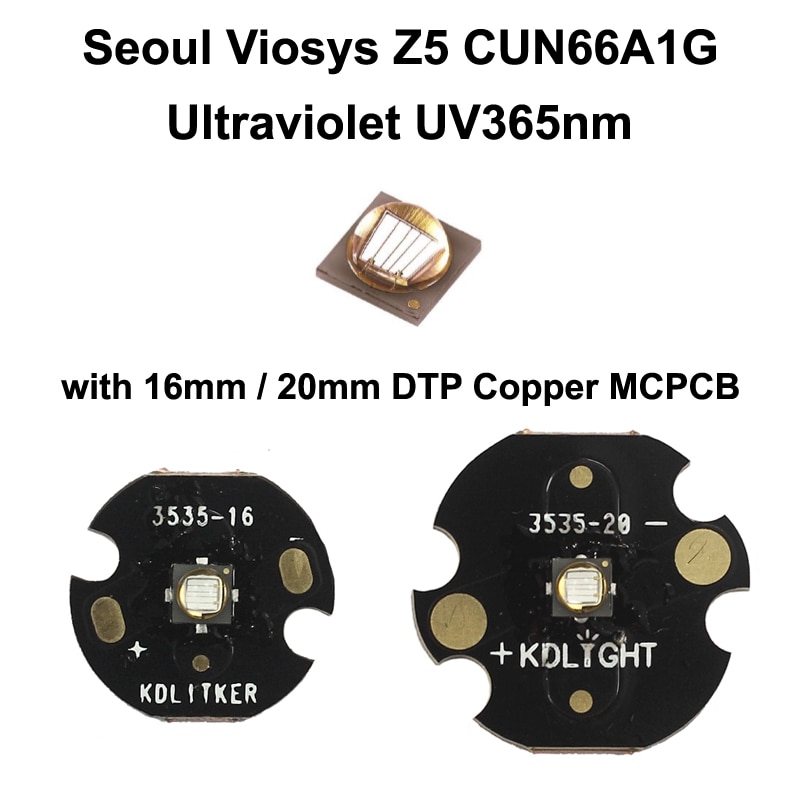

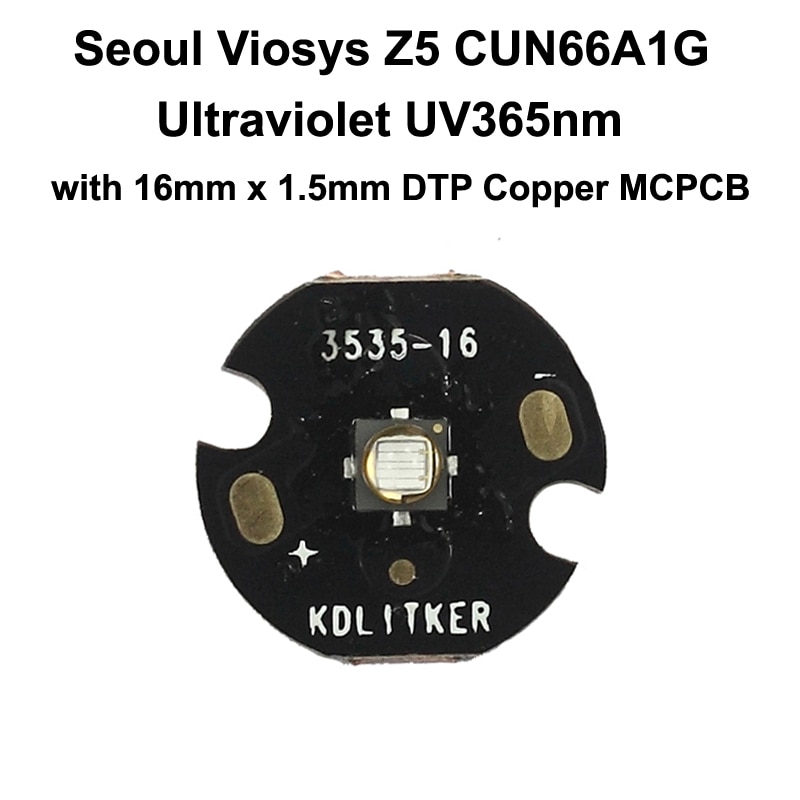

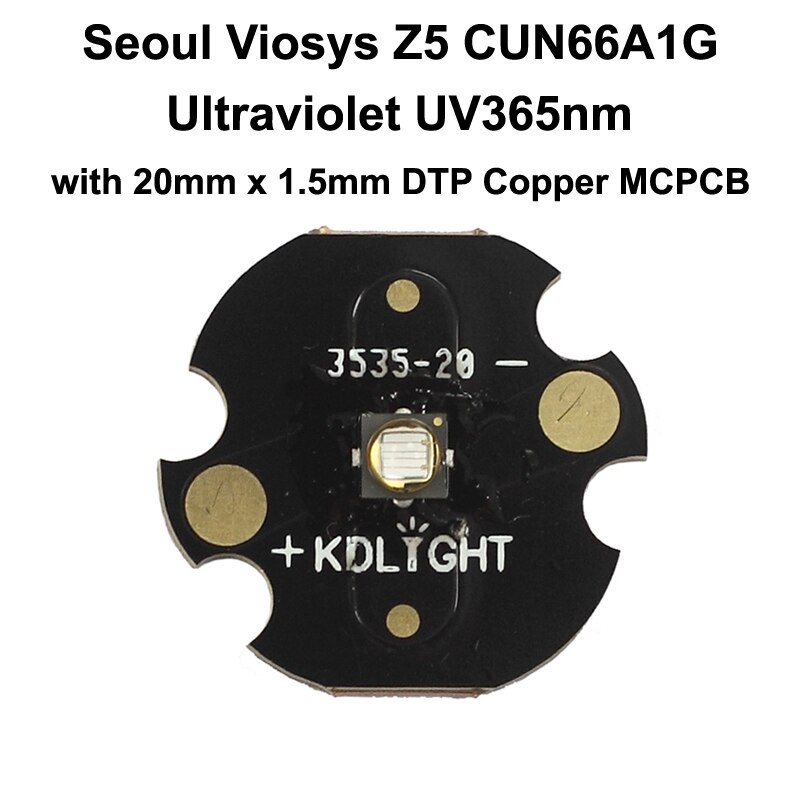

| LED: | Seoul Viosys UV 365nm CUN66A1G LED |
| Base Plate Dim.: |
10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (options) |
| Weight: | 5g |
| Package Content: | 1 x LED Star |
