Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: 532-80-3350-12V-GD
Specifications:
wavelength: 532nm
Power: 80mW
Input voltage: DC 12V
Laser Shape: DOT/LINE/CROSS
Focusable: Yes
Modulation: TTL
TTL modulation: 0-20KHz
Divergence angle: <1.2mrad
The circuits control: constant current
Fan Cooling
Operating Characteristics: Long time working
Laser Size: 50 (L) *33 (W) *33 (H)
Case Material: Metal
Finish Color: Black
Warm-up time: None
Operating temperature: 0 ~ 40℃
Storage temperature:-20℃ ~ 40 ℃
Reverse polarity protection: with automatically identify the positive and negative
Note:
Please avoid direct eye exposure to the laser beam and wear 532nm protection glasses when your operate this laser module. The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us!
Package:

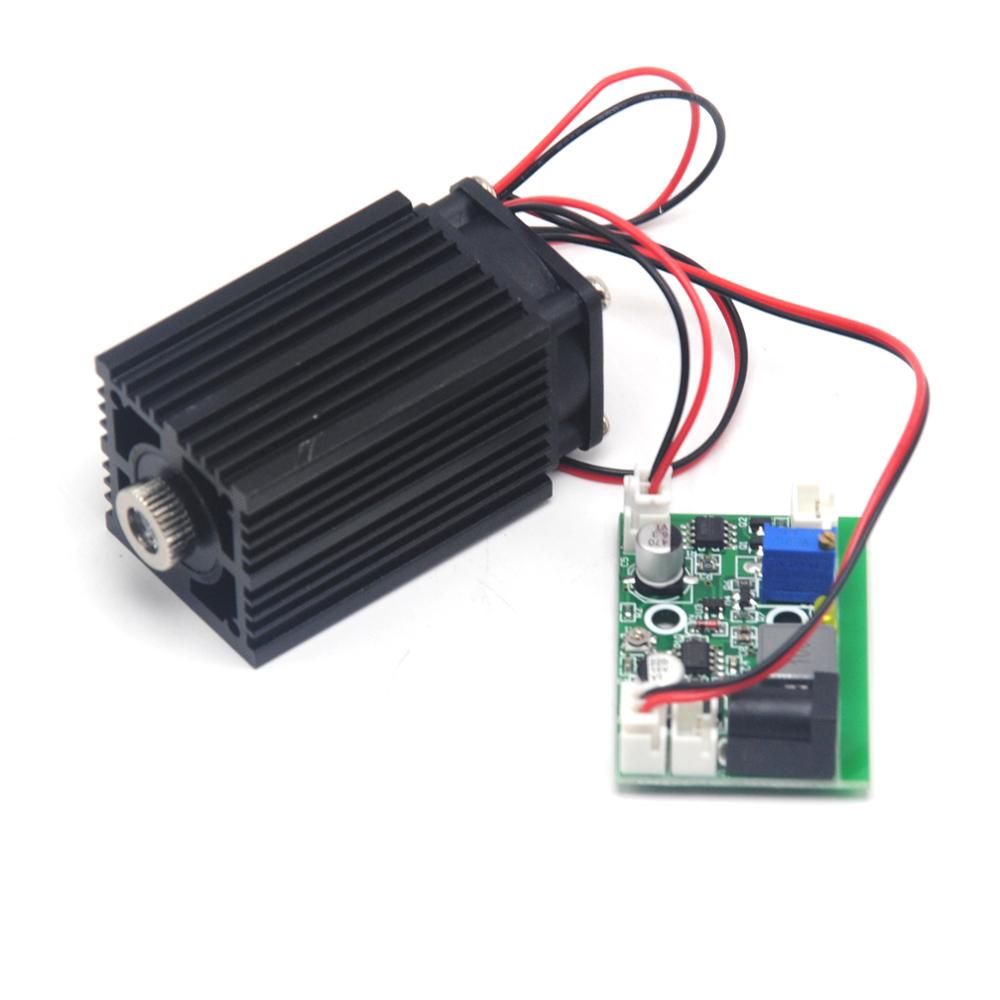

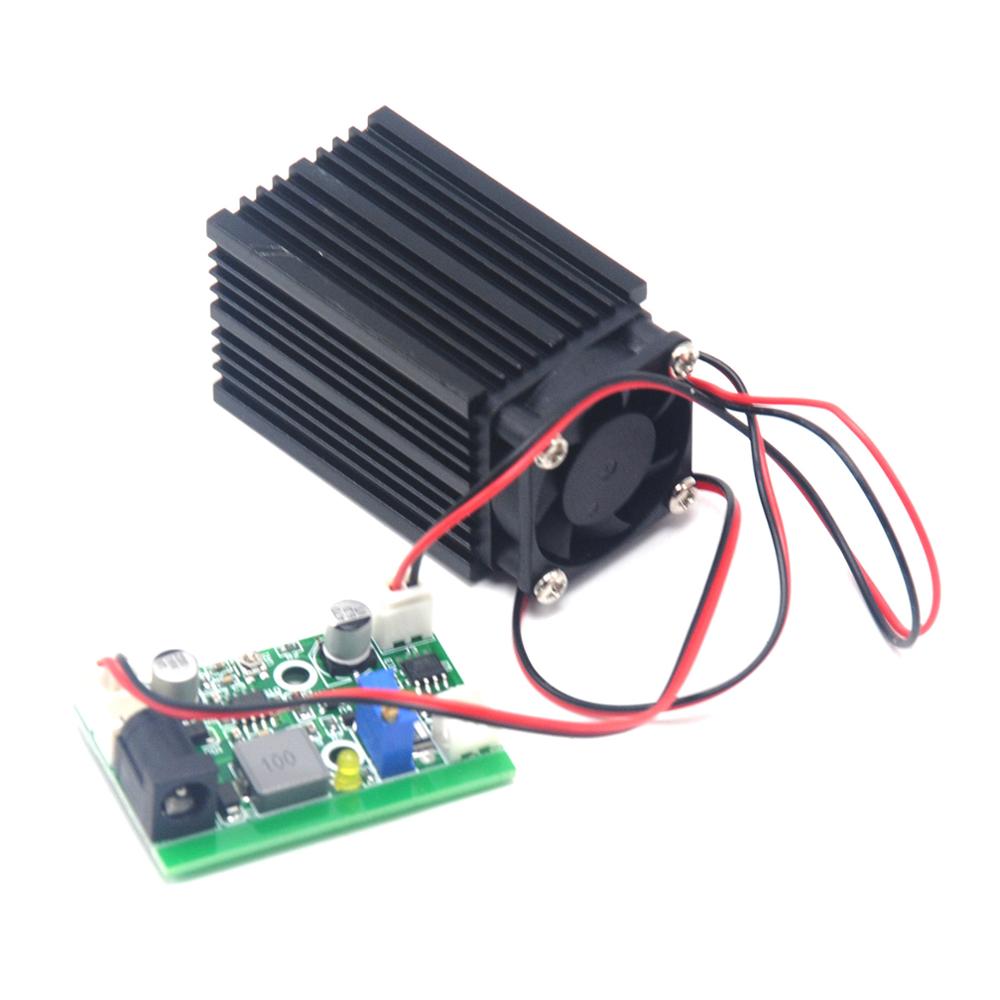

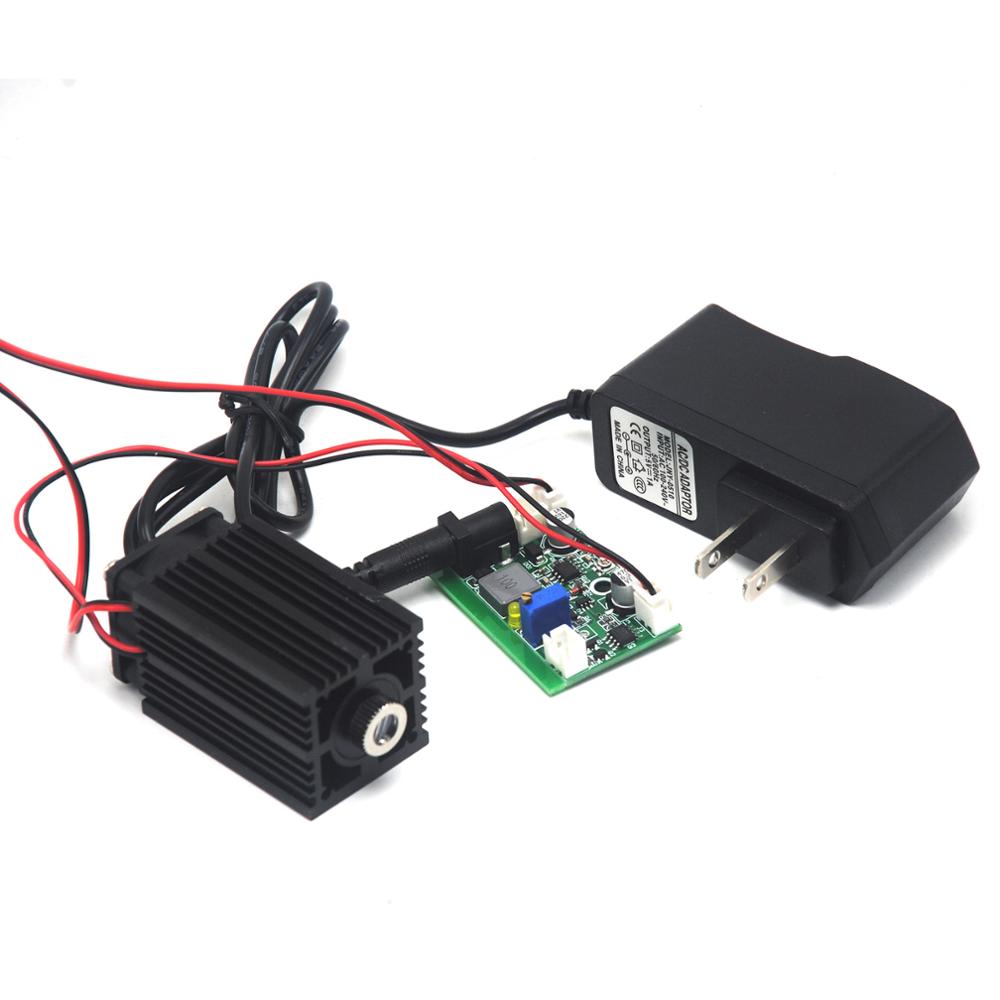

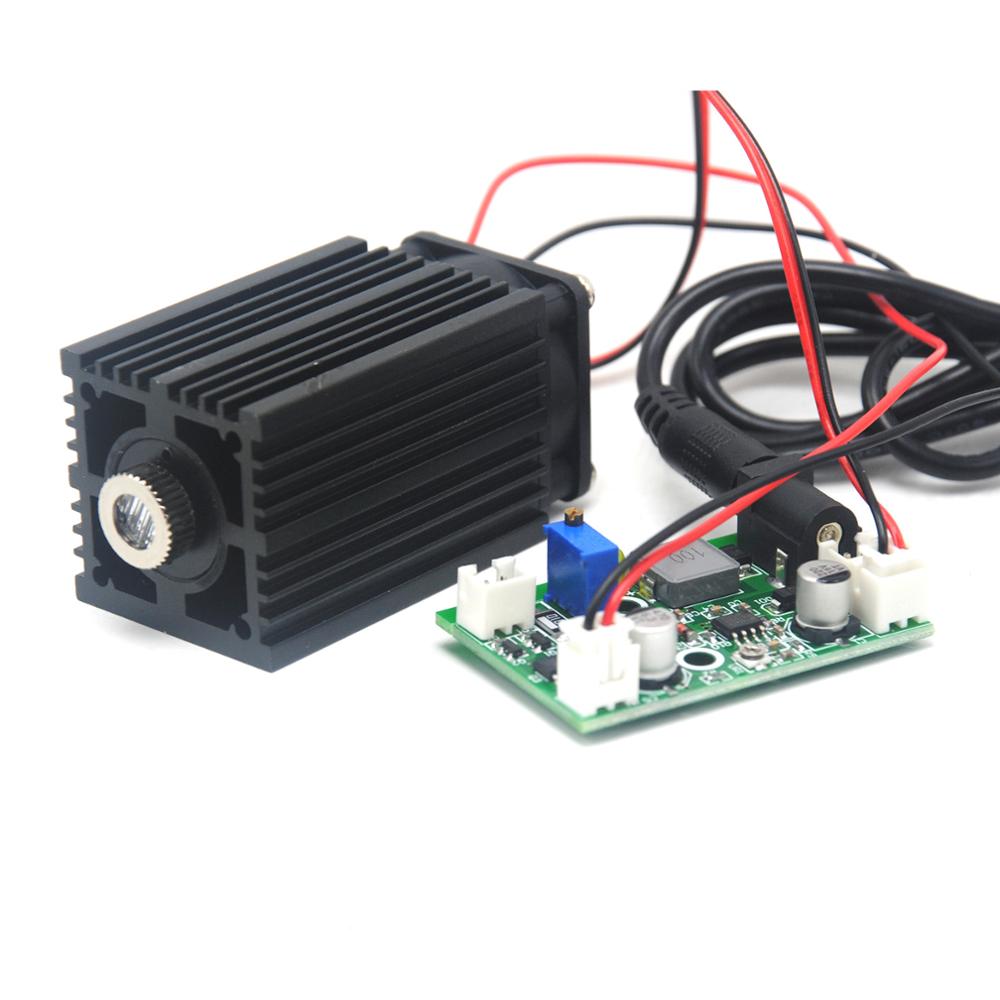

1 x 532nm 80mW Green Laser Diode Module Positioning Focusable 33*50mm Module 12V Driver TTL
