Description

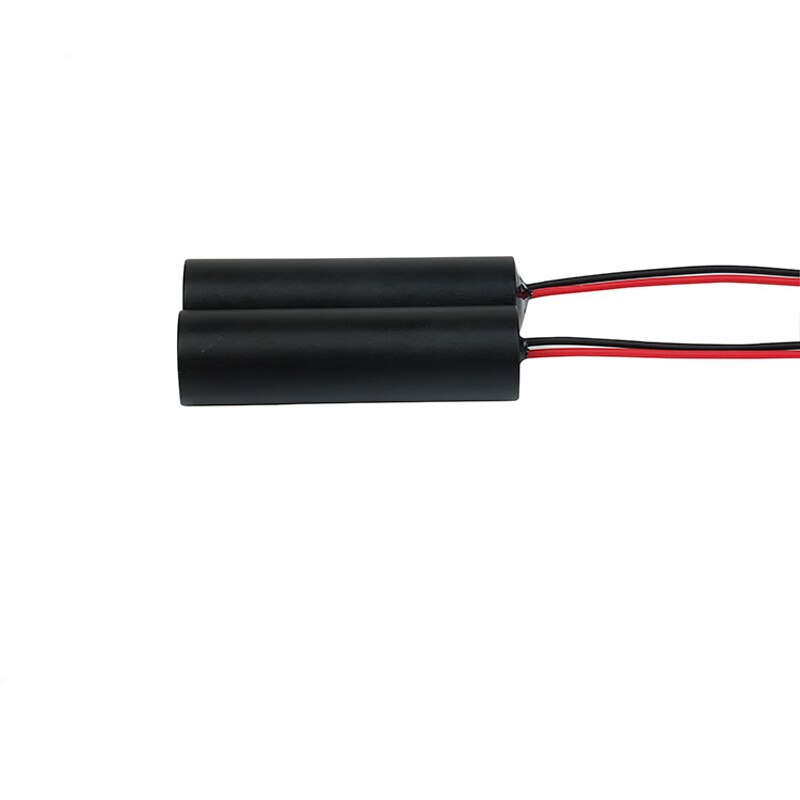

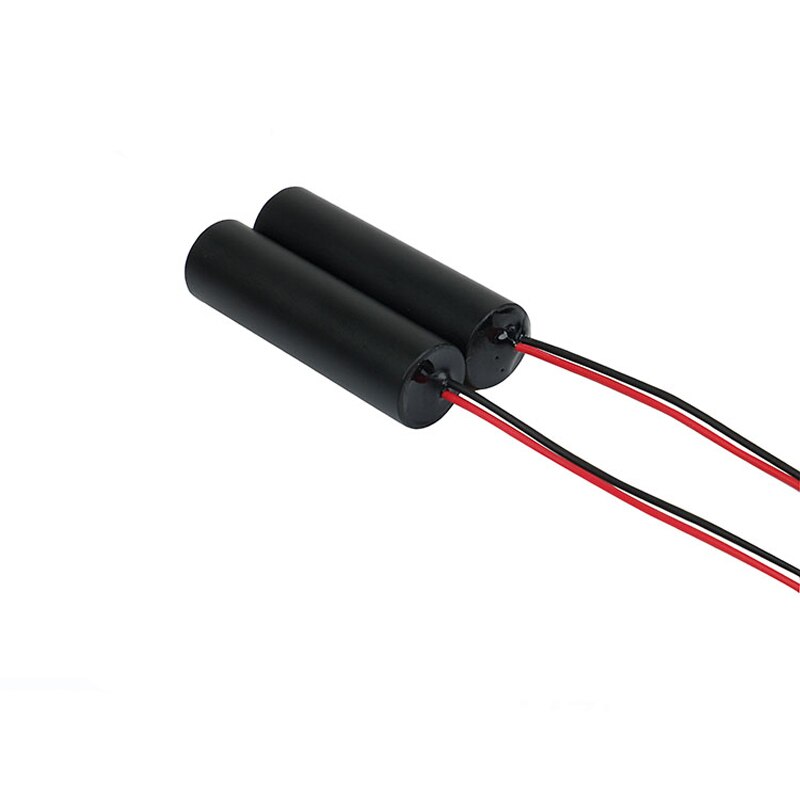

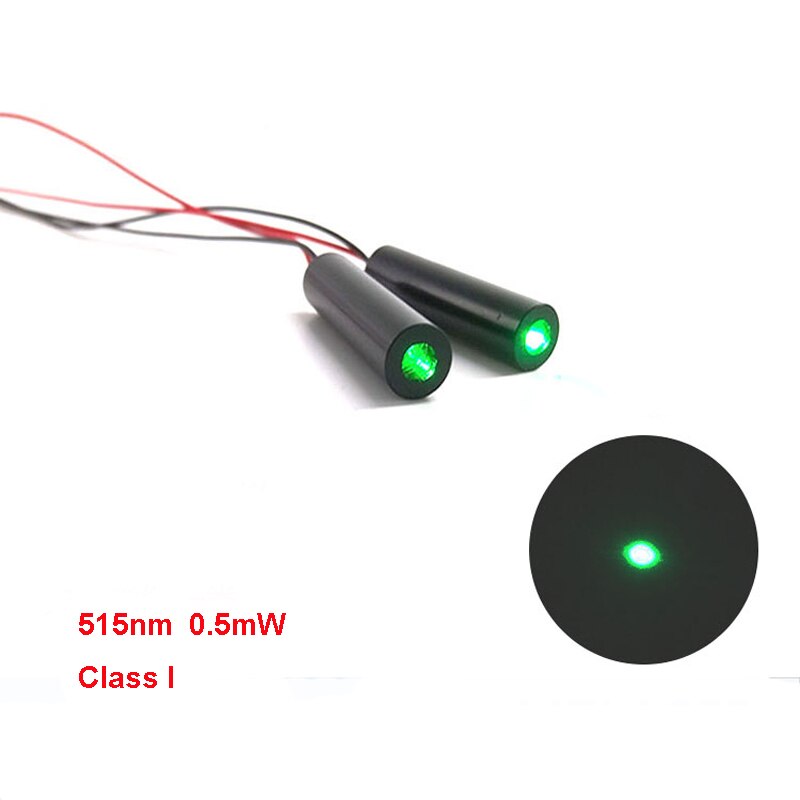

515nm 520nm 0.5mW Green Light Dot Laser Module
- Brand Name: Q-BAIHE
- Item Type: Stage Lighting Effect
- Power: 0.5mW
- Model Number: 515-520MD-0.5-0832-CAB
- Wavelength:: 515nm 520nm
- Output Power:: <0.5mW
- Operating Voltage:: 2.8-6.5V
- Operating Current:: 515nm<120mA 520nm <50mA
- Operating Temperature:: :-20°~ 60°
- Storage Temperature:: -40°~ 85°
- Size:: 8x32mm
- Mean time to failure:: >10000H
- Laser Safety:: Class I
- Divergence Angle:: <0.7mard
- Spot Size:: Less than 6x8mm at 10 meters
515nm 520nm 0.5mW Green Light Dot Laser Module Laser Diode Module Safety Laser Visible Laser Light
| Title： | 515nm 520nm 0.5mW Green Light Dot Laser Module DIY Safety Laser Visible Laser Light | ||
| Wavelength: | 515nm 520nm | Output Power: | <0.5mW |
| Operating Voltage: | 2.8-6.5V | Operating Current: | 515nm<120mA
520nm<50mA |
| Operating Temperature: | -20°~+60° | Storage Temperature: | -40°~+85° |
| Mean time to failure: | >10000H | Laser Safety: | Class I |
| Divergence Angle: | <0.7mard | Spot Size: | Less than 6x8mm at 10 meters |
| Lens: | PMMA | Size: | 8x32mm |
| Driver circuit: | APC | Housing Material : | Environmental protection aluminum parts |
| Package: | 1* Green Light Dot Laser Module | ||
