Description
- Brand Name: LanYuXuan
- Type: Hand Tool Parts
- Origin: CN(Origin)
- Place of Origin: Zhejiang, China
- Condition: New
- Warranty: 1 Year, one year
- After-sales Service Provided: Online support
- Spare Parts Type: Fiber coupled diode laser
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Hot Product 2022
- Brand Name: BrandNew
- Key Selling Points: Long Service Life
- Showroom Location: Canada, United Kingdom, United States, Italy, France, Germany, Brazil
- Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Printing Shops
- Weight (KG): 1 KG
- Wavelength: 915nm
- Keyword: Fiber coupled diode laser
- Power: 500W
- Fiber Connector: Bare end
- Color: Gold
- Function: laser marking
- Fiber Numerical Aperture: 0.22NA
Dear friends, welcome to my shop, if you need other models of this product, you can send me a message and I will send you the product link to buy it! If you have any questions about the product, you can add my whatsapp: +8615674995466, I will reply to you immediately
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#7a90b2;font-family:Roboto;font-size:24px;color:#7a90b2;background-color:#e3ecff;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{font-size:20px}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{font-size:18px}#detail_decorate_root .magic-9{font-size:16px}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:265px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:441px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:489.9267399267399px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:489.9267399267399px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:708.2142857142857px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:708.2142857142857px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:385.7142857142857px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:385.7142857142857px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:465.12430939226516px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:465.12430939226516px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:651.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:651.25px}
500W output power at 915nm center wavelength
200µm core diameter MM fiber
0.22 Numerical Aperature
Aiming Beam functions optional
Highly efficient, Highly stable
Superior beam quality, Long diode lifetime
Product Description
Item Name

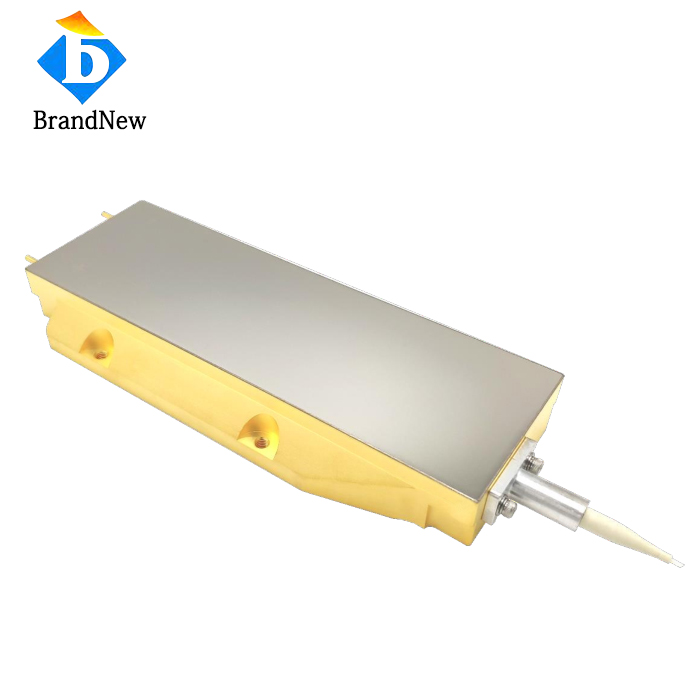

500W 915nm Laser Pumping Source Fiber Coupled Laser Diode Module
Feature
500W output power at 915nm center wavelength
200µm core diameter MM fiber
0.22 Numerical Aperature
Aiming Beam functions optional
Highly efficient, Highly stable
Superior beam quality, Long diode lifetime
Application
Laser cutting
Laser lighting
Laser engraving
Laser marking
Laser sourcing

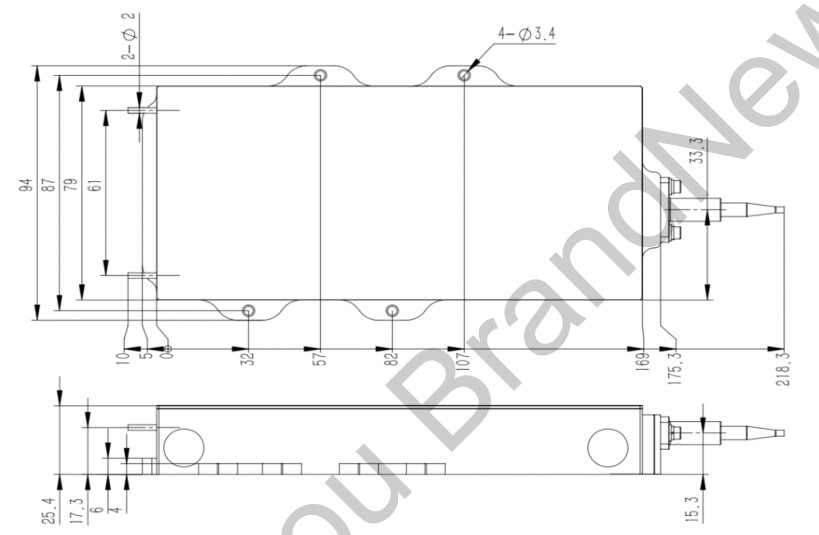

Specification
|
Optional
|
|
|
Center Wavelength λ
|
915nm
|
|
Wavelength Tolerance
|
±15nm
|
|
Output Power
|
500W
|
|
Fiber
|
|
|
Fiber Core
|
200um
|
|
Fiber Numerical Aperture
|
0.22NA
|
|
Fiber Connector
|
Bare end
|
|
Fiber Length
|
1.5m
|
|
Electrical
|
|
|
Operating Current Lop
|
1A
|
|
Threshold Current Lth
|
26A
|
|
Operating Voltage Vop
|
46V
|
|
Thermal
|
|
|
Operating Temperature
|
15~45℃
|
|
Storage Temperature
|
-30~70℃
|
|
Wavelength Temperature Coefficient
|
0.35nm/℃
|

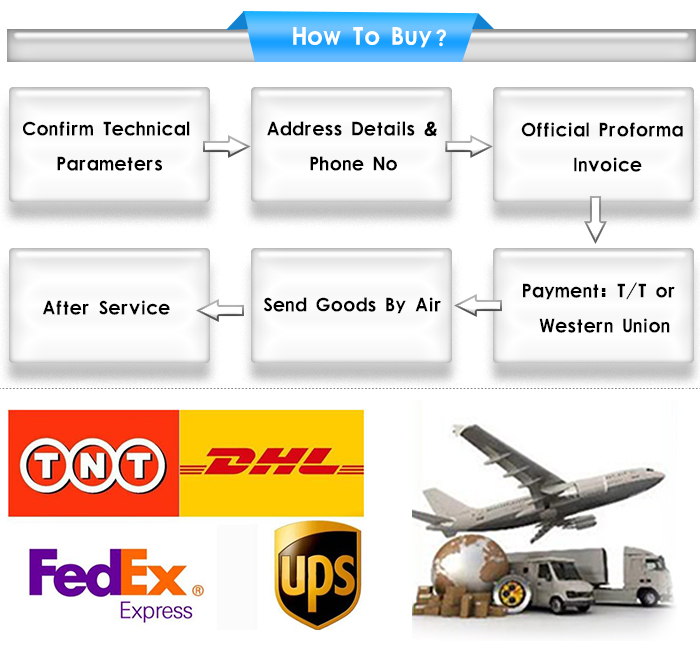

Packing & Delivery
Packing:
One set in a case(According to your request)
Delivery:
Normally 1-2 Weeks
FedEx，DHL Express, UPS, TNT
Payment Term:
T/T and Western Union, For your Choice
Return Policy:
Buyer Pay the Shipping Cost.
One set in a case(According to your request)
Delivery:
Normally 1-2 Weeks
FedEx，DHL Express, UPS, TNT
Payment Term:
T/T and Western Union, For your Choice
Return Policy:
Buyer Pay the Shipping Cost.
Certification

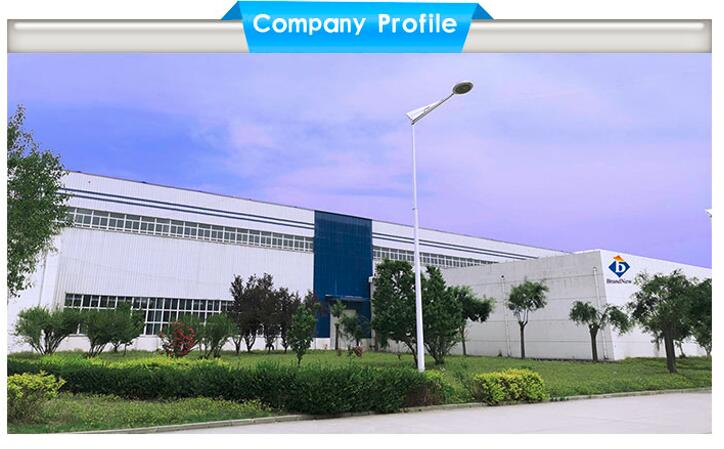

Our Company
Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, Professional Laser diode supplier, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array. Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing. Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Founded in 2011, Professional Laser diode supplier, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array. Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing. Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Core Competency
â—† Diode Packaging â—† Beam Shaping
â—† Reliability Testing â—† Efficient Cooling
FAQ
Q1: What is the lead time?
Standard products are all in stock. Shipping via Express within 3~4 working days. Customized stack need 15 working days.
Standard products are all in stock. Shipping via Express within 3~4 working days. Customized stack need 15 working days.
Q2: How about sample?
Our sample is not free.
Our sample is not free.
Q3: What about the return policy?
Buyer Pay the Shipping Cost.
Buyer Pay the Shipping Cost.
Q4: Have you tested all your products before delivery?
Yes, All products have been tested before delivery.
Yes, All products have been tested before delivery.
Q5: Do you offer guarantee for the products?
Yes, 12 months warranty to our products.
Yes, 12 months warranty to our products.
