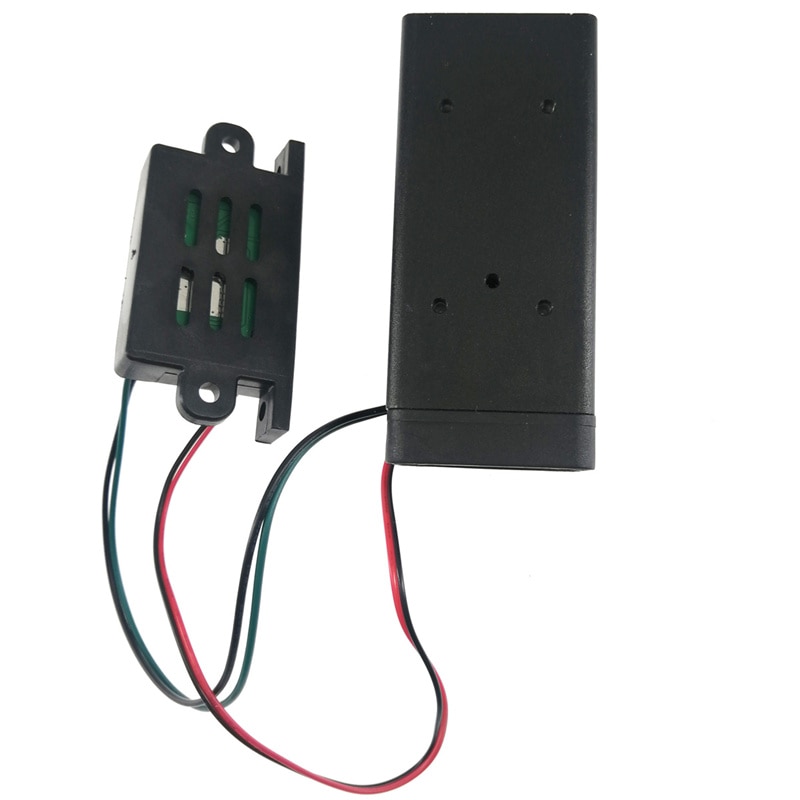

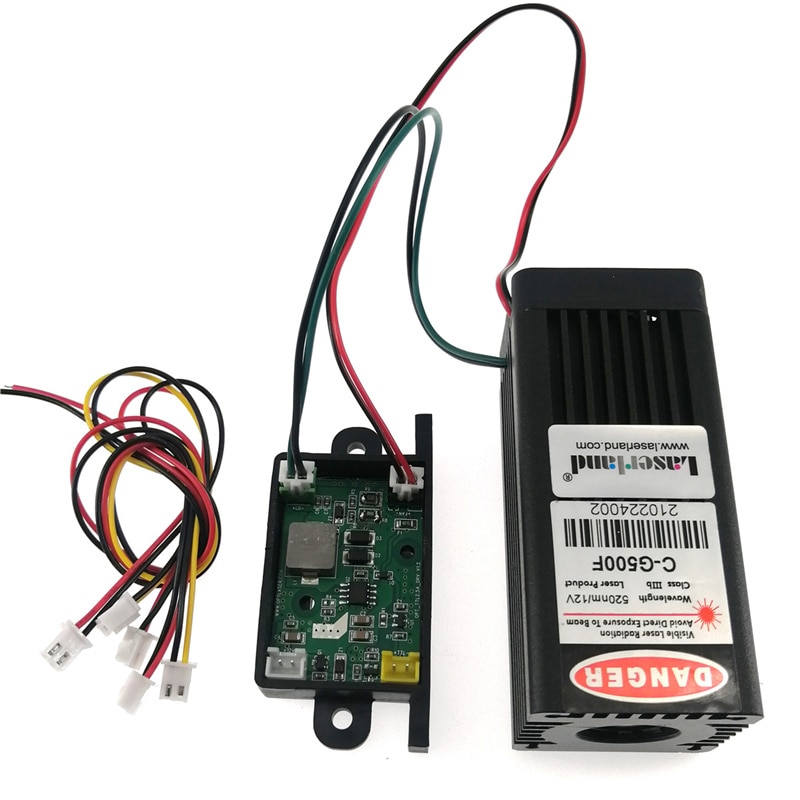

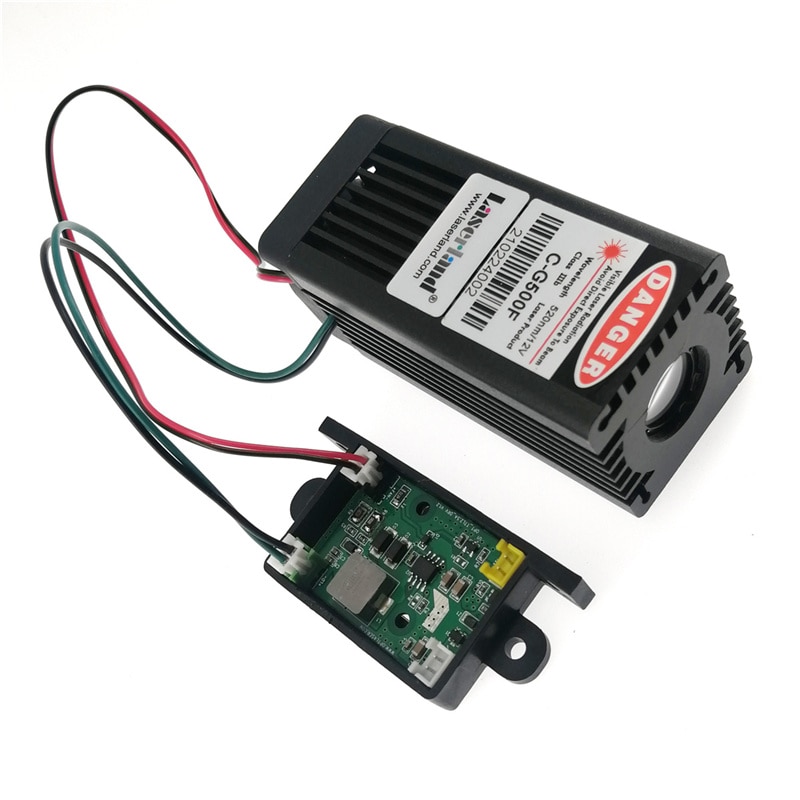

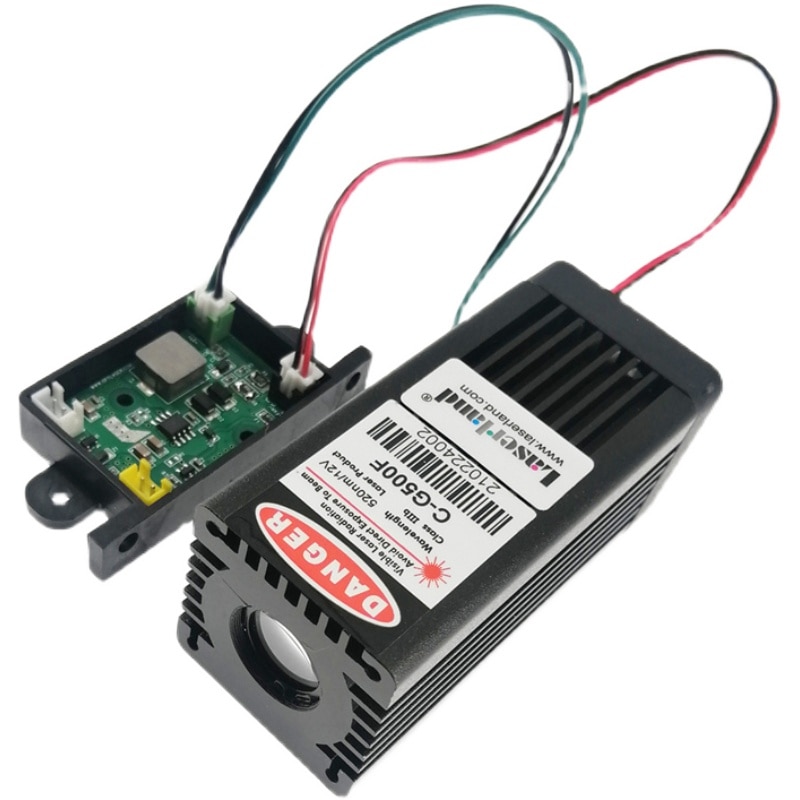

500mW Diode Laser Module 520nm Laser Module 14mm Fat Beam Green laser head Good Heat dissipation

$332.07

Brand Name: laserlands Certification: NONE Origin: CN(Origin) Style: Mini Model Number: 11051206 Occasion: Home Entertainment 序号 Name parameter 1 Wavelength 520nm 2 Output ≥460mW 3 Output stability ±5% 4 Security Level Class 4 5 Spot shape Long strip spot 6 Divergence ≤3mrad 7 Lens material Professional optical lens 8 wire length 250mm 9 Operating Voltage DC 12V 10 LD Input voltage…

10 in stock

SKU: 1005002310652747
Category:

Description

  • Brand Name: laserlands
  • Certification: NONE
  • Origin: CN(Origin)
  • Style: Mini
  • Model Number: 11051206
  • Occasion: Home Entertainment

序号
 Name
parameter
1
Wavelength
520nm
2
Output
≥460mW
3
Output stability
±5%
4
Security Level
Class 4
5
Spot shape
Long strip spot
6
Divergence
≤3mrad
7
Lens material
Professional optical lens
8
wire length
250mm
9
Operating Voltage
DC 12V
10
LD Input voltage
5V
11
LD Input Current
1.2A
12
Work Modulation
TTL
13
TTL Trigger method
(>DC 2.0V)
14
Working frequency
≤30KHz
15
Working temperature
-10~40℃
16
Size
40*40*60mm
17
Net weight
245g
18
Working Life
>8000hour





Features
1. Imported diode, with fine and clear spot, small divergence angle and good collimation
2. The temperature control, drive and laser are fully integrated, the structure is small and compact, and the external only needs DC power supply
3. After high and low temperature storage and vibration and shock tests, it has reliable stability. When the temperature is in the range of -20 to 70 degrees, it can work stably for 24 hours.
4. Precise and scientific heat dissipation design, two-way temperature control and perfect temperature protection function can extend the life of the laser as much as possible.
