Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±20%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: -20 -125℃
- is_customized: Yes
- Max. Operating Voltage: 2V
- Model Number: WTH118-1A
- Rated Power: 2W
Description:

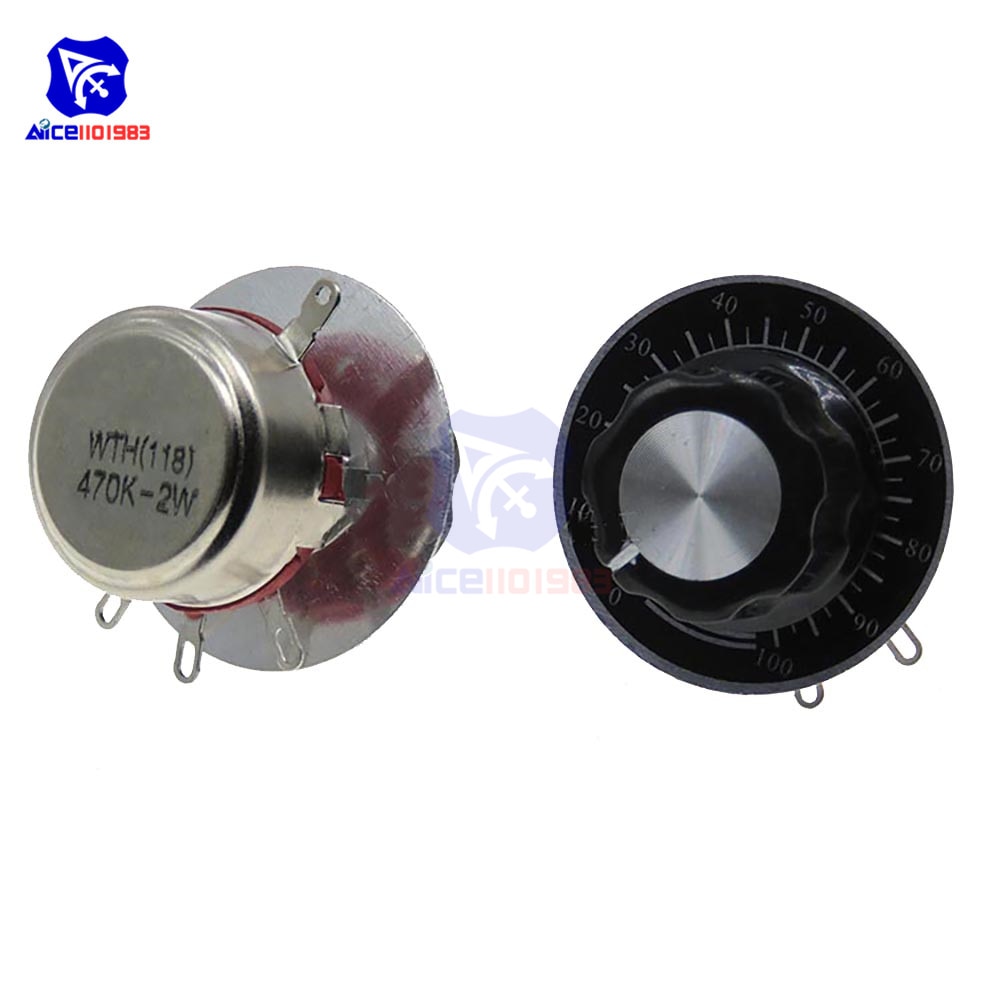

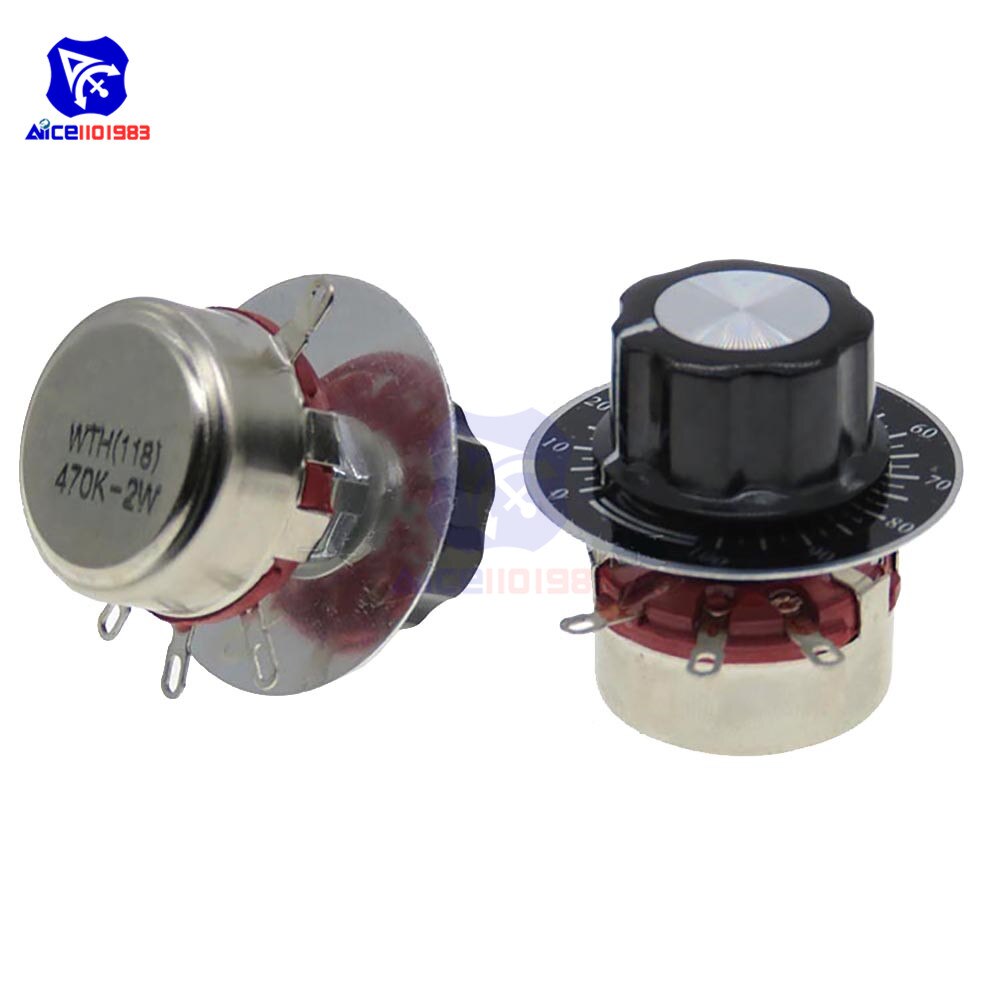

Product Name: Carbon Film Potentiometer
Model: WTH118-1A
Power: 2W

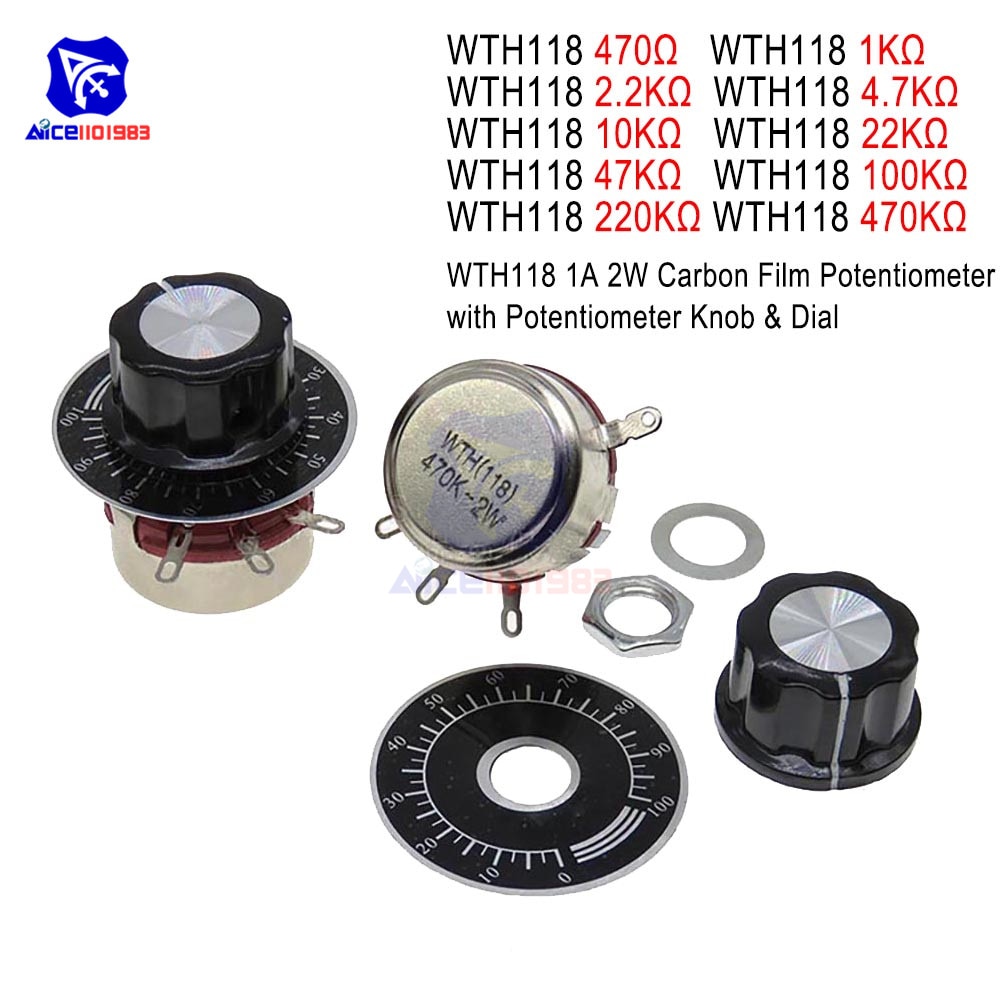

Resistance value: 470Ω, 1KΩ, 2.2KΩ, 4.7KΩ, 10KΩ, 22KΩ, 47KΩ, 100KΩ, 220KΩ, 470KΩ,
Number of revolutions: single turn (type B)
Adjustment type: top adjustment
Features: round shaft
Terminal number: 3

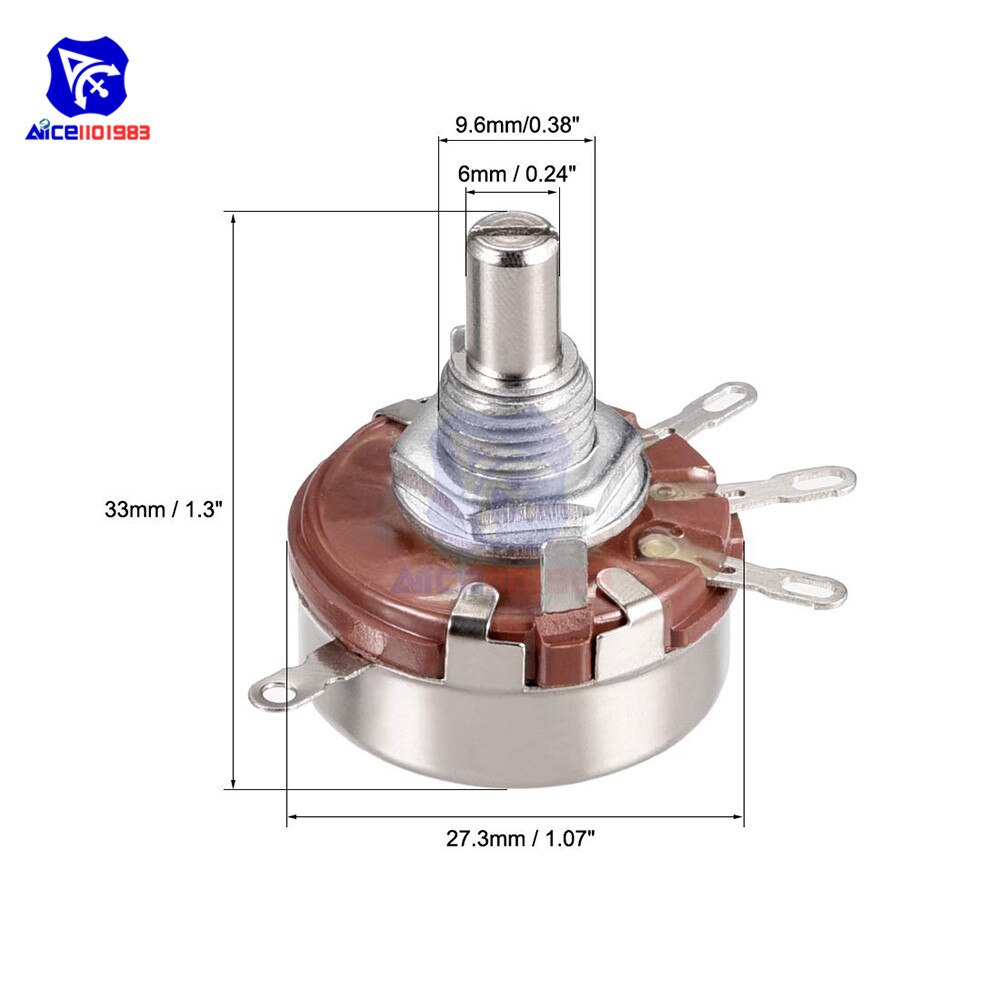

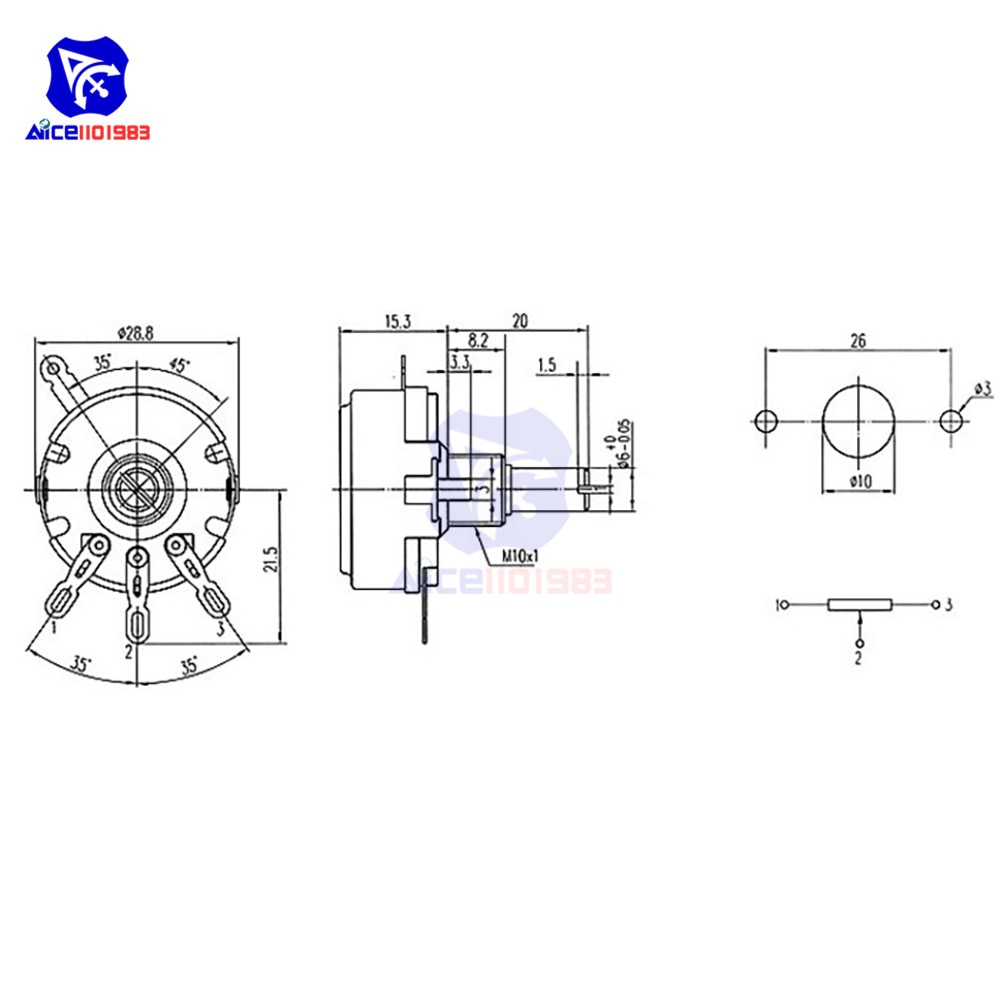

Body type: 28x 12.5mm /1.10’x 0.49′ (D * H)
Thread diameter: 8.6mm / 0.33′
Shaft diameter: 6mm / 0.24′
Shaft length: 9.5mm / 0.37′
Total length: 33mm / 1.3′
Color: Black, Silver tone

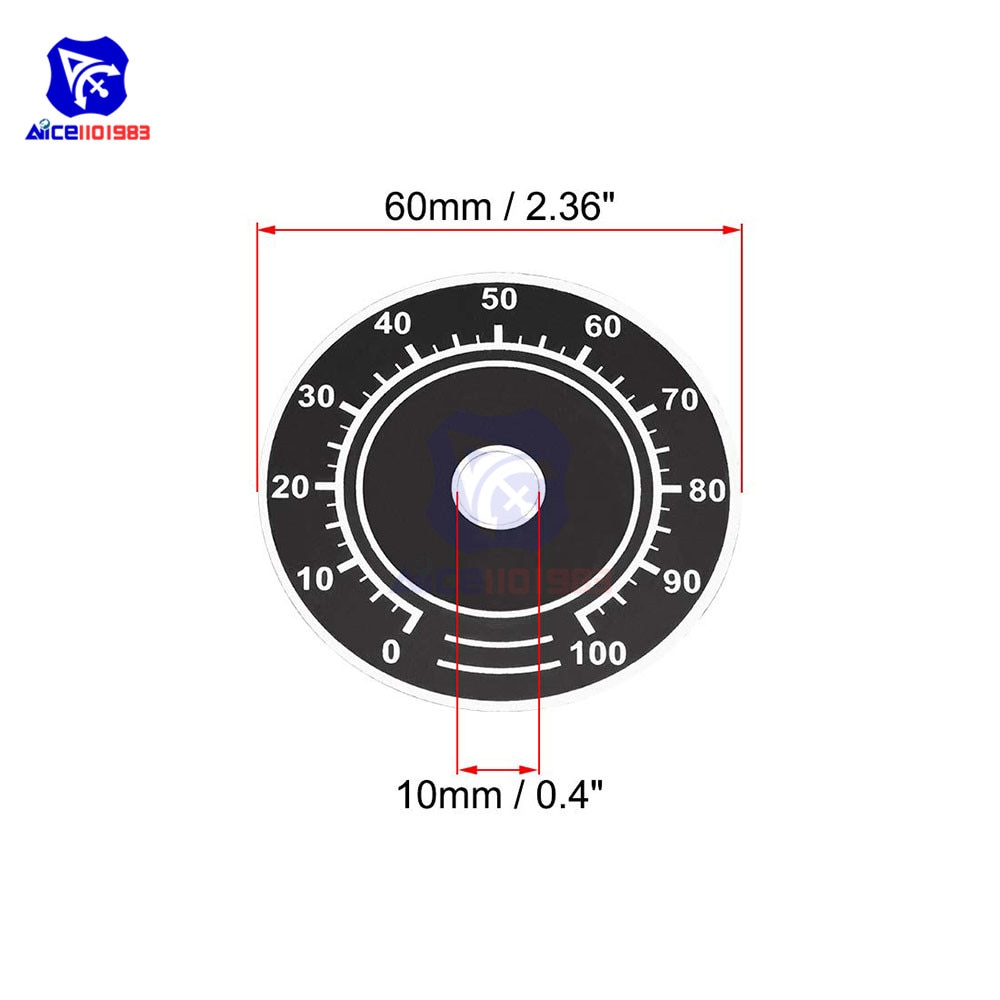

0-100 Potentiometer Dial

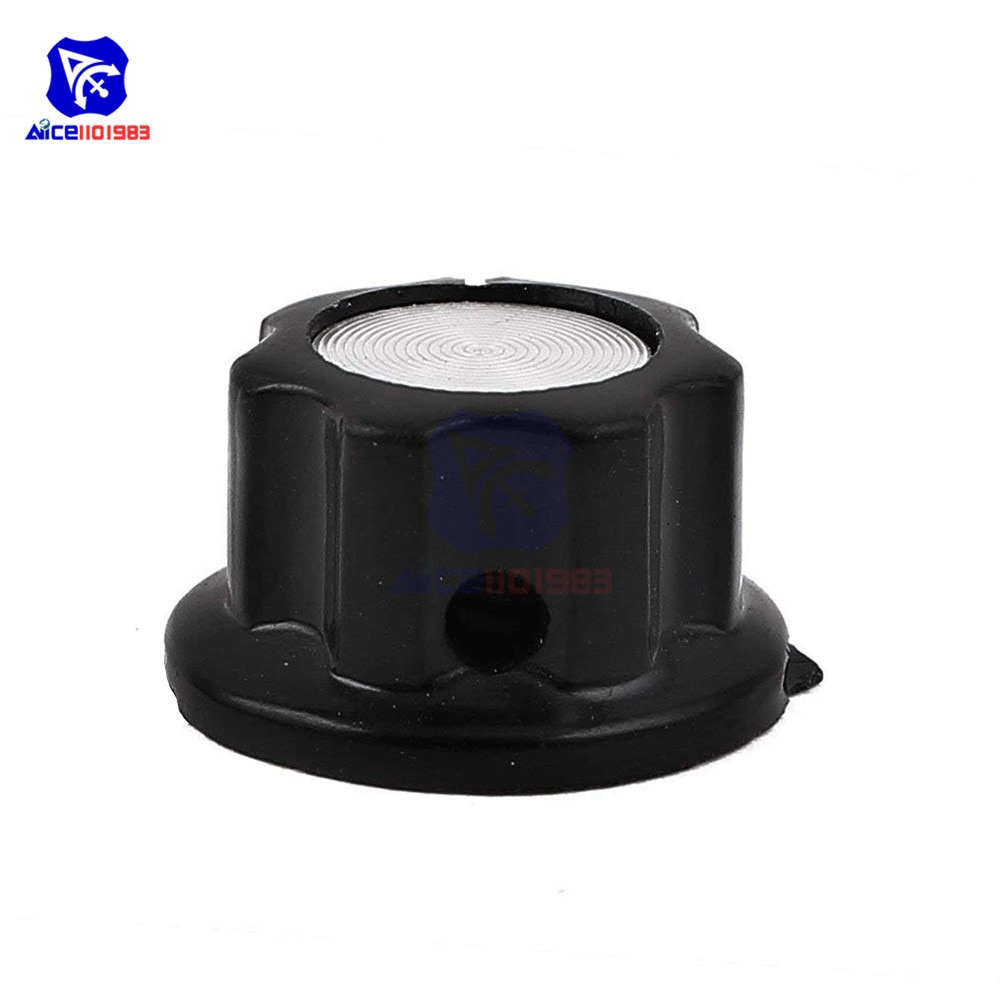

6mm Potentiometer Knob
