Description
- Brand Name: ZHONG HUA JIANG
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: 15000mW Blue Laser Module
- CNC or Not: CNC
- TYPE: 15W 450NM Laser Modul
- Function: for laser
- Power: 15w
- Wave length: 445-450nm (Blue-ray)
- Focal: can not be adjusted
ZHONG HUAJIANG 15W Laser Module High Power 15000mw Blue Color Laser Head DIY Metal Engraving 450nm Lasers DIY Laser Engraving Machine
Technical Parameters:
|
Material |
Hard Aluminum + Brass |
|
Operating Voltage |
DC 12V |
|
Wavelength |
445-450nm (Blue-ray) |
|
Output Power |
pulse 15W average 8W |
|
Working Current |
4-5A |
|
Focal length |
16mm( can not be adjusted) |
|
Operating temperature |
15 C ~ 45 C |
|
Size |
10 x 6 x 4.8cm |
|
Usage |
Carving stainless steel, anodized aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc. |
|
Can Engrave |
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/ |
|
Can Not Engrave |
Metal/Glass/PCB/Reflective Material/Transparent Material |
Features:
* Made of high quality hard aluminum and brass material, the surface is by anodized
and sandblasting ,not easy rust,very durable.
* One of the most powerful diodes available, upgrade your Wood engraver to a
Metal Marking Machine.
* It can mark metal and stone, cut wood, foam and other materials easily.

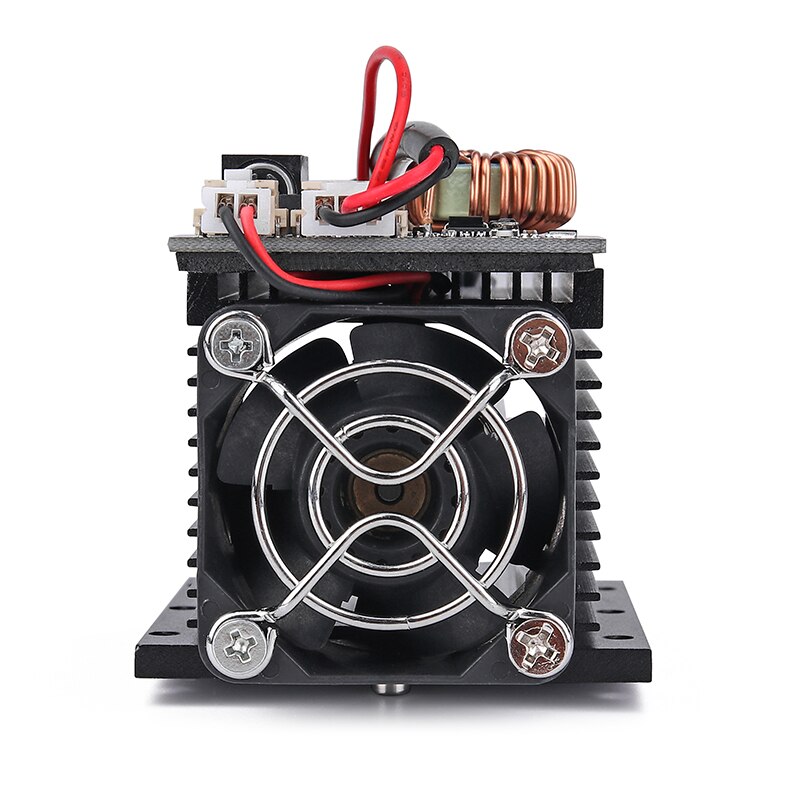

* With heat dissipation fan,make it with longer service life.
Note:
– Please wear the protective glass when you use the laser module.
– Do not touching the laser light directly in case that hurt the body and skin.
– Keep children and pets away from the laser module when it working.
– The Laser dot could not be adjusted, please make sure the distance between bottom of the
– Do not touching the laser light directly in case that hurt the body and skin.
– Keep children and pets away from the laser module when it working.
– The Laser dot could not be adjusted, please make sure the distance between bottom of the
laser module and engraving material is 16mm(Use the plastic column to do it).
Or it will influence the result.

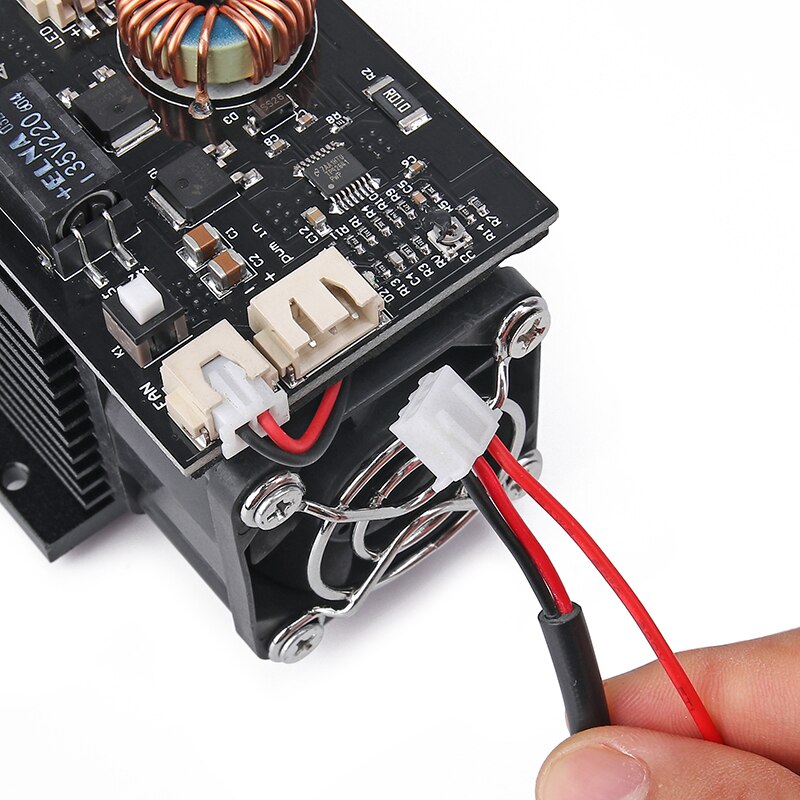

– Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,
– Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,
the yellow cord is Signal(S). Please make sure you know how to connect it.
Or it might damage the laser module!
– Any quality problem, please send a detailed video to us with a problem description.
– Any quality problem, please send a detailed video to us with a problem description.
Please DO NOT disassemble the laser modulewithout our permission,
or it might cause the damage. Thank you.
Package Includes:
1pcs 15w laser
1pcs glasses
