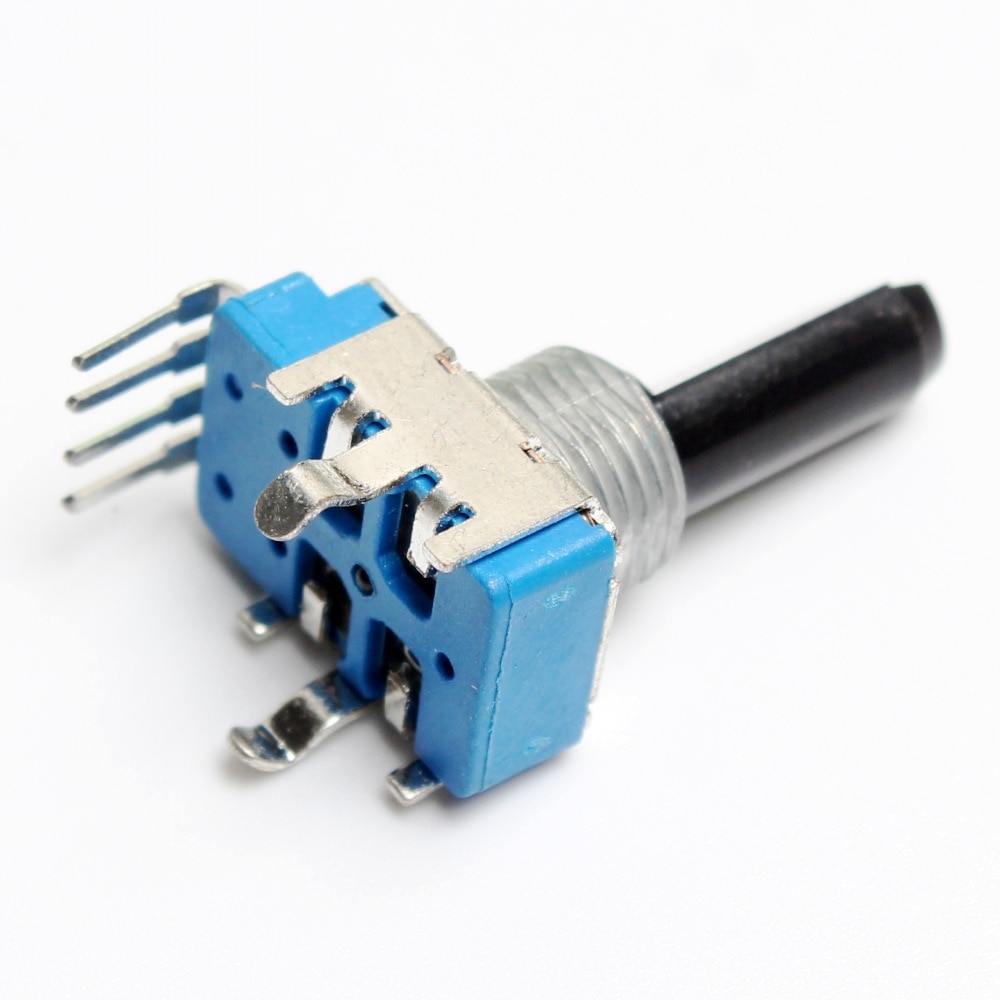

4 – Pin Volume Control Rotary Potentiometer 103 B10K 1K 5K 50K 100K

$1.62

Brand Name: DIKAVS Condition: New Resistance Tolerance: 20% Technology: Carbon Film Rated Power: 0.05W Type: Rotary Potentiometer Operating Temperature: N is_customized: Yes Max. Operating Voltage: N Model Number: 10K   Features:   Product Name Potentiometer Adjustment Type Top Adjustment Type Single Linear(Type B) Pin Terminal 4 Shaft Diameter D type Shaft Length 20mm / 0.7″ Thread Dia 7mm / 0.27″ Base Height 5mm / 0.2″…

SKU: 32878053251
Category:

Description

  • Brand Name: DIKAVS
  • Condition: New
  • Resistance Tolerance: 20%
  • Technology: Carbon Film
  • Rated Power: 0.05W
  • Type: Rotary Potentiometer
  • Operating Temperature: N
  • is_customized: Yes
  • Max. Operating Voltage: N
  • Model Number: 10K

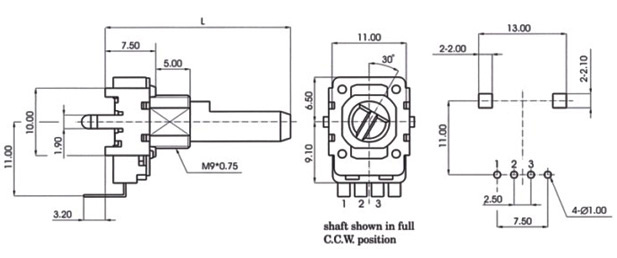

Features:


Product Name Potentiometer
Adjustment Type Top Adjustment
Type Single Linear(Type B)
Pin Terminal 4
Shaft Diameter D type
Shaft Length 20mm / 0.7″
Thread Dia 7mm / 0.27″
Base Height 5mm / 0.2″
Base Size 16 x 12mm / 0.63″ x 0.47″(L*W)
Material Metal w Electronic Parts
Weight 5g
Package 1 x Potentiometer
Description:
Top adjustment type and D shaft for easy operate in daily use time.
Main used to control electrical devices such as volume controls on audio equipment.
