Description

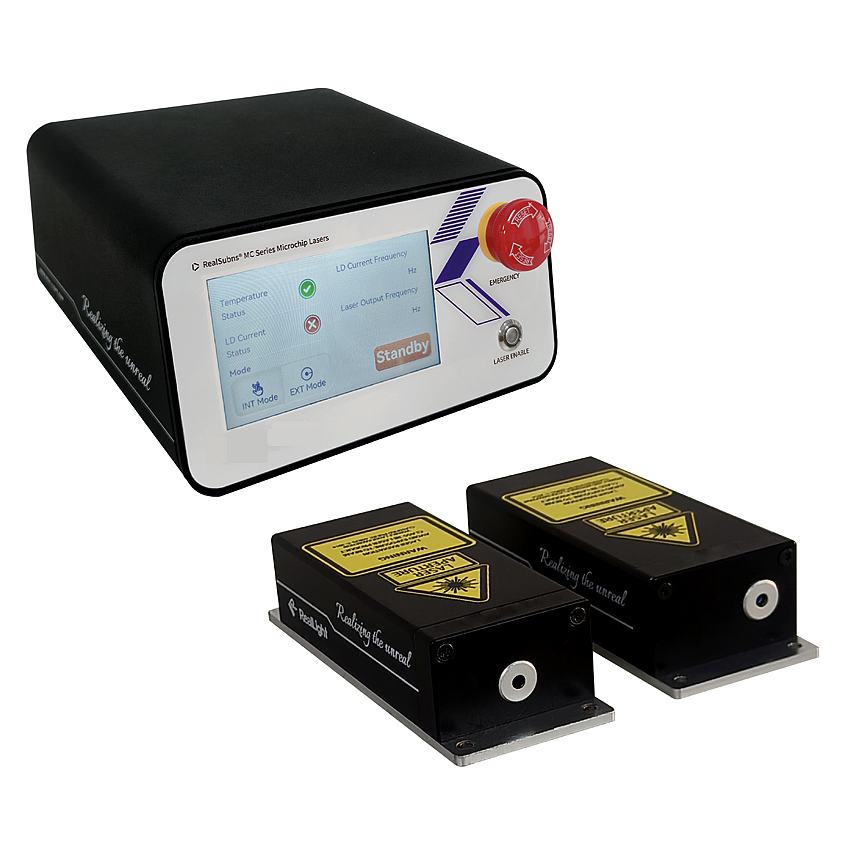

355nm 750ps picosecond passively Q-switched diode-pumped solid-state lasers Single pulse energy up to 120μJ

Download the datasheet

Single pulse energy up to 120μJ
Repetition rate up to 10kHz
Spatial mode TEM00
Polarization-stable
A wide range of wavelengths

Parameter 355nm
Repetition rate (kHz) 1*, 5*, 10*, 20*
Average power (mW) 50, 50, 40, 30
Pulse energy (μJ) 30, 10, 5, 3

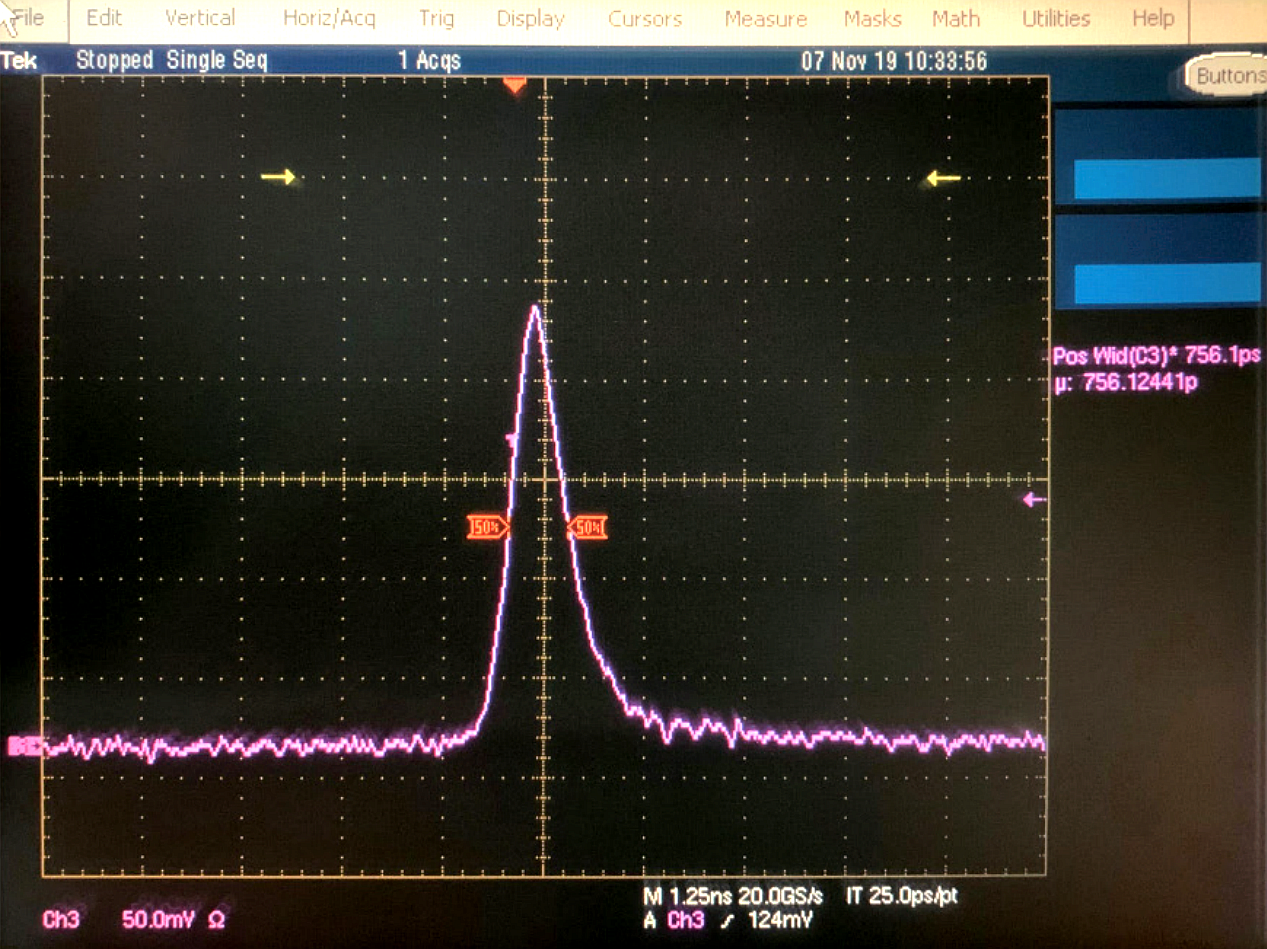

Pulse width (ps) 1500, 1200
Power stability (RMS, @8h) <3%
Beam profile TEM00​
Beam full divergence (typ., mrad) @1/e² Horizontal: 5; Vertical: 5
Polarization ratio >100:1

Applications:
Seed laser
Micromachining
Pump source for optical parametric oscillators
Laser-induced breakdown spectroscopy (LIBS)
Laser-based ultrasound detection
Laser ionization mass spectroscopy (LIMS)
Laser ranging
Laser-induced fluorescence (LIF)
Laser ultrasonic imaging
Laser ablation
Nonlinear optical measurement
