350A 380-780nm flux meter Portable Lumen Led photometric Testing Equipment everfine spectrometer

  • Home
  • 350A 380-780nm flux meter Portable Lumen Led photometric Testing Equipment everfine spectrometer
Sale!

350A 380-780nm flux meter Portable Lumen Led photometric Testing Equipment everfine spectrometer

$3,773.00

1000 in stock

SKU: 1005003767643785 Category:

Description

  • Brand Name: LanYuXuan
  • Certification: CE
  • Origin: CN(Origin)
  • Warranty: 24m
  • Customized support: OEM, ODM
  • Place of Origin: Guangdong, China
  • Brand Name: NAPUI
  • Model Number: 350A
  • Size: 138.5* 81*23mm
  • Weight: 0.43kg
  • Focal Length: 42mm
  • Wavelength Range: 380-780nm
  • Display screen: 5′ HD IPS LCD
  • Wavelength accurate: ±0.5nm
  • Optical device: Optical fiber and integrator
  • CCT range: 1,000K~ 100,000K
  • integration time: 50μs~10000ms
  • Certification: IECEE

OHSP-350A Luminous flux Version, Cancelled the illuminance (LX) parameters and add the luminous flux (LM) parameters on the basis of the quintessence, MD8 interface, with 485 communication functions.

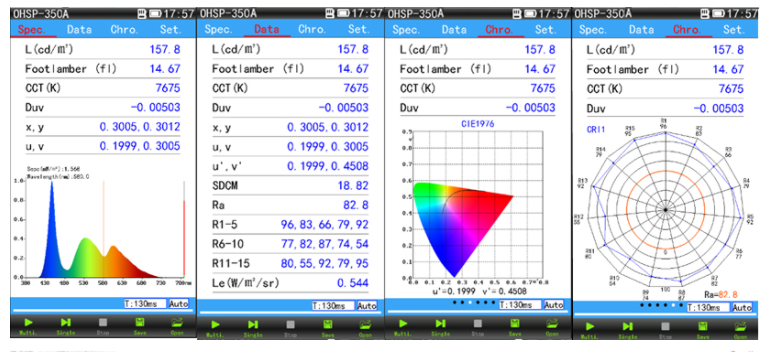

Measuring Parameters

1. CCT Tc (K) and blackbody deviating Duv.
2.Luminous flux (LM), radiation flux (W) and light effect (lm/W).
(need to manually enter the light source power when using machine).
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’).
4. relative spectral power distribution P (lambda).
5. color rendering index Ra, Ri (i=1 ~ 15).
6. color tolerance (SDCM, CIE and Macadam rectangle u ‘V’ round).
7. Dominant wavelengths, peak wavelengths.
8. light and dark visual ratio S/P.
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z.
10. more functional parameters can be customized.

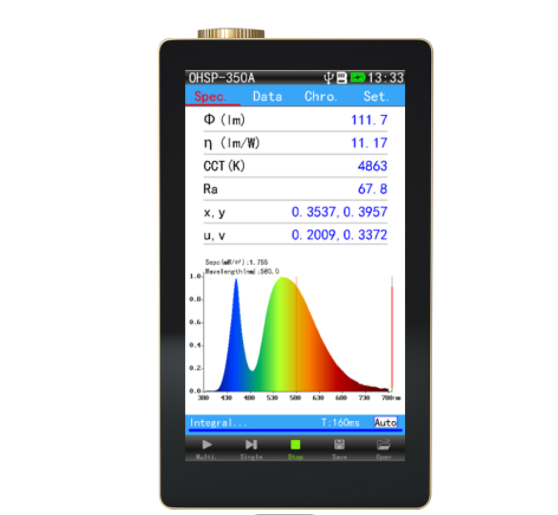

Front front panel and display interface diagram

1. Metal alloy shell  2. 5.0″Touch screen  3. Device status bar

4. Menu bar  5. Data display area  6. Graphic display area  7. Test state display area

8. Keystroke operation area  9. Metal alloy rear cover 10. Rear cap screw hole


11. Nameplate  12. Light guide fiber
