Description
343nm 15W 500fs femtosecond laser adopts our own solid-state amplification solution . The standardized version of the laser can provide an average power of 30W, pulse duration less than 500fs, and a single pulse energy of 30μJ at maximum, which can achieve 500kHz-1MHz. The repetition frequency is continuously adjustable, the power fluctuation is less than or equal to 1% in 24 hours, it supports external harmonic generator, and outputs 343nm ultraviolet wavelength light, the whole system comes standard with burst function, supports 1-10 burst outputs.

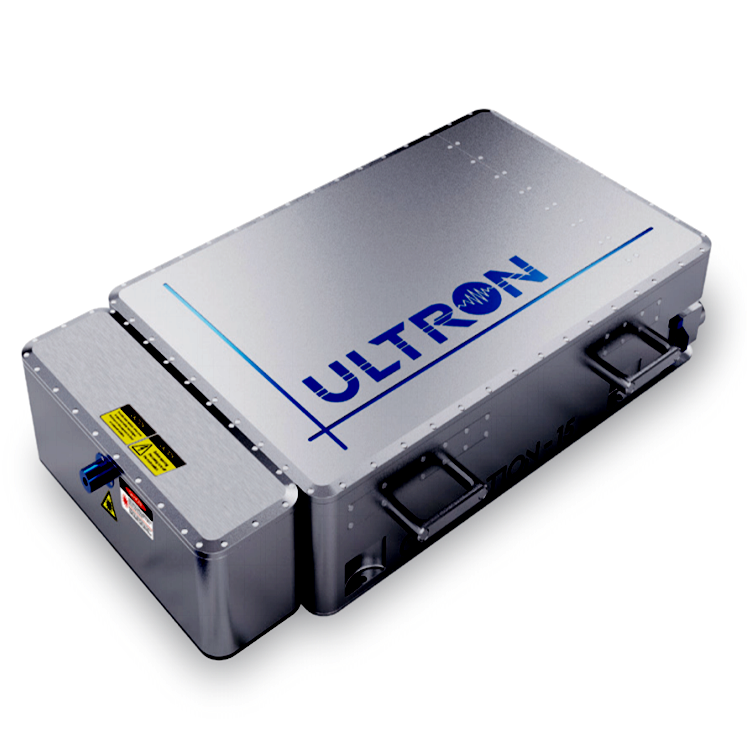

343nm Femtosecond pulsed laser 15W Output Power 500fs femtosecond laser

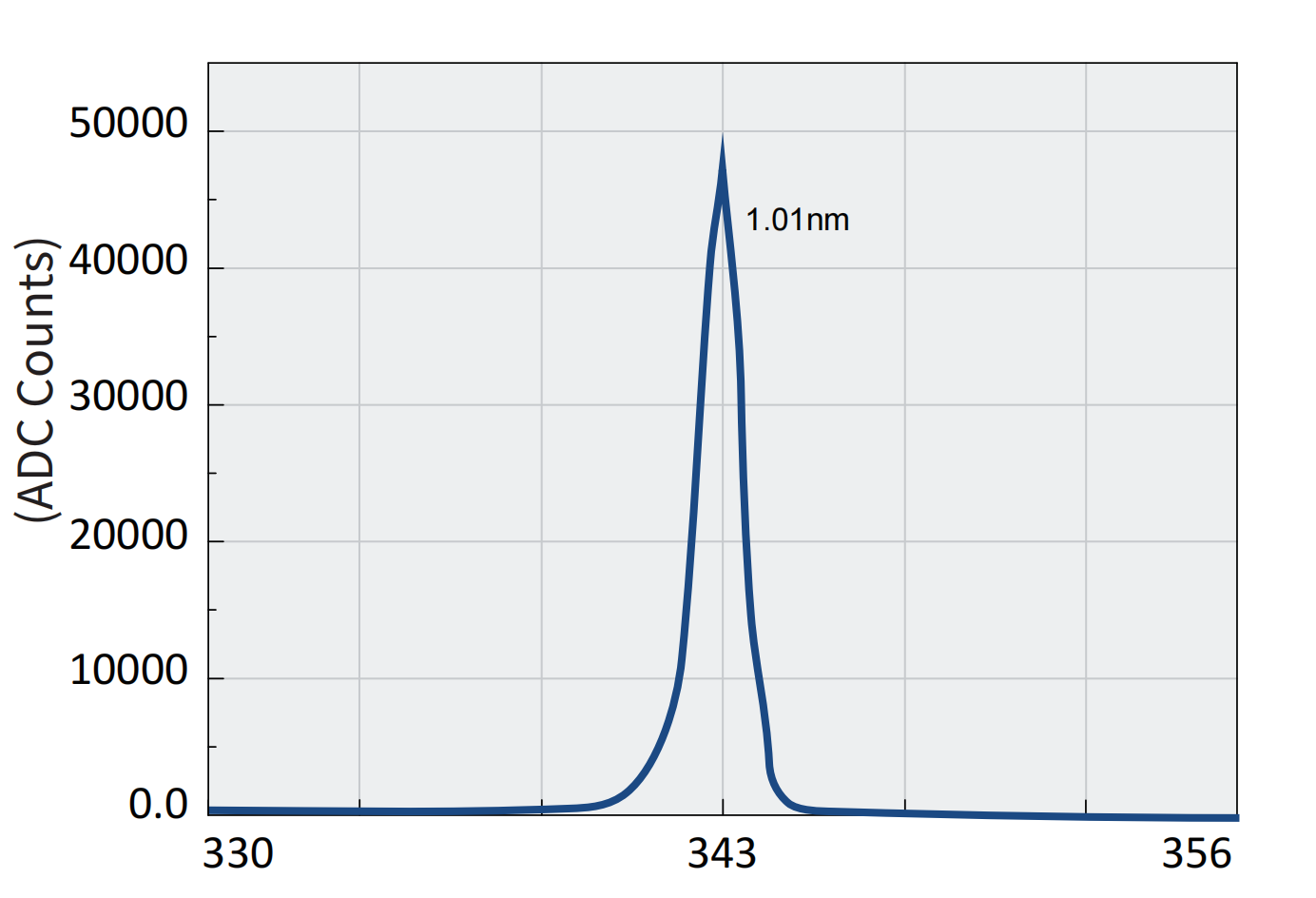

Wavelength: 343nm±3nm
Pulse duration: <500fs
Maximum average power: 15W
Repetition rate: 500kHz-1MHz
Maximum single pulse energy: 30μJ

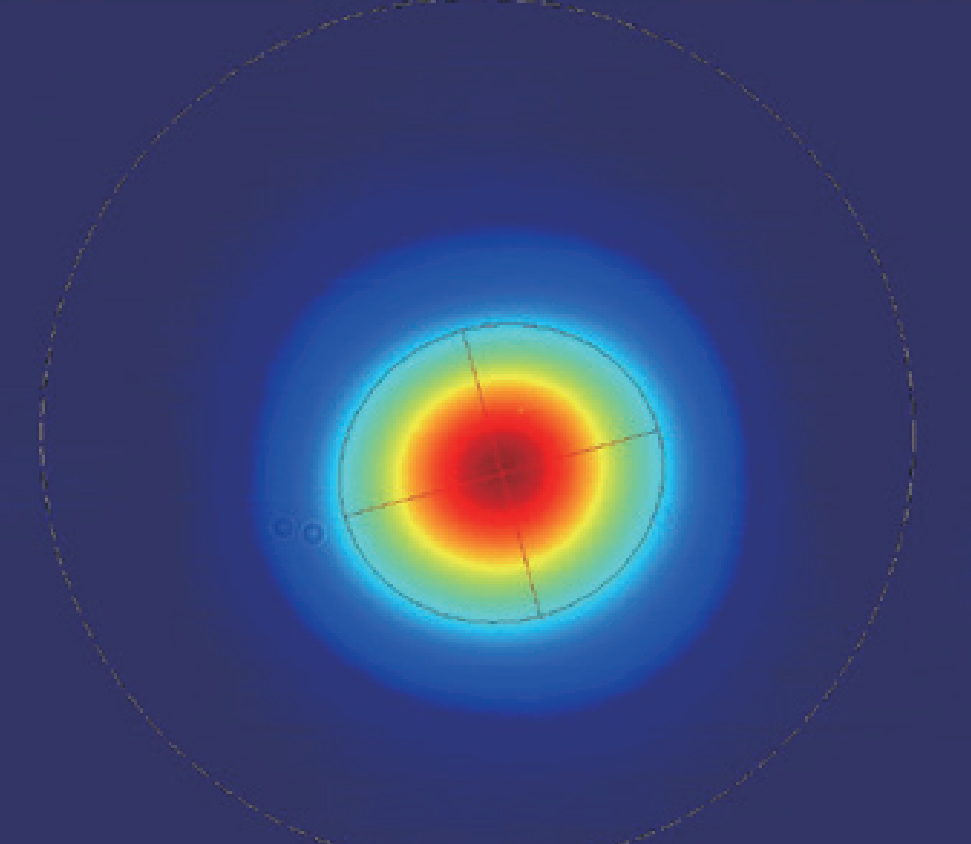

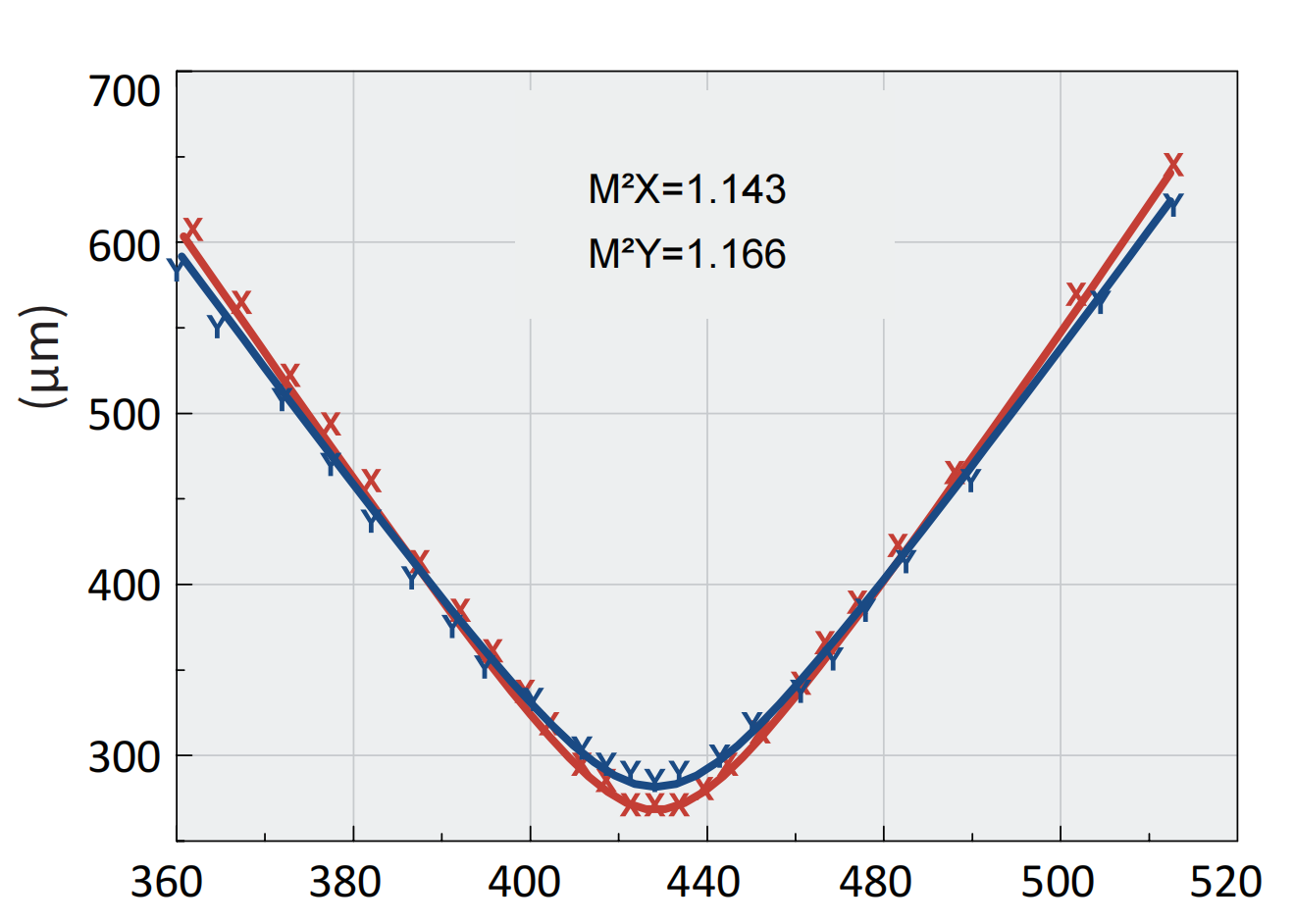

Beam quality: M²≤1.3
Beam ellipticity: ≥90%
Beam diameter: 3±1mm @30cm
Burst: 1-10
Polarization property: Vertically polarized
Divergence angle: ≤1mrad

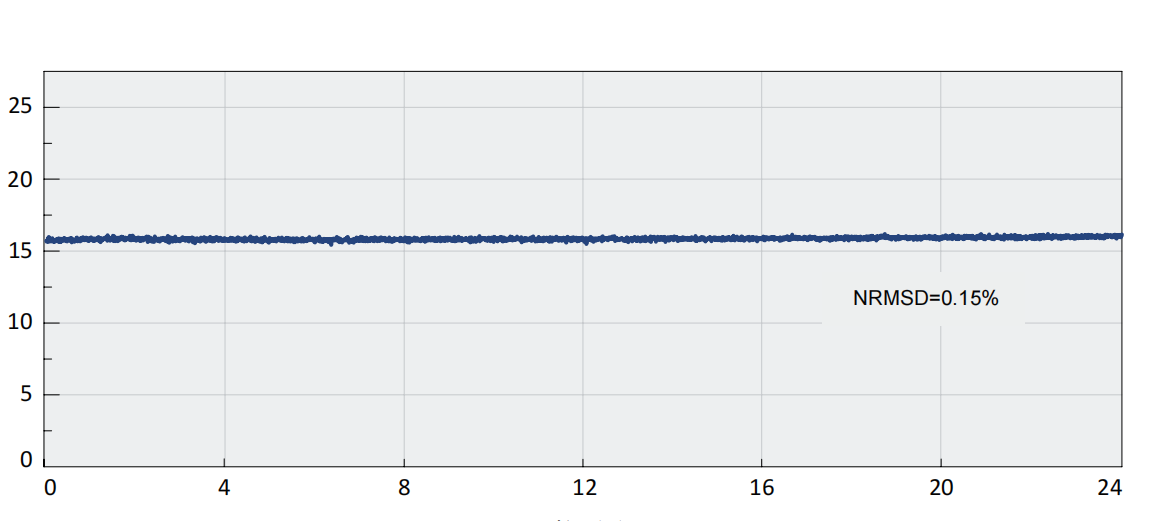

Power stability: ≤1%RMS (24h)
Energy stability: ≤1%RMS (24h)
Cooling requirement: 23±0.1℃
Directivity: <25μrad (24h)
Operating mode: Internal control; frequency division; External control: Trigger/Gate
Temperature: 15-30℃
Humidity: ≤60%
