Description
30W 976nm CW Fiber Coupled Diode Pump Laser Module
- Applicable Industries: Machinery Repair Shops
- Wavelength:976nm
- power:30w
- Laser type:diode laser
- fiber core:105um
- Numerical Aperture:0.22NA
- Connector:SMA905,ST,FC
- Application1:medical
- Application2:pumping laser
- Application3:laser marking
30W 976nm multi-mode fiber coupled diode laser modules with Jenoptik bars
Feature:
fiber core 105um and 0.22NA Numerical Aperture
Connector: SMA905 or ST or FC
Jenoptik bars
High Reliability and high power
Item No.: FC976DL30
Item Name: 30W 976nm Fiber Coupled Diode Laser
Optical
Center Wavelength λ: 976±5nm
Output Power :30W
Working Mode: CW
Spectral Width FWHM: 4nm
>90% Power :0.15NA
Slope Efficiency: 2.7W/A
Fiber
Fiber Bend Radius :>60mm
Fiber Length :1m
Fiber Core :105um
Fiber Numerical Aperture :0.22NA

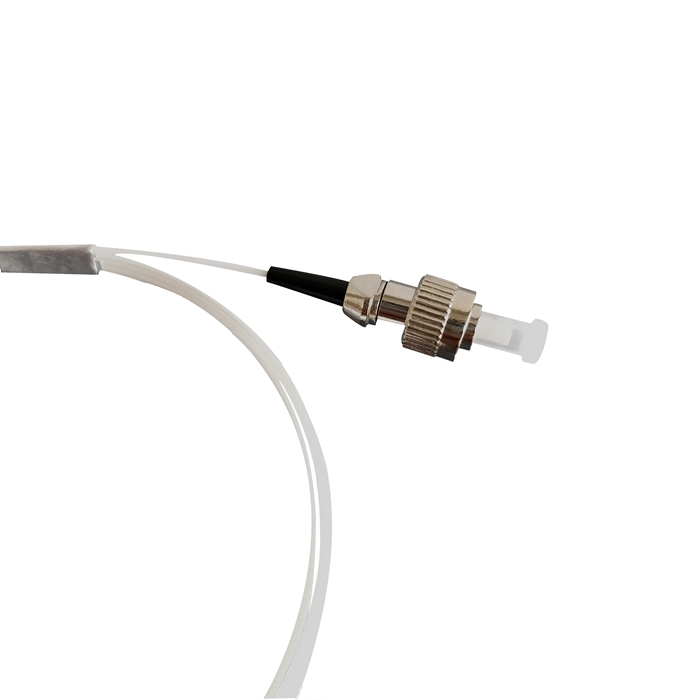

Fiber Connector :SMA905
Electrical
Operating Current Iop: 11.5A
Threshold Current Ith: 0.9A
Operating Voltage Vop :5.6V
Power Conversion Efficiency :45%
Thermal
Operating Temperature (Non-Condensing): 15~55℃
Storage Temperature (Non-Condensing): -30-70℃
Wavelength Temperature Coefficient :~0.3nm/℃
