Description

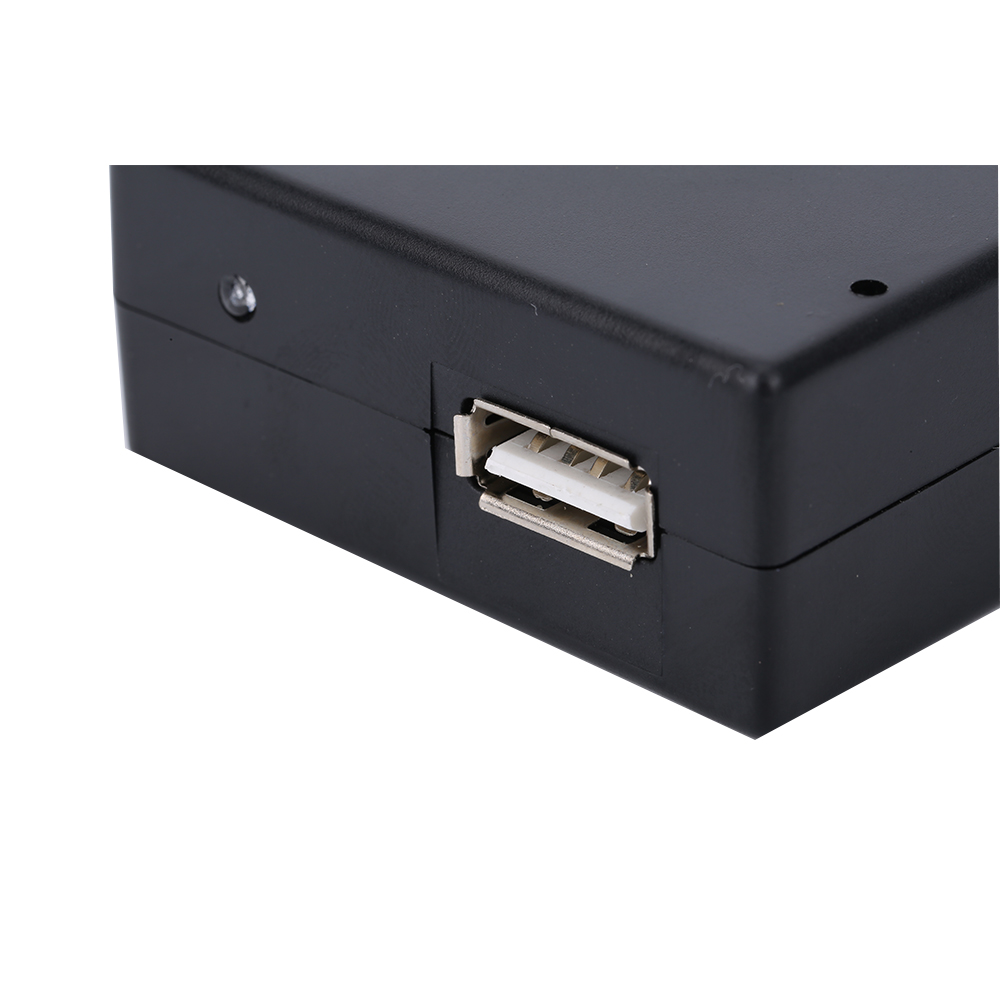

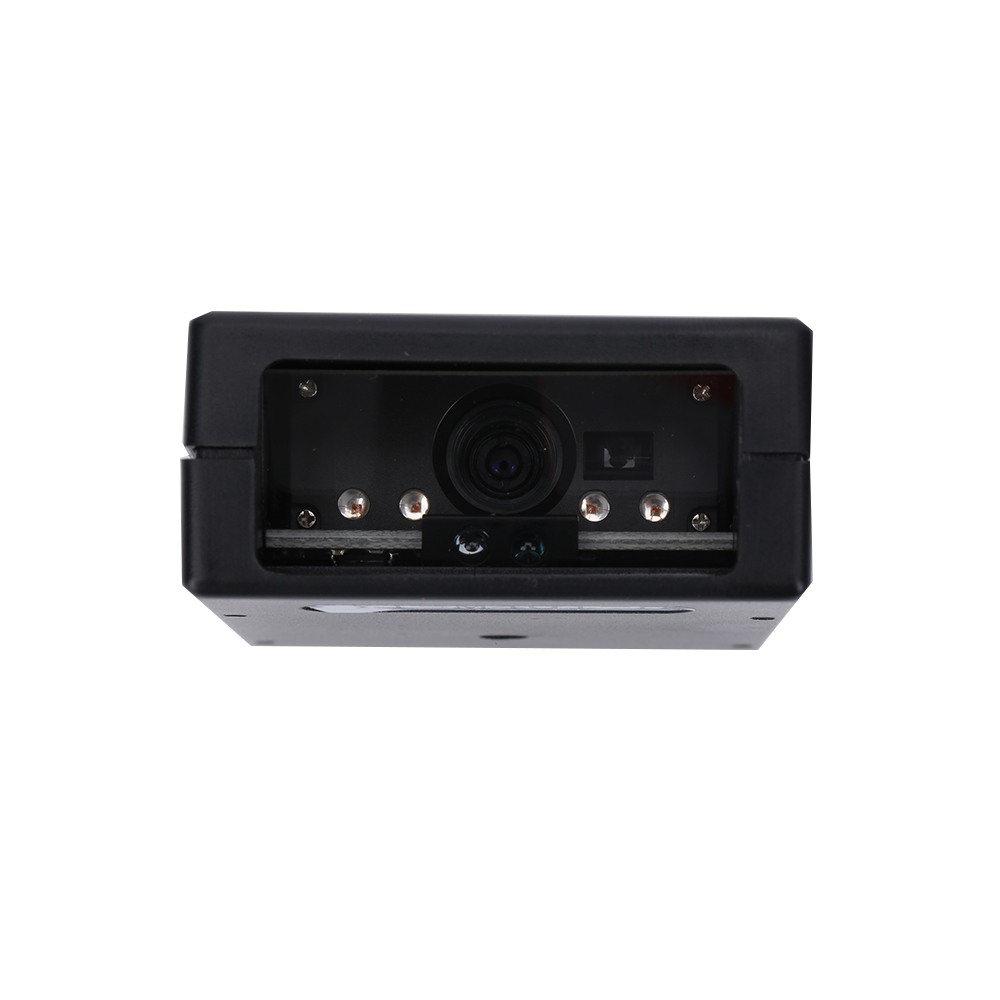

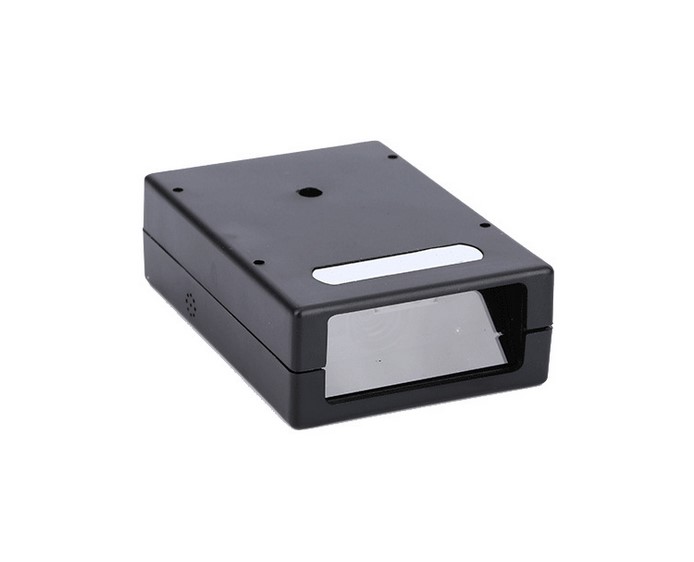

2D Wired Laser Module Barcode Reader with Visible red light diode
Main Feature:
1. Use replaceable cables for PowerLink users
2. Fixed on the wall or check counter
3. Customize the depth-of-field according to different circumstance
4. Edit the barcode data to meet the requirements of the users
5. Multiple beeper tonesthe all-time, best-selling hands-free omnidirectional barcode scanner presents an innovative, elegant and affordable solution to
convenience retail applications where counter space is at a premium.For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.
|
Technical Parameters |
|
|
Light source |
620nm Visible red light diode |
|
Wave length |
650nm |
|
Scan mode |
20-line scanning |
|
Scan speed |
1500times/sec |
|
Scan distance |
150-200mm |
|
Resolution |
30 million pixels |
|
Decoding capability |
1D 2D
|
|
Interface |
USB,RS232, |
|
Indicator |
Siren and LED light |
|
Beeper Operation |
CMOS |
|
Physical parameter |
L*W*H: 72mm*55mm*25mm;Weight:3.7g |
|
Material |
ABS+PC |
|
Electrical parameter |
Voltage: 5V; Electric current: 200mA; Power: 1.0 Watts |
|
Laser safety |
CDRH Class IIa: IEC 60825-1: Class I |
|
EMC |
CE & FCC DOC compliance |
|
Environmental parameter |
Operating temperature: 0°C-50°C Storage temperature: -40°C-60°C Humidity: relative humidity 0%-95%(non-condensing) IP Rating:IP52 |

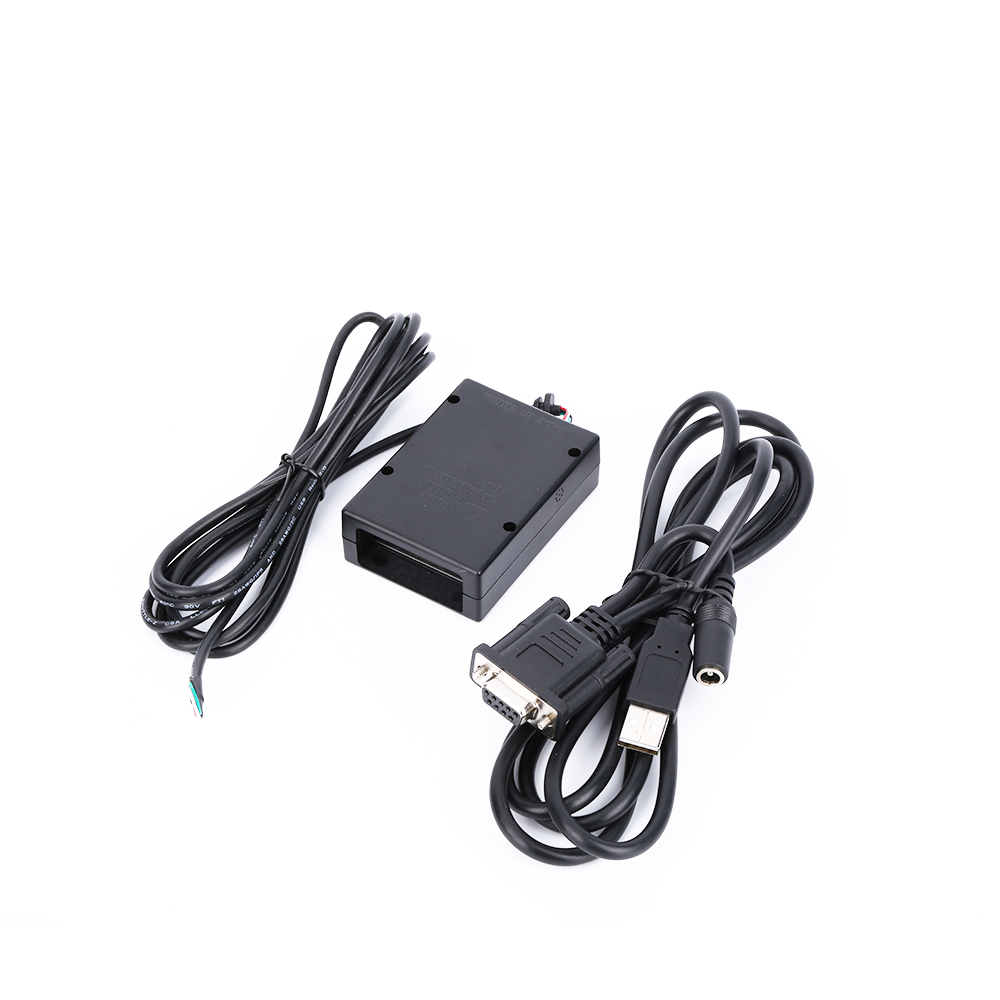

1. USB Cable :
2. RS232 Cable:
