Description
- Brand Name: easyelec
- Origin: CN(Origin)
- Certification: CE
- Model Number: 25W/50W/100W
25W 50W 100W High Power rheostat,rotary variable wire wound resistor,high quality,disc shape,adjustable resistor
|
Electrical characteristics |
|
|
Range of nominal resistance |
1Ω-5KΩ |
|
Resistance tolerance |
±10% |
|
Insulation resistance |
≥100mΩ（500Vdc） |
|
Max heating temperatur |
350℃ |
|
Total mechanical travle |
300°±10° |
|

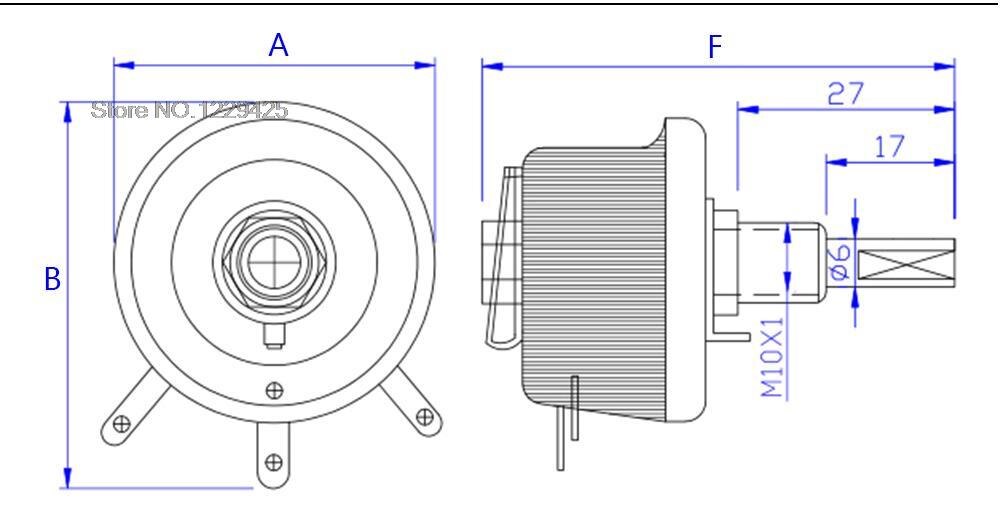

Rated power |
A |
B |
F |
|
25W |
40 |
45 |
60 |
|
50W |
62 |
70 |
65 |
|
100W |
82 |
91 |
65 |
|
150W |
102 |
110 |
75 |
|
300W |
150 |
170 |
110 |
|
500W |
200 |
190 |
110 |
