250W 915nm QCW or CW High Power Fiber Coupled Laser Diode Module

$330.00

Certification: CE Origin: CN(Origin) Specification Optical 915Center Wavelength 915nm Wavelength Tolerance ±10nm Output Power  250W Spectral Width FWHM 6nm >90% Power 0.18NA Duty Circle 10% Fiber Fiber Bend Radius >60mm Fiber Core/Cladding/Buffer Diameter  135um/155um/320um Fiber Numerical Aperture  0.22NA Fiber Length 1.5m Fiber Connector Bare Electrical Operating Current Iop 25~26A Threshold Current Ith 1.1A Operating Voltage Vop 25~26V…

999 in stock

SKU: 1005004108693780
Category:

Description

  • Certification: CE
  • Origin: CN(Origin)

Specification
Optical
915Center Wavelength
915nm
Wavelength Tolerance
±10nm
Output Power
250W
Spectral Width FWHM
6nm
>90% Power
0.18NA
Duty Circle
10%
Fiber
Fiber Bend Radius
>60mm
Fiber Core/Cladding/Buffer Diameter
 135um/155um/320um
Fiber Numerical Aperture
 0.22NA
Fiber Length
1.5m
Fiber Connector
Bare
Electrical
Operating Current Iop
25~26A
Threshold Current Ith
1.1A
Operating Voltage Vop
25~26V
Power Conversion Efficiency
48%
Thermal
Operating Temperature
15~35℃
Storage Temperature
-20-55℃
Wavelength Temperature Coefficient
~0.35nm/℃

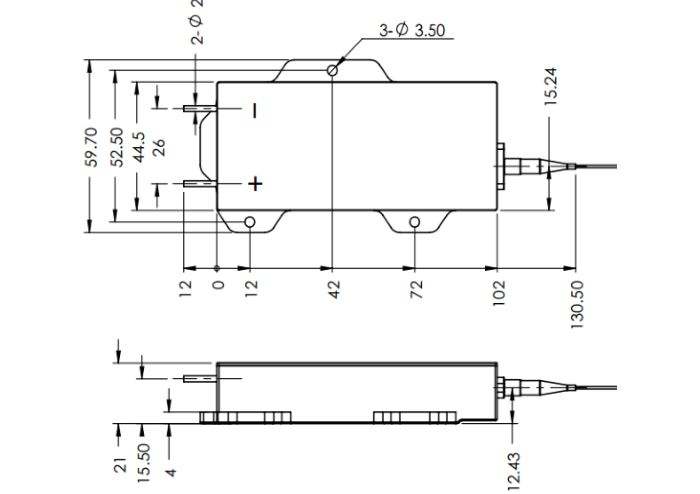

Drawing
