20W30W/40W Laser Module Kit Laser Head 450nm TTL Module for NEJE Laser Engraver Wood Cutting Tool

N40640 40W Double beam Laser Moudle Feature：

– Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
– 15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
– More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
– slidable mounting fixture is provided for easy adjustment of focus.

40W General Specification:
Model：NEJE Module 40W
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum /Stainless Steel
Technical Parameters：
Module Input：30-40W
Optical power output：15W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3-4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES

Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
6. This laser module is compatible with our NEJE Master 2 Plus and Master 2 Max machine .
7. It can also be compatible with other cnc equipment, such as 3d printers, CNC MIlling, etc., but you need to master a certain knowledge of pwm waveform control.

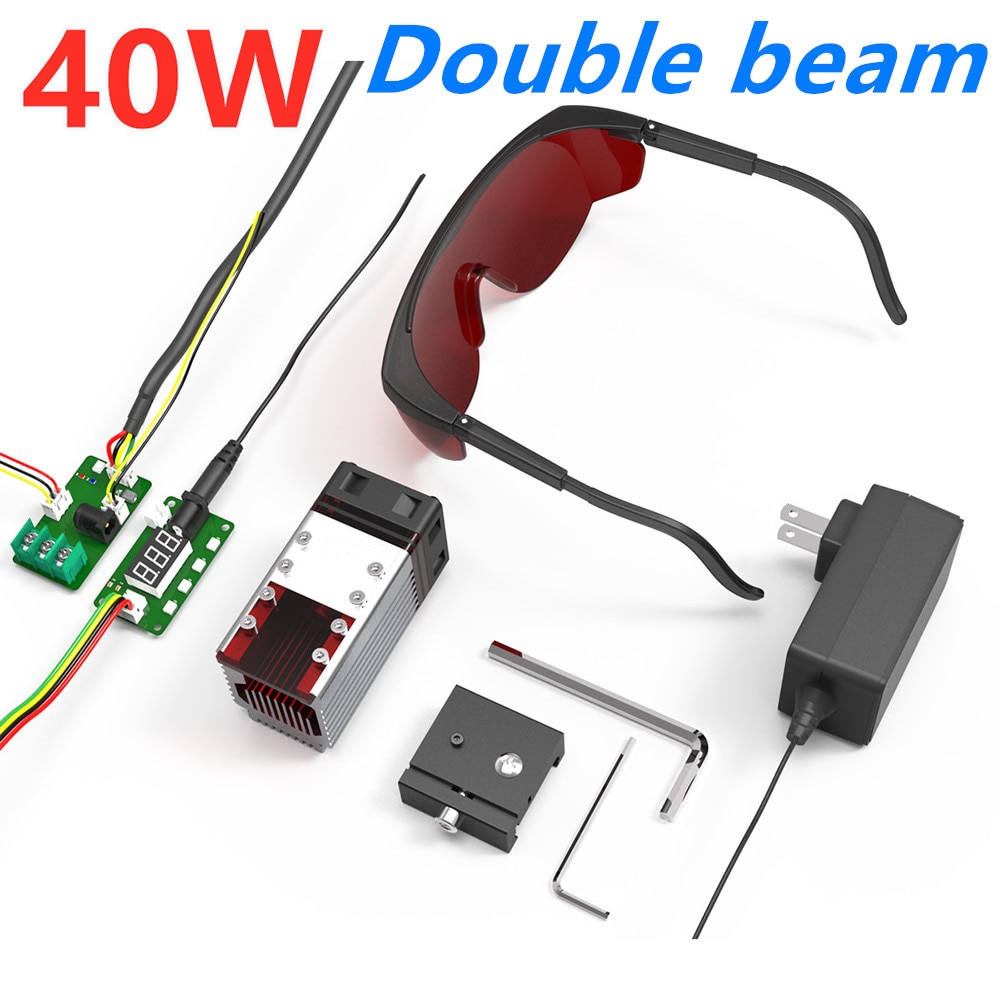

40W Laser Module Kits Package Included:
1 x 40W Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable
1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 x 12V4A UL Certified Power Adapter (UP to 50W)
1 x Euro adapter or Us adapter
1 x goggles
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench

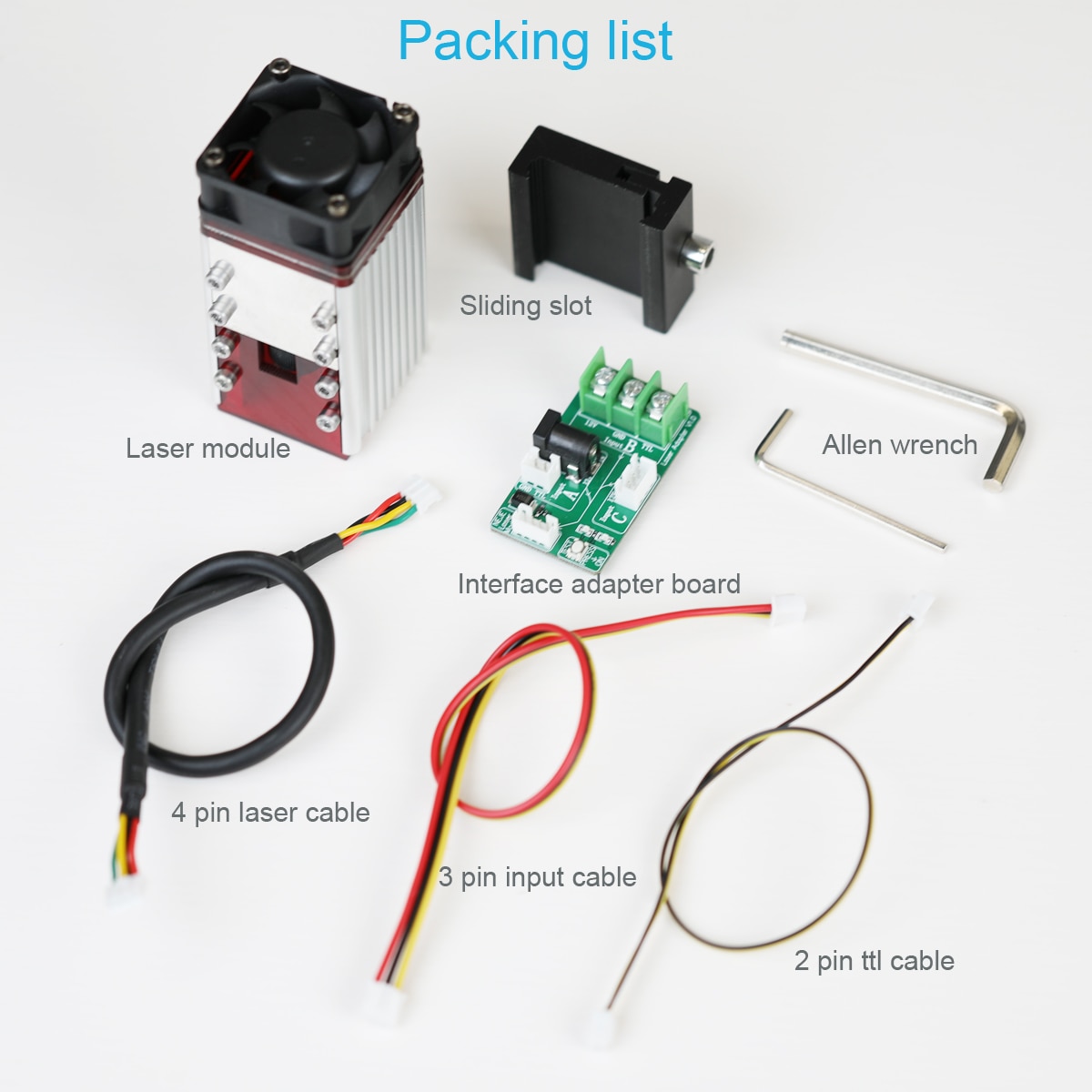

interface adapter board List

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x interface adapter board
1 x 4pin laser line
1 x 3pin 2.54 interface output cable
1 x 2pin TTL control line

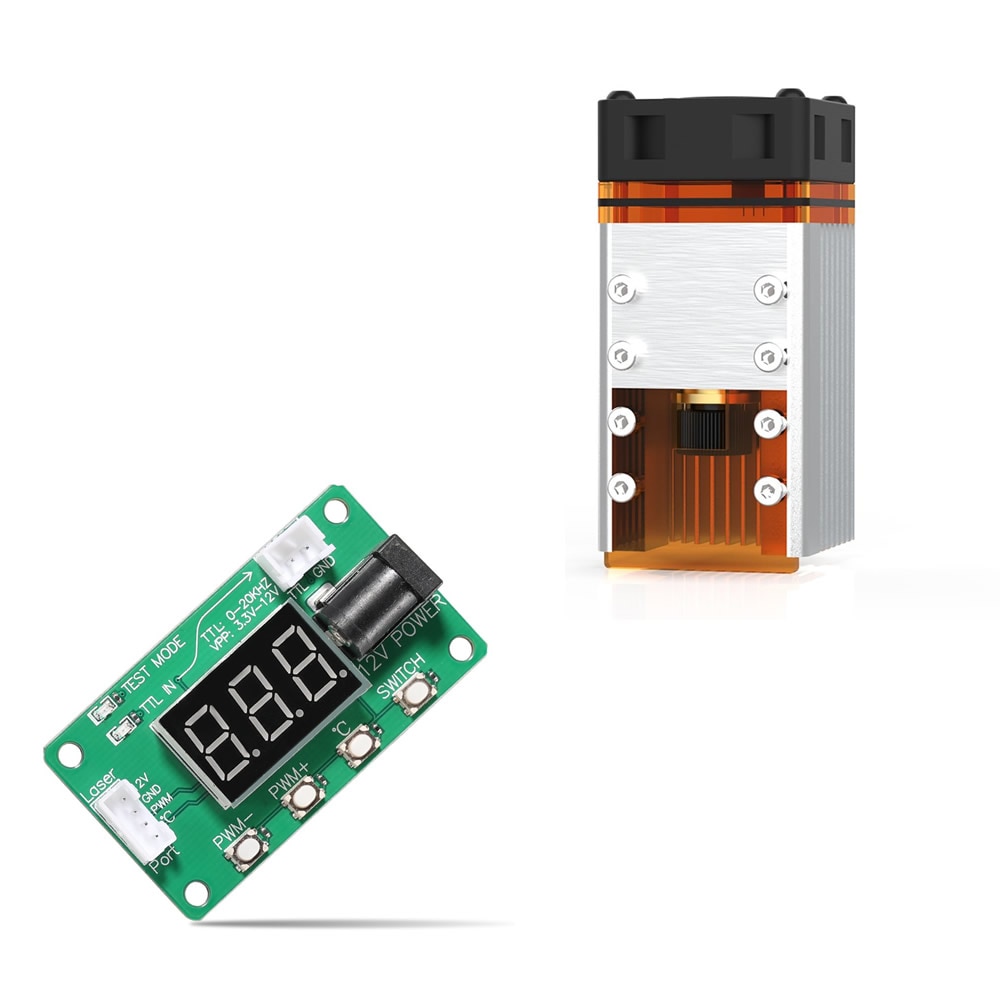

digital tube display test board List

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x digital tube display test board
1 x 4pin laser line
1 x 2pin TTL control line

all of above + 12v power adapter + goggles

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x interface adapter board
1 x digital tube display test board
1 x 4pin laser line
1 x 2pin TTL control line
1 x 12V power adapter
1 x goggles

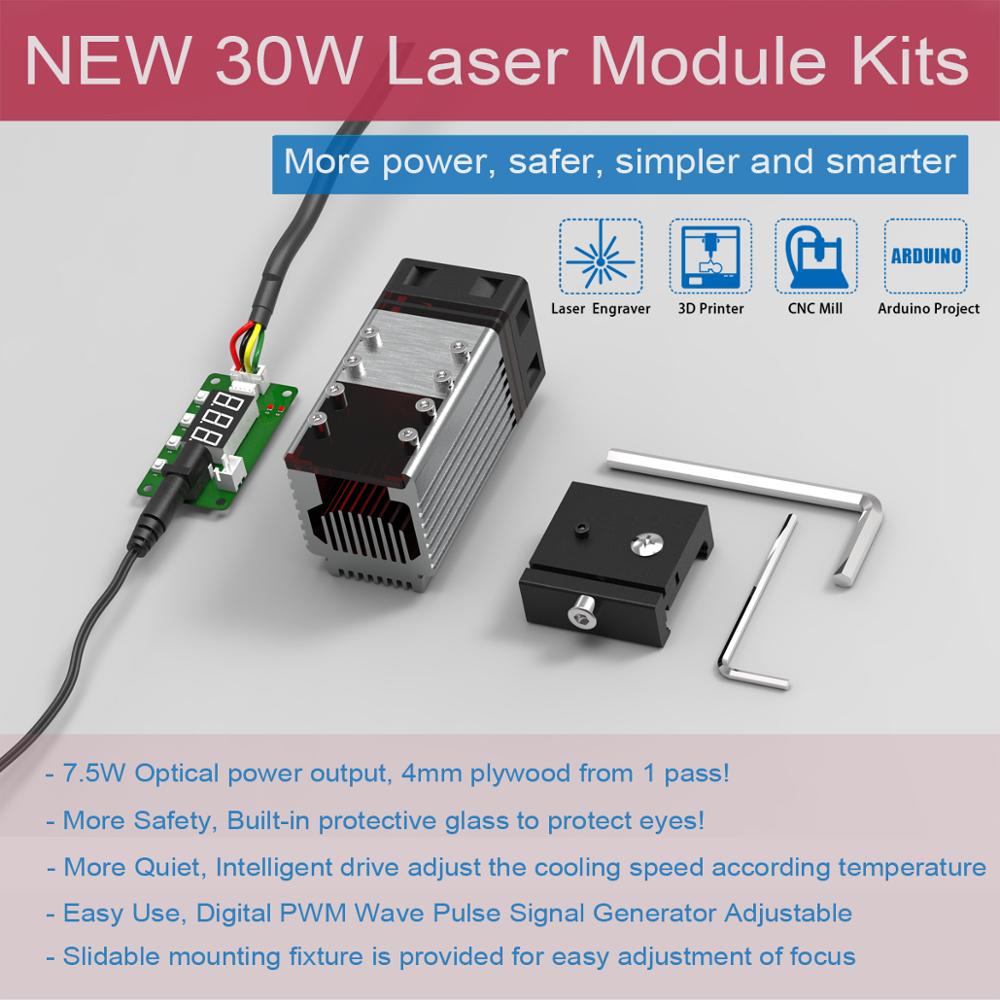

N40630 30W Laser Moudle Feature：

– Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
– 7.5W Optical power output, 4mm plywood from 1 pass(speed 100), Able to engrave stainless steel, but it needs good focus adjustment.
– More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

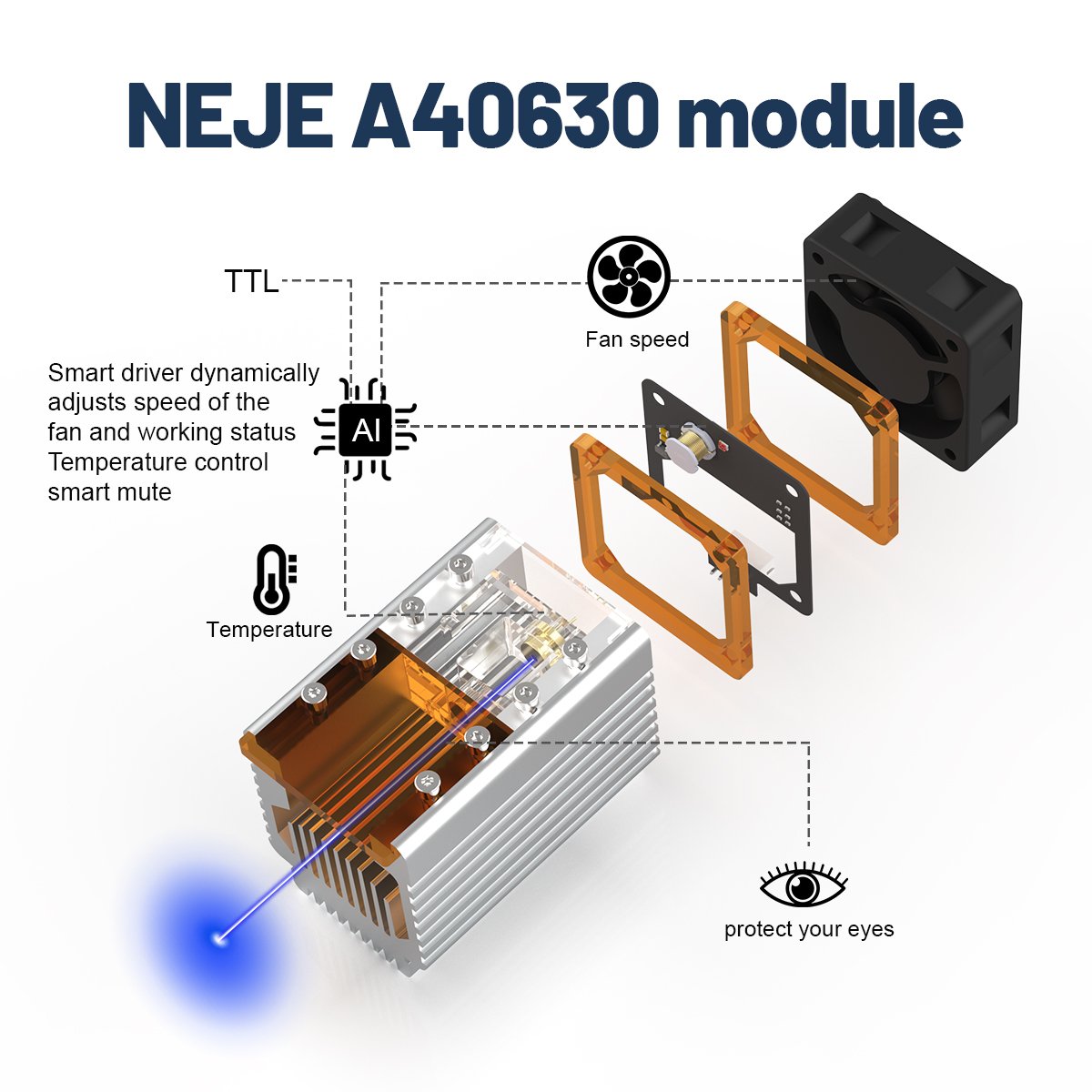

– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
– slidable mounting fixture is provided for easy adjustment of focus.

N40630 30W General Specification:
Model：NEJE Module 30W
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：20-30W
Optical power output：7.5W (7500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours

1.N40630 30W General Specification:

30W Laser Module small Kits Package Included:
1 x 30W Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(300mm Sports Cable)
1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
(This kit does not include 12V3A power supply and goggles)

2.N40630 30W General Specification:

Package Included:
1 x 30W Laser Engraving Module
1 x Laser Module Sliding slot
1 x 4 Pin Cable(300mm Cable)
1 x NEJE
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x 3pin input calbe
1 x 2pin ttl cable

3.N40630 30W General Specification:

Package Included:
1 x 30W Laser Engraving Module
1 x Laser Module Sliding slot
1 x 4 Pin Cable(300mm Cable)
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench

4.N40630 30W General Specification:

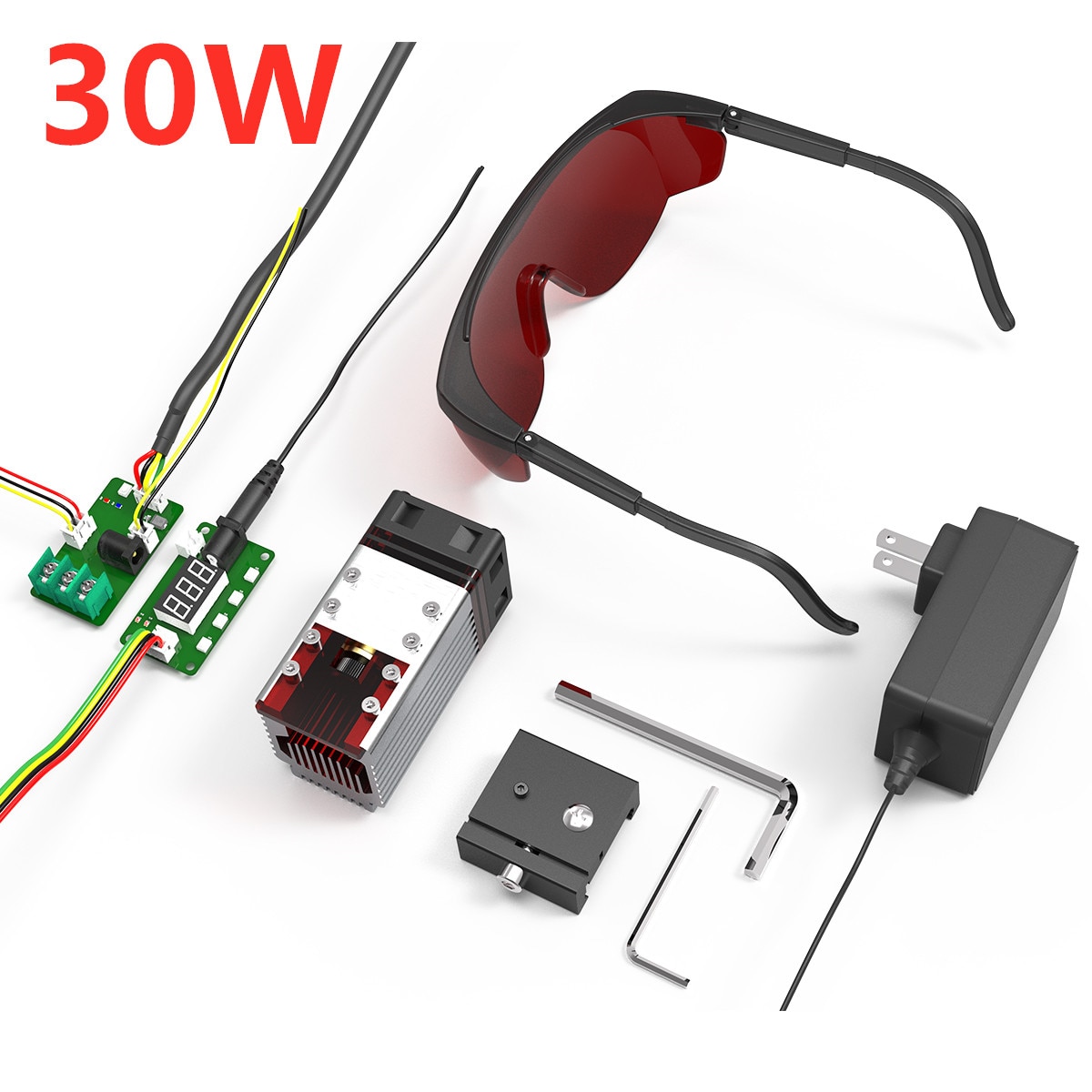

30W Laser Module Kits Package Included:
1 x 30W Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable
1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 x 12V3A UL Certified Power Adapter (UP to 50W)
1 x Euro adapter
1 x goggles
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench

5.F30130 30W General Specification:

Package Included:
1 x 30W Laser Engraving Module
1 x Laser Module Sliding slot
1 x 4 Pin Cable(300mm Cable)
1 x NEJE
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x 3pin input calbe
1 x 2pin ttl cable
