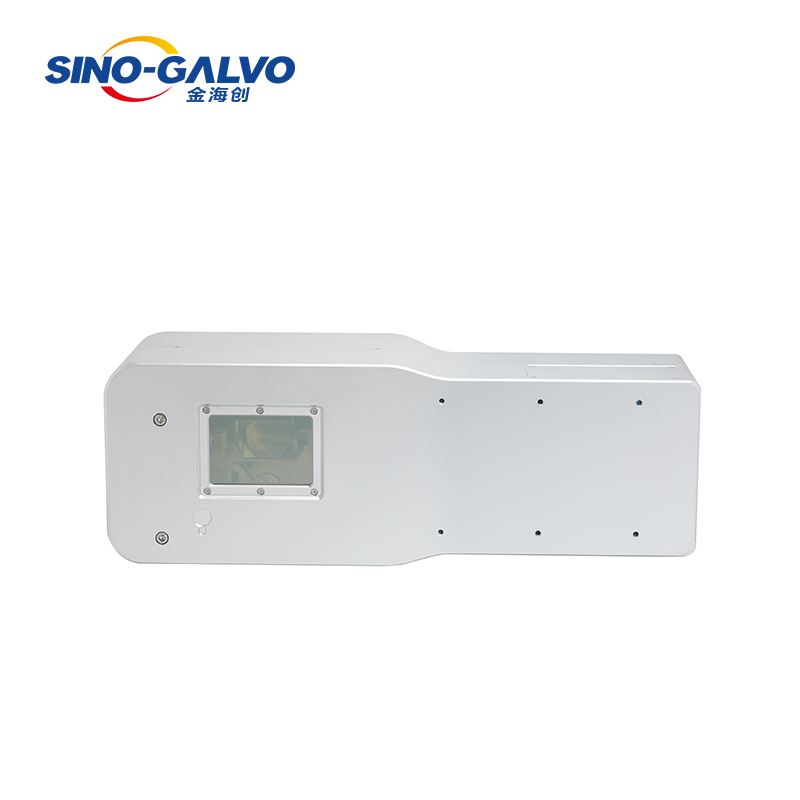

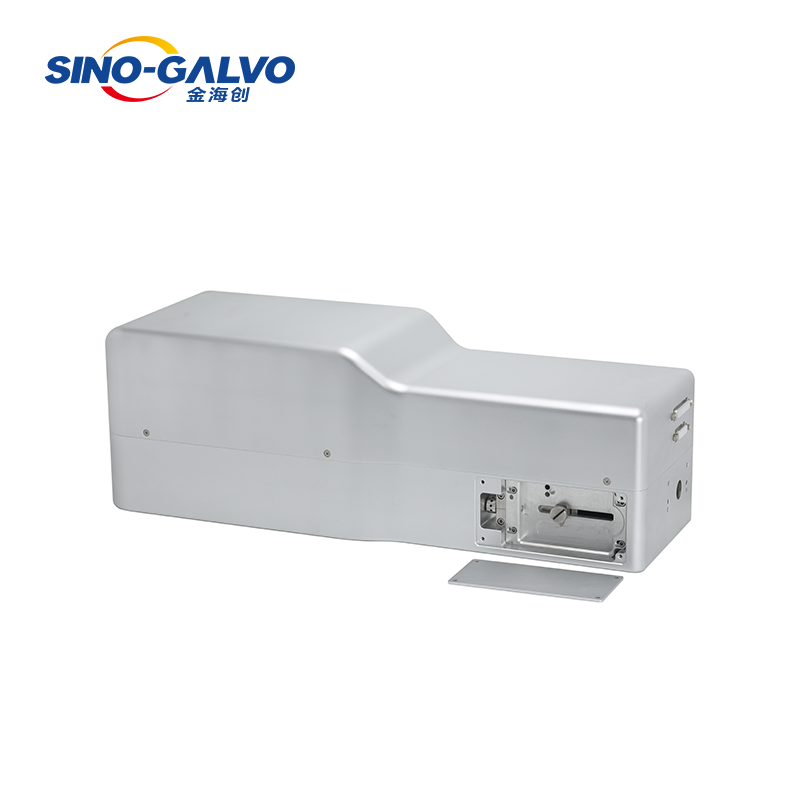

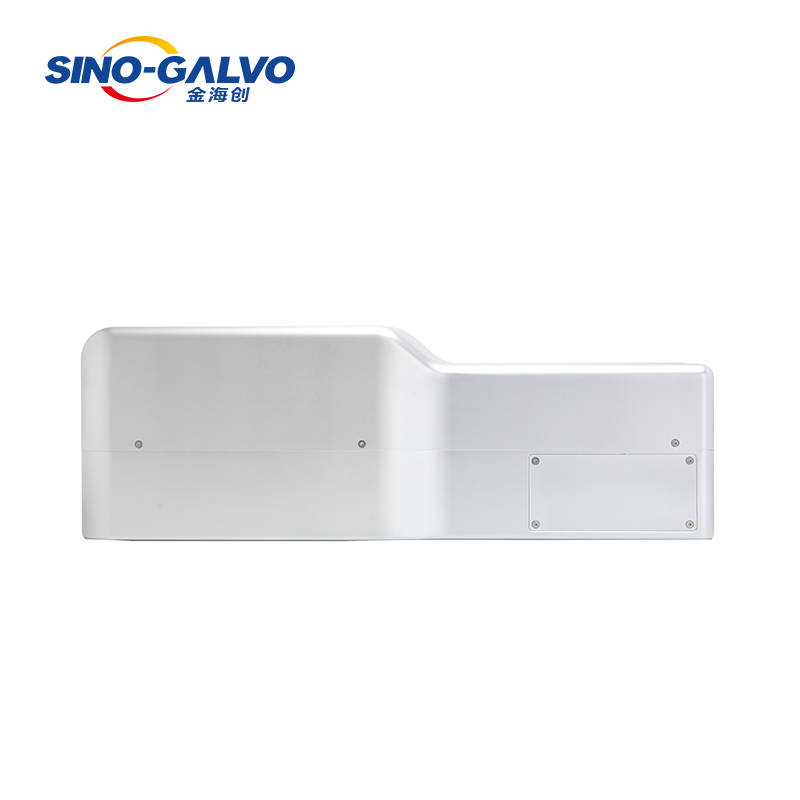

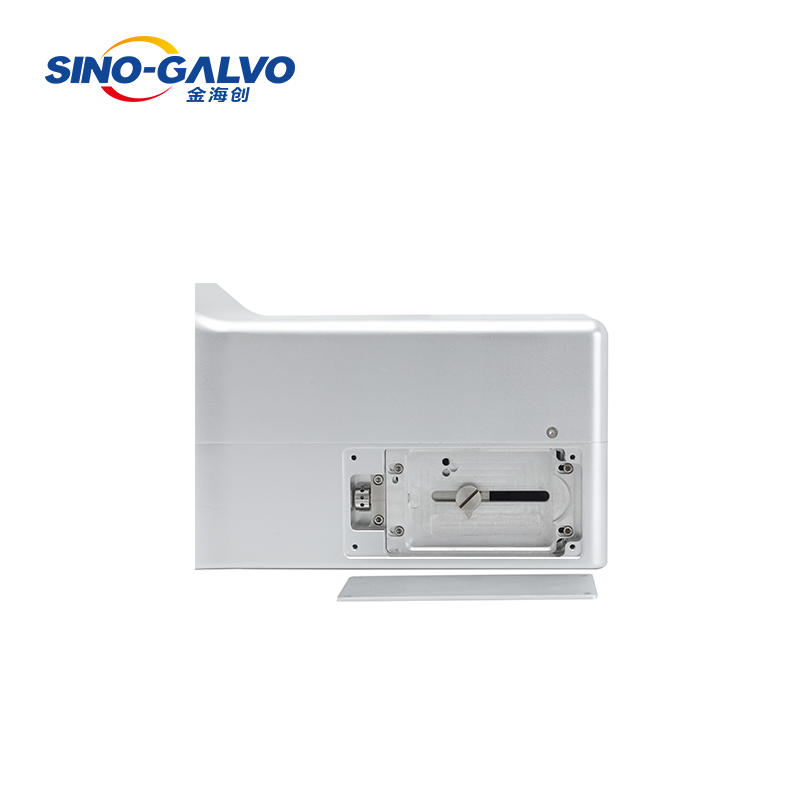

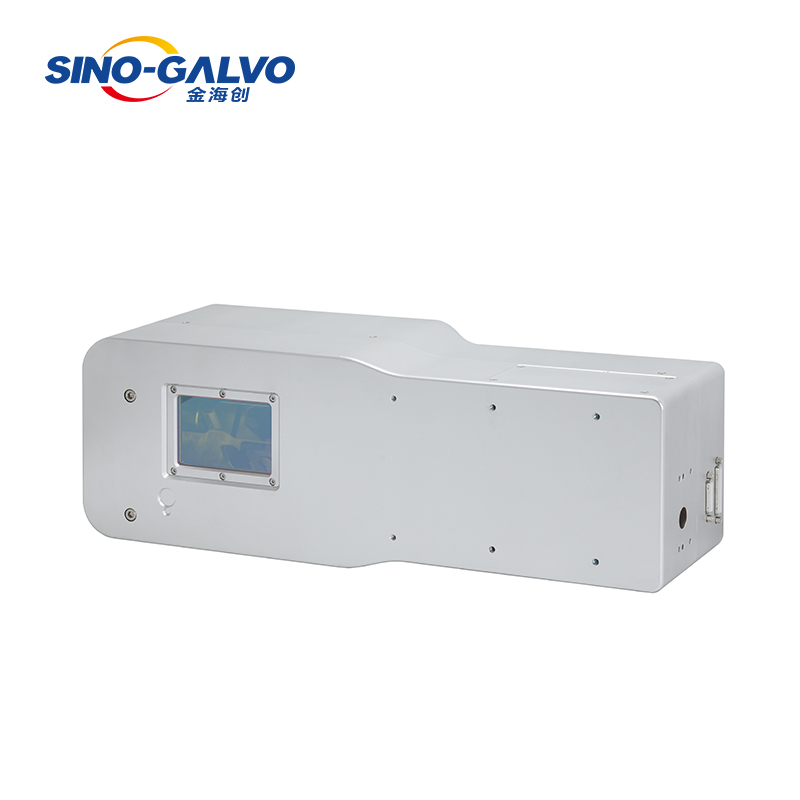

2019 new co2 glass tube BL8230-3D-800 co2 galvanometer scanner head for 3D laser marking large area

$6,305.00

2019 new co2 glass tube BL8230-3D-800 co2 galvanometer scanner head for 3D laser marking large area Product Description We can offer all the following products: Motor Specification Working Temperature 0-45℃ Linearity 99.9% Setting Time ≤1ms Scale Drift <40PPM/℃ Zero Drift <15μRad./℃ Long-term Drift Over 8 Hours <0.5mRad RMS Current 3.5A Peak Current 20A(Max) Maximum Scan…

SKU: 3482043018651
Category:

Description

2019 new co2 glass tube BL8230-3D-800 co2 galvanometer scanner head for 3D laser marking large area

Product Description
We can offer all the following products:

Motor Specification

Working Temperature

0-45℃

Linearity

99.9%

Setting Time

≤1ms

Scale Drift

<40PPM/℃

Zero Drift

<15μRad./℃

Long-term Drift Over 8 Hours

<0.5mRad

RMS Current

3.5A

Peak Current

20A(Max)

Maximum Scan Angle

±15°

Storage Temperature

-10 to +60℃

Resolution

12μrad

Repeatability

8μrad

Input Aperture

5-7mm

Beam Displacement

       20mm

Motor Weight

8.3g

Frequency

≤500Hz




Additional information

Model Number

BL8230-3D-800 for glass tube lasre source
