1Piece SLD3135VLR 405nm 15mW 20mW Blue Violet Laser Diode TO-38 3.8mm Monitor PD Inside M-Type for Blu-ray Disc Original LD

$17.39

Brand Name: ZRHF Certification: RoHS Origin: CN(Origin) Item Type: Stage Lighting Effect Light Output: 15mW Operating Voltage: 4.6V Operating Current: 32mA Monitor Current: 0.3mA Features 1. Absolute maximum ratings：20mW (CW) 2. TO-38 (Φ3.8mm) package 3. Operating Temperature:0 to +80℃ Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:405nm Typ. Optical Output:15mW Threshold Current:23mA Operating Current:32mA Slope Efficiency:1.6mW/mA Operating Voltage:4.6V Monitor Current:0.3mA Beam Divergence(FWHM) Parallel:9.0deg Perpendicular:21.5deg External…

500 in stock

SKU: 1005002087176240
Category:

Description

  • Brand Name: ZRHF
  • Certification: RoHS
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Light Output: 15mW
  • Operating Voltage: 4.6V
  • Operating Current: 32mA
  • Monitor Current: 0.3mA

Features

1. Absolute maximum ratings：20mW (CW)
2. TO-38 (Φ3.8mm) package
3. Operating Temperature:0 to +80℃

Electrical and Optical Characteristics(Tc=25℃)

Lasing Wavelength:405nm Typ.
Optical Output:15mW
Threshold Current:23mA
Operating Current:32mA
Slope Efficiency:1.6mW/mA
Operating Voltage:4.6V
Monitor Current:0.3mA

Beam Divergence(FWHM)
Parallel:9.0deg
Perpendicular:21.5deg

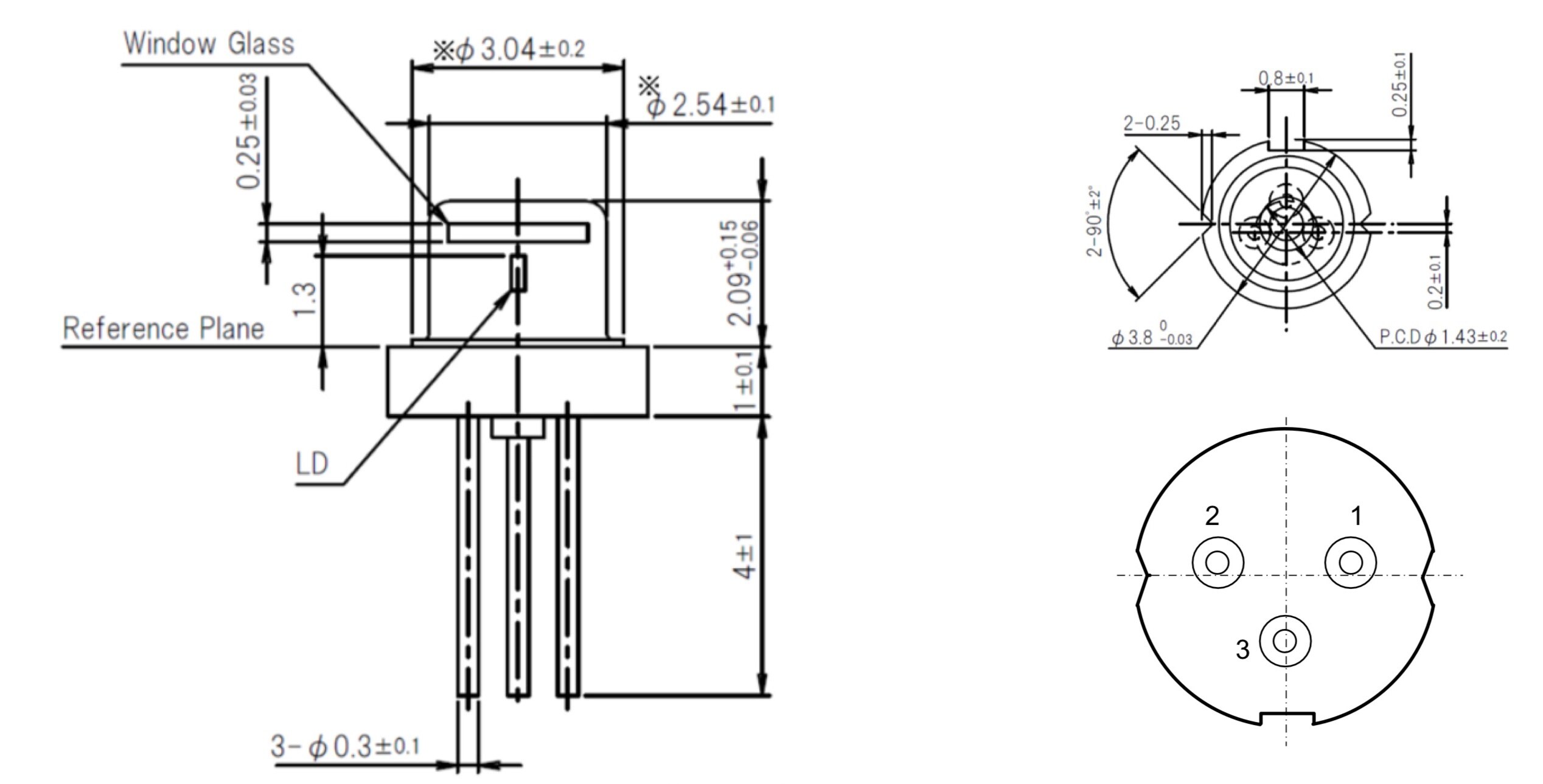

External dimensions(Unit : mm)

Pin Description

Pin1 LD Anode
Pin2 PD Anode
Pin3 LD Cathode,PD Cathode(case)
